◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#17779) — 60 parça

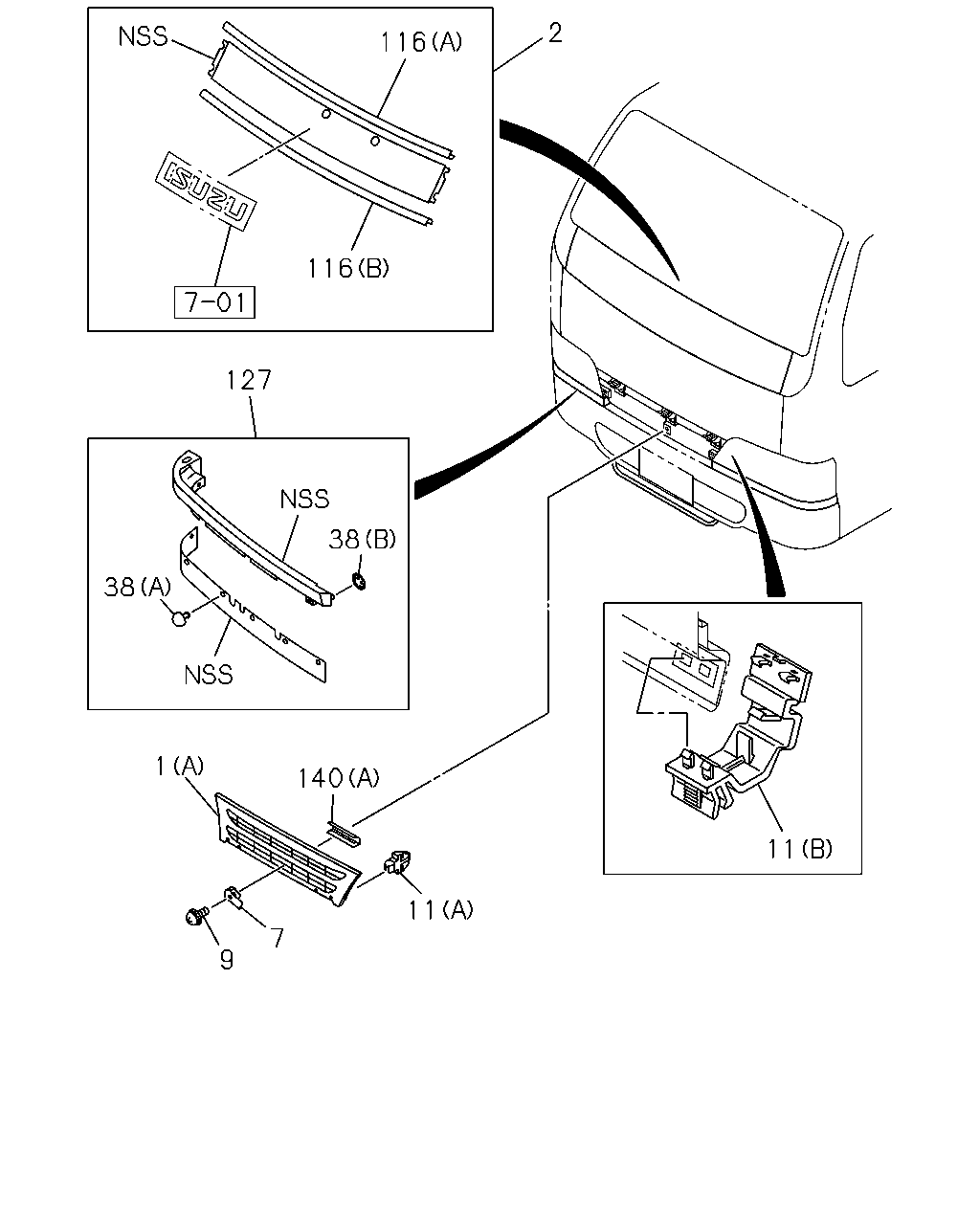

çizim 56757
2 116 116 127 38 38 1 140 11 11 7 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97891-681-1 01 1 0303-0511 ● ● ●
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-826-2 01 1 0512- ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97583-047-4 01 1 0512- ● ● ●
1 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97583-050-4 01 1 0512- ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97583-048-4 01 1 0512- ● ● ●
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-328-3 01 1 0303-0511 ● ● ●
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-951-2 01 1 0512- ● ● ●
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-464-3 01 1 0303-0511 ● ● ●
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-680-5 01 1 0512- ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 0303-0505 ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING SOU 		8-94321-767-1 01 1 0303-0805 ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0303- ● ● ●
11 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE 		8-97892-730-0 02 1 0303-0511 ● ● ●
11 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0512- ● ● ●
38 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0303-0511 ● ● ●
38 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0303-0511 ● ● ●
116 MOLDING; ORNAMENT GRILLE
(B) SOU 		8-97853-098-4 01 1 0303-0511 ● ● ●
116 MOLDING; ORNAMENT GRILLE
(A) SOU 		8-97853-096-2 01 1 0303-0511 ● ● ●
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-656-1 01 1 0512- ● ● ●
127 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0303-0511 ● ● ●
127 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0303-0511 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0303-0511 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0303-0511 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0303-0511 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0303-0511 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0303-0511 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0303-0511 ● ● ●
140 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0512- ● ● ●
140 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97088-561-3 01 1 0303-0511 ● ● ●
140 SEAL; RAD GRILLE
(C) SOU 		8-97581-665-0 01 1 0512- ● ● ●

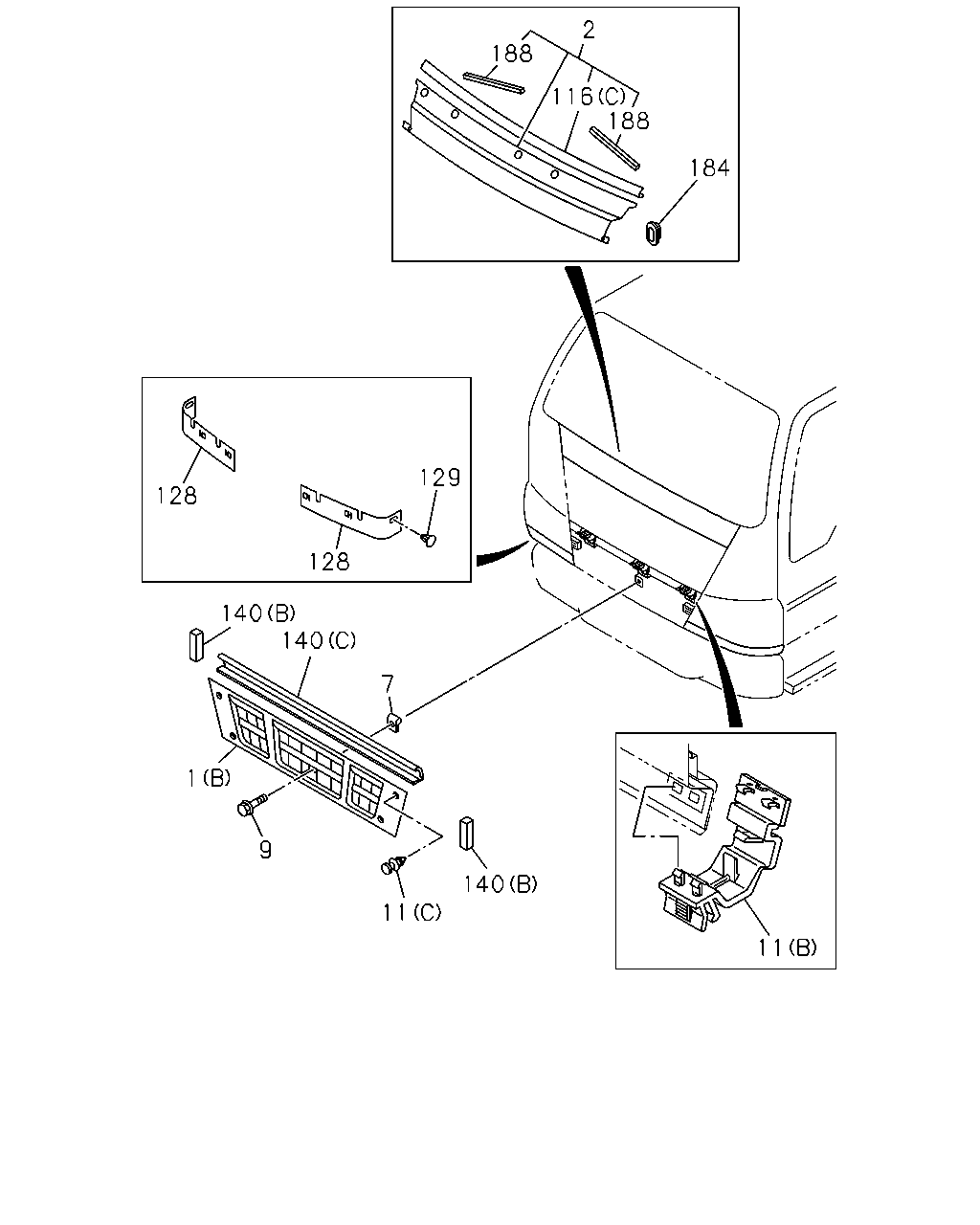

çizim 56867
2 188 116 188 184 129 128 128 140 140 7 1 9 140 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97891-681-1 01 1 0303-0511 ● ● ●
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-826-2 01 1 0512- ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97583-047-4 01 1 0512- ● ● ●
1 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97583-050-4 01 1 0512- ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97583-048-4 01 1 0512- ● ● ●
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-328-3 01 1 0303-0511 ● ● ●
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-951-2 01 1 0512- ● ● ●
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-464-3 01 1 0303-0511 ● ● ●
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-680-5 01 1 0512- ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 0303-0505 ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING SOU 		8-94321-767-1 01 1 0303-0805 ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0303- ● ● ●
11 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE 		8-97892-730-0 02 1 0303-0511 ● ● ●
11 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0512- ● ● ●
116 MOLDING; ORNAMENT GRILLE
(B) SOU 		8-97853-098-4 01 1 0303-0511 ● ● ●
116 MOLDING; ORNAMENT GRILLE
(A) SOU 		8-97853-096-2 01 1 0303-0511 ● ● ●
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-656-1 01 1 0512- ● ● ●
128 COVER; HEADLAMP GRILLE
4HF1 ENG(RLS) 		8-97581-653-3 02 1 0512- ● ●
128 COVER; HEADLAMP GRILLE
4HK1-TCS ENG(RJS) 		8-98015-934-0 02 1 0512- ●
129 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0512- ● ● ●
140 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0512- ● ● ●
140 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97088-561-3 01 1 0303-0511 ● ● ●
140 SEAL; RAD GRILLE
(C) SOU 		8-97581-665-0 01 1 0512- ● ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 03 1 0512-0602 ● ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603- ● ● ●
188 SEAL; ORNAMENT 8-97584-800-0 02 1 0512- ● ● ●
