Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

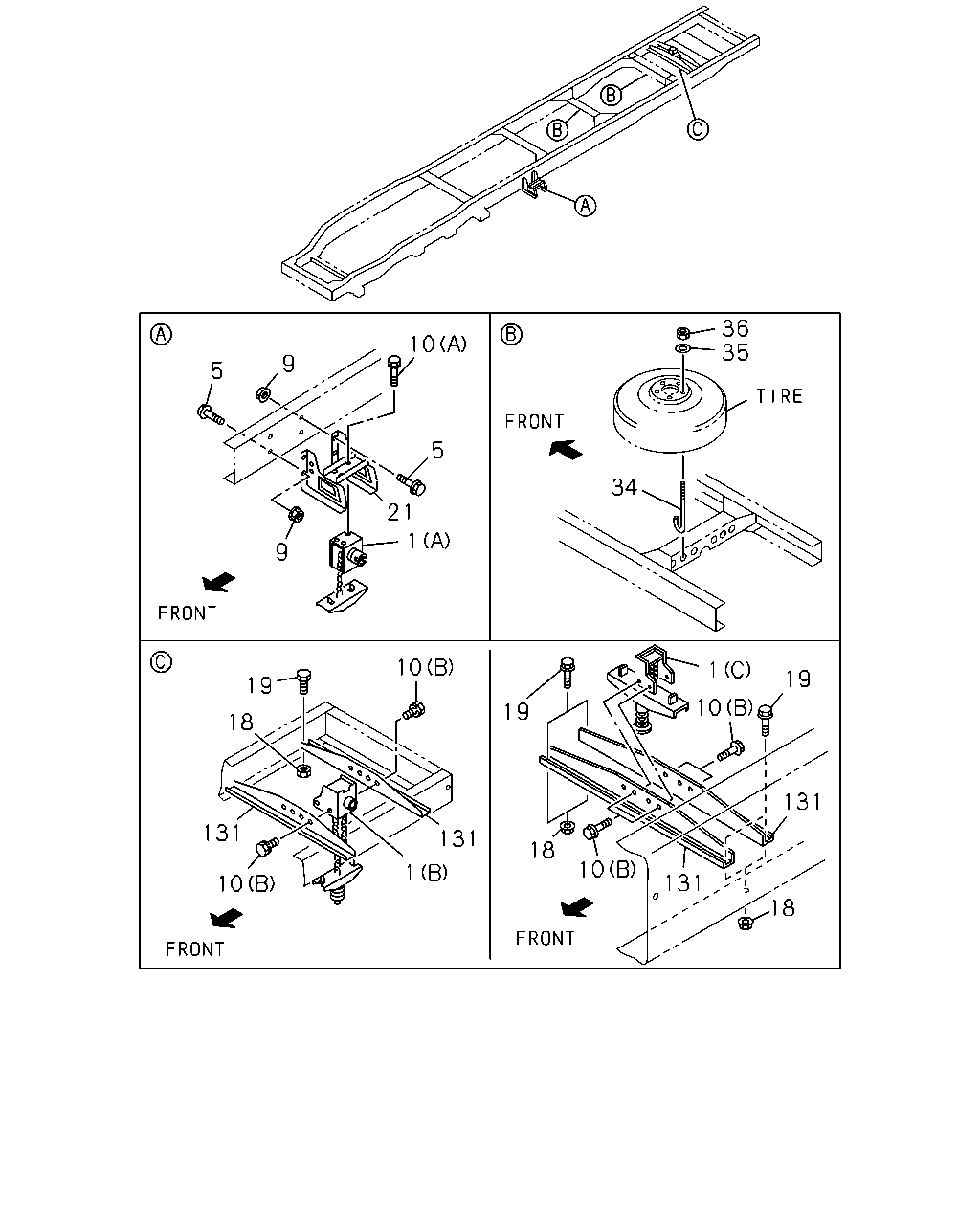

5-30 — SPARE TIRE CARRIER AND COVER
(#17777) — 30 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
D - NPC5JN
36
35
10
9
5
5
34
21
1
9
10
1
19
19
10
19
18
131
131
131
131
18
10
1
10
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV) (B) REAR
8-97174-769-0
01
1
0303-
●
1
HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX) (C) REAR
1-53630-188-3
01
1
0303-
●
1
HANGER ASM; TIRE FT
(C) REAR
1-53630-188-3
01
1
0303-
●
1
HANGER ASM; TIRE FT
(A) FRONT
8-97010-955-1
01
1
0303-0511
●
1
HANGER ASM; TIRE FT
(A) FRONT
8-97010-955-1
01
1
0512-
●
●
5
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28681-030-0
04
1
0303-0511
●
5
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28681-030-0
04
1
0512-0512
●
●
5
BOLT; BRKT TO FRAME
M10X30 FLANGE SOU
0-28651-030-0
04
1
0601-
●
●
9
NUT; BRKT TO FRAME
M10 FLANGE SOU
0-91150-110-0
04
1
0303-0511
●
9
NUT; BRKT TO FRAME
M10 FLANGE SOU
0-91150-110-0
04
1
0512-0602
●
●
9
NUT; BRKT TO FRAME
M10 FLANGE SOU
0-91180-110-0
04
1
0603-
●
●
10
BOLT; TIRE HANGER
(B) M10X25 FLANGE
0-28681-025-0
04
1
0303-0512
●
●
10
BOLT; TIRE HANGER
(B) M10X25 FLANGE SOU
0-28651-025-0
04
1
0601-
●
●
10
BOLT; TIRE HANGER
(A) M8X20 FLANGE
0-28680-820-0
03
1
0303-0511
●
10
BOLT; TIRE HANGER
(A) M8X20 FLANGE
0-28680-820-0
03
1
0512-0512
●
●
10
BOLT; TIRE HANGER
(A) M8X20 FLANGE
0-28650-820-0
03
1
0601-
●
●
18
NUT; MEMBER
M10 FLANGE SOU
0-91150-110-0
04
1
0303-0602
●
●
18
NUT; MEMBER
M10 FLANGE SOU
0-91180-110-0
04
1
0603-
●
●
19
BOLT; C/MBR
M10X30 FLANGE
0-28681-030-0
04
1
0303-0512
●
●
19
BOLT; C/MBR
M10X30 FLANGE SOU
0-28651-030-0
04
1
0601-
●
●
21
BRACKET; SPARE TIRE HANGER
8-97188-263-1
01
1
0303-0511
●
21
BRACKET; SPARE TIRE HANGER
8-97188-263-1
01
1
0512-
●
●
34
BOLT; SPARE TIRE
M12X305 SOU
8-94441-189-0
02
1
0303-0511
●
●
●
34
BOLT; SPARE TIRE
M12X305 SOU
8-94441-189-0
02
1
0512-
●
●
●
●
35
WASHER; PL,SPARE TIRE
ID=12.5 OD=54 SOU
8-94466-483-0
02
1
0303-0511
●
●
●
35
WASHER; PL,SPARE TIRE
ID=12.5 OD=54 SOU
8-94466-483-0
02
1
0512-
●
●
●
●
36
NUT; SPARE TIRE
M12
9-99110-412-0
02
1
0303-0511
●
●
●
36
NUT; SPARE TIRE
M12
9-99110-412-0
02
1
0512-0512
●
●
●
●
36
NUT; SPARE TIRE
M12 SOU
0-91110-512-0
02
1
0601-
●
●
●
●
131
CROSSMEMBER; SPARE TIRE
8-97167-802-0
02
1
0303-
●
●
