5-20 — BATTERY CARRIER (#17776) — 110 parça

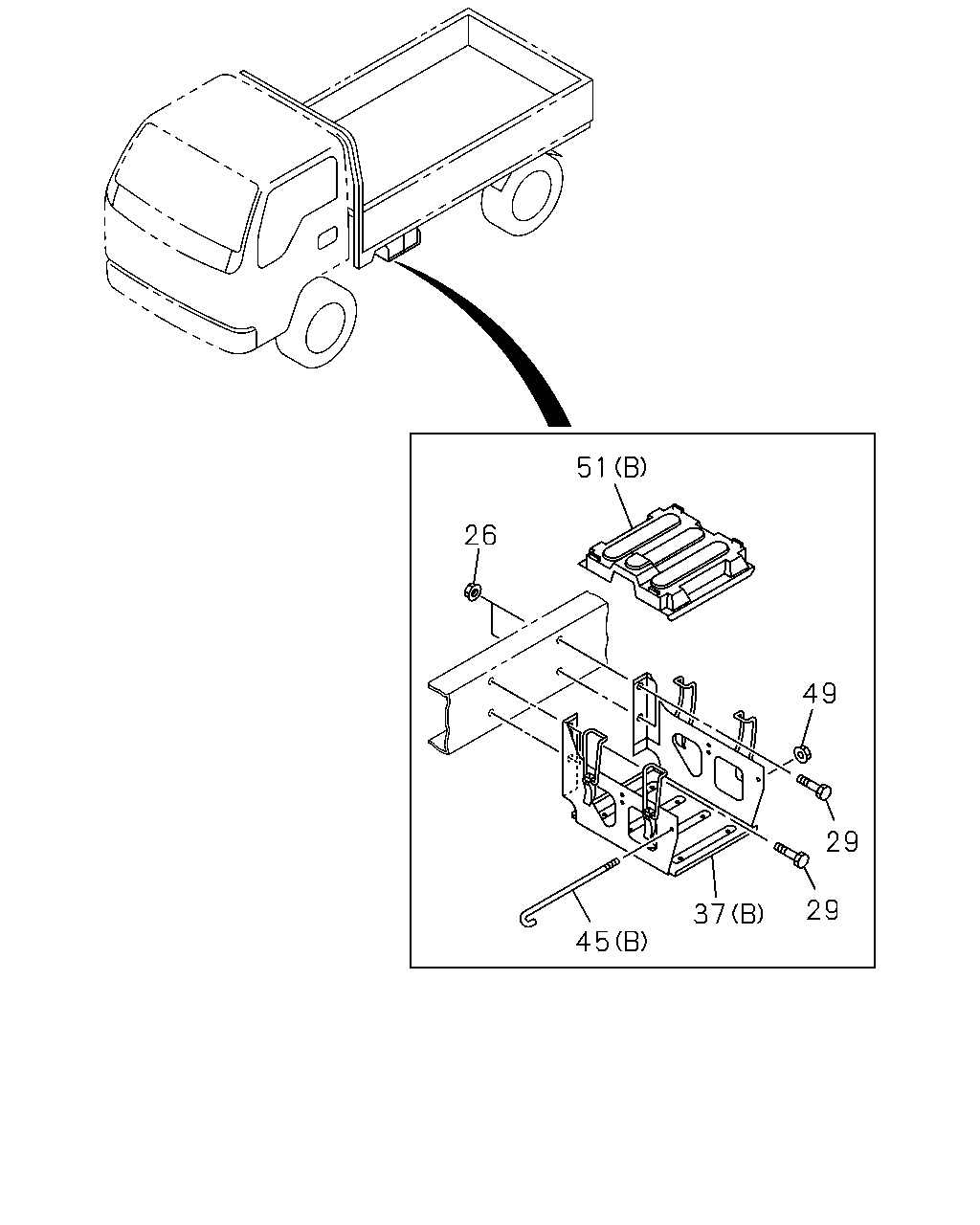

51 26 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0512-0602	●	●
26	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	0603-	●	●
26	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0303-0511		●	●	●
26	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0512-0602	●	●	●	●
26	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	0603-	●	●	●	●
29	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50041-030-0	04	1	0303-0511			●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER	0-50041-030-0	04	1	0303-0511		●
29	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50041-030-0	04	1	0512-0512			●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER	0-50041-030-0	04	1	0512-0512	●	●
29	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-			●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> M10X35 FLANGE	0-28691-035-0	04	1	0303-0511		●
29	BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> M10X35 FLANGE	0-28691-035-0	04	1	0512-0512	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> M10X35 FLANGE	0-28661-035-0	04	1	0601-	●	●
37	BRACKET; BATTERY (A)	8-97356-174-0	01	1	0303-0511			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0303-0511		●
37	BRACKET; BATTERY (A)	8-97356-174-0	01	1	0512-0610			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0512-0610	●	●
37	BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-068-2	01	1	0611-0612	●	●
37	BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0701-	●	●
37	BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0303-0511		●
37	BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0512-0706	●	●
37	BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-	●	●
45	ROD; TENSION,BATTERY (A) SOU	9-53616-615-0	02	1	0303-0511			●	●
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> (A) SOU	9-53616-615-0	02	1	0303-0511		●
45	ROD; TENSION,BATTERY (A) SOU	9-53616-615-0	02	1	0512-			●	●
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> (A) SOU	9-53616-615-0	02	1	0512-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41R<6XD> (B)	8-97134-740-0	02	1	0303-0511		●
45	ROD; TENSION,BATTERY BATTERY 115E41R<6XD> (B)	8-97134-740-0	02	1	0512-	●	●
49	NUT; ROD,BATTERY BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511		●
49	NUT; ROD,BATTERY BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●
49	NUT; ROD,BATTERY BATTERY 115E41R<6XD> M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●
51	COVER; BATTERY (A)	8-97120-747-0	01	1	0303-0511			●	●
51	COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0303-0511		●
51	COVER; BATTERY (A)	8-97120-747-0	01	1	0512-			●	●
51	COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0512-	●	●
51	COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-0	01	1	0303-0511		●
51	COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-1	01	1	0512-	●	●

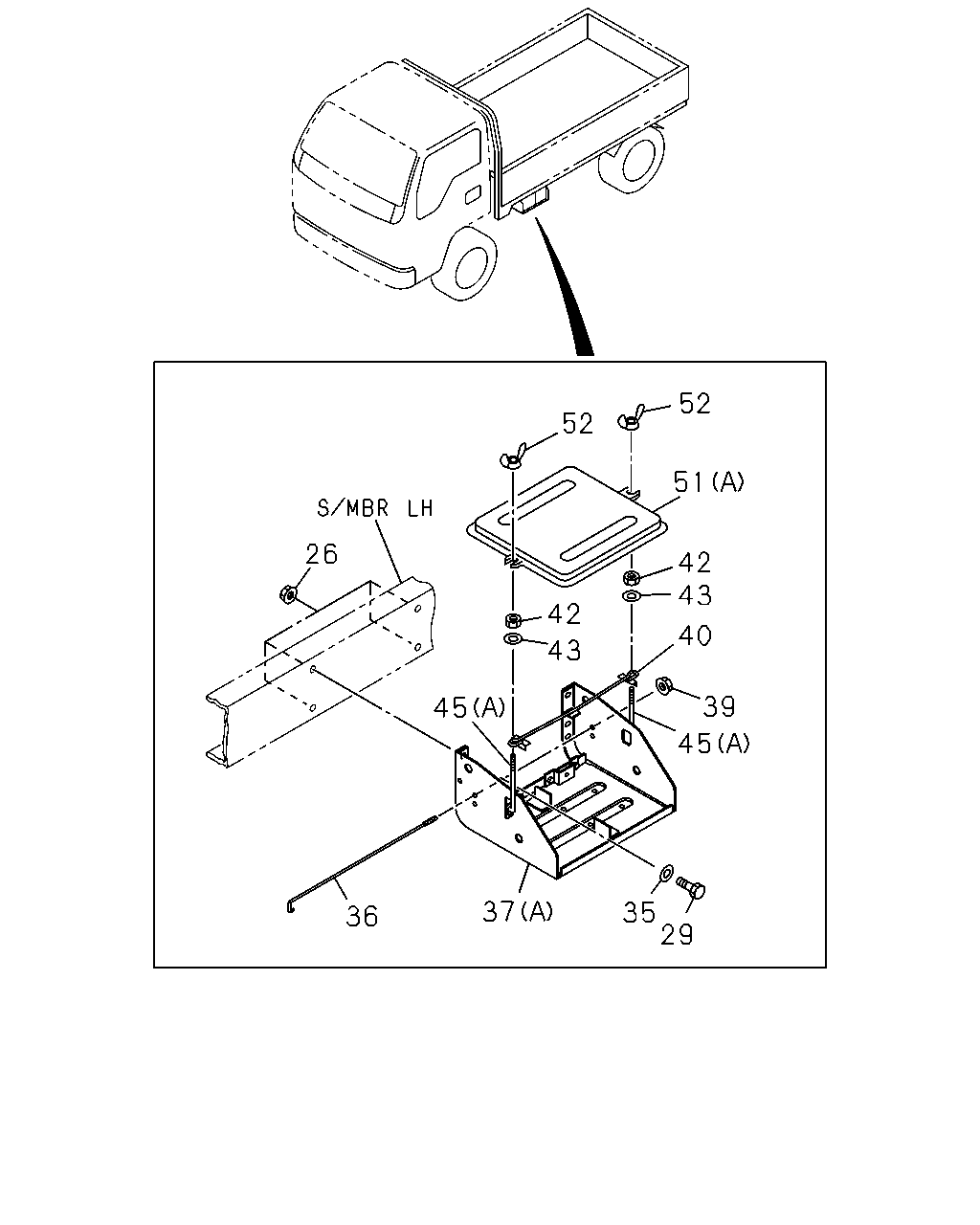

52 52 51 26 42 43 42 40 43 39 45 45 37 35 29 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0512-0602	●	●
26	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	0603-	●	●
26	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0303-0511		●	●	●
26	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0512-0602	●	●	●	●
26	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	0603-	●	●	●	●
29	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50041-030-0	04	1	0303-0511			●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER	0-50041-030-0	04	1	0303-0511		●
29	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50041-030-0	04	1	0512-0512			●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER	0-50041-030-0	04	1	0512-0512	●	●
29	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-			●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> M10X35 FLANGE	0-28691-035-0	04	1	0303-0511		●
29	BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> M10X35 FLANGE	0-28691-035-0	04	1	0512-0512	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> M10X35 FLANGE	0-28661-035-0	04	1	0601-	●	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22	9-09160-610-0	04	1	0303-0511			●	●
35	WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> ID=10.5 OD=22	9-09160-610-0	04	1	0303-0511		●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22	9-09160-610-0	04	1	0512-0605			●	●
35	WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> ID=10.5 OD=22	9-09160-610-0	04	1	0512-0605	●	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22	0-91610-610-0	04	1	0606-			●	●
35	WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> ID=10.5 OD=22	0-91610-610-0	04	1	0606-	●	●
36	STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0303-0511		●	●	●
36	STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0512-	●	●	●	●
37	BRACKET; BATTERY (A)	8-97356-174-0	01	1	0303-0511			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0303-0511		●
37	BRACKET; BATTERY (A)	8-97356-174-0	01	1	0512-0610			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0512-0610	●	●
37	BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-068-2	01	1	0611-0612	●	●
37	BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-			●	●
37	BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0701-	●	●
37	BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0303-0511		●
37	BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0512-0706	●	●
37	BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-	●	●
39	NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M6 FLANGE	0-91150-106-0	01	1	0303-0511		●	●	●
39	NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M6 FLANGE	0-91150-106-0	01	1	0512-0602	●	●	●	●
39	NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M6 FLANGE SOU	0-91180-106-0	01	1	0603-	●	●	●	●
40	CLAMP; BATTERY	5-53615-004-1	01	1	0303-0511			●	●
40	CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0303-0511		●
40	CLAMP; BATTERY	5-53615-004-1	01	1	0512-			●	●
40	CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0512-	●	●
42	NUT; CLAMP M8	9-09110-408-0	02	1	0303-0511			●	●
42	NUT; CLAMP EXC. BATTERY 115E41R<6XD> M8	9-09110-408-0	02	1	0303-0511		●
42	NUT; CLAMP M8	9-09110-408-0	02	1	0512-0512			●	●
42	NUT; CLAMP EXC. BATTERY 115E41R<6XD> M8	9-09110-408-0	02	1	0512-0512	●	●
42	NUT; CLAMP M8 SOU	0-91110-508-0	02	1	0601-			●	●
42	NUT; CLAMP EXC. BATTERY 115E41R<6XD> M8 SOU	0-91110-508-0	02	1	0601-	●	●
43	WASHER; PL,CLAMP ID=8.4 OD=22	9-09164-708-0	02	1	0303-0511			●	●
43	WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> ID=8.4 OD=22	9-09164-708-0	02	1	0303-0511		●
43	WASHER; PL,CLAMP ID=8.4 OD=22	9-09164-708-0	02	1	0512-0605			●	●
43	WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> ID=8.4 OD=22	9-09164-708-0	02	1	0512-0605	●	●
43	WASHER; PL,CLAMP ID=8.4 OD=22	0-91614-708-0	02	1	0606-			●	●
43	WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> ID=8.4 OD=22	0-91614-708-0	02	1	0606-	●	●
45	ROD; TENSION,BATTERY (A) SOU	9-53616-615-0	02	1	0303-0511			●	●
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> (A) SOU	9-53616-615-0	02	1	0303-0511		●
45	ROD; TENSION,BATTERY (A) SOU	9-53616-615-0	02	1	0512-			●	●
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> (A) SOU	9-53616-615-0	02	1	0512-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41R<6XD> (B)	8-97134-740-0	02	1	0303-0511		●
45	ROD; TENSION,BATTERY BATTERY 115E41R<6XD> (B)	8-97134-740-0	02	1	0512-	●	●
51	COVER; BATTERY (A)	8-97120-747-0	01	1	0303-0511			●	●
51	COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0303-0511		●
51	COVER; BATTERY (A)	8-97120-747-0	01	1	0512-			●	●
51	COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0512-	●	●
51	COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-0	01	1	0303-0511		●
51	COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-1	01	1	0512-	●	●
52	NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0303-0511			●	●
52	NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0303-0511		●
52	NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0512-0512			●	●
52	NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0512-0512	●	●
52	NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0601-			●	●
52	NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	0-91118-408-0	02	1	0601-	●	●
