◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#17775) — 116 parça
çizim 11666
15 12 1 38 324 15 3 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97379-904-0 01 1 0512- ●
1 LEVER; TORSION BAR 8-97379-904-0 01 1 0512- ●
1 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97379-903-0 01 1 0512- ● ●
1 LEVER; TORSION BAR 8-97188-908-3 01 1 0303-0511 ● ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97379-902-1 01 1 0512- ● ●
1 LEVER; TORSION BAR 8-97188-906-3 01 1 0303-0511 ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97379-901-1 01 1 0512- ●
3 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 04 1 0512- ● ● ●
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 04 1 0512- ●
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0303-0511 ● ● ●
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0512-0611 ● ● ●
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER SOU 		8-97359-033-0 06 1 0612- ● ● ●
12 BAR; TORSION,UPR 8-97261-871-0 01 1 0303-0511 ● ● ●
12 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97261-871-0 01 1 0512- ● ● ●
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 0512-0610 ● ●
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97359-034-0 02 1 0611- ● ●
15 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 0303-0511 ● ● ●
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 01 1 0512-0610 ●
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97359-034-0 01 1 0611- ●
38 NUT; LK
MANUAL TILT CAB<RWZ> M14 		9-99110-514-0 01 1 0512-0512 ●
38 NUT; LK
MANUAL TILT CAB<RWZ> M14 SOU 		0-91110-514-0 01 1 0601-0611 ●
38 NUT; LK
MANUAL TILT CAB<RWZ> M14 		8-98039-988-0 01 1 0612- ●
324 BOLT; ADJUST
MANUAL TILT CAB<RWZ> M14X55 		8-97190-103-1 01 1 0512-0610 ●
324 BOLT; ADJUST
MANUAL TILT CAB<RWZ> M14X55 		8-98004-319-1 01 1 0611- ●

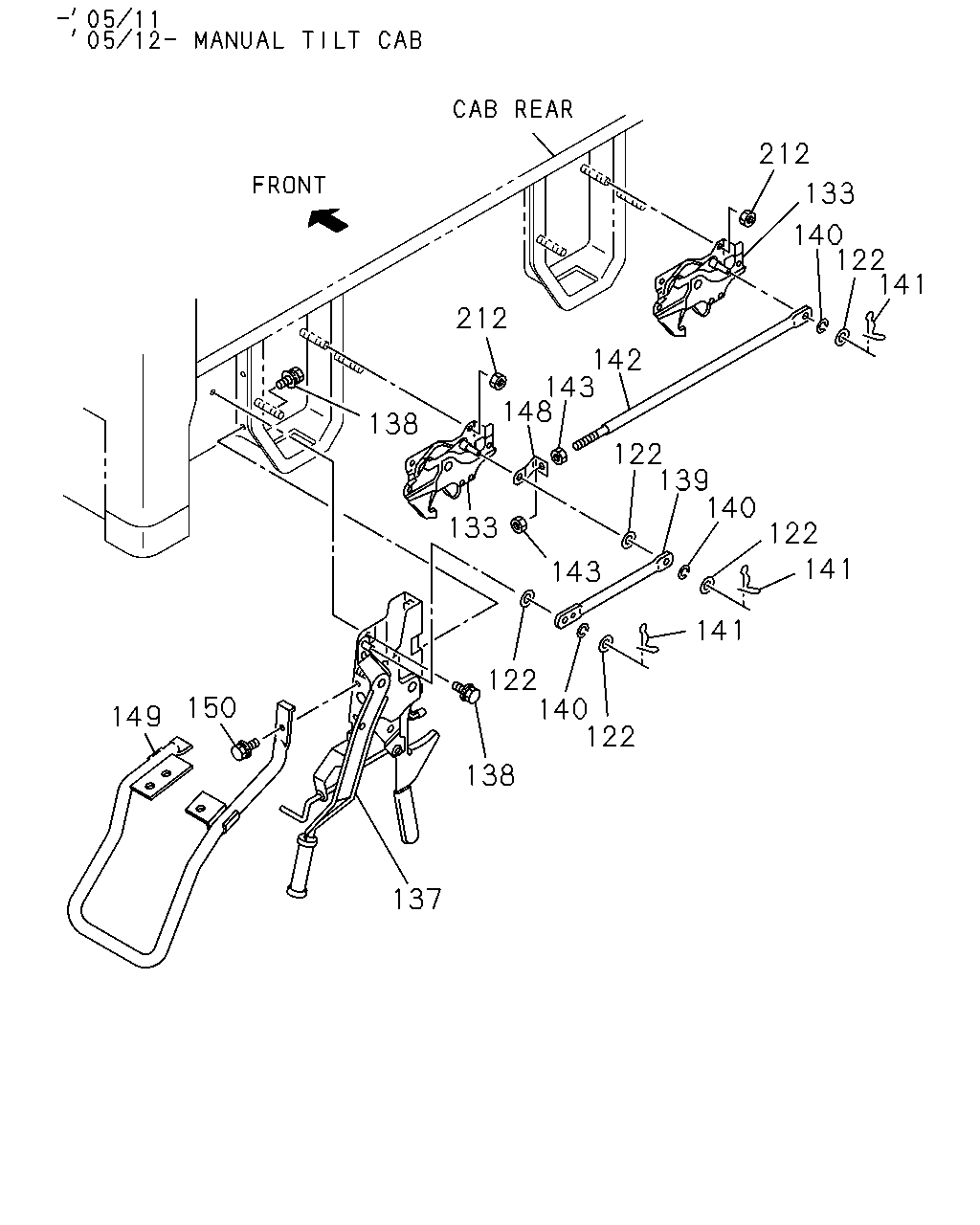

çizim 55046
212 133 140 122 141 212 142 143 148 138 122 139 140 133 122 141 143 141 12 140 122 150 149 138 137
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 BAR; TORSION,UPR 8-97261-871-0 01 1 0303-0511 ● ● ●
12 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97261-871-0 01 1 0512- ● ● ●
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 SOU 		8-94279-627-0 05 1 0303-0511 ● ● ●
122 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=12.5 OD=22 SOU 		8-94279-627-0 05 1 0512-0707 ● ● ●
122 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=12.5 OD=22 		0-91610-512-0 05 1 0708- ● ● ●
133 LOCK ASM; CAB
SOU 		8-97853-055-7 01 1 0303-0511 ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-9 01 1 0512- ● ● ●
133 LOCK ASM; CAB
SOU 		8-97853-056-6 01 1 0303-0511 ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-8 01 1 0512- ● ● ●
137 CONTROL UNIT; CAB LOCK
SOU 		8-97853-051-8 01 1 0303-0511 ● ● ●
137 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97853-051-9 01 1 0512- ● ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20.5 W/LK&PL WASHER SOU 		8-94279-207-0 03 1 0303-0511 ● ● ●
138 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> M8X20.5 W/LK&PL WASHER SOU 		8-94279-207-0 03 1 0512- ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK
SOU 		8-97853-053-1 01 1 0303-0303 ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK 8-97997-597-0 01 1 0303-0511 ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97997-597-0 01 1 0512- ● ● ●
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 SOU 		8-94279-629-0 03 1 0303-0511 ● ● ●
140 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 SOU 		8-94279-629-0 03 1 0512-0611 ● ● ●
140 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-98060-839-0 03 1 0612- ● ● ●
141 PIN; SNAP,CAB LOCK ROD
SOU 		1-09987-158-1 03 1 0303-0511 ● ● ●
141 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> SOU 		1-09987-158-1 03 1 0512- ● ● ●
142 ROD; HOOK TO HOOK
SOU 		1-79718-581-0 01 1 0303-0511 ● ● ●
142 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> SOU 		1-79718-581-0 01 1 0512- ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 SOU 		1-09984-142-0 02 1 0303-0511 ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> M10 SOU 		1-09984-142-0 02 1 0512- ● ● ●
148 JOINT; JAW,HOOK TO HOOK
SOU 		8-97856-106-0 01 1 0303-0511 ● ● ●
148 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> SOU 		8-97856-106-0 01 1 0512- ● ● ●
149 HANDLE; TILT
SOU 		8-97853-054-4 01 1 0303-0511 ● ● ●
149 HANDLE; TILT
MANUAL TILT CAB<RWZ> SOU 		8-97853-054-4 01 1 0512- ● ● ●
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28680-825-0 03 1 0303-0511 ● ● ●
150 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28680-825-0 03 1 0512-0512 ● ● ●
150 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X25 FLANGE SOU 		0-28650-825-0 03 1 0601-0610 ● ● ●
150 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28650-820-0 03 1 0611- ● ● ●
212 NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE SOU 		1-09985-340-0 08 1 0303-0511 ● ● ●
212 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE SOU 		1-09985-340-0 08 1 0512- ● ● ●

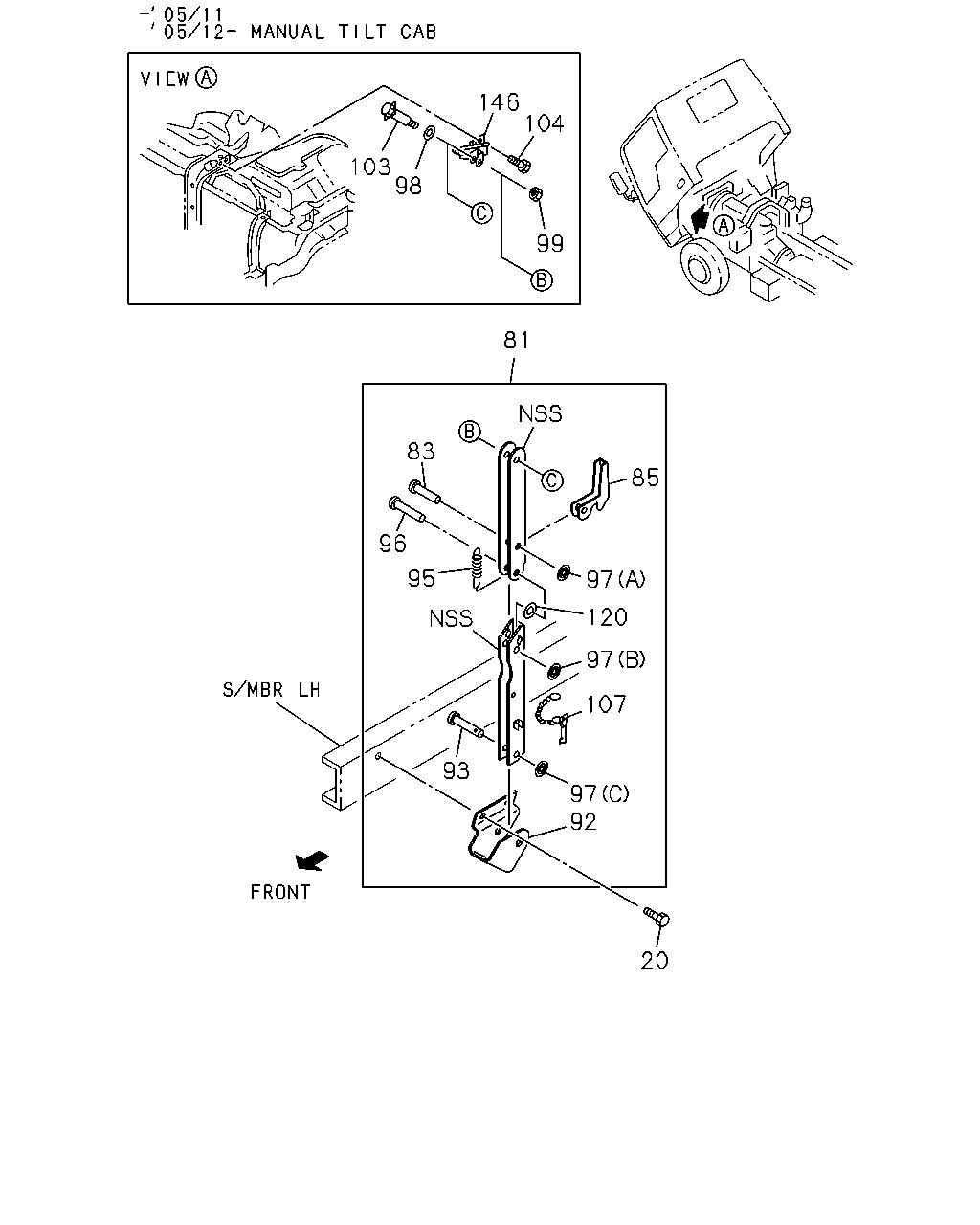

çizim 55506
146 104 103 98 99 81 83 85 96 95 97 120 97 107 93 97 92 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 BOLT
M10X40 W/WASHER 		8-94411-010-0 02 1 0303-0511 ● ● ●
20 BOLT
MANUAL TILT CAB<RWZ> M10X40 W/WASHER 		8-94411-010-0 02 1 0512- ● ● ●
81 STAY ASM; CAB TILT 8-97073-880-1 01 1 0303-0511 ● ● ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> 		8-97073-880-1 01 1 0512- ● ● ●
83 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 0303-0511 ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 0512- ● ● ●
85 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 0303-0511 ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 0512- ● ● ●
92 BRACKET; CAB STAY TO FRAME 8-97108-760-1 01 1 0303-0511 ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> 		8-97108-760-1 01 1 0512- ● ● ●
93 PIN; CAB STAY
OD=12 L=53 		8-97218-926-0 01 1 0303-0511 ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53 		8-97218-926-0 01 1 0512- ● ● ●
95 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 0303-0511 ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 0512- ● ● ●
96 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 0303-0511 ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 0512- ● ● ●
97 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT SOU 		8-97022-565-0 01 1 0303-0511 ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT SOU 		8-97022-565-0 01 1 0512- ● ● ●
97 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT SOU 		8-97022-566-0 01 1 0303-0511 ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT SOU 		8-97022-566-0 01 1 0512- ● ● ●
97 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0303-0511 ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0512- ● ● ●
98 WASHER; CAB STAY
ID=10.5 OD=28.0 		8-97184-701-0 01 1 0303-0511 ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 0512- ● ● ●
99 NUT; CAB STAY
M10 		8-97185-205-1 01 1 0303-0511 ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> M10 		8-97185-205-1 01 1 0512- ● ● ●
103 PIN; JOINT,CAB STAY
M10X40 		8-97184-683-0 01 1 0303-0511 ● ● ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 0512-0805 ● ● ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97359-151-0 01 1 0806- ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28690-820-0 03 1 0303-0511 ● ● ●
104 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 0512-0512 ● ● ●
104 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28660-820-0 03 1 0601- ● ● ●
107 PIN; LK LEVER 8-94331-482-0 01 1 0303-0511 ● ● ●
107 PIN; LK LEVER
MANUAL TILT CAB<RWZ> 		8-94331-482-0 01 1 0512- ● ● ●
120 WASHER; NYLON
ID=10 OD=20 SOU 		8-97103-223-0 01 1 0303-0511 ● ● ●
120 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 SOU 		8-97103-223-0 01 1 0512- ● ● ●
146 BRACKET ASM; CAB STAY UPR
SOU 		8-97076-588-2 01 1 0303-0511 ● ● ●
146 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> SOU 		8-97076-588-2 01 1 0512- ● ● ●

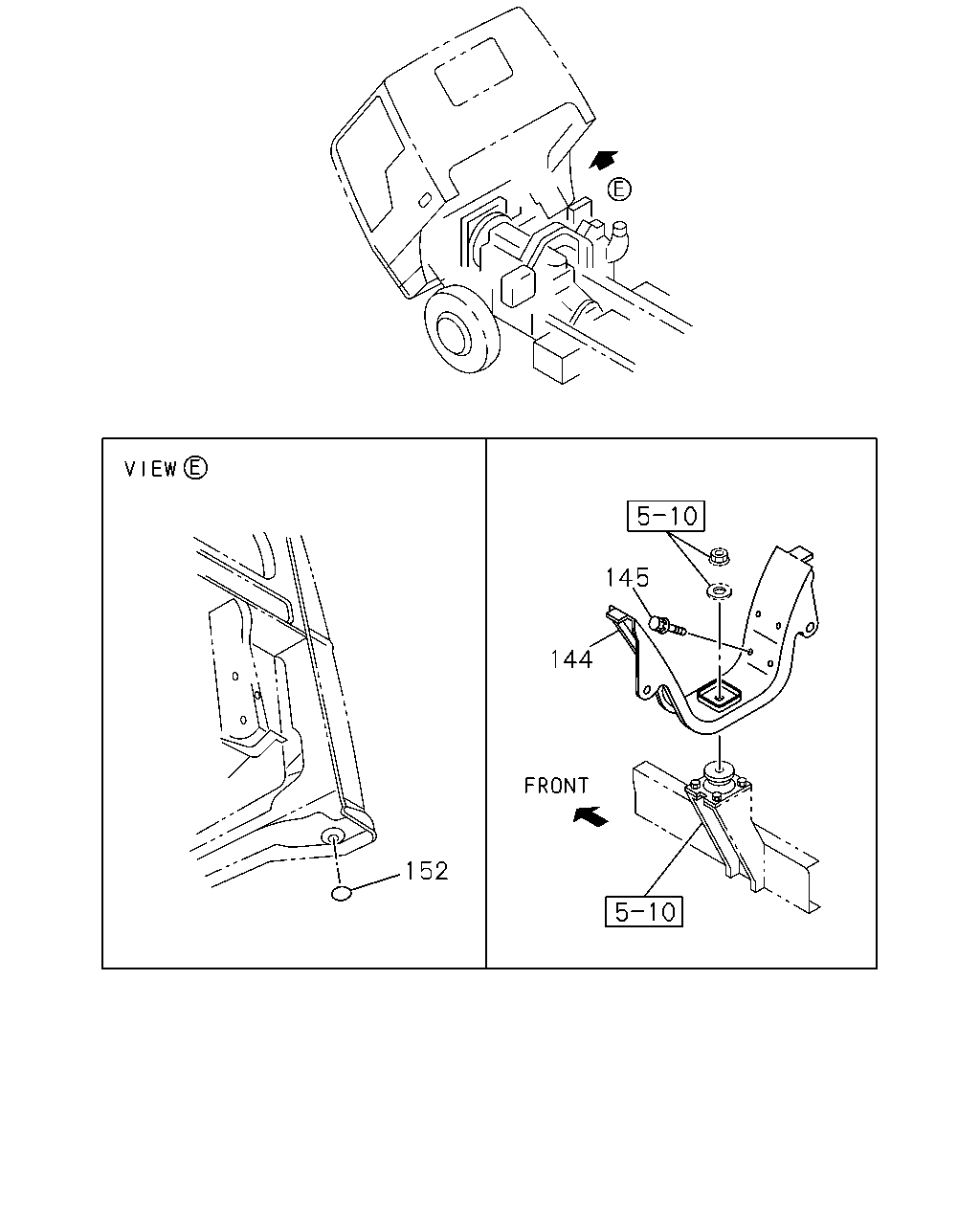

çizim 56299
145 144 152
BalonParca AdiParca NoAdetTipApplied Date A B C D
144 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 0512- ● ● ●
144 BRACKET ASM; CAB RR MTG 8-97853-066-4 02 1 0512- ●
145 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 12 1 0512-0808 ● ● ●
145 BOLT; CAB RR MTG BRKT
M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 12 1 0512-0808 ●
145 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER 		8-98051-939-0 12 1 0809- ● ● ●
145 BOLT; CAB RR MTG BRKT
M8X24.5 W/LK&PL WASHER 		8-98051-939-0 12 1 0809- ●
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK SOU 		1-76798-019-0 02 1 0303- ● ● ●
çizim 56793
17 275 16 17 275 275 18 275 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 DAMPER; DYNAMIC 8-97031-817-2 01 1 0303-0511 ● ● ●
16 DAMPER; DYNAMIC 8-97031-817-2 01 1 0512- ● ● ● ●
17 BOLT; DAMPER
M8X35 FLANGE 		0-28680-835-0 02 1 0303-0511 ● ● ●
17 BOLT; DAMPER
M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ● ● ● ●
17 BOLT; DAMPER
M8X35 FLANGE SOU 		0-28650-835-0 02 1 0601- ● ● ● ●
18 NUT; DAMPER
M8 		9-09110-408-0 02 1 0303-0511 ● ● ●
18 NUT; DAMPER
M8 		9-09110-408-0 02 1 0512-0512 ● ● ● ●
18 NUT; DAMPER
M8 SOU 		0-91110-508-0 02 1 0601- ● ● ● ●
275 BRACKET; DYNAMIC DAMPER
(A) 		8-97031-818-0 02 1 0303-0511 ● ● ●
275 BRACKET; DYNAMIC DAMPER
(A) 		8-97031-818-0 02 1 0512- ● ● ● ●
275 BRACKET; DYNAMIC DAMPER
(B) 		8-97032-026-0 02 1 0303-0511 ● ● ●
275 BRACKET; DYNAMIC DAMPER
(B) 		8-97032-026-0 02 1 0512- ● ● ● ●
