Sayfa 5-10 - Isuzu EPC

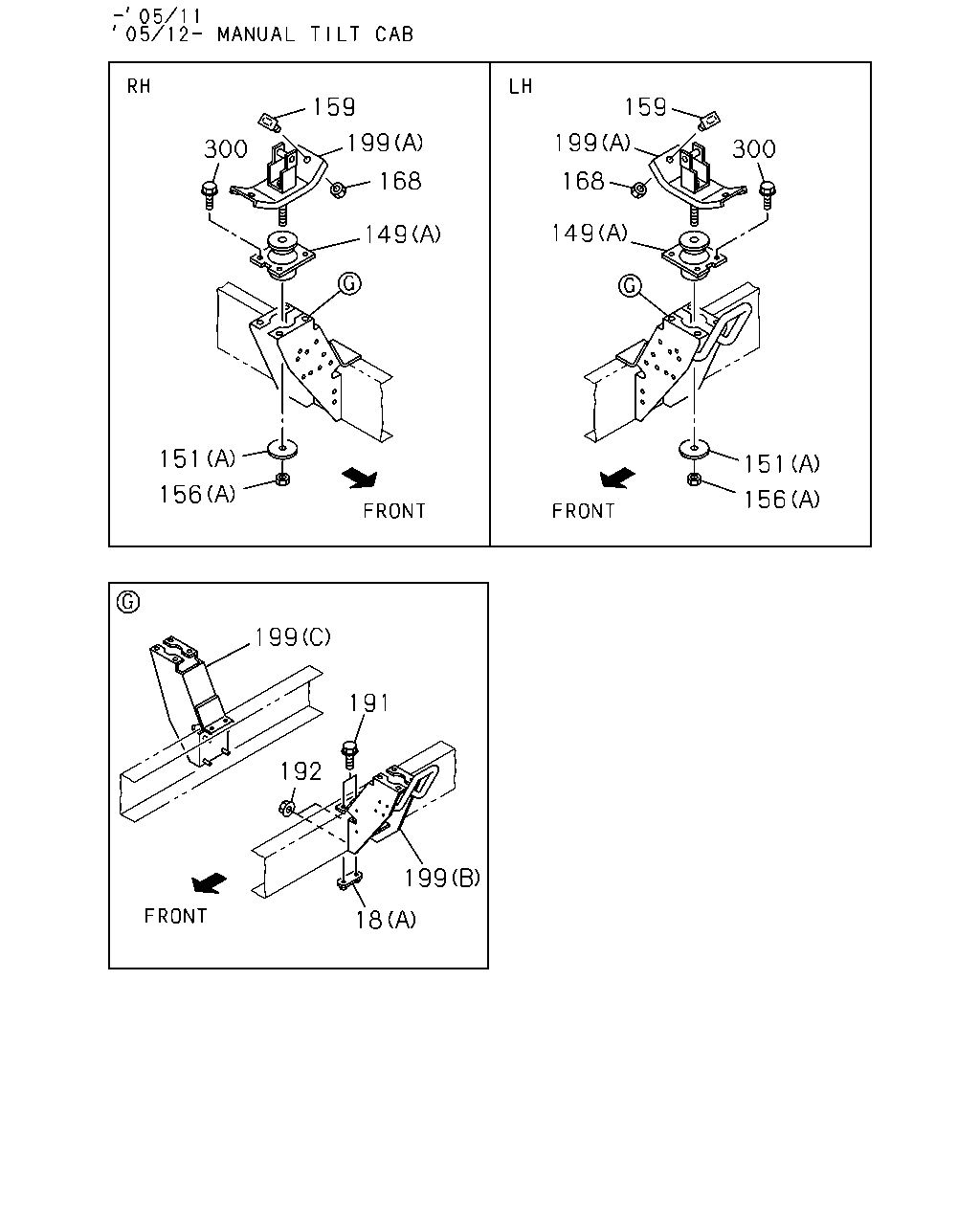

5-10 — CAB MOUNTING; FRAME SIDE (#17774) — 279 parça

156 151 300 149 191 192 199 199 191 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0512-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0512-			●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0512-	●	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-3	02	1	0512-0612	●	●	●
149	RUBBER; MTG,CAB,UPR RR (B)	8-97086-440-3	02	1	0512-0612				●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-	●	●	●
149	RUBBER; MTG,CAB,UPR RR (B)	8-98038-868-0	02	1	0701-				●
149	RUBBER; MTG,CAB,UPR RR (A)	8-97095-149-3	02	1	0303-0511	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0512-0804	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-0	02	1	0805-	●	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97034-383-1	02	1	0512-	●	●	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97034-383-1	02	1	0512-				●
151	WASHER; CAB MTG,RR UPR (A) ID=16.4 OD=62	8-97034-382-0	02	1	0303-0511	●	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=16.4 OD=62	8-97034-382-0	02	1	0512-0611	●	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91150-114-0	02	1	0512-0610	●	●	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91150-114-0	02	1	0512-0610				●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0611-	●	●	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0611-				●
156	NUT; CAB MTG RR (A) M16	9-99111-416-0	02	1	0303-0511	●	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	9-99111-416-0	02	1	0512-0512	●	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0601-	●	●	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0303-0511	●	●	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0512-0512	●	●	●	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0303-0511	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0512-0602	●	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0603-	●	●	●	●
199	BRACKET; CAB RR MTG (B)	8-97330-164-1	01	1	0710-				●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0512-	●	●
199	BRACKET; CAB RR MTG (A)	8-97035-310-4	02	1	0303-0511	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0512-	●	●	●
199	BRACKET; CAB RR MTG (B)	8-97326-507-0	01	1	0303-0511	●	●
199	BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97326-507-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0512-	●	●
199	BRACKET; CAB RR MTG (C)	8-97326-510-0	01	1	0303-0511	●	●
199	BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (C)	8-97326-510-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG (C)	8-97330-165-1	01	1	0512-			●	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> (C)	8-97326-512-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG (C)	8-97326-510-1	01	1	0512-	●	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> (B)	8-97326-513-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG (B)	8-97330-163-1	01	1	0512-0709			●	●
199	BRACKET; CAB RR MTG (B)	8-97330-163-1	01	1	0710-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0303-0511	●	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0512-0512	●	●	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●	●	●

7 1 20 7 1 20 104 72 105 7 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-636-1	01	1	0512-				●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-637-1	01	1	0512-				●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0512-	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0512-	●	●
1	BRACKET; CAB MTG	8-97101-358-1	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97101-359-0	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0512-			●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0303-0511	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0512-0512	●	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0512-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0512-			●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-97033-368-3	02	1	0512-				●
20	RUBBER; MTG,CAB BRKT	8-97095-148-1	02	1	0303-0511	●	●	●
20	RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0512-	●	●	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	9-09164-714-0	01	1	0512-0605			●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0606-			●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0512-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-97033-624-3	01	1	0303-0511	●	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97164-690-3	01	1	0512-			●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0512-0512	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-	●	●
105	BOLT; BRKT TO CAB FRAME M16X35 FLANGE	0-28881-635-0	01	1	0303-0511	●	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28681-435-0	01	1	0512-0512			●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28651-435-0	01	1	0601-			●

7 1 7 20 1 20 104 7 105 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-636-1	01	1	0512-				●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-637-1	01	1	0512-				●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0512-	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0512-	●	●
1	BRACKET; CAB MTG	8-97101-358-1	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97101-359-0	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0512-			●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0303-0511	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0512-0512	●	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0512-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0512-			●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-97033-368-3	02	1	0512-				●
20	RUBBER; MTG,CAB BRKT	8-97095-148-1	02	1	0303-0511	●	●	●
20	RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0512-	●	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0512-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-97033-624-3	01	1	0303-0511	●	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97164-690-3	01	1	0512-			●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0512-0512	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-	●	●
105	BOLT; BRKT TO CAB FRAME M16X35 FLANGE	0-28881-635-0	01	1	0303-0511	●	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28681-435-0	01	1	0512-0512			●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28651-435-0	01	1	0601-			●

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-636-1	01	1	0512-				●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-637-1	01	1	0512-				●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0512-	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0512-	●	●
1	BRACKET; CAB MTG	8-97101-358-1	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97101-359-0	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0512-			●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0512-	●	●	●
2	BUSHING; TORSION BAR	8-97061-514-0	02	1	0512-				●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0303-0511	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0512-0512	●	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0512-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0512-			●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-97033-368-3	02	1	0512-				●
20	RUBBER; MTG,CAB BRKT	8-97095-148-1	02	1	0303-0511	●	●	●
20	RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0512-	●	●	●

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-636-1	01	1	0512-				●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97331-637-1	01	1	0512-				●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0512-	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0512-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0512-	●	●
1	BRACKET; CAB MTG	8-97101-358-1	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0512-			●
1	BRACKET; CAB MTG	8-97101-359-0	01	1	0303-0511	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0512-			●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0512-	●	●	●
2	BUSHING; TORSION BAR	8-97061-514-0	02	1	0512-				●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0303-0511	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0512-0512	●	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0512-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0512-			●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0512-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-97033-368-3	02	1	0512-				●
20	RUBBER; MTG,CAB BRKT	8-97095-148-1	02	1	0303-0511	●	●	●
20	RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0512-	●	●	●

159 159 199 199 300 300 168 168 149 149 151 151 156 156 199 191 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0512-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0512-				●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0512-	●	●	●
18	PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0512-			●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0303-0511	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0512-	●	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-3	02	1	0512-0612	●	●	●
149	RUBBER; MTG,CAB,UPR RR (B)	8-97086-440-3	02	1	0512-0612				●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-98038-868-0	02	1	0701-	●	●	●
149	RUBBER; MTG,CAB,UPR RR (B)	8-98038-868-0	02	1	0701-				●
149	RUBBER; MTG,CAB,UPR RR (A)	8-97095-149-3	02	1	0303-0511	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0512-0804	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-0	02	1	0805-	●	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97034-383-1	02	1	0512-	●	●	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97034-383-1	02	1	0512-				●
151	WASHER; CAB MTG,RR UPR (A) ID=16.4 OD=62	8-97034-382-0	02	1	0303-0511	●	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=16.4 OD=62	8-97034-382-0	02	1	0512-0611	●	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91150-114-0	02	1	0512-0610	●	●	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91150-114-0	02	1	0512-0610				●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0611-	●	●	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0611-				●
156	NUT; CAB MTG RR (A) M16	9-99111-416-0	02	1	0303-0511	●	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	9-99111-416-0	02	1	0512-0512	●	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0601-	●	●	●
159	RUBBER; CUSHION,CAB MTG	8-97113-340-0	04	1	0303-0511	●	●	●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0512-	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG M8 FLANGE SOU	0-91150-108-0	04	1	0303-0511	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE SOU	0-91150-108-0	04	1	0512-0602	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE SOU	0-91180-108-0	04	1	0603-	●	●	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0303-0511	●	●	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0512-0512	●	●	●	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0303-0511	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0512-0602	●	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0603-	●	●	●	●
199	BRACKET; CAB RR MTG (B)	8-97330-164-1	01	1	0710-				●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-97326-509-0	01	1	0512-	●	●
199	BRACKET; CAB RR MTG (A)	8-97035-310-4	02	1	0303-0511	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0512-	●	●	●
199	BRACKET; CAB RR MTG (B)	8-97326-507-0	01	1	0303-0511	●	●
199	BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97326-507-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97326-507-0	01	1	0512-	●	●
199	BRACKET; CAB RR MTG (C)	8-97326-510-0	01	1	0303-0511	●	●
199	BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (C)	8-97326-510-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG (C)	8-97330-165-1	01	1	0512-			●	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> (C)	8-97326-512-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG (C)	8-97326-510-1	01	1	0512-	●	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> (B)	8-97326-513-0	01	1	0303-0511			●
199	BRACKET; CAB RR MTG (B)	8-97330-163-1	01	1	0512-0709			●	●
199	BRACKET; CAB RR MTG (B)	8-97330-163-1	01	1	0710-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0303-0511	●	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0512-0512	●	●	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
