Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#17773) — 460 parça

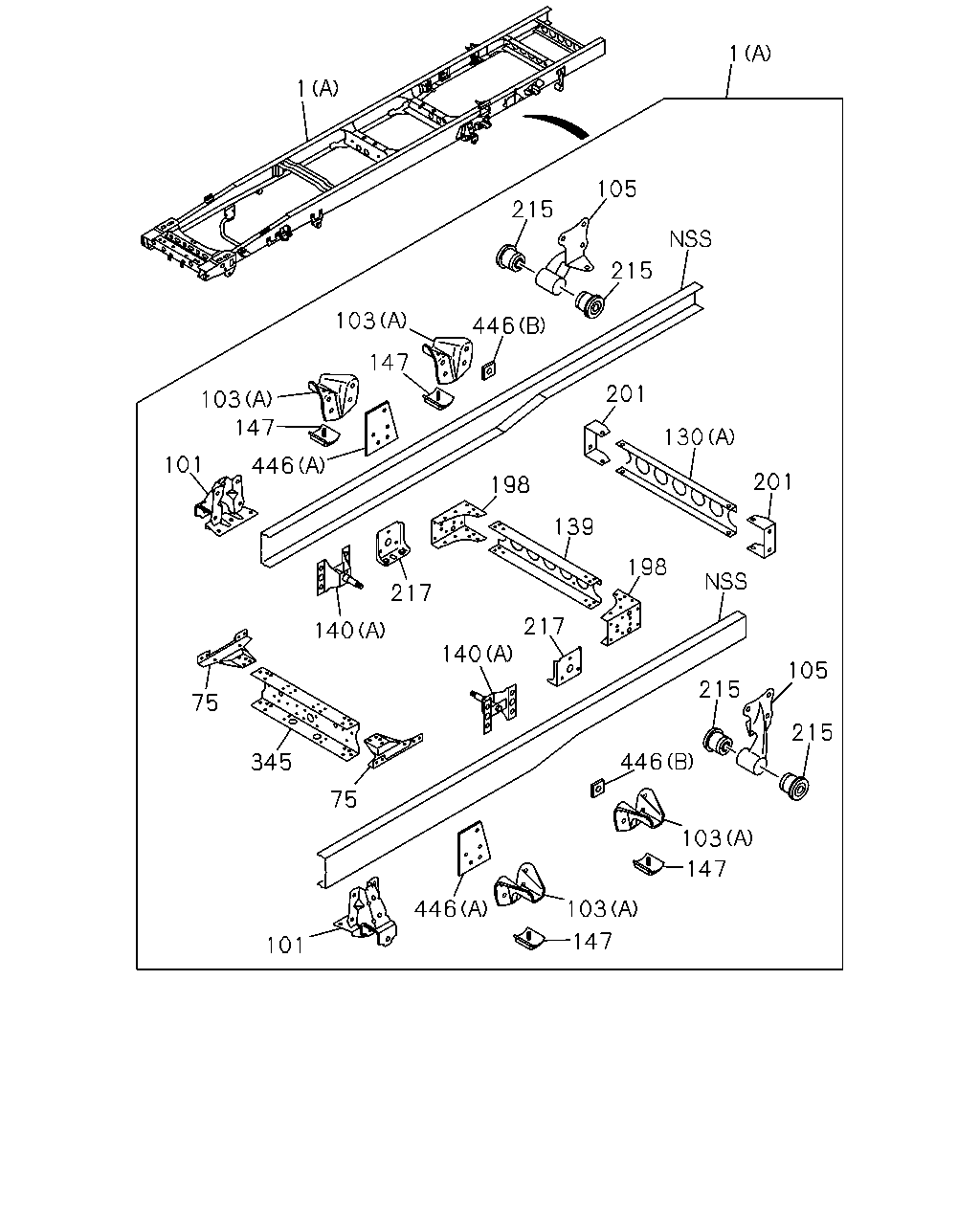

1 1 105 215 215 103 446 147 201 103 147 130 101 446 201 198 139 198 217 217 140 140 105 215 75 215 446 345 75 103 147 446 103 147 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-931-0	01	1	0512-	●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-511-2	01	1	0512-		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-481-0	01	1	0512-		●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-881-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-97350-756-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0512-				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0512-				●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-97205-692-0	01	1	0303-0501		●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-98003-479-0	01	1	0502-0511		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-933-0	01	1	0512-	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97080-878-0	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97080-878-0	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97109-777-0	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97109-777-0	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-875-1	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-875-1	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-876-1	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-876-1	01	1	0512-	●	●	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0303-0511		●	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0303-0511		●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0303-		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-511-1	01	1	0303-0511		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-511-1	01	1	0512-	●	●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-512-1	01	1	0303-0511		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-512-1	01	1	0512-	●	●	●	●
130	MEMBER; CROSS,END (A) SOU	8-97080-872-0	01	1	0303-			●	●
130	MEMBER; CROSS,END (B)	8-97128-806-0	01	1	0303-0511		●
130	MEMBER; CROSS,END (B)	8-97128-806-0	01	1	0512-0605	●	●
130	MEMBER; CROSS,END (B)	8-97205-394-0	01	1	0606-	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0303-0511		●	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0512-	●	●	●	●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	0303-		●	●	●
198	GUSSET; 6TH C/MBR	8-97080-882-1	02	1	0303-0511		●	●	●
198	GUSSET; 6TH C/MBR	8-97080-882-1	02	1	0512-	●	●	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0303-0511		●	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0512-	●	●	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0303-0511		●	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0512-	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0303-0511			●	●
217	BRACKET; HELPER RUBBER,RR SPRING FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0512-	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-417-0	02	1	0303-0511			●	●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	0303-0511		●
217	BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-417-0	02	1	0512-	●	●	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-2	01	1	0303-0511		●	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-3	01	1	0512-	●	●	●	●
446	STIFFENER; SPRING STOPPER (B) SOU	8-97170-790-0	02	1	0303-		●	●	●
446	STIFFENER; SPRING STOPPER (A)	8-97180-433-0	02	1	0303-		●	●	●

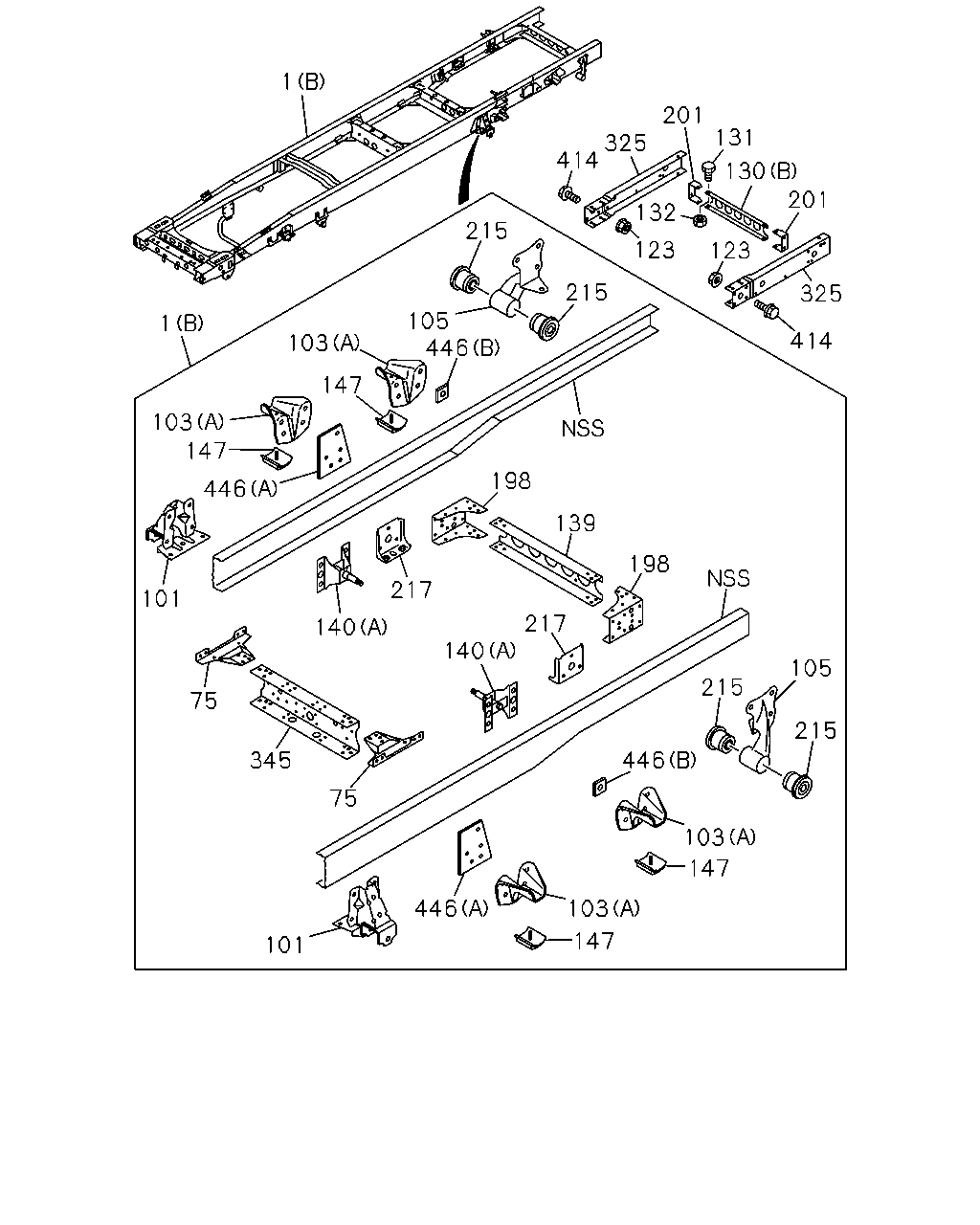

1 201 131 325 414 130 201 132 123 215 123 215 325 105 446 1 414 103 147 103 147 198 446 139 198 217 101 217 140 140 105 215 75 215 446 345 75 103 147 446 103 147 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-931-0	01	1	0512-	●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-511-2	01	1	0512-		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-481-0	01	1	0512-		●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-881-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-97350-756-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0512-				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0512-				●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-97205-692-0	01	1	0303-0501		●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-98003-479-0	01	1	0502-0511		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-933-0	01	1	0512-	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97080-878-0	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97080-878-0	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97109-777-0	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97109-777-0	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-875-1	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-875-1	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-876-1	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-876-1	01	1	0512-	●	●	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0303-0511		●	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0303-0511		●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0303-		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-511-1	01	1	0303-0511		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-511-1	01	1	0512-	●	●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-512-1	01	1	0303-0511		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-512-1	01	1	0512-	●	●	●	●
123	NUT EXC. IDENTIFICATION LABEL FOR KD<6UT> M12	8-94139-015-0	16	1	0409-0511		●
123	NUT M12	8-94139-015-0	16	1	0303-0408		●
123	NUT IDENTIFICATION LABEL FOR KD<6UT> M12	8-94139-015-0	12	1	0409-0511		●
123	NUT M12	8-94139-015-0	16	1	0512-0610	●	●
123	NUT M12	8-97360-126-0	16	1	0611-	●	●
130	MEMBER; CROSS,END (A) SOU	8-97080-872-0	01	1	0303-			●	●
130	MEMBER; CROSS,END (B)	8-97128-806-0	01	1	0303-0511		●
130	MEMBER; CROSS,END (B)	8-97128-806-0	01	1	0512-0605	●	●
130	MEMBER; CROSS,END (B)	8-97205-394-0	01	1	0606-	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28691-025-0	08	1	0303-0511		●
131	BOLT; END C/MBR M10X25 FLANGE	0-28691-025-0	08	1	0512-0512	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28661-025-0	08	1	0601-	●	●
132	NUT; END C/MBR M10 FLANGE SOU	0-91150-110-0	08	1	0303-0511		●
132	NUT; END C/MBR M10 FLANGE SOU	0-91150-110-0	08	1	0512-0602	●	●
132	NUT; END C/MBR M10 FLANGE SOU	0-91180-110-0	08	1	0603-	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0303-0511		●	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0512-	●	●	●	●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	0303-		●	●	●
198	GUSSET; 6TH C/MBR	8-97080-882-1	02	1	0303-0511		●	●	●
198	GUSSET; 6TH C/MBR	8-97080-882-1	02	1	0512-	●	●	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0303-0511		●	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0512-	●	●	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0303-0511		●	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0512-	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0303-0511			●	●
217	BRACKET; HELPER RUBBER,RR SPRING FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0512-	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-417-0	02	1	0303-0511			●	●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	0303-0511		●
217	BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-417-0	02	1	0512-	●	●	●	●
325	EXTENSION; FRAME	8-97222-891-0	01	1	0303-0511		●
325	EXTENSION; FRAME	8-97222-891-0	01	1	0512-	●	●
325	EXTENSION; FRAME	8-97222-892-0	01	1	0303-0511		●
325	EXTENSION; FRAME	8-97222-892-0	01	1	0512-	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-2	01	1	0303-0511		●	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-3	01	1	0512-	●	●	●	●
414	BOLT M12X30 FLANGE	0-28691-230-0	12	1	0303-0511		●
414	BOLT M12X30 FLANGE	0-28691-230-0	12	1	0512-0512	●	●
414	BOLT M12X30 FLANGE	0-28661-230-0	12	1	0601-	●	●
414	BOLT EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X40 FLANGE SOU	0-28691-240-0	04	1	0409-0511		●
414	BOLT M12X40 FLANGE SOU	0-28691-240-0	04	1	0512-0512	●	●
414	BOLT M12X40 FLANGE	0-28661-240-0	04	1	0601-	●	●
446	STIFFENER; SPRING STOPPER (B) SOU	8-97170-790-0	02	1	0303-		●	●	●
446	STIFFENER; SPRING STOPPER (A)	8-97180-433-0	02	1	0303-		●	●	●

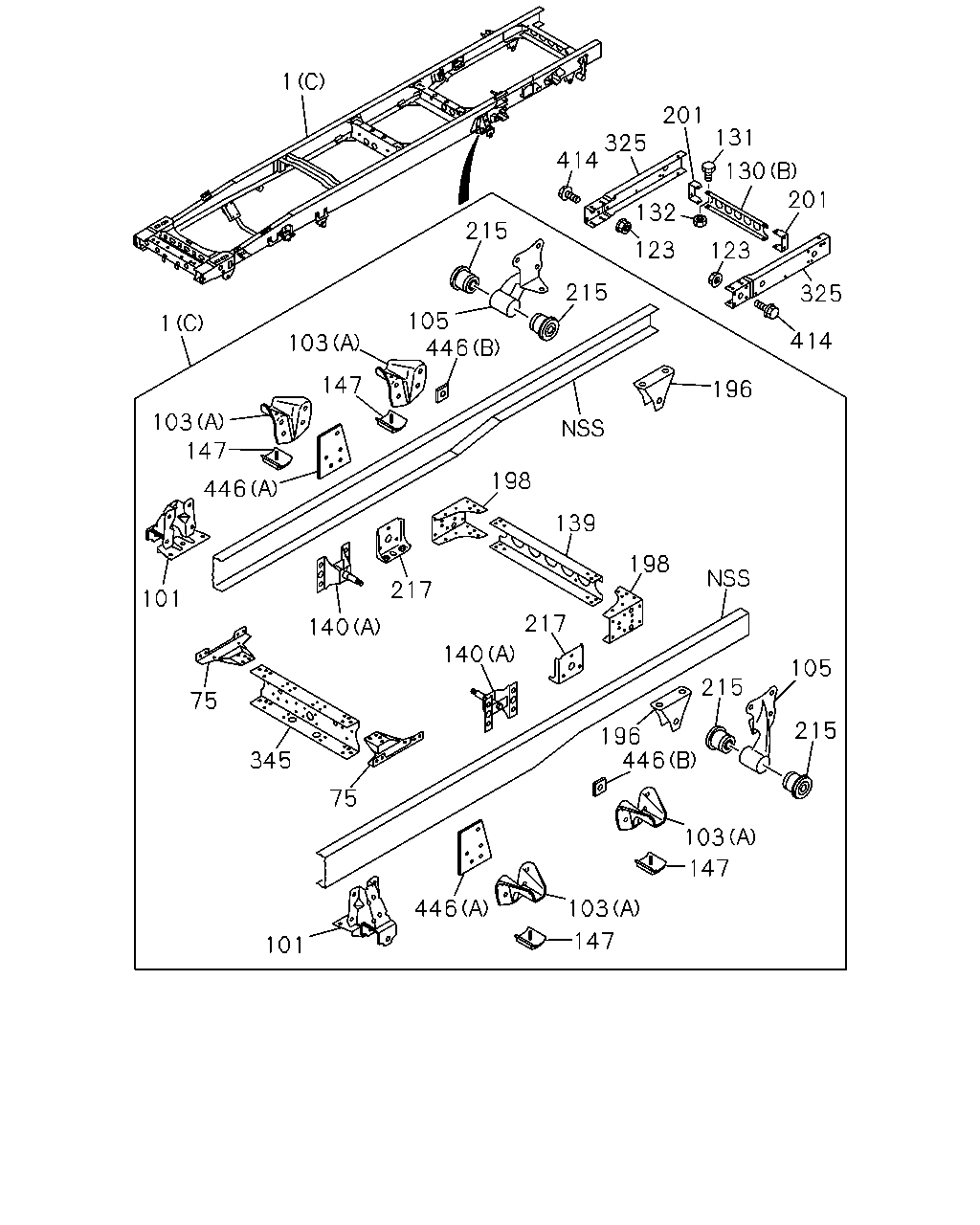

1 201 131 325 414 130 201 132 123 215 123 215 325 105 446 1 414 103 147 196 103 147 198 446 139 198 217 101 217 140 140 105 215 75 215 196 446 345 75 103 147 446 103 147 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-931-0	01	1	0512-	●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-511-2	01	1	0512-		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-481-0	01	1	0512-		●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-881-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-97350-756-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0512-				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0512-				●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-97205-692-0	01	1	0303-0501		●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-98003-479-0	01	1	0502-0511		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-933-0	01	1	0512-	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97080-878-0	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97080-878-0	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97109-777-0	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR LOWER SOU	8-97109-777-0	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-875-1	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-875-1	01	1	0512-	●	●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-876-1	01	1	0303-0511		●	●	●
75	GUSSET; 5TH C/MBR UPPER SOU	8-97118-876-1	01	1	0512-	●	●	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0303-0511		●	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0303-0511		●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0303-		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-511-1	01	1	0303-0511		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-511-1	01	1	0512-	●	●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-512-1	01	1	0303-0511		●	●	●
105	BRACKET; RR SPR,RR SOU	8-94459-512-1	01	1	0512-	●	●	●	●
123	NUT EXC. IDENTIFICATION LABEL FOR KD<6UT> M12	8-94139-015-0	16	1	0409-0511		●
123	NUT M12	8-94139-015-0	16	1	0303-0408		●
123	NUT IDENTIFICATION LABEL FOR KD<6UT> M12	8-94139-015-0	12	1	0409-0511		●
123	NUT M12	8-94139-015-0	16	1	0512-0610	●	●
123	NUT M12	8-97360-126-0	16	1	0611-	●	●
130	MEMBER; CROSS,END (A) SOU	8-97080-872-0	01	1	0303-			●	●
130	MEMBER; CROSS,END (B)	8-97128-806-0	01	1	0303-0511		●
130	MEMBER; CROSS,END (B)	8-97128-806-0	01	1	0512-0605	●	●
130	MEMBER; CROSS,END (B)	8-97205-394-0	01	1	0606-	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28691-025-0	08	1	0303-0511		●
131	BOLT; END C/MBR M10X25 FLANGE	0-28691-025-0	08	1	0512-0512	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28661-025-0	08	1	0601-	●	●
132	NUT; END C/MBR M10 FLANGE SOU	0-91150-110-0	08	1	0303-0511		●
132	NUT; END C/MBR M10 FLANGE SOU	0-91150-110-0	08	1	0512-0602	●	●
132	NUT; END C/MBR M10 FLANGE SOU	0-91180-110-0	08	1	0603-	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0303-0511		●	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0512-	●	●	●	●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	0303-		●	●	●
196	BRACKET; STAB TO FRAME SOU	8-97118-620-2	02	1	0512-	●
198	GUSSET; 6TH C/MBR	8-97080-882-1	02	1	0303-0511		●	●	●
198	GUSSET; 6TH C/MBR	8-97080-882-1	02	1	0512-	●	●	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0303-0511		●	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0512-	●	●	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0303-0511		●	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0512-	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0303-0511			●	●
217	BRACKET; HELPER RUBBER,RR SPRING FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0512-	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-417-0	02	1	0303-0511			●	●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	0303-0511		●
217	BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-417-0	02	1	0512-	●	●	●	●
325	EXTENSION; FRAME	8-97222-891-0	01	1	0303-0511		●
325	EXTENSION; FRAME	8-97222-891-0	01	1	0512-	●	●
325	EXTENSION; FRAME	8-97222-892-0	01	1	0303-0511		●
325	EXTENSION; FRAME	8-97222-892-0	01	1	0512-	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-2	01	1	0303-0511		●	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-3	01	1	0512-	●	●	●	●
414	BOLT M12X30 FLANGE	0-28691-230-0	12	1	0303-0511		●
414	BOLT M12X30 FLANGE	0-28691-230-0	12	1	0512-0512	●	●
414	BOLT M12X30 FLANGE	0-28661-230-0	12	1	0601-	●	●
414	BOLT EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X40 FLANGE SOU	0-28691-240-0	04	1	0409-0511		●
414	BOLT M12X40 FLANGE SOU	0-28691-240-0	04	1	0512-0512	●	●
414	BOLT M12X40 FLANGE	0-28661-240-0	04	1	0601-	●	●
446	STIFFENER; SPRING STOPPER (B) SOU	8-97170-790-0	02	1	0303-		●	●	●
446	STIFFENER; SPRING STOPPER (A)	8-97180-433-0	02	1	0303-		●	●	●

376 376 376 376 376 376 376 376 376 376 131 176 414 118 132 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
118	NUT; STOPPER M8 LOCK NUT	9-09131-508-0	02	1	0303-0603		●	●	●
118	NUT; STOPPER M8 LOCK NUT SOU	0-91370-008-0	02	1	0604-		●	●	●
123	NUT EXC. IDENTIFICATION LABEL FOR KD<6UT> M12	8-94139-015-0	16	1	0409-0511		●
123	NUT M12	8-94139-015-0	16	1	0303-0408		●
123	NUT IDENTIFICATION LABEL FOR KD<6UT> M12	8-94139-015-0	12	1	0409-0511		●
123	NUT M12	8-94139-015-0	16	1	0512-0610	●	●
123	NUT M12	8-97360-126-0	16	1	0611-	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28691-025-0	08	1	0303-0511		●
131	BOLT; END C/MBR M10X25 FLANGE	0-28691-025-0	08	1	0512-0512	●	●
131	BOLT; END C/MBR M10X25 FLANGE	0-28661-025-0	08	1	0601-	●	●
132	NUT; END C/MBR M10 FLANGE SOU	0-91150-110-0	08	1	0303-0511		●
132	NUT; END C/MBR M10 FLANGE SOU	0-91150-110-0	08	1	0512-0602	●	●
132	NUT; END C/MBR M10 FLANGE SOU	0-91180-110-0	08	1	0603-	●	●
176	BOLT; C/MBR,ENG MTG M10X25 FLANGE	0-28081-025-0	08	1	0303-0511		●	●	●
176	BOLT; C/MBR,ENG MTG M10X25 FLANGE	0-28081-025-0	08	1	0512-0512	●	●	●	●
176	BOLT; C/MBR,ENG MTG M10X25 FLANGE	0-28051-025-0	08	1	0601-	●	●	●	●
376	RIVET; FRAME (A) D8X26 TAPER END	9-06750-826-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (A) D8X26 TAPER END	9-06750-826-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (B) D10X24 TAPER END	9-06751-024-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (B) D10X24 TAPER END	9-06751-024-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (C) D10X26 TAPER END	9-06751-026-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (C) D10X26 TAPER END	9-06751-026-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (D) D10X28 TAPER END	9-06751-028-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (D) D10X28 TAPER END	9-06751-028-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (E) D10X32 TAPER END	9-06751-032-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (E) D10X32 TAPER END	9-06751-032-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (F) D10X36 TAPER END	9-06751-036-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (F) D10X36 TAPER END	9-06751-036-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (G) D11X30 TAPER END	9-06751-130-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (G) D11X30 TAPER END	9-06751-130-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (H) D12X30 TAPER END	9-06751-230-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (H) D12X30 TAPER END	9-06751-230-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (I) D12X36 TAPER END	9-06751-236-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (I) D12X36 TAPER END	9-06751-236-0	AR	1	0512-	●	●	●	●
376	RIVET; FRAME (J) D12X40 TAPER END	9-06751-240-0	AR	1	0303-0511		●	●	●
376	RIVET; FRAME (J) D12X40 TAPER END	9-06751-240-0	AR	1	0512-	●	●	●	●
414	BOLT M12X30 FLANGE	0-28691-230-0	12	1	0303-0511		●
414	BOLT M12X30 FLANGE	0-28691-230-0	12	1	0512-0512	●	●
414	BOLT M12X30 FLANGE	0-28661-230-0	12	1	0601-	●	●
414	BOLT EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X40 FLANGE SOU	0-28691-240-0	04	1	0409-0511		●
414	BOLT M12X40 FLANGE SOU	0-28691-240-0	04	1	0512-0512	●	●
414	BOLT M12X40 FLANGE	0-28661-240-0	04	1	0601-	●	●

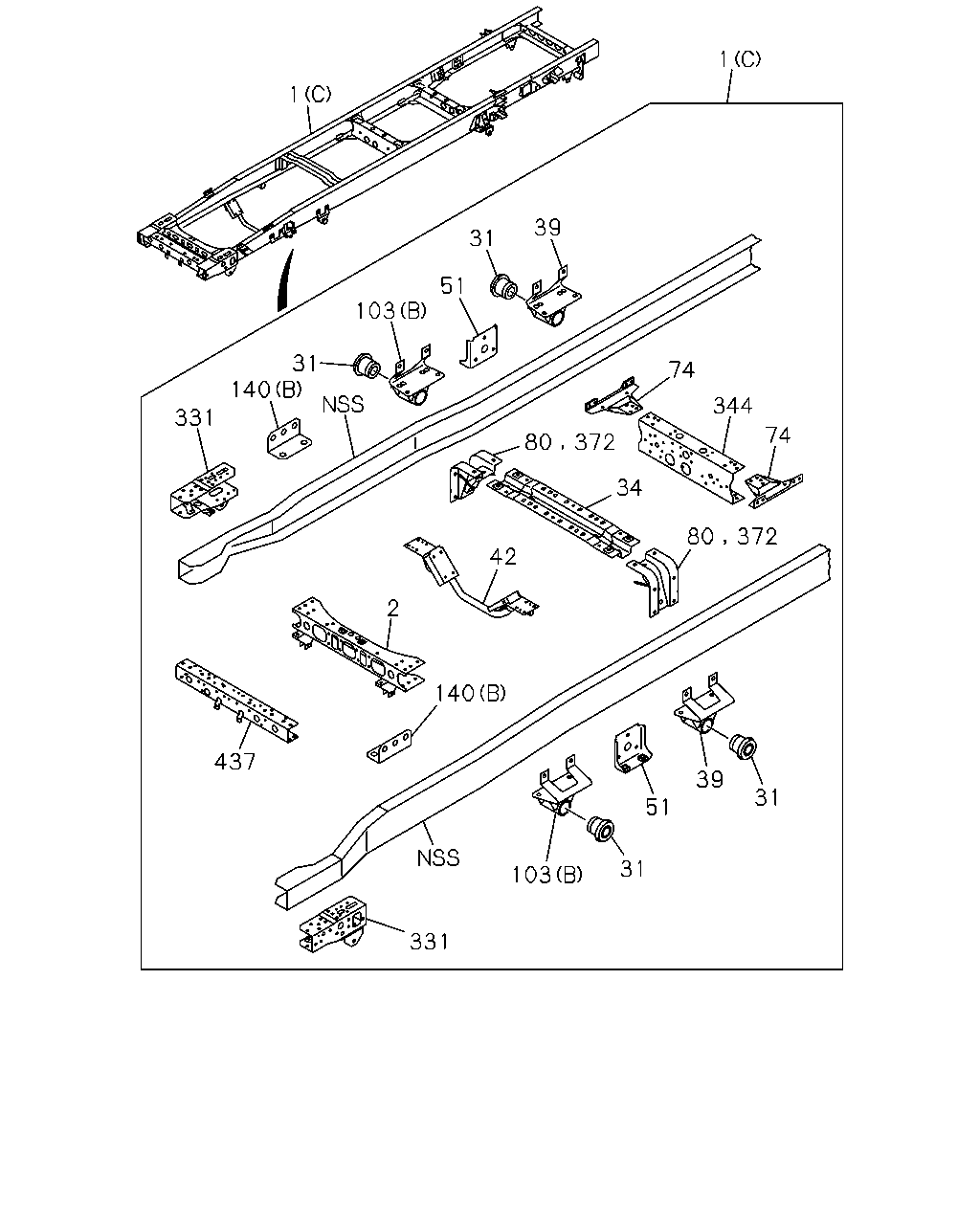

1 1 39 31 51 103 31 140 74 344 331 74 34 42 2 140 437 39 31 51 31 103 331 80 372 80 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-931-0	01	1	0512-	●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-511-2	01	1	0512-		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-481-0	01	1	0512-		●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-881-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-97350-756-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0512-				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0512-				●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-97205-692-0	01	1	0303-0501		●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-98003-479-0	01	1	0502-0511		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-933-0	01	1	0512-	●
2	MEMBER; CROSS,1ST SOU	8-97080-862-4	01	1	0303-0511				●
2	MEMBER; CROSS,1ST SOU	8-97080-862-4	01	1	0512-	●	●		●
2	MEMBER; CROSS,1ST SOU	8-97106-560-2	01	1	0303-0511		●	●
2	MEMBER; CROSS,1ST SOU	8-97106-560-2	01	1	0512-			●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0303-0511		●	●	●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0512-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97096-875-2	01	1	0303-0511		●	●	●
34	MEMBER; CROSS,3RD	8-97096-875-2	01	1	0512-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-97079-495-1	02	1	0303-0511		●	●	●
39	BRACKET; FRT SPR,RR	8-97079-495-1	02	1	0512-	●	●	●	●
42	MEMBER; CROSS,ENG MTG	8-97080-868-0	01	1	0512-	●	●
42	MEMBER; CROSS,ENG MTG	8-97165-925-2	01	1	0303-0511		●	●	●
42	MEMBER; CROSS,ENG MTG	8-97165-925-2	01	1	0512-			●	●
51	BRACKET; ENG SUPPORT,OUTER FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0303-0511			●	●
51	BRACKET; ENG SUPPORT,OUTER FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0512-	●	●	●	●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-415-1	02	1	0303-0511			●	●
51	BRACKET; ENG SUPPORT,OUTER SOU	8-97202-415-1	02	1	0303-0511		●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-415-1	02	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97080-878-0	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97080-878-0	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97109-777-0	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97109-777-0	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-875-1	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-875-1	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-876-1	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-876-1	01	1	0512-	●	●	●	●
80	BRACKET; C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97139-128-0	02	1	0303-0402			●	●
80	BRACKET; C/MBR SOU	8-97139-128-0	02	1	0303-0402		●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0303-0511		●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0303-		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0512-	●	●	●	●
331	BRACKET; STRG UNIT	8-97096-864-0	01	1	0303-0511		●	●	●
331	BRACKET; STRG UNIT	8-97096-864-0	01	1	0512-	●	●	●	●
331	BRACKET; STRG UNIT SOU	8-97096-865-1	01	1	0303-0511		●	●	●
331	BRACKET; STRG UNIT SOU	8-97096-865-1	01	1	0512-	●	●	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-2	01	1	0303-0511		●	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-3	01	1	0512-	●	●	●	●
372	BRACKET FRAME PRESS KOUGYOU<7RZ> SOU	8-97139-128-0	02	1	0303-0402			●	●
372	BRACKET SOU	8-97139-128-0	02	1	0403-0511		●	●	●
372	BRACKET SOU	8-97139-128-0	02	1	0512-	●	●	●	●
437	MEMBER; CROSS,BUMPER	8-97100-041-1	01	1	0303-0511		●	●	●
437	MEMBER; CROSS,BUMPER	8-97100-041-1	01	1	0512-	●	●	●	●

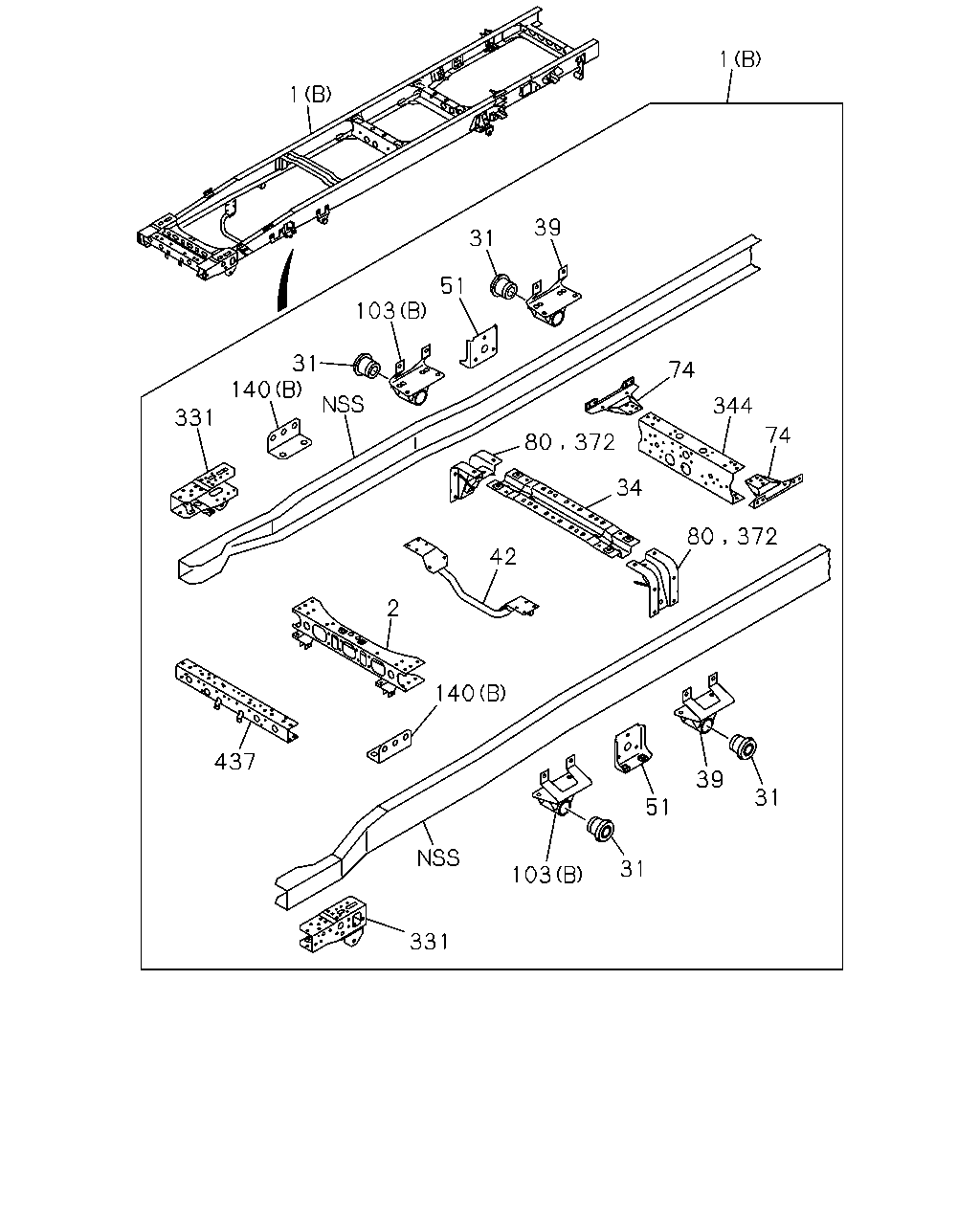

1 1 39 31 51 103 31 140 74 344 331 74 34 42 2 140 437 39 31 51 31 103 331 80 372 80 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-931-0	01	1	0512-	●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-511-2	01	1	0512-		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-481-0	01	1	0512-		●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-881-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-97350-756-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0512-				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0512-				●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-97205-692-0	01	1	0303-0501		●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-98003-479-0	01	1	0502-0511		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-933-0	01	1	0512-	●
2	MEMBER; CROSS,1ST SOU	8-97080-862-4	01	1	0303-0511				●
2	MEMBER; CROSS,1ST SOU	8-97080-862-4	01	1	0512-	●	●		●
2	MEMBER; CROSS,1ST SOU	8-97106-560-2	01	1	0303-0511		●	●
2	MEMBER; CROSS,1ST SOU	8-97106-560-2	01	1	0512-			●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0303-0511		●	●	●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0512-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97096-875-2	01	1	0303-0511		●	●	●
34	MEMBER; CROSS,3RD	8-97096-875-2	01	1	0512-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-97079-495-1	02	1	0303-0511		●	●	●
39	BRACKET; FRT SPR,RR	8-97079-495-1	02	1	0512-	●	●	●	●
42	MEMBER; CROSS,ENG MTG	8-97080-868-0	01	1	0512-	●	●
42	MEMBER; CROSS,ENG MTG	8-97165-925-2	01	1	0303-0511		●	●	●
42	MEMBER; CROSS,ENG MTG	8-97165-925-2	01	1	0512-			●	●
51	BRACKET; ENG SUPPORT,OUTER FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0303-0511			●	●
51	BRACKET; ENG SUPPORT,OUTER FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0512-	●	●	●	●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-415-1	02	1	0303-0511			●	●
51	BRACKET; ENG SUPPORT,OUTER SOU	8-97202-415-1	02	1	0303-0511		●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-415-1	02	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97080-878-0	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97080-878-0	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97109-777-0	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97109-777-0	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-875-1	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-875-1	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-876-1	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-876-1	01	1	0512-	●	●	●	●
80	BRACKET; C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97139-128-0	02	1	0303-0402			●	●
80	BRACKET; C/MBR SOU	8-97139-128-0	02	1	0303-0402		●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0303-0511		●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0303-		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0512-	●	●	●	●
331	BRACKET; STRG UNIT	8-97096-864-0	01	1	0303-0511		●	●	●
331	BRACKET; STRG UNIT	8-97096-864-0	01	1	0512-	●	●	●	●
331	BRACKET; STRG UNIT SOU	8-97096-865-1	01	1	0303-0511		●	●	●
331	BRACKET; STRG UNIT SOU	8-97096-865-1	01	1	0512-	●	●	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-2	01	1	0303-0511		●	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-3	01	1	0512-	●	●	●	●
372	BRACKET FRAME PRESS KOUGYOU<7RZ> SOU	8-97139-128-0	02	1	0303-0402			●	●
372	BRACKET SOU	8-97139-128-0	02	1	0403-0511		●	●	●
372	BRACKET SOU	8-97139-128-0	02	1	0512-	●	●	●	●
437	MEMBER; CROSS,BUMPER	8-97100-041-1	01	1	0303-0511		●	●	●
437	MEMBER; CROSS,BUMPER	8-97100-041-1	01	1	0512-	●	●	●	●

1 1 39 31 51 103 31 140 74 344 331 74 34 42 2 140 437 39 31 51 31 103 331 80 372 80 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-931-0	01	1	0512-	●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-511-2	01	1	0512-		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98003-481-0	01	1	0512-		●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-881-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-499-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-97350-756-0	01	1	0303-0501			●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0502-0511			●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-447-0	01	1	0512-			●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-504-0	01	1	0512-				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0303-0501				●
1	FRAME ASM 4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0502-0511				●
1	FRAME ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. FRAME PRESS KOUGYOU<7RZ> (A) SOU	8-98003-459-0	01	1	0512-				●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-97205-692-0	01	1	0303-0501		●
1	FRAME ASM 4HE1 ENG(RLY) EXC. FRAME PRESS KOUGYOU<7RZ> (B) SOU	8-98003-479-0	01	1	0502-0511		●
1	FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME PRESS KOUGYOU<7RZ> (C) SOU	8-98016-933-0	01	1	0512-	●
2	MEMBER; CROSS,1ST SOU	8-97080-862-4	01	1	0303-0511				●
2	MEMBER; CROSS,1ST SOU	8-97080-862-4	01	1	0512-	●	●		●
2	MEMBER; CROSS,1ST SOU	8-97106-560-2	01	1	0303-0511		●	●
2	MEMBER; CROSS,1ST SOU	8-97106-560-2	01	1	0512-			●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0303-0511		●	●	●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0512-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97096-875-2	01	1	0303-0511		●	●	●
34	MEMBER; CROSS,3RD	8-97096-875-2	01	1	0512-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-97079-495-1	02	1	0303-0511		●	●	●
39	BRACKET; FRT SPR,RR	8-97079-495-1	02	1	0512-	●	●	●	●
42	MEMBER; CROSS,ENG MTG	8-97080-868-0	01	1	0512-	●	●
42	MEMBER; CROSS,ENG MTG	8-97165-925-2	01	1	0303-0511		●	●	●
42	MEMBER; CROSS,ENG MTG	8-97165-925-2	01	1	0512-			●	●
51	BRACKET; ENG SUPPORT,OUTER FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0303-0511			●	●
51	BRACKET; ENG SUPPORT,OUTER FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0512-	●	●	●	●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-415-1	02	1	0303-0511			●	●
51	BRACKET; ENG SUPPORT,OUTER SOU	8-97202-415-1	02	1	0303-0511		●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97202-415-1	02	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97080-878-0	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97080-878-0	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97109-777-0	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR UPPER SOU	8-97109-777-0	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-875-1	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-875-1	01	1	0512-	●	●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-876-1	01	1	0303-0511		●	●	●
74	GUSSET; 4TH C/MBR LOWER SOU	8-97118-876-1	01	1	0512-	●	●	●	●
80	BRACKET; C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> SOU	8-97139-128-0	02	1	0303-0402			●	●
80	BRACKET; C/MBR SOU	8-97139-128-0	02	1	0303-0402		●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0303-0511		●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0512-	●	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0303-		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0512-	●	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0303-0511		●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0512-	●	●	●	●
331	BRACKET; STRG UNIT	8-97096-864-0	01	1	0303-0511		●	●	●
331	BRACKET; STRG UNIT	8-97096-864-0	01	1	0512-	●	●	●	●
331	BRACKET; STRG UNIT SOU	8-97096-865-1	01	1	0303-0511		●	●	●
331	BRACKET; STRG UNIT SOU	8-97096-865-1	01	1	0512-	●	●	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-2	01	1	0303-0511		●	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-3	01	1	0512-	●	●	●	●
372	BRACKET FRAME PRESS KOUGYOU<7RZ> SOU	8-97139-128-0	02	1	0303-0402			●	●
372	BRACKET SOU	8-97139-128-0	02	1	0403-0511		●	●	●
372	BRACKET SOU	8-97139-128-0	02	1	0512-	●	●	●	●
437	MEMBER; CROSS,BUMPER	8-97100-041-1	01	1	0303-0511		●	●	●
437	MEMBER; CROSS,BUMPER	8-97100-041-1	01	1	0512-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
