◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#17772) — 104 parça

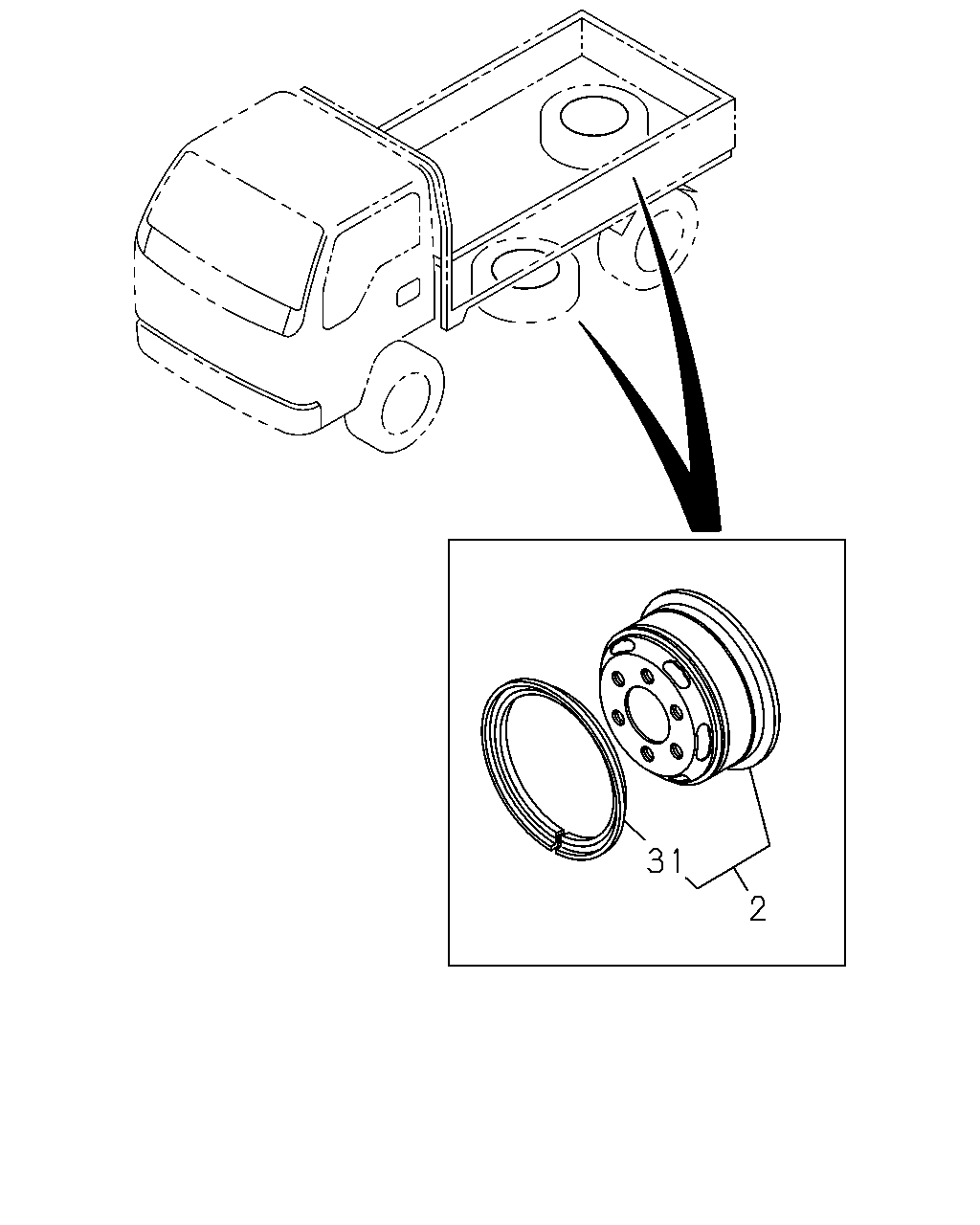

çizim 12672
31 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0303-0511 ●
2 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0512- ●
2 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0512- ● ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0303-0511 ●
2 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0512- ●
2 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0512- ● ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127(11H) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE SOU 		8-94135-596-2 01 1 0303- ●
2 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127(11H) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE SOU 		8-94135-596-2 06 1 0303- ●
2 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU 		1-42350-417-0 01 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU 		1-42350-417-0 06 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0512- ●
31 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0512- ● ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0512- ●
31 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0512- ● ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127(11H) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94135-602-0 01 1 0303- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127(11H) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94135-602-0 06 1 0303- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0303-0511 ●

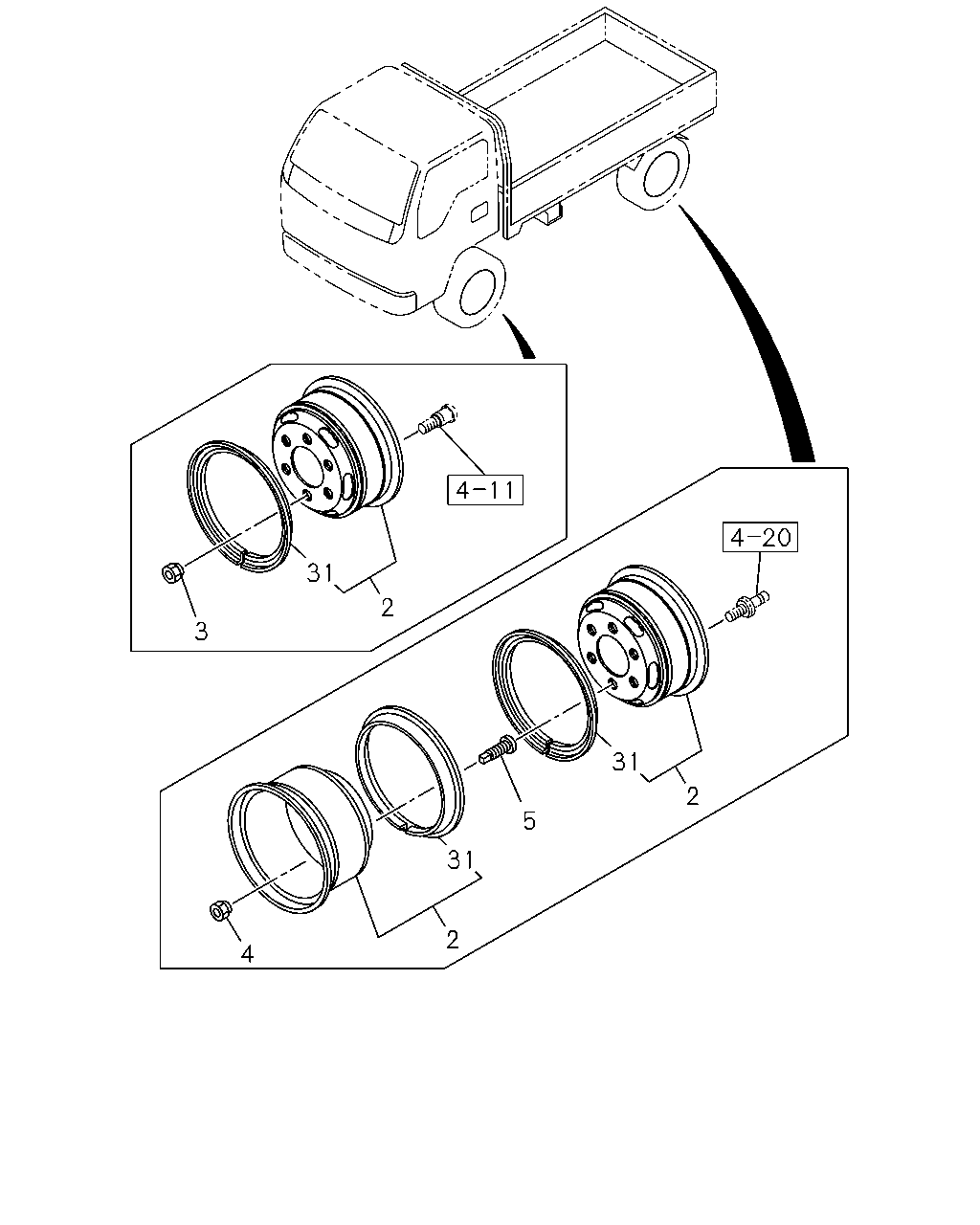

çizim 56707
31 2 3 31 2 5 31 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0303-0511 ●
2 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0512- ●
2 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 01 1 0512- ● ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0303-0511 ●
2 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0512- ●
2 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU 		8-94438-670-4 06 1 0512- ● ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127(11H) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE SOU 		8-94135-596-2 01 1 0303- ●
2 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127(11H) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE SOU 		8-94135-596-2 06 1 0303- ●
2 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU 		1-42350-417-0 01 1 0303-0511 ●
2 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU 		1-42350-417-0 06 1 0303-0511 ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0303-0610 ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-98007-907-0 05 1 0611- ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0303-0610 ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-98007-908-0 05 1 0611- ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 RH THREAD 		8-94427-548-1 06 1 0303-0511 ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0303-0511 ● ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 RH THREAD 		8-94427-548-1 06 1 0512-0610 ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0512-0610 ● ● ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 RH THREAD 		8-97359-807-0 06 1 0611- ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0611- ● ● ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 LH THREAD 		8-94427-549-1 06 1 0303-0511 ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0303-0511 ● ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 LH THREAD 		8-94427-549-1 06 1 0512-0610 ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0512-0610 ● ● ●
3 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 LH THREAD 		8-97359-808-0 06 1 0611- ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0611- ● ● ●
4 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-94365-145-0 05 1 0303-0610 ●
4 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-98007-824-0 05 1 0611- ●
4 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-94365-146-0 05 1 0303-0610 ●
4 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-98007-825-0 05 1 0611- ●
4 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 SOU 		1-42333-023-0 06 1 0303-0511 ●
4 NUT; WHEEL,RR AXLE
M30 SOU 		1-42333-023-0 06 1 0303-0511 ● ●
4 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 SOU 		1-42333-023-0 06 1 0512-0610 ●
4 NUT; WHEEL,RR AXLE
M30 SOU 		1-42333-023-0 06 1 0512-0610 ● ● ●
4 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 RH THREAD SOU 		8-97359-809-0 06 1 0611- ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD SOU 		8-97359-809-0 06 1 0611- ● ● ●
4 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 LH THREAD SOU 		1-42334-023-0 06 1 0303-0511 ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD SOU 		1-42334-023-0 06 1 0303-0511 ● ●
4 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 LH THREAD SOU 		1-42334-023-0 06 1 0512-0610 ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD SOU 		1-42334-023-0 06 1 0512-0610 ● ● ●
4 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 LH THREAD SOU 		8-97359-810-0 06 1 0611- ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD SOU 		8-97359-810-0 06 1 0611- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0303-0610 ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0303-0610 ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 RH THREAD SOU 		1-42335-005-0 06 1 0303-0511 ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD SOU 		1-42335-005-0 06 1 0303-0511 ● ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 RH THREAD SOU 		1-42335-005-1 06 1 0512-0610 ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD SOU 		1-42335-005-1 06 1 0512-0610 ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 RH THREAD SOU 		8-97359-805-0 06 1 0611- ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD SOU 		8-97359-805-0 06 1 0611- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 LH THREAD SOU 		1-42336-005-0 06 1 0303-0511 ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD SOU 		1-42336-005-0 06 1 0303-0511 ● ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 LH THREAD SOU 		1-42336-005-1 06 1 0512-0610 ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD SOU 		1-42336-005-1 06 1 0512-0610 ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 LH THREAD SOU 		8-97359-806-0 06 1 0611- ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD SOU 		8-97359-806-0 06 1 0611- ● ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0512- ●
31 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 01 1 0512- ● ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0512- ●
31 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94412-585-0 06 1 0512- ● ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127(11H) SPARE 16X6.00GS STAMP, BLACK SOU 		8-94135-602-0 01 1 0303- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127(11H) FRONT,REAR 16X6.00GS STAMP, BLACK SOU 		8-94135-602-0 06 1 0303- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0303-0511 ●
31 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0303-0511 ●
