◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#17770) — 29 parça

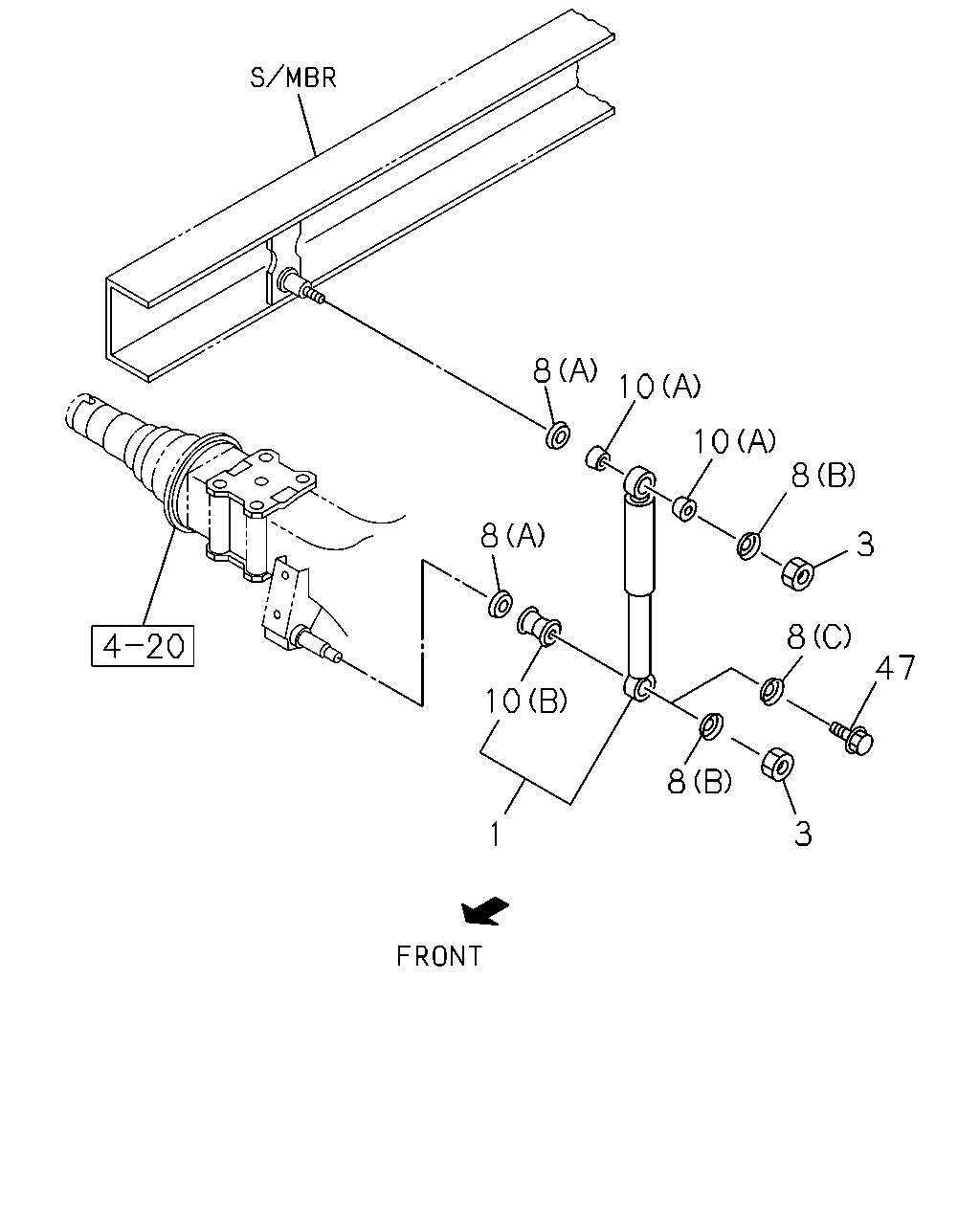

çizim 12997
8 10 10 8 8 3 47 10 8 3 1 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ABSORBER ASM; SHOCK,RR 8-97253-651-0 02 1 0303-0511 ● ● ●
1 ABSORBER ASM; SHOCK,RR 8-97253-651-0 02 1 0512- ● ● ● ●
3 NUT; S/ABS
M14 		9-99111-414-0 02 1 0303-0511 ● ● ●
3 NUT; S/ABS
M14 		9-99111-414-0 02 1 0303-0511 ● ●
3 NUT; S/ABS
M14 		9-99111-414-0 02 1 0512-0512 ● ● ● ●
3 NUT; S/ABS
M14 		9-99111-414-0 02 1 0512-0512 ● ●
3 NUT; S/ABS
M14 SOU 		0-91111-514-0 02 1 0601-0612 ● ● ● ●
3 NUT; S/ABS
M14 SOU 		0-91111-514-0 02 1 0601-0612 ● ●
3 NUT; S/ABS
M14 SOU 		0-91110-514-0 02 1 0701- ● ● ● ●
3 NUT; S/ABS
M14 SOU 		0-91110-514-0 02 1 0701- ● ●
8 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0303-0511 ● ● ●
8 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0303-0511 ● ●
8 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0512-0611 ● ● ● ●
8 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0512-0611 ● ●
8 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ● ● ● ●
8 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ● ●
8 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 0303-0511 ● ● ●
8 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 0512-0611 ● ● ● ●
8 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0612- ● ● ● ●
8 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0303-0511 ●
8 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0512-0611 ● ●
8 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0612- ● ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0303-0511 ● ● ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0512- ● ● ● ●
10 BUSHING; RUBBER,S/ABS
(A) 		9-51631-014-0 04 1 0303-0511 ● ● ●
10 BUSHING; RUBBER,S/ABS
(A) 		9-51631-014-0 04 1 0512- ● ● ● ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28081-016-0 02 1 0303-0511 ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28081-016-0 02 1 0512-0512 ● ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ●
