4-60 — REAR SUSPENSION (#17769) — 94 parça

227 230 225 225 323 318 323 62 25 1 317 274 314 294 308 320 285 285 318 308 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 12-LEAF	8-97174-307-0	02	1	0303-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 12-LEAF	8-97122-382-0	02	1	0303-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF	8-97122-382-0	02	1	0303-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97184-493-0	02	1	0303-0511			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> 12-LEAF	8-97287-992-0	02	1	0512-				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0303-0511			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97096-576-0	02	1	0512-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 12-LEAF	8-97096-576-0	02	1	0512-				●
25	BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1>	8-97225-578-0	01	1	0512-				●
62	BUSHING; LINK ROD STABILIZER REAR<GN1>	8-97239-911-0	02	1	0512-				●
225	RUBBER; CUSHION,RR SPR (A)	8-94379-470-1	02	1	0303-0511	●	●
225	RUBBER; CUSHION,RR SPR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-94379-470-1	02	1	0303-0511			●
225	RUBBER; CUSHION,RR SPR (A)	8-94379-470-1	02	1	0512-	●	●	●	●
225	RUBBER; CUSHION,RR SPR TIRE SIZE 8.25-16<7QP> (B)	5-53366-013-0	02	1	0303-0511			●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	0303-0511	●	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	0512-0602	●	●	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-112-0	02	1	0603-	●	●	●	●
230	SPACER; CUSHION RUBBER STABILIZER REAR<GN1>	8-97136-852-0	02	1	0512-				●
274	BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94440-793-0	02	1	0512-				●
285	BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (A) L=18	8-97089-556-0	02	1	0512-				●
285	BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (B) L=29	8-97089-557-0	02	1	0512-				●
294	BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1>	8-94342-082-0	02	1	0512-0610				●
294	BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1>	8-97360-120-0	02	1	0611-				●
308	PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1>	8-94342-084-0	04	1	0512-0610				●
308	PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1>	8-97360-055-0	04	1	0611-				●
314	WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> ID=14.2	9-09150-514-0	02	1	0512-0603				●
314	WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> ID=14.2 SOU	0-91510-514-0	02	1	0604-				●
317	ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-97239-907-0	02	1	0512-				●
318	BOLT; LINK ROD STABILIZER REAR<GN1> (B) M10X25 FLANGE	0-28681-025-0	04	1	0512-0512				●
318	BOLT; LINK ROD STABILIZER REAR<GN1> (B) M10X25 FLANGE SOU	0-28651-025-0	04	1	0601-				●
318	BOLT; LINK ROD STABILIZER REAR<GN1> (A) M14X70 FLANGE	0-28881-470-0	02	1	0512-0512				●
318	BOLT; LINK ROD STABILIZER REAR<GN1> (A) M14X70 FLANGE	0-28851-470-0	02	1	0601-				●
320	CAP; LINK ROD STABILIZER REAR<GN1>	8-94178-430-2	02	1	0512-				●
323	NUT; LINK ROD STABILIZER REAR<GN1> (B) M10 FLANGE	0-91150-210-0	04	1	0512-0602				●
323	NUT; LINK ROD STABILIZER REAR<GN1> (B) M10 FLANGE SOU	0-91180-210-0	04	1	0603-				●
323	NUT; LINK ROD STABILIZER REAR<GN1> (A) M14 FLANGE	8-94137-483-0	02	1	0512-0610				●
323	NUT; LINK ROD STABILIZER REAR<GN1> (A) M14 FLANGE	8-97360-124-0	02	1	0611-				●
330	NUT; STAB STABILIZER REAR<GN1> M12 LOCK NUT	9-09131-512-0	02	1	0512-0603				●
330	NUT; STAB STABILIZER REAR<GN1> M12 LOCK NUT	0-91370-012-0	02	1	0604-				●

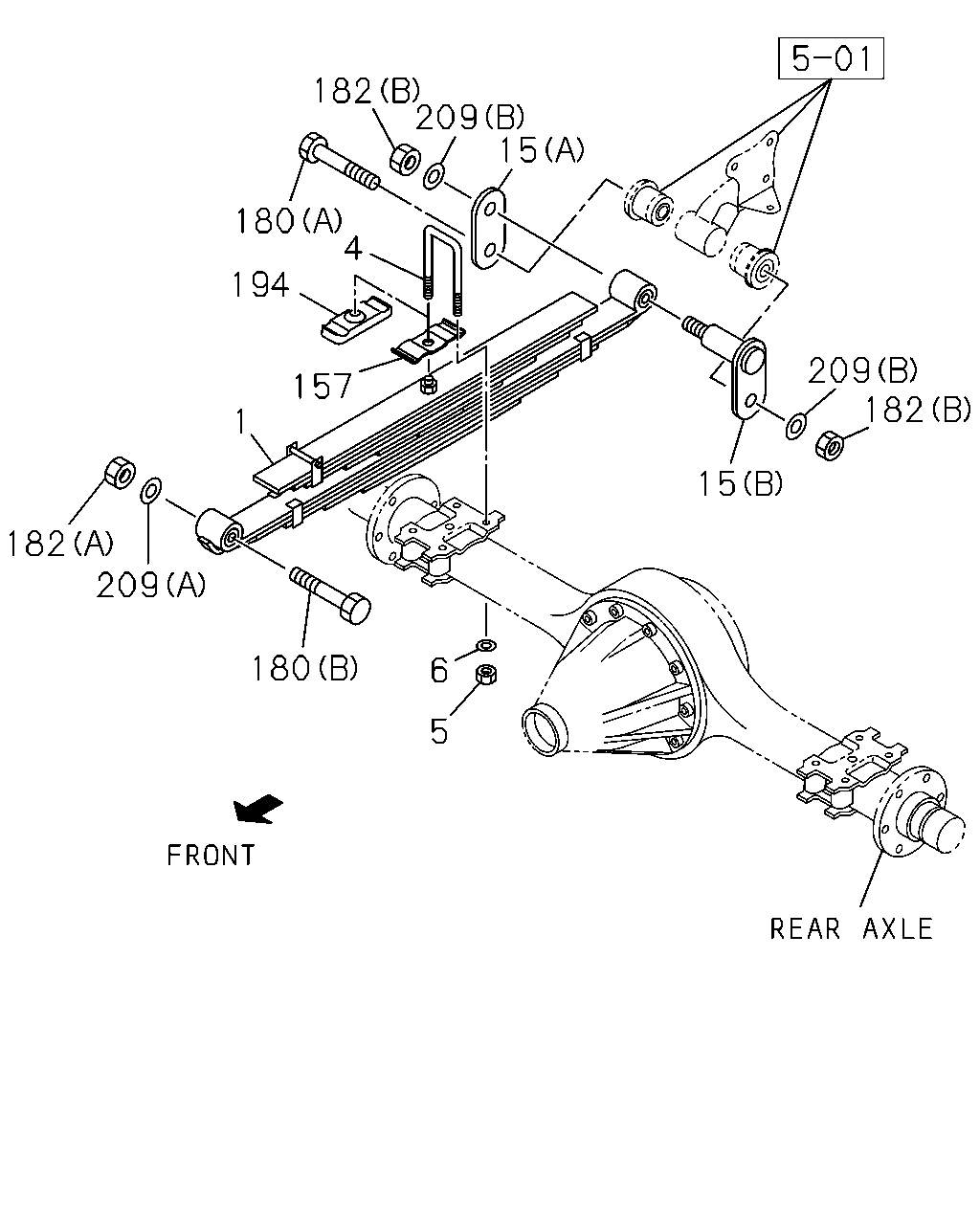

182 209 15 180 4 194 209 182 157 1 15 182 209 180 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 12-LEAF	8-97174-307-0	02	1	0303-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 12-LEAF	8-97122-382-0	02	1	0303-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF	8-97122-382-0	02	1	0303-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97184-493-0	02	1	0303-0511			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> 12-LEAF	8-97287-992-0	02	1	0512-				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0303-0511			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97096-576-0	02	1	0512-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 12-LEAF	8-97096-576-0	02	1	0512-				●
4	U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) L=295	8-94132-358-2	04	1	0303-	●
4	U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) L=305	8-94412-505-0	04	1	0303-	●
4	U-BOLT; RR SPR L=305	8-94412-505-0	04	1	0303-		●
4	U-BOLT; RR SPR TIRE SIZE 8.25-16<7QP> L=360	1-51371-173-3	04	1	0303-0511			●
4	U-BOLT; RR SPR EXC. TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0303-0511			●
4	U-BOLT; RR SPR L=345	1-51371-195-2	04	1	0512-			●	●
5	NUT; U-BOLT,RR SPR M16	8-94107-767-0	08	1	0303-0611	●	●
5	NUT; U-BOLT,RR SPR M16	8-97360-121-0	08	1	0612-	●	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0303-0511			●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0512-			●	●
6	WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0303-0610	●	●
6	WASHER; PL,U-BOLT	8-97360-118-0	08	1	0611-	●	●
15	SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0303-0511	●	●	●
15	SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0512-	●	●	●	●
15	SHACKLE; RR SPR (B)	8-94118-512-4	02	1	0303-0511	●	●	●
15	SHACKLE; RR SPR (B)	8-94118-512-4	02	1	0512-0611	●	●	●	●
15	SHACKLE; RR SPR (B)	8-97360-011-0	02	1	0612-	●	●	●	●
157	CLAMP; UPR,RR SPR L=140 T=4.5	8-94118-509-1	02	1	0303-	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0303-0511	●	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0512-0611	●	●	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0612-	●	●	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	9-51361-602-2	02	1	0303-0511	●	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	9-51361-602-2	02	1	0512-0611	●	●	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	8-98011-487-0	02	1	0612-	●	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0303-0511	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0512-0610	●	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-	●	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0303-0511	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0512-0610	●	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-	●	●	●	●
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (B) M16	9-99110-516-0	04	1	0303-0511	●	●	●
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (B) M16	9-99110-516-0	04	1	0512-0512	●	●	●	●
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (B) M16 SOU	0-91110-516-0	04	1	0601-	●	●	●	●
182	NUT; PIN,RR SPR (A) M18	9-99110-518-0	02	1	0303-0511	●	●	●
182	NUT; PIN,RR SPR (A) M18	9-99110-518-0	02	1	0512-0512	●	●	●	●
182	NUT; PIN,RR SPR (A) M18	0-91110-518-0	02	1	0601-	●	●	●	●
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97147-389-0	04	1	0303-0511	●	●	●
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97147-389-0	04	1	0512-0610	●	●	●	●
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97360-125-0	04	1	0611-	●	●	●	●
194	PAD; CONTACT	1-51372-059-0	02	1	0303-0511			●
194	PAD; CONTACT	1-51372-059-0	02	1	0512-			●	●
209	WASHER; PL KD PREPARATORY PACK<6HF> (B) ID=16.5 SOU	8-97070-925-1	04	1	0303-0511	●	●	●
209	WASHER; PL KD PREPARATORY PACK<6HF> (B) ID=16.5 SOU	8-97070-925-1	04	1	0512-0611	●	●	●	●
209	WASHER; PL KD PREPARATORY PACK<6HF> (B) ID=16.5	8-98011-489-0	04	1	0612-	●	●	●	●
209	WASHER; PL (A) ID=19 SOU	8-97073-435-1	02	1	0303-0511	●	●	●
209	WASHER; PL (A) ID=19 SOU	8-97073-435-1	02	1	0512-0611	●	●	●	●
209	WASHER; PL (A) ID=19	8-97360-119-0	02	1	0612-	●	●	●	●
