4-50 — FRONT SUSPENSION (#17767) — 78 parça

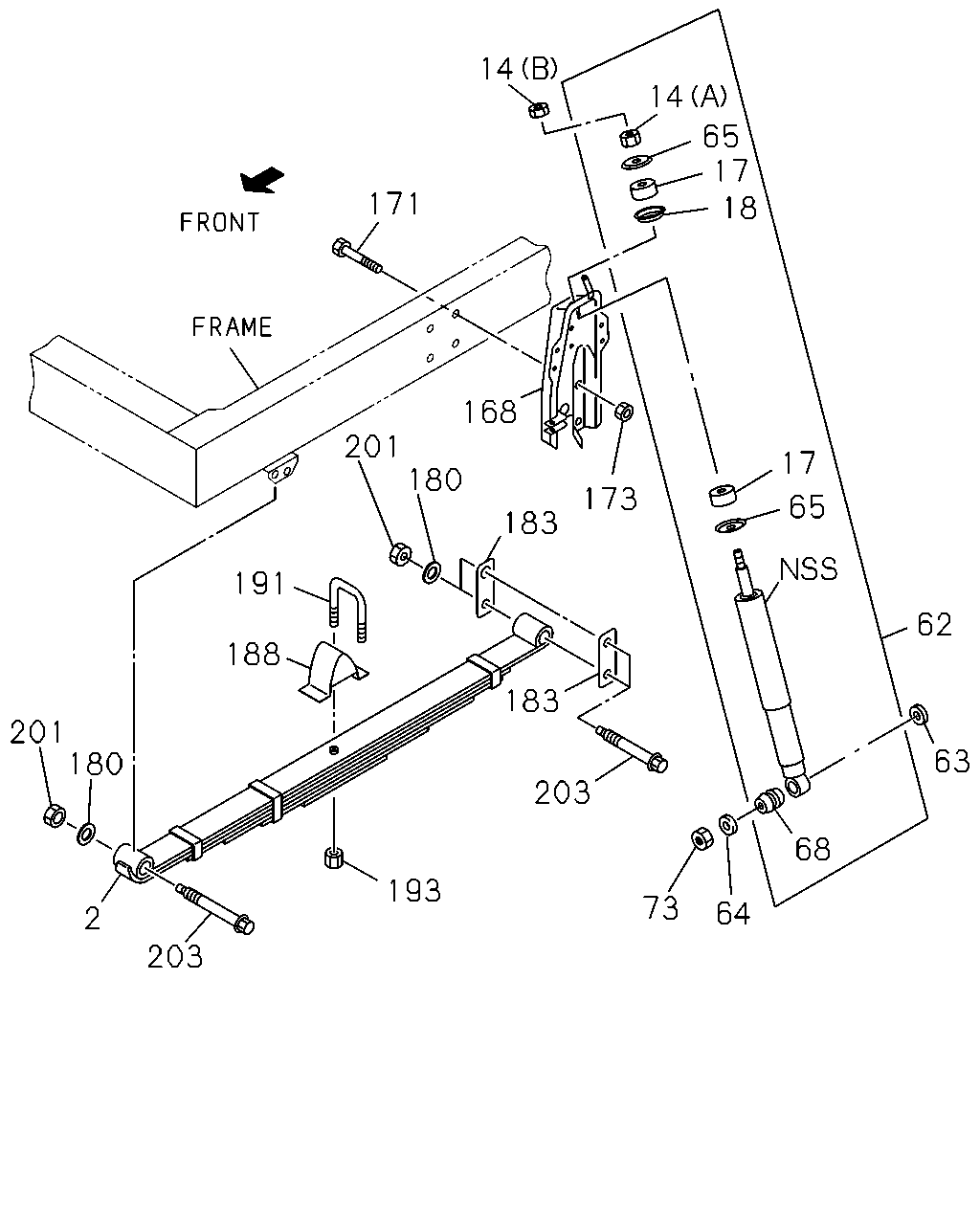

çizim 51577
14 14 65 17 18 171 168 201 17 180 173 65 183 191 62 188 183 201 180 63 203 68 193 73 64 2 203
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97174-304-0 01 1 0303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97174-305-0 01 1 0303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 6-LEAF 		8-97287-990-0 01 1 0303-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97287-990-0 01 1 0303-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF 		8-97287-990-0 01 1 0303-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 6-LEAF 		8-97287-990-0 01 1 0512- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-990-0 01 1 0512- ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 6-LEAF 		8-97287-991-0 01 1 0303-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97287-991-0 01 1 0303-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF 		8-97287-991-0 01 1 0303-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 6-LEAF 		8-97287-991-0 01 1 0512- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97287-991-0 01 1 0512- ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF 		8-97147-600-1 01 1 0303-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF 		8-97147-601-1 01 1 0303-0511 ●
14 NUT; S/ABS,UPR
(A) M10 T=8 		9-09640-020-0 02 1 0303-0511 ● ● ●
14 NUT; S/ABS,UPR
(A) M10 T=8 		9-09640-020-0 02 1 0512- ● ● ● ●
14 NUT; S/ABS,UPR
(B) M10 T=6 		9-09640-021-0 02 1 0303-0306 ● ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO SOU 		9-51631-603-0 04 1 0303-0511 ● ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO SOU 		9-51631-603-0 04 1 0512- ● ● ● ●
18 WASHER; CENTERING,S/ABS
TOKICO SOU 		8-94412-791-0 02 1 0303-0511 ● ● ●
18 WASHER; CENTERING,S/ABS
TOKICO SOU 		8-94412-791-0 02 1 0512- ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV) 		8-97253-617-0 02 1 0303- ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-97253-619-0 02 1 0303-0511 ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-619-0 02 1 0303-0511 ● ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-97367-351-0 02 1 0512- ●
62 ABSORBER ASM; SHOCK,FRT 8-97367-351-0 02 1 0512- ● ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		9-09164-620-0 02 1 0303-0511 ● ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		9-09164-620-0 02 1 0512-0605 ● ● ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		0-91614-620-0 02 1 0606- ● ● ● ●
64 WASHER; S/ABS,LWR
ID=15.0 		9-51679-012-0 02 1 0303-0511 ● ● ●
64 WASHER; S/ABS,LWR
ID=15.0 		9-51679-012-0 02 1 0512-0611 ● ● ● ●
64 WASHER; S/ABS,LWR
ID=15 		8-97360-056-0 02 1 0612- ● ● ● ●
65 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0303-0511 ● ● ●
65 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0512- ● ● ● ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 0303-0511 ● ● ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 0512- ● ● ● ●
73 NUT; BRKT,SHOCK
M14 		9-99110-414-0 02 1 0303-0511 ● ● ●
73 NUT; BRKT,SHOCK
M14 		9-99110-414-0 02 1 0512-0512 ● ● ● ●
73 NUT; BRKT,SHOCK
M14 SOU 		0-91110-514-0 02 1 0601- ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97102-611-2 01 1 0303-0511 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97102-611-2 01 1 0512- ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97240-796-1 01 1 0303-0511 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97240-796-1 01 1 0512- ● ● ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28681-235-0 08 1 0303-0511 ● ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28681-235-0 08 1 0512-0512 ● ● ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE SOU 		0-28651-235-0 08 1 0601- ● ● ● ●
173 NUT; S/ABS
M12 		8-94139-015-0 08 1 0303-0511 ● ● ●
173 NUT; S/ABS
M12 		8-94139-015-0 08 1 0512-0610 ● ● ● ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 0611- ● ● ● ●
180 WASHER; PL,PIN
KD PREPARATORY PACK<6HF> ID=16.5 SOU 		8-97070-925-1 06 1 0303-0511 ● ● ●
180 WASHER; PL,PIN
KD PREPARATORY PACK<6HF> ID=16.5 SOU 		8-97070-925-1 06 1 0512-0611 ● ● ● ●
180 WASHER; PL,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 0612- ● ● ● ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 0303-0511 ● ● ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 0512- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94422-380-4 02 1 0303-0511 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94422-380-4 02 1 0512- ● ● ● ●
191 U-BOLT; FRT SPR
L=125 		8-94119-671-4 04 1 0303- ● ●
191 U-BOLT; FRT SPR
TIRE SIZE 8.25-16<7QP> L=165 		9-51171-075-1 04 1 0303-0511 ●
191 U-BOLT; FRT SPR
EXC. TIRE SIZE 8.25-16<7QP> L=135 		9-51171-073-2 04 1 0303-0511 ●
191 U-BOLT; FRT SPR
L=135 		9-51171-073-2 04 1 0512- ● ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0303-0610 ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 0303-0502 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0503-0511 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0512-0611 ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0612- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		9-99110-516-0 06 1 0303-0511 ● ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		9-99110-516-0 06 1 0512-0512 ● ● ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 SOU 		0-91110-516-0 06 1 0601- ● ● ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 06 1 0303-0511 ● ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 06 1 0512-0610 ● ● ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 0611- ● ● ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> M16X122 		9-51361-602-2 06 1 0303-0511 ● ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> M16X122 		9-51361-602-2 06 1 0512-0611 ● ● ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 0612- ● ● ● ●
203 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97076-850-2 06 1 0303-0511 ● ● ●
203 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97076-850-2 06 1 0512-0610 ● ● ● ●
203 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 0611- ● ● ● ●
