◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#17764) — 23 parça

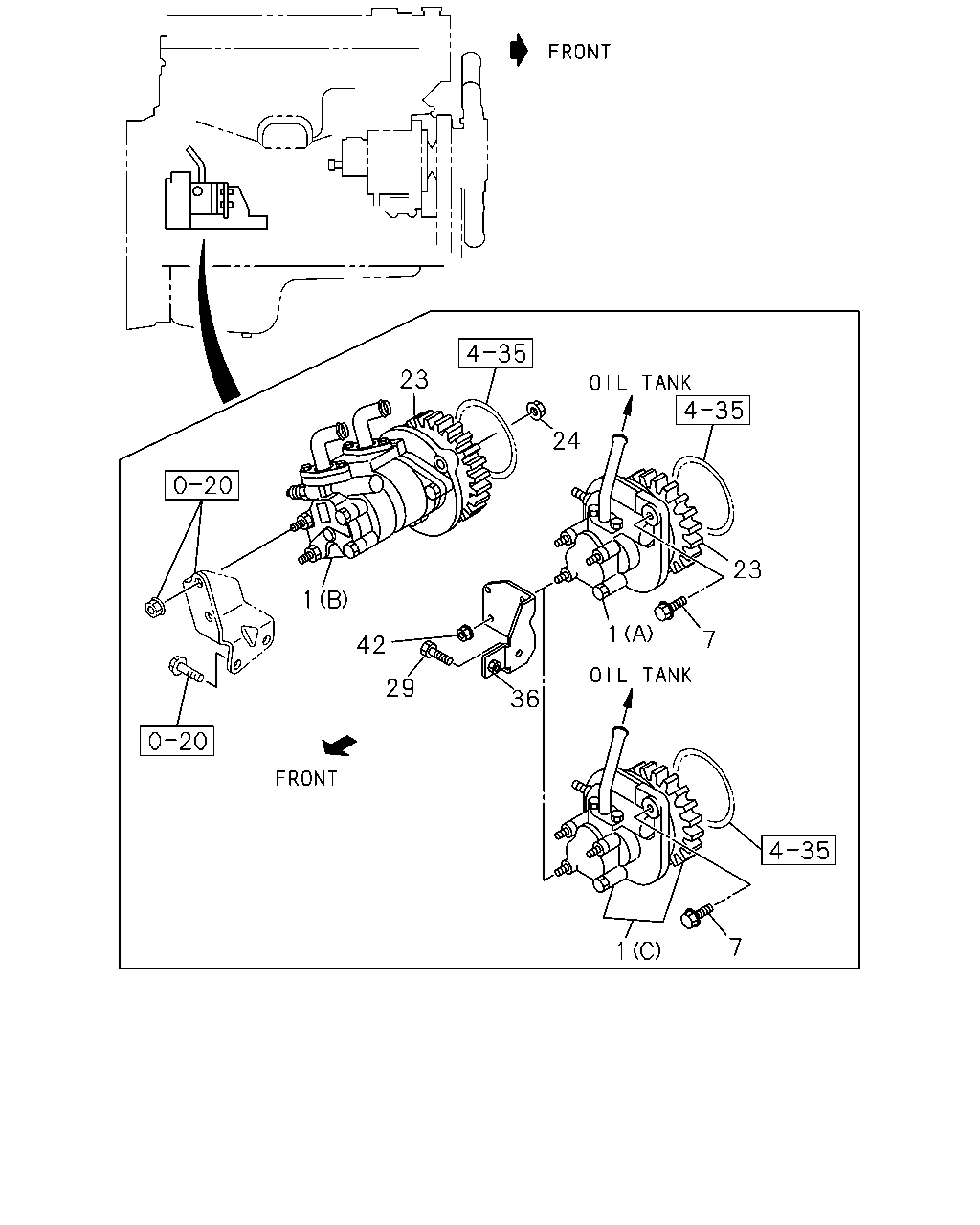

çizim 56897
23 24 23 1 1 7 42 29 36 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (A) 		8-97136-574-1 01 1 0303-0304 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (C) 		8-97357-213-0 01 1 0305-0409 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (C) 		8-97388-651-1 01 1 0410- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-97258-461-0 01 1 0303-0511 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-97258-461-3 01 1 0512- ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 FLANGE 		0-28181-028-0 02 1 0303-0511 ● ●
7 BOLT; OIL PUMP,P/S
M10X28 FLANGE 		0-28181-028-0 02 1 0303-0511 ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 FLANGE 		0-28181-028-0 02 1 0512-0805 ● ●
7 BOLT; OIL PUMP,P/S
M10X28 FLANGE 		0-28181-028-0 02 1 0512-0805 ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 FLANGE 		8-98044-944-0 02 1 0806- ● ●
7 BOLT; OIL PUMP,P/S
M10X28 FLANGE 		8-98044-944-0 02 1 0806- ● ●
23 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 0303-0304 ● ●
23 GEAR; OIL PUMP 8-97114-550-0 01 1 0303-0304 ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 0305-0511 ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 0512- ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-212-0 01 1 0303-0511 ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-212-0 01 1 0512-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE SOU 		0-91180-212-0 01 1 0603- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 0303-0512 ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> M14X20 FLANGE 		0-28851-420-0 01 1 0601- ● ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> 		8-97112-866-0 01 1 0303- ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M8 FLANGE SOU 		0-91150-108-0 02 1 0303-0602 ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M8 FLANGE SOU 		0-91180-108-0 02 1 0603- ● ●
