4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#17763) — 150 parça

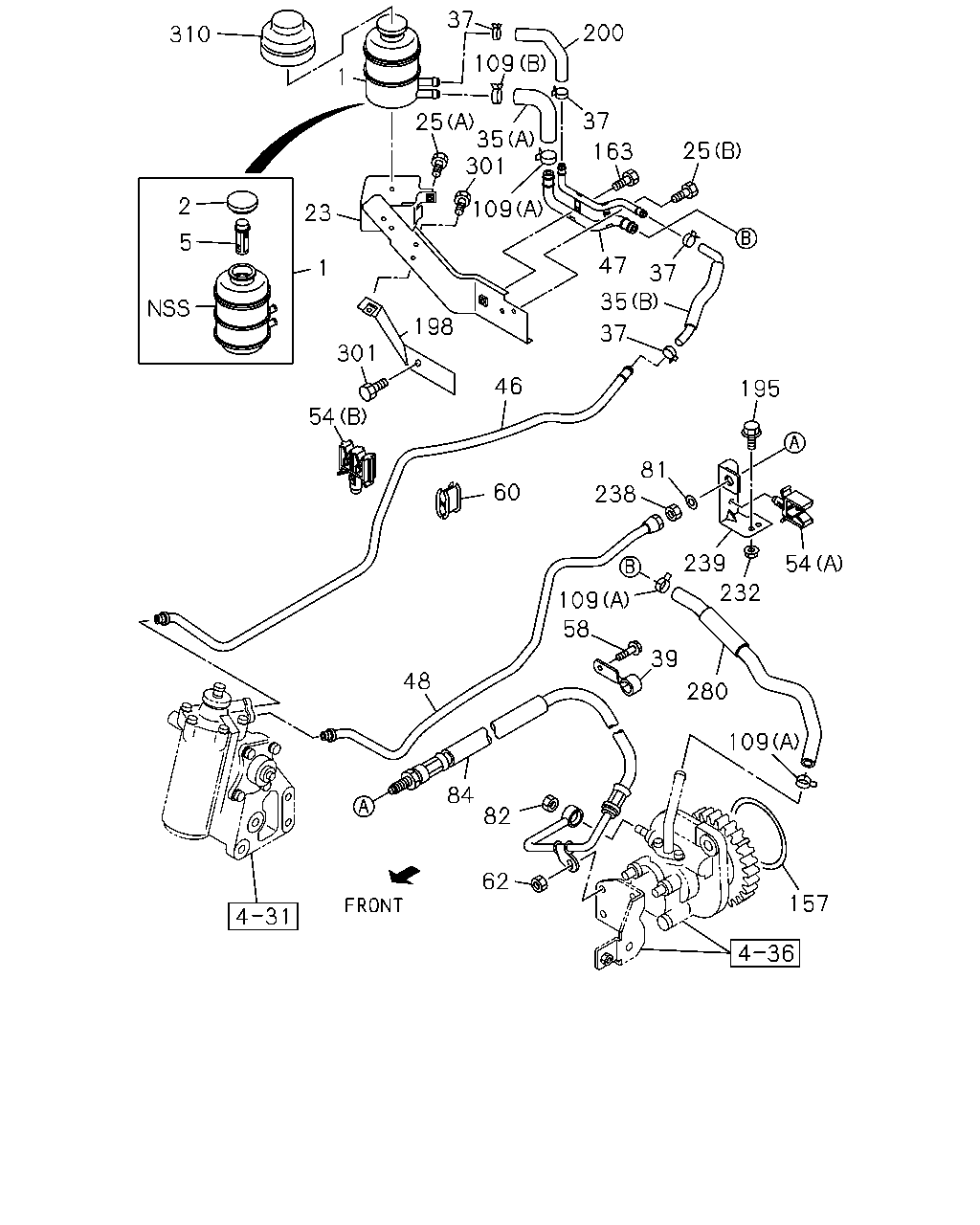

çizim 11382
37 200 310 109 1 37 25 35 301 25 163 2 109 23 5 47 1 37 35 198 37 301 46 195 54 81 238 60 239 54 232 109 58 39 48 280 109 84 82 62 157
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TANK ASM; OIL,P/S
POWER STEERING<N40> 		8-97107-987-0 01 1 0303-0511 ● ●
1 TANK ASM; OIL,P/S 8-97107-987-0 01 1 0303-0511 ●
1 TANK ASM; OIL,P/S
POWER STEERING<N40> 		8-97107-987-0 01 1 0512- ● ●
1 TANK ASM; OIL,P/S 8-97107-987-0 01 1 0512- ● ●
2 CAP; OIL TANK,P/S
POWER STEERING<N40> 		8-94146-153-2 01 1 0303-0511 ● ●
2 CAP; OIL TANK,P/S 8-94146-153-2 01 1 0303-0511 ●
2 CAP; OIL TANK,P/S
POWER STEERING<N40> 		8-94146-153-2 01 1 0512- ● ●
2 CAP; OIL TANK,P/S 8-94146-153-2 01 1 0512- ● ●
5 STRAINER; OIL TANK,P/S
POWER STEERING<N40> 		8-97094-732-0 01 1 0303-0511 ● ●
5 STRAINER; OIL TANK,P/S 8-97094-732-0 01 1 0303-0511 ●
5 STRAINER; OIL TANK,P/S
POWER STEERING<N40> 		8-97094-732-0 01 1 0512- ● ●
5 STRAINER; OIL TANK,P/S 8-97094-732-0 01 1 0512- ● ●
23 BRACKET; OIL TANK,P/S
POWER STEERING<N40> 		8-97101-040-1 01 1 0303-0511 ● ●
23 BRACKET; OIL TANK,P/S 8-97101-040-1 01 1 0303-0511 ●
23 BRACKET; OIL TANK,P/S
POWER STEERING<N40> 		8-97101-040-1 01 1 0512- ● ●
23 BRACKET; OIL TANK,P/S 8-97101-040-1 01 1 0512- ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING<N40> (A) M6X20 FLANGE 		0-28480-620-0 01 1 0303-0511 ● ●
25 BOLT; OIL TANK BRKT
(A) M6X20 FLANGE 		0-28480-620-0 01 1 0303-0511 ●
25 BOLT; OIL TANK BRKT
POWER STEERING<N40> (A) M6X20 FLANGE 		0-28480-620-0 01 1 0512-0512 ● ●
25 BOLT; OIL TANK BRKT
(A) M6X20 FLANGE 		0-28480-620-0 01 1 0512-0512 ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING<N40> (A) M6X20 FLANGE 		0-28450-620-0 01 1 0601- ● ●
25 BOLT; OIL TANK BRKT
(A) M6X20 FLANGE 		0-28450-620-0 01 1 0601- ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0303-0511 ● ●
25 BOLT; OIL TANK BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0303-0511 ●
25 BOLT; OIL TANK BRKT
POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
25 BOLT; OIL TANK BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING<N40> (B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601- ● ●
25 BOLT; OIL TANK BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601- ● ●
35 HOSE; RETURN,P/S TANK
POWER STEERING<N40> (A) 		8-97080-108-1 01 1 0303-0511 ● ●
35 HOSE; RETURN,P/S TANK
(A) 		8-97080-108-1 01 1 0303-0511 ●
35 HOSE; RETURN,P/S TANK
POWER STEERING<N40> (A) 		8-97080-108-1 01 1 0512- ● ●
35 HOSE; RETURN,P/S TANK
(A) 		8-97080-108-1 01 1 0512- ● ●
35 HOSE; RETURN,P/S TANK
POWER STEERING<N40> (B) 		8-97096-949-1 01 1 0303-0511 ● ●
35 HOSE; RETURN,P/S TANK
(B) 		8-97096-949-1 01 1 0303-0511 ●
35 HOSE; RETURN,P/S TANK
POWER STEERING<N40> (B) 		8-97096-949-1 01 1 0512- ● ●
35 HOSE; RETURN,P/S TANK
(B) 		8-97096-949-1 01 1 0512- ● ●
37 CLIP; HOSE,P/S
POWER STEERING<N40> ID=16 SOU 		8-94238-568-0 04 1 0303-0511 ● ●
37 CLIP; HOSE,P/S
ID=16 SOU 		8-94238-568-0 04 1 0303-0511 ●
37 CLIP; HOSE,P/S
POWER STEERING<N40> ID=16 SOU 		8-94238-568-0 04 1 0512- ● ●
37 CLIP; HOSE,P/S
ID=16 SOU 		8-94238-568-0 04 1 0512- ● ●
39 CLIP; FLEX HOSE
ID=28 L=60 		1-09700-585-1 01 1 0303-0511 ●
39 CLIP; FLEX HOSE
ID=28 L=60 		1-09700-585-1 01 1 0512- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 8-98025-821-0 01 1 0512- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40> 		8-97262-194-0 01 1 0303-0511 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 8-97262-194-0 01 1 0303-0511 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40> 		8-97262-194-0 01 1 0512- ● ●
47 PIPE; RETURN
POWER STEERING<N40> 		8-97040-001-2 01 1 0303-0402 ● ●
47 PIPE; RETURN 8-97040-001-2 01 1 0303-0402 ●
47 PIPE; RETURN
POWER STEERING<N40> 		8-97378-860-0 01 1 0403-0511 ● ●
47 PIPE; RETURN 8-97378-860-0 01 1 0403-0511 ●
47 PIPE; RETURN
POWER STEERING<N40> 		8-97378-860-0 01 1 0512- ● ●
47 PIPE; RETURN 8-97378-860-0 01 1 0512- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97386-420-0 01 1 0512- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40> 		8-97257-458-0 01 1 0303-0511 ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97257-458-0 01 1 0303-0511 ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40> 		8-97257-458-0 01 1 0512- ● ●
54 CLIP; OIL PIPE
POWER STEERING<N40> (A) ID=10 H=40 		8-94462-219-0 01 1 0303-0511 ● ●
54 CLIP; OIL PIPE
(A) ID=10 H=40 		8-94462-219-0 01 1 0303-0511 ●
54 CLIP; OIL PIPE
POWER STEERING<N40> (A) ID=10 H=40 		8-94462-219-0 01 1 0512- ● ●
54 CLIP; OIL PIPE
(A) ID=10 H=40 		8-94462-219-0 01 1 0512- ●
54 CLIP; OIL PIPE
(A) ID=10 H=40 		8-94462-219-0 01 1 0512- ●
54 CLIP; OIL PIPE
POWER STEERING<N40> (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0303-0511 ● ●
54 CLIP; OIL PIPE
(B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0303-0511 ●
54 CLIP; OIL PIPE
POWER STEERING<N40> (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0512- ● ●
54 CLIP; OIL PIPE
(B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0512- ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
58 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
60 CLAMP; PIPE,RETURN
POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 01 1 0303-0511 ● ●
60 CLAMP; PIPE,RETURN
ID=10X2 H=22 		8-94252-455-2 01 1 0303-0511 ●
60 CLAMP; PIPE,RETURN
POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 01 1 0512- ● ●
60 CLAMP; PIPE,RETURN
ID=10X2 H=22 		8-94252-455-2 01 1 0512- ● ●
62 NUT; CLIP FIX
POWER STEERING<N40> M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ●
62 NUT; CLIP FIX
M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ●
62 NUT; CLIP FIX
POWER STEERING<N40> M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
62 NUT; CLIP FIX
M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
62 NUT; CLIP FIX
POWER STEERING<N40> M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
62 NUT; CLIP FIX
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
81 WASHER; LK,FLEX HOSE
POWER STEERING<N40> ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0303-0511 ● ●
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0303-0511 ●
81 WASHER; LK,FLEX HOSE
POWER STEERING<N40> ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0512-0603 ● ●
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0512-0603 ● ●
81 WASHER; LK,FLEX HOSE
POWER STEERING<N40> ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0604- ● ●
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0604- ● ●
82 NUT; FLEX HOSE,P/S
POWER STEERING<N40> M12 SELF LOCK 		8-97028-390-1 01 1 0303-0511 ● ●
82 NUT; FLEX HOSE,P/S
M12 SELF LOCK 		8-97028-390-1 01 1 0303-0511 ●
82 NUT; FLEX HOSE,P/S
POWER STEERING<N40> M12 SELF LOCK 		8-97028-390-1 01 1 0512- ● ●
82 NUT; FLEX HOSE,P/S
M12 SELF LOCK 		8-97028-390-1 01 1 0512- ● ●
84 HOSE; FLEX,P/S
POWER STEERING<N40> 		8-97358-254-2 01 1 0303- ● ●
84 HOSE; FLEX,P/S 8-97358-387-2 01 1 0303-0511 ●
84 HOSE; FLEX,P/S 8-97358-387-2 01 1 0512- ● ●
109 CLIP; RUBBER HOSE
POWER STEERING<N40> (B) ID=22 SOU 		8-94382-401-0 01 1 0303-0511 ● ●
109 CLIP; RUBBER HOSE
(B) ID=22 SOU 		8-94382-401-0 01 1 0303-0511 ●
109 CLIP; RUBBER HOSE
POWER STEERING<N40> (B) ID=22 SOU 		8-94382-401-0 01 1 0512- ● ●
109 CLIP; RUBBER HOSE
(B) ID=22 SOU 		8-94382-401-0 01 1 0512- ● ●
109 CLIP; RUBBER HOSE
POWER STEERING<N40> (A) ID=21 		8-94242-034-0 03 1 0303-0511 ● ●
109 CLIP; RUBBER HOSE
(A) ID=21 		8-94242-034-0 03 1 0303-0511 ●
109 CLIP; RUBBER HOSE
POWER STEERING<N40> (A) ID=21 		8-94242-034-0 03 1 0512- ● ●
109 CLIP; RUBBER HOSE
(A) ID=21 		8-94242-034-0 03 1 0512- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>. 		8-97101-875-2 01 1 0303-0511 ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97101-875-2 01 1 0303-0511 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>. 		8-97101-875-2 01 1 0512- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97101-875-2 01 1 0512- ● ●
163 BOLT; OIL PIPE
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ●
163 BOLT; OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ●
163 BOLT; OIL PIPE
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
163 BOLT; OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
163 BOLT; OIL PIPE
POWER STEERING<N40> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
163 BOLT; OIL PIPE
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
195 BOLT; BRKT
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ●
195 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ●
195 BOLT; BRKT
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
195 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
195 BOLT; BRKT
POWER STEERING<N40> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
195 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
198 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40> 		8-97081-778-1 01 1 0303-0511 ● ●
198 STAY; OIL TANK,POWER STEERING 8-97081-778-1 01 1 0303-0511 ●
198 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40> 		8-97081-778-2 01 1 0512- ● ●
198 STAY; OIL TANK,POWER STEERING 8-97081-778-2 01 1 0512- ● ●
200 HOSE; RUBBER,RETURN
POWER STEERING<N40> 		8-97080-109-0 01 1 0303-0511 ● ●
200 HOSE; RUBBER,RETURN 8-97080-109-0 01 1 0303-0511 ●
200 HOSE; RUBBER,RETURN
POWER STEERING<N40> 		8-97080-109-0 01 1 0512- ● ●
200 HOSE; RUBBER,RETURN 8-97080-109-0 01 1 0512- ● ●
232 NUT; BRKT
POWER STEERING<N40> M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ●
232 NUT; BRKT
M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ●
232 NUT; BRKT
POWER STEERING<N40> M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
232 NUT; BRKT
M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
232 NUT; BRKT
POWER STEERING<N40> M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
232 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
238 NUT; FLEX HOSE
POWER STEERING<N40> M16 		8-94370-339-0 01 1 0303-0511 ● ●
238 NUT; FLEX HOSE
M16 		8-94370-339-0 01 1 0303-0511 ●
238 NUT; FLEX HOSE
POWER STEERING<N40> M16 		8-94370-339-0 01 1 0512- ● ●
238 NUT; FLEX HOSE
M16 		8-94370-339-0 01 1 0512- ● ●
239 BRACKET; FLEX HOSE
POWER STEERING<N40> 		8-97033-926-2 01 1 0303-0511 ● ●
239 BRACKET; FLEX HOSE 8-97033-926-2 01 1 0303-0511 ●
239 BRACKET; FLEX HOSE
POWER STEERING<N40> 		8-97033-926-2 01 1 0512- ● ●
239 BRACKET; FLEX HOSE 8-97033-926-2 01 1 0512- ● ●
280 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40> 		8-97107-524-1 01 1 0304- ● ●
280 HOSE; P/S OIL PUMP,INL 8-97177-352-1 01 1 0303-0511 ●
280 HOSE; P/S OIL PUMP,INL 8-97218-729-0 01 1 0512- ● ●
301 BOLT; STAY,OIL TANK
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 02 1 0303-0511 ● ●
301 BOLT; STAY,OIL TANK
M8X25 FLANGE 		0-28680-825-0 02 1 0303-0511 ●
301 BOLT; STAY,OIL TANK
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
301 BOLT; STAY,OIL TANK
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
301 BOLT; STAY,OIL TANK
POWER STEERING<N40> M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601- ● ●
301 BOLT; STAY,OIL TANK
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601- ● ●
310 COVER; OIL TANK
POWER STEERING<N40> 		8-97103-394-0 01 1 0303-0511 ● ●
310 COVER; OIL TANK 8-97103-394-0 01 1 0303-0511 ●
310 COVER; OIL TANK
POWER STEERING<N40> 		8-97103-394-0 01 1 0512- ● ●
310 COVER; OIL TANK 8-97103-394-0 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
