◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#17760) — 84 parça
çizim 51620
81 81 20 5 7 6 7 3 2 13 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 RING; HORN CONTACT
EXC. POWER STEERING<N40> SOU 		8-94150-223-0 01 1 0303- ● ●
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0303-0511 ● ●
3 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0303-0511 ●
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0512- ● ●
3 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0512- ● ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY SOU 		8-97158-727-0 01 1 0303-0511 ● ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0512- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0303-0511 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0512-0512 ● ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 SOU 		0-91111-514-0 01 1 0601- ● ● ● ●
6 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> SOU 		8-94458-316-0 02 1 0303- ● ●
7 SPRING; HORN CONTACT
EXC. POWER STEERING<N40> SOU 		8-94150-222-0 02 1 0303- ● ●
13 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 0303- ● ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0303-0511 ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0303-0511 ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0512- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0512- ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0303-0511 ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0512- ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-937-8 01 1 0303-0511 ● ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0512- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-936-8 01 1 0303-0511 ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0512- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 0512- ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> BLACK 		8-97997-904-7 01 1 0303-0511 ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0512- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) BLACK 		8-97997-903-7 01 1 0303-0511 ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0512- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0512- ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER SOU 		8-94279-400-0 02 1 0303-0511 ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER SOU 		8-94279-400-0 02 1 0512-0612 ● ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 0303-0511 ● ●
81 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97098-527-0 01 1 0303-0511 ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0512- ● ●
81 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97400-060-0 01 1 0512- ● ●
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 0303-0511 ● ●
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0512- ● ●

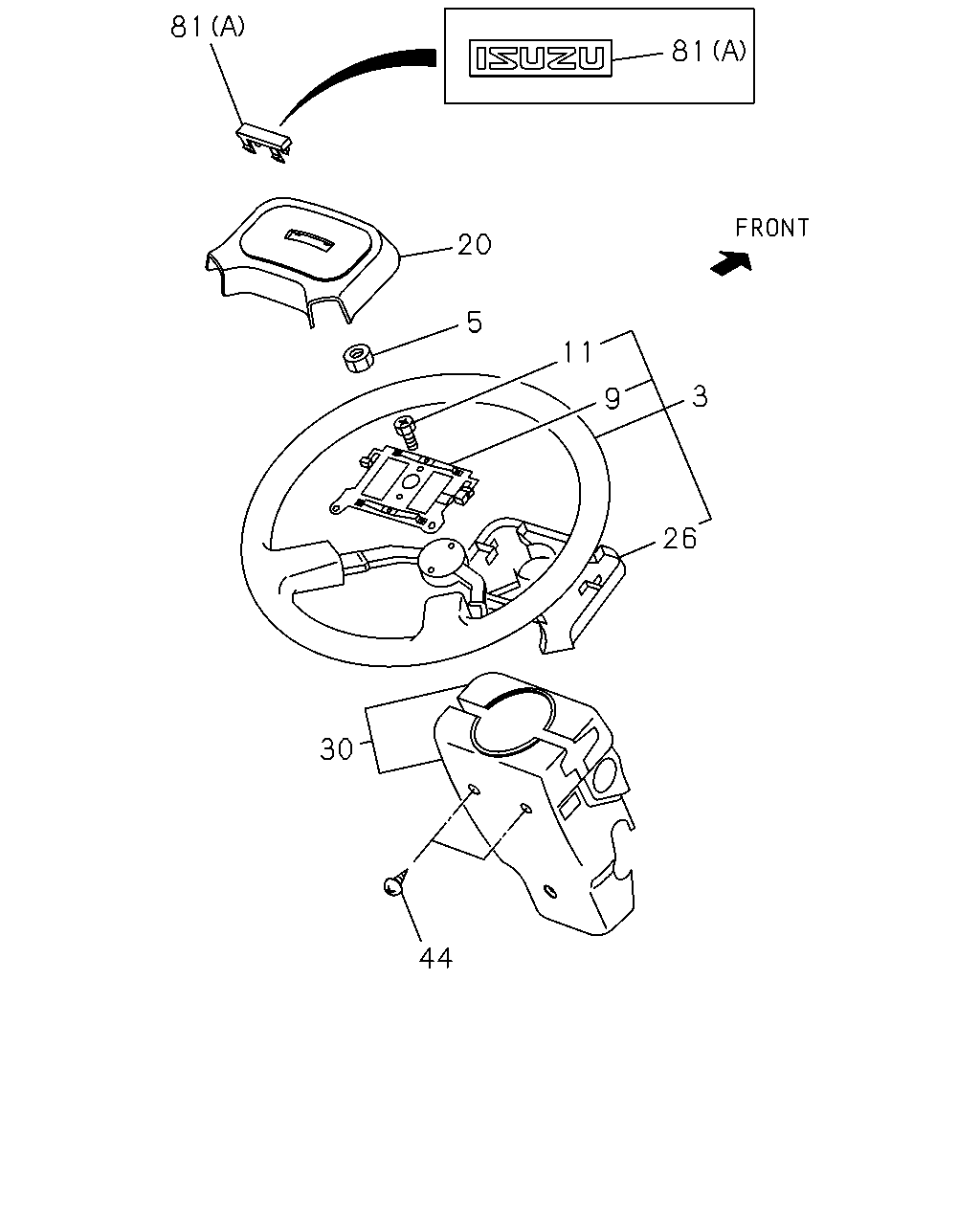

çizim 53024
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0303-0511 ● ●
3 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0303-0511 ●
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0512- ● ●
3 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0512- ● ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY SOU 		8-97158-727-0 01 1 0303-0511 ● ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0512- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0303-0511 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0512-0512 ● ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 SOU 		0-91111-514-0 01 1 0601- ● ● ● ●
9 PLATE; HORN CONTACT
POWER STEERING<N40> SOU 		8-97076-688-1 01 1 0303-0511 ● ●
9 PLATE; HORN CONTACT
SOU 		8-97076-688-1 01 1 0303-0511 ●
9 PLATE; HORN CONTACT
POWER STEERING<N40> SOU 		8-97076-688-1 01 1 0512- ● ●
9 PLATE; HORN CONTACT
SOU 		8-97076-688-1 01 1 0512- ● ●
11 SCREW; PLATE TO BUTTON
POWER STEERING<N40> SOU 		8-97076-690-1 01 1 0303-0511 ● ●
11 SCREW; PLATE TO BUTTON
SOU 		8-97076-690-1 01 1 0303-0511 ●
11 SCREW; PLATE TO BUTTON
POWER STEERING<N40> SOU 		8-97076-690-1 01 1 0512- ● ●
11 SCREW; PLATE TO BUTTON
SOU 		8-97076-690-1 01 1 0512- ● ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0303-0511 ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0303-0511 ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0512- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0512- ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0303-0511 ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0512- ● ●
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY SOU 		8-97098-534-1 01 1 0303-0511 ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY SOU 		8-97098-534-1 01 1 0303-0511 ●
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 0512- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0512- ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-937-8 01 1 0303-0511 ● ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0512- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-936-8 01 1 0303-0511 ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0512- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 0512- ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> BLACK 		8-97997-904-7 01 1 0303-0511 ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0512- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) BLACK 		8-97997-903-7 01 1 0303-0511 ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0512- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0512- ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER SOU 		8-94279-400-0 02 1 0303-0511 ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER SOU 		8-94279-400-0 02 1 0512-0612 ● ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 0303-0511 ● ●
81 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97098-527-0 01 1 0303-0511 ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0512- ● ●
81 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97400-060-0 01 1 0512- ● ●
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 0303-0511 ● ●
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0512- ● ●
