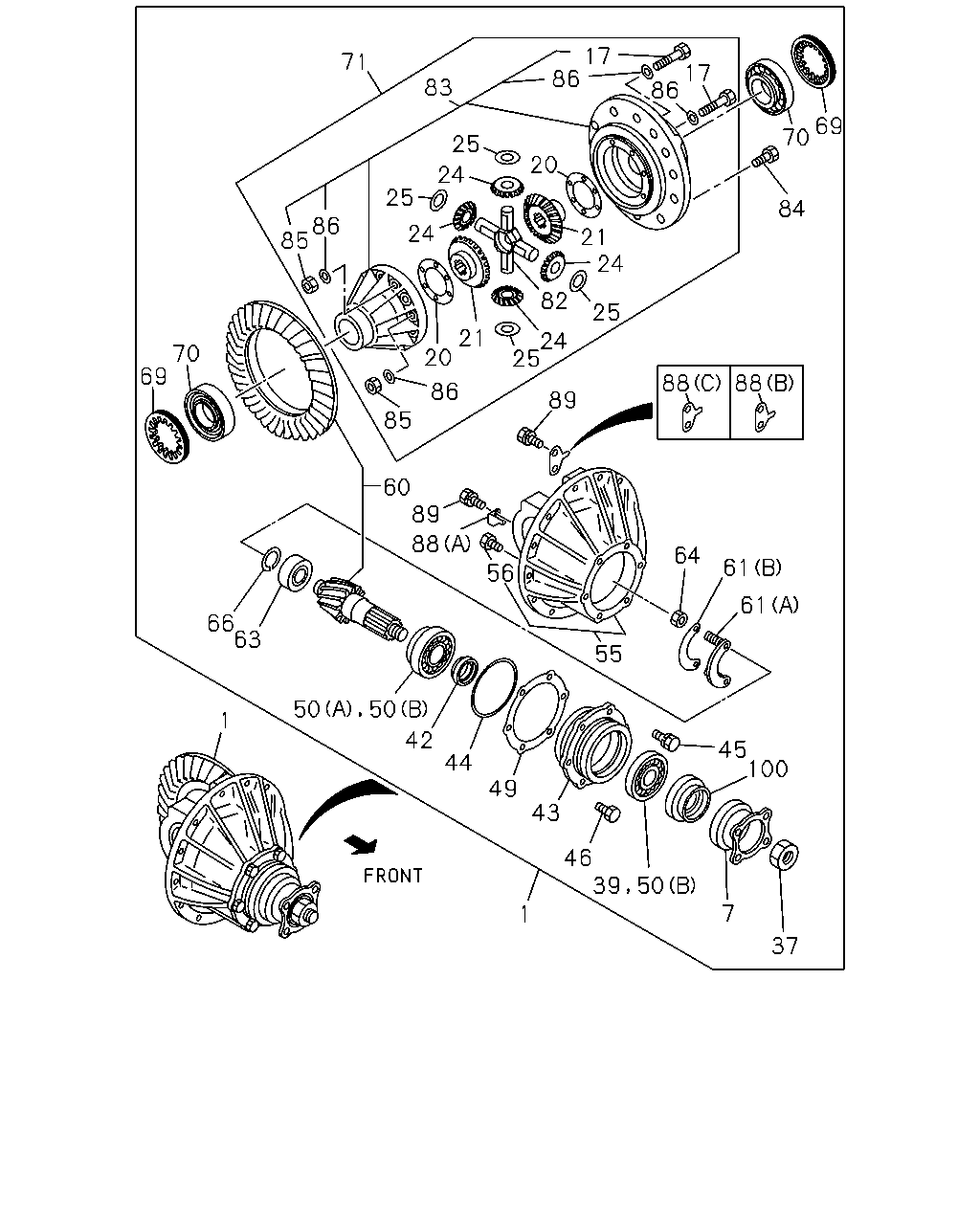

4-25 — REAR FINAL DRIVE (#17759) — 153 parça

17 86 71 17 86 83 69 70 25 20 24 25 84 86 85 24 21 24 82 25 21 20 24 25 70 69 88 88 86 89 85 60 89 88 64 61 56 61 66 63 55 50 50 1 42 45 100 44 49 43 46 7 1 37 39 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR 39/6	8-97319-247-0	01	1	0303-0303	●	●
1	DRIVE ASM; FINAL,RR 39/6	8-97356-429-0	01	1	0304-0304	●	●
1	DRIVE ASM; FINAL,RR 39/6	8-97363-102-0	01	1	0304-0510	●	●
1	DRIVE ASM; FINAL,RR 39/6	8-98015-131-0	01	1	0511-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97203-879-0	01	1	0303-0304			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97367-508-0	01	1	0305-0511			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97094-681-0	01	1	0303-0511			●
1	DRIVE ASM; FINAL,RR 43/9	8-97094-681-0	01	1	0512-			●	●
7	FLANGE; FINAL	8-94477-723-4	01	1	0303-	●	●
7	FLANGE; FINAL	8-97047-095-2	01	1	0303-0511			●
7	FLANGE; FINAL	8-97047-095-2	01	1	0512-			●	●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0303-	●	●
17	BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0303-0511			●
17	BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0512-			●	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0303-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0303-0511			●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0512-			●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0303-0511			●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0512-			●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0303-0511			●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0512-			●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0303-0511			●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0512-			●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0303-0511			●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0512-			●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0303-0511			●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0512-			●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0303-0511			●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0512-			●	●
21	GEAR; SIDE,DIFF Z=20	8-97300-266-0	02	1	0303-0303	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-598-0	02	1	0304-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0303-0511			●
21	GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0512-			●	●
24	GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0303-0303	●	●
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0510	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0303-0511			●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0512-			●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0303-0511			●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0512-			●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0303-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0303-0511			●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0512-			●	●
39	BEARING; FINAL PINION KOYO	5-09812-062-1	01	1	0303-0511			●
39	BEARING; FINAL PINION KOYO	5-09812-062-1	01	1	0512-			●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0303-0511			●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0512-			●	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0303-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0303-0511			●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0512-			●	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0303-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0303-0511			●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0512-			●	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0303-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0303-0511			●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0512-			●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0303-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0303-0511			●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0512-			●	●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0303-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0303-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0303-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0303-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0303-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0303-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0303-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0303-0511			●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0512-			●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0303-0511			●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0512-			●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0303-0511			●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0512-			●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0303-0511			●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0512-			●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0303-0511			●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0512-			●	●
50	BEARING; FINAL PINION (A) KOYO	1-09812-042-1	01	1	0701-			●	●
50	BEARING; FINAL PINION (B) KOYO	5-09812-062-1	02	1	0303-	●	●
50	BEARING; FINAL PINION (B) NSK	5-09812-063-0	02	1	0303-	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	0303-0511			●
50	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	0512-			●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0303-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	0303-0511			●
55	CARRIER; DIFF	8-97094-637-0	01	1	0512-			●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0303-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0303-0511			●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0512-			●	●
60	GEAR SET; FINAL DRIVE,RR 39/6	8-97319-162-0	01	1	0303-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0303-0511			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	0303-0511			●
60	GEAR SET; FINAL DRIVE,RR 43/9	8-97061-850-0	01	1	0512-			●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0303-	●	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0303-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0303-0511			●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0512-			●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0303-0511			●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0512-			●	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0303-	●	●
63	BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0303-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0303-0511			●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0512-			●	●
63	BEARING; PINION PILOT KOYO	8-97047-928-0	01	1	0303-0511			●
63	BEARING; PINION PILOT KOYO	8-97047-928-0	01	1	0512-			●	●
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	0303-0511	●	●	●
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	0512-0602	●	●	●	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	0603-	●	●	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0303-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0303-0511			●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0512-			●	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0303-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0303-0511			●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0512-			●	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0303-	●	●
70	BEARING; DIFF CAGE KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0303-0511			●
70	BEARING; DIFF CAGE KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0512-			●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97319-039-0	01	1	0303-0303	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97356-483-0	01	1	0304-0304	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-156-0	01	1	0304-0510	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-179-0	01	1	0511-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-97047-100-1	01	1	0303-0511			●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J)	8-97047-099-1	01	1	0303-0511			●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0512-			●	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0303-	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0303-0511			●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0512-			●	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0303-	●	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-97047-117-1	01	1	0303-0511			●
83	CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-97047-101-1	01	1	0303-0511			●
83	CAGE ASM; DIFF	8-97047-101-1	01	1	0512-			●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0303-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0303-0511			●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0512-			●	●
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91150-210-0	12	1	0303-0602	●	●
85	NUT; DIFF CAGE SETTING M10 FLANGE SOU	0-91180-210-0	12	1	0603-	●	●
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0303-0511			●
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0512-			●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0303-0511			●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0512-			●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0303-	●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-282-0	AR	1	0303-	●	●
88	PLATE; LK,ADJ NUT (B)	8-97087-821-0	AR	1	0303-0511			●
88	PLATE; LK,ADJ NUT (B)	8-97087-821-0	AR	1	0512-			●	●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0303-0511			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0512-			●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	02	1	0303-0512	●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	02	1	0601-	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	04	1	0303-0511			●
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	04	1	0512-0512			●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	0601-			●	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0303-	●	●
100	SEAL; OIL,FINAL PINION NOK	8-97047-609-0	01	1	0303-0406			●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0407-0511			●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0512-			●	●
