4-20 — REAR AXLE CASE AND SHAFT (#17758) — 114 parça

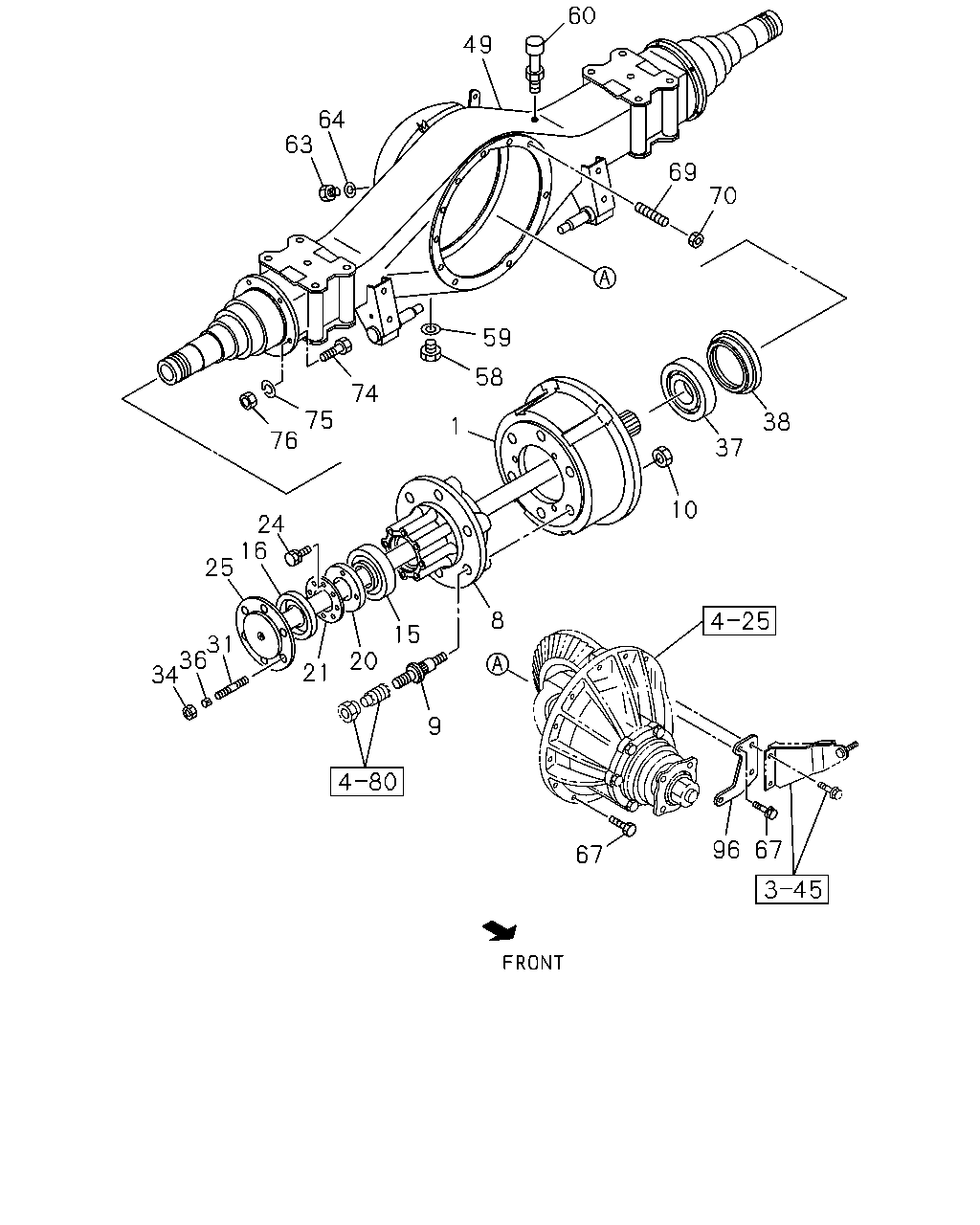

çizim 54182
60 49 64 63 69 70 59 58 74 75 76 38 1 37 10 24 16 25 8 15 31 36 34 20 21 9 96 67 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) 		8-97034-770-3 02 1 0303- ●
1 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97081-219-2 02 1 0303- ●
1 DRUM; BRK,RR 8-97081-219-2 02 1 0303- ●
1 DRUM; BRK,RR 8-97102-001-3 02 1 0303-0511 ●
1 DRUM; BRK,RR 8-97102-001-3 02 1 0512- ● ●
8 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV) 		8-94382-893-4 02 1 0303- ●
8 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97081-323-2 02 1 0303- ●
8 HUB; RR AXLE 8-97081-323-2 02 1 0303- ●
8 HUB; RR AXLE 8-97107-549-2 02 1 0303-0511 ●
8 HUB; RR AXLE 8-97107-549-2 02 1 0512- ● ●
9 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0303- ●
9 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0303- ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0303-0511 ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0303-0511 ● ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD 		8-97081-584-3 06 1 0512- ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-3 06 1 0512- ● ● ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0303-0511 ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0303-0511 ● ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-3 06 1 0512- ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-3 06 1 0512- ● ● ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M20 		9-99110-520-0 10 1 0303-0512 ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M20 		0-91110-520-0 10 1 0601- ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M22 		9-09110-522-0 12 1 0303-0511 ●
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 12 1 0303-0511 ● ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M22 		9-09110-522-0 12 1 0512-0512 ●
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 12 1 0512-0512 ● ● ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M22 		0-91110-522-0 12 1 0601- ●
10 NUT; WHEEL PIN,RR AXLE
M22 		0-91110-522-0 12 1 0601- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-607-0 02 1 0303-0511 ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-607-0 02 1 0512- ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 0305-0511 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 0512- ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 0303-0511 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 0512- ● ● ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0303-0511 ● ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0512- ● ● ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0303-0511 ● ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0512- ● ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50040-612-0 04 1 0303-0511 ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50040-612-0 04 1 0512-0512 ● ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50540-612-0 04 1 0601-0611 ● ● ● ●
24 BOLT; LK WASHER
M6X10 FLANGE 		0-28050-610-0 04 1 0612- ● ● ● ●
25 SHAFT; AXLE,RR
L=893 		8-97073-871-1 02 1 0303- ● ●
25 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 0303-0511 ●
25 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 0512- ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0303-0511 ● ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0512-0709 ● ● ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0710- ● ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91150-210-0 16 1 0303-0511 ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91150-210-0 16 1 0512-0602 ● ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE SOU 		0-91180-210-0 16 1 0603- ● ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0303-0511 ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0512-0709 ● ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0710- ● ● ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-624-0 02 1 0303- ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		8-97122-938-0 02 1 0303-0511 ●
37 BEARING; HUB INNER,RR AXLE
NSK 		8-97122-938-0 02 1 0512- ● ●
37 BEARING; HUB INNER,RR AXLE
KOYO 		8-97123-119-0 02 1 0303-0511 ●
37 BEARING; HUB INNER,RR AXLE
KOYO 		8-97123-119-0 02 1 0512- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-958-0 02 1 0305- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-316-1 02 1 0303- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-97122-937-0 02 1 0303-0511 ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-97122-937-0 02 1 0512- ● ●
49 CASE; RR AXLE 8-97222-081-3 01 1 0303- ● ●
49 CASE; RR AXLE 8-97222-079-1 01 1 0303-0511 ●
49 CASE; RR AXLE 8-97222-079-3 01 1 0512- ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 SOU 		8-97109-869-0 01 1 0303-0511 ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 SOU 		8-97109-869-0 01 1 0512-0611 ● ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 SOU 		8-97307-060-0 01 1 0612- ● ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0303-0511 ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0512- ● ● ● ●
60 BREATHER; RR AXLE CASE
L=30 SOU 		8-94416-611-1 01 1 0303-0409 ● ● ●
60 BREATHER; RR AXLE CASE
L=29 SOU 		8-97383-656-0 01 1 0410-0511 ● ● ●
60 BREATHER; RR AXLE CASE
L=29 SOU 		8-97383-656-0 01 1 0512-0606 ● ● ● ●
60 BREATHER; RR AXLE CASE
L=29 SOU 		8-98006-960-0 01 1 0607- ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 SOU 		9-09662-005-0 01 1 0303-0511 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 SOU 		9-09662-005-0 01 1 0512-0611 ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0612- ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 SOU 		8-94462-734-0 01 1 0303-0511 ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 SOU 		8-94462-734-0 01 1 0512- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0303-0610 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 		0-10956-040-0 11 1 0611-0611 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0611- ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0303-0511 ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0512- ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0303-0511 ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0512- ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0303-0511 ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0512-0610 ● ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 0303-0511 ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ● ● ● ●
70 NUT; CARRIER
M10 FLANGE SOU 		0-91180-210-0 02 1 0603- ● ● ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0303-0611 ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0612- ● ●
74 BOLT; RR BRK ASM SETTING
M14X35 		8-97122-853-2 12 1 0303-0310 ●
74 BOLT; RR BRK ASM SETTING
M14X40 		8-97357-301-1 12 1 0311-0511 ●
74 BOLT; RR BRK ASM SETTING
M14X40 		8-97357-301-1 12 1 0512-0611 ● ●
74 BOLT; RR BRK ASM SETTING
M14X40 		8-98007-879-0 12 1 0612- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		9-09150-612-0 12 1 0303-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-612-0 12 1 0604-0611 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-812-0 12 1 0612- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 12 1 0303-0511 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 12 1 0512-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 SOU 		0-91510-814-0 12 1 0604- ● ●
76 NUT; RR BRK ASM SETTING
M12 		9-99110-512-0 12 1 0303-0512 ● ●
76 NUT; RR BRK ASM SETTING
M12 SOU 		0-91110-512-0 12 1 0601- ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 12 1 0303-0511 ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 12 1 0512-0512 ● ●
76 NUT; RR BRK ASM SETTING
M14 SOU 		0-91110-514-0 12 1 0601- ● ●
96 BRACKET; LSPV,AXLE CASE 8-97011-997-3 01 1 0303-0610 ● ●
96 BRACKET; LSPV,AXLE CASE 8-98030-956-0 01 1 0611- ● ●
96 BRACKET; LSPV,AXLE CASE 8-97145-451-2 01 1 0303-0511 ●
96 BRACKET; LSPV,AXLE CASE 8-97145-451-2 01 1 0512- ● ●
