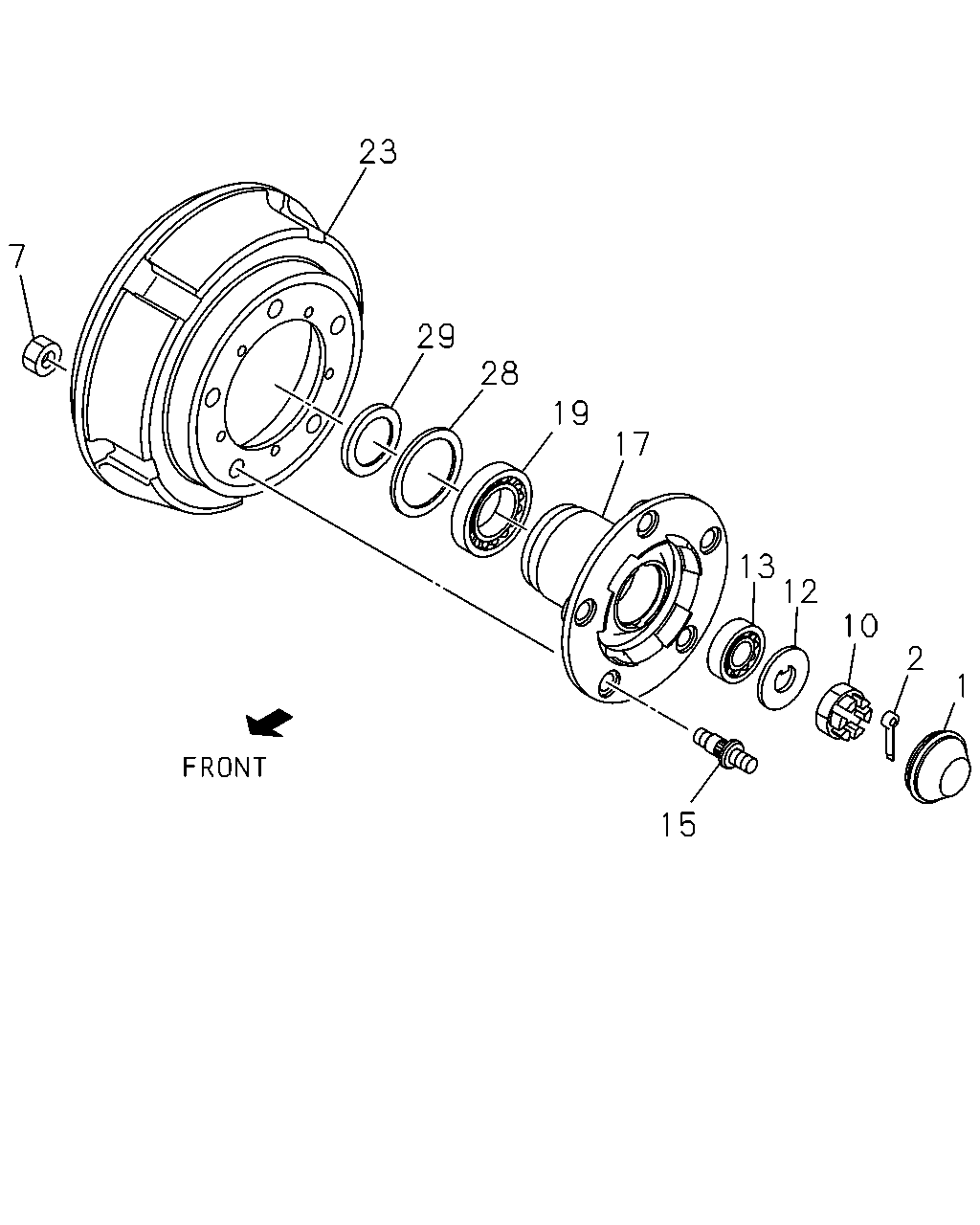

4-11 — FRONT HUB AND DRUM OR ROTOR (#17757) — 55 parça

23 7 29 28 19 17 13 12 10 2 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAP; HUB,FRT AXLE	8-97012-619-0	02	1	0303-0511	●	●	●
1	CAP; HUB,FRT AXLE	8-97012-619-0	02	1	0512-0611	●	●	●	●
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0612-	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	9-08115-040-0	02	1	0303-0511	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	9-08115-040-0	02	1	0512-0606	●	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0607-	●	●	●	●
7	NUT; FRT HUB G.V.W. 7.0-7.5TON(RPX) M22	9-09110-522-0	12	1	0303-0511	●
7	NUT; FRT HUB M22	9-09110-522-0	12	1	0303-0511		●	●
7	NUT; FRT HUB G.V.W. 7.0-7.5TON(RPX) M22	9-09110-522-0	12	1	0512-0512	●
7	NUT; FRT HUB M22	9-09110-522-0	12	1	0512-0512		●	●	●
7	NUT; FRT HUB G.V.W. 7.0-7.5TON(RPX) M22	0-91110-522-0	12	1	0601-	●
7	NUT; FRT HUB M22	0-91110-522-0	12	1	0601-		●	●	●
7	NUT; FRT HUB G.V.W. 6.0-6.5TON(RPV) M20	9-99110-520-0	10	1	0303-0512	●
7	NUT; FRT HUB G.V.W. 6.0-6.5TON(RPV) M20	0-91110-520-0	10	1	0601-	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0303-0511	●	●	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0512-	●	●	●	●
12	WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0303-0511	●	●	●
12	WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0512-	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0303-0511	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0512-	●	●	●	●
15	PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD	8-97081-584-1	06	1	0303-0511	●
15	PIN; WHEEL,FRT AXLE M20X28,M22X57 RH THREAD	8-97081-584-1	06	1	0303-0511		●
15	PIN; WHEEL,FRT AXLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28,M22X57 RH THREAD	8-97081-584-1	06	1	0303-0511			●
15	PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD	8-97081-584-3	06	1	0512-	●
15	PIN; WHEEL,FRT AXLE M20X28,M22X57 RH THREAD	8-97081-584-3	06	1	0512-		●
15	PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-1	06	1	0303-0511	●
15	PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-1	06	1	0303-0511		●
15	PIN; WHEEL,FRT AXLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-1	06	1	0303-0511			●
15	PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-3	06	1	0512-	●
15	PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-3	06	1	0512-		●
15	PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	0303-	●
15	PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	0303-	●
15	PIN; WHEEL,FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) M20X28,M22X50 RH THREAD	8-97131-283-0	06	1	0303-0511			●
15	PIN; WHEEL,FRT AXLE M20X28,M22X50 RH THREAD	8-97131-283-1	06	1	0512-			●	●
15	PIN; WHEEL,FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-0	06	1	0303-0511			●
15	PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-1	06	1	0512-			●	●
17	HUB; FRT AXLE G.V.W. 7.0-7.5TON(RPX)	8-97081-322-0	02	1	0303-	●
17	HUB; FRT AXLE	8-97081-322-0	02	1	0303-		●
17	HUB; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-97017-206-0	02	1	0303-	●
17	HUB; FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP)	8-97131-236-0	02	1	0303-0511			●
17	HUB; FRT AXLE	8-97131-236-0	02	1	0512-			●	●
17	HUB; FRT AXLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP)	8-97107-414-0	02	1	0303-0511			●
19	BEARING; HUB INNER,FRT AXLE KOYO	8-94248-088-2	02	1	0303-0511	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	8-94248-088-2	02	1	0512-	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0303-0511	●	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0512-	●	●	●	●
23	DRUM; BRK,FRT G.V.W. 7.0-7.5TON(RPX)	8-97081-218-2	02	1	0303-	●
23	DRUM; BRK,FRT	8-97081-218-2	02	1	0303-		●
23	DRUM; BRK,FRT G.V.W. 6.0-6.5TON(RPV) SOU	8-94385-650-3	02	1	0303-	●
23	DRUM; BRK,FRT	8-97188-115-0	02	1	0303-0511			●
23	DRUM; BRK,FRT	8-97188-115-0	02	1	0512-			●	●
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0303-0511	●	●	●
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0512-	●	●	●	●
29	DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0303-0511	●	●	●
29	DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0512-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
