◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#17756) — 122 parça

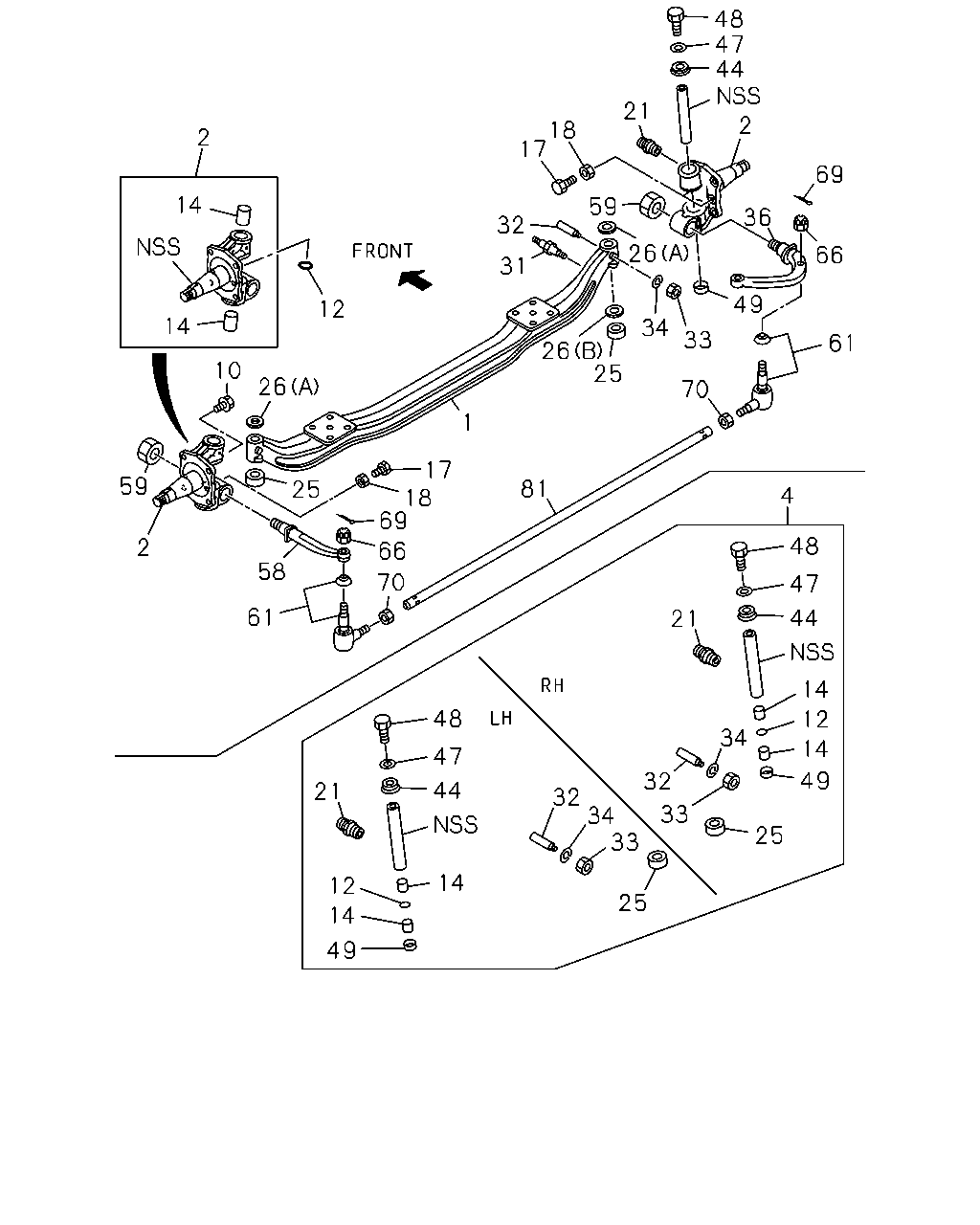

çizim 11667
48 47 44 2 21 18 17 2 69 14 59 26 26 25 36 32 66 31 49 12 14 34 33 61 10 26 70 1 59 17 18 69 81 25 4 48 2 66 58 70 47 61 21 44 14 48 12 34 14 47 49 32 44 21 32 34 33 33 25 14 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 AXLE; FRT 8-97137-588-3 01 1 0303- ● ●
1 AXLE; FRT 8-97145-406-3 01 1 0303-0511 ●
1 AXLE; FRT 8-97145-406-3 01 1 0512- ● ●
2 KNUCKLE; FRT AXLE 8-97261-545-1 01 1 0303- ● ●
2 KNUCKLE; FRT AXLE 8-97261-546-1 01 1 0303- ● ●
2 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0303-0511 ●
2 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0512- ● ●
2 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0303-0511 ●
2 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0512- ● ●
4 KING PIN KIT 5-87831-608-2 01 1 0303-0511 ● ● ●
4 KING PIN KIT 5-87832-183-2 01 1 0512-0610 ● ● ● ●
4 KING PIN KIT 5-87832-209-0 01 1 0611-0707 ● ● ● ●
4 KING PIN KIT 5-87832-220-0 01 1 0708- ● ● ● ●
10 PLUG; PLATE,KNUCKLE 8-94107-661-0 01 1 0303-0511 ● ● ●
10 PLUG; PLATE,KNUCKLE 8-94107-661-0 01 1 0512-0610 ● ● ● ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0611- ● ● ● ●
12 GASKET; KNUCKLE 9-09561-230-0 02 1 0303-0511 ● ● ●
12 GASKET; KNUCKLE 9-09561-230-0 02 1 0512-0707 ● ● ● ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 0708- ● ● ● ●
14 BUSHING; KING PIN
DAIDO 		8-94107-672-2 04 1 0303-0511 ● ● ●
14 BUSHING; KING PIN
DAIDO 		8-94107-672-3 04 1 0512- ● ● ● ●
14 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0303-0511 ● ● ●
14 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0512- ● ● ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		5-09000-208-1 03 1 0303-0511 ● ●
17 BOLT; STOPPER KNUCKLE
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) M12X24 EYE-BOLT 		5-09000-208-1 03 1 0303-0511 ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		5-09000-208-1 03 1 0512-0611 ● ● ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0612- ● ● ● ●
17 BOLT; STOPPER KNUCKLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M12X27.5 		8-94433-409-1 03 1 0303-0511 ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		9-99111-512-0 03 1 0303-0511 ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		9-99111-512-0 03 1 0512-0512 ● ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 0601- ● ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		9-09031-006-0 04 1 0303-0511 ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		9-09031-006-0 04 1 0512-0607 ● ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT SOU 		0-90301-406-0 04 1 0608- ● ● ● ●
25 BEARING; THRUST,KING PIN 8-94248-883-2 01 1 0303-0511 ● ● ●
25 BEARING; THRUST,KING PIN 8-94248-883-2 01 1 0512- ● ● ● ●
25 BEARING; THRUST,KING PIN 8-97141-943-0 01 1 0303-0511 ● ● ●
25 BEARING; THRUST,KING PIN 8-97141-943-0 01 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0512- ● ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0303-0511 ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0512- ● ● ● ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 0303-0511 ● ● ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 0512- ● ● ● ●
32 BOLT; KEY,KING PIN 8-97141-945-1 02 1 0303-0511 ● ● ●
32 BOLT; KEY,KING PIN 8-97141-945-1 02 1 0512- ● ● ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0303-0511 ● ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0512-0512 ● ● ● ●
33 NUT; KEY BOLT
M10 SOU 		0-91110-510-0 02 1 0601- ● ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0303-0511 ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0512-0603 ● ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 SOU 		0-91510-510-0 02 1 0604- ● ● ● ●
36 ARM; KNUCKLE 8-97202-776-1 01 1 0303-0511 ● ● ●
36 ARM; KNUCKLE 8-97202-776-3 01 1 0512- ● ● ● ●
44 COVER; KING PIN
OD=36 		8-94248-675-1 02 1 0303-0511 ● ● ●
44 COVER; KING PIN
OD=36 		8-94248-675-1 02 1 0512-0611 ● ● ● ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0612- ● ● ● ●
47 WASHER; PL,COVER,KING PIN
ID=10.5 		9-09164-510-0 02 1 0303-0402 ● ● ●
48 BOLT; COVER
M10X16 		0-20801-016-0 02 1 0303-0402 ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28081-012-0 02 1 0403-0511 ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28081-012-0 02 1 0512-0512 ● ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0601- ● ● ● ●
49 CAP; KNUCKLE 8-97261-587-0 02 1 0303-0511 ● ● ●
49 CAP; KNUCKLE 8-97261-587-0 02 1 0512-0611 ● ● ● ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 0612- ● ● ● ●
58 ARM; TIE ROD 8-97138-304-0 01 1 0303-0511 ● ● ●
58 ARM; TIE ROD 8-97138-304-0 01 1 0512- ● ● ● ●
59 NUT; TIE ROD ARM 8-94247-724-0 02 1 0303-0511 ● ● ●
59 NUT; TIE ROD ARM 8-94247-724-0 02 1 0512-0611 ● ● ● ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 0612- ● ● ● ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 0303-0511 ● ● ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 0512- ● ● ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 0303-0511 ● ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 0512- ● ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		9-99116-516-0 02 1 0303-0511 ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		9-99116-516-0 02 1 0512-0605 ● ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0606- ● ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		9-08114-020-0 02 1 0303-0511 ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		9-08114-020-0 02 1 0512-0606 ● ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0607- ● ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0303-0511 ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0512- ● ● ● ●
70 NUT; TIE ROD END
M20 		9-99111-420-0 01 1 0303-0511 ● ● ●
70 NUT; TIE ROD END
M20 		9-99111-420-0 01 1 0512-0512 ● ● ● ●
70 NUT; TIE ROD END
M20 SOU 		0-91111-520-0 01 1 0601-0610 ● ● ● ●
70 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 0611- ● ● ● ●
81 ROD; TIE 8-97061-869-0 01 1 0303-0511 ● ● ●
81 ROD; TIE 8-97061-869-0 01 1 0512- ● ● ● ●

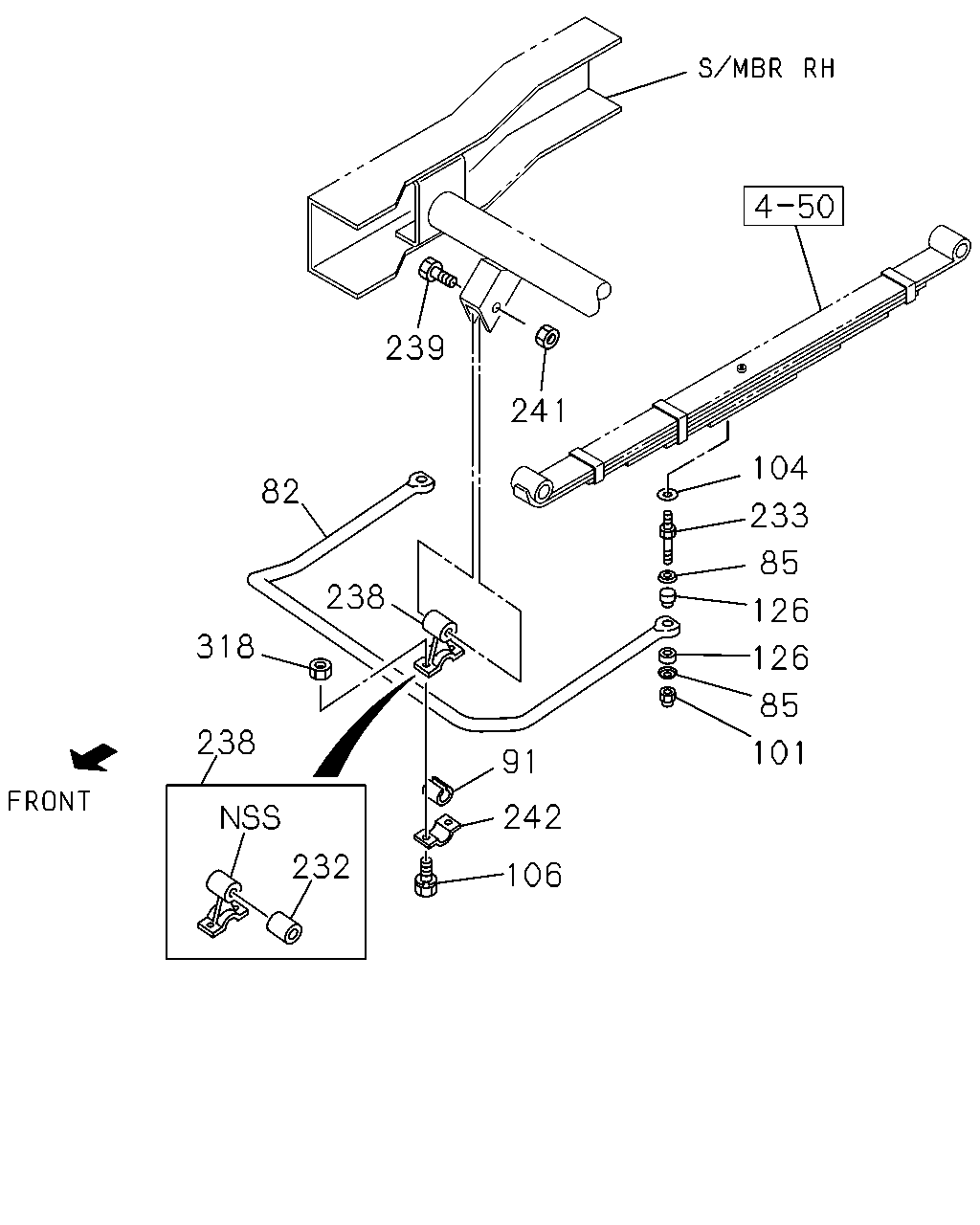

çizim 12629
239 241 104 82 233 85 238 126 318 126 85 238 101 91 242 232 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-97138-348-0 01 1 0512- ●
85 WASHER; STAB TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-94342-084-0 04 1 0512-0610 ●
85 WASHER; STAB TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-97360-055-0 04 1 0611- ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0512- ●
101 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		9-09131-512-0 02 1 0512-0603 ●
101 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 0604- ●
104 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=14.2 		9-09150-514-0 02 1 0512-0603 ●
104 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=14.2 SOU 		0-91510-514-0 02 1 0604- ●
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE 		0-28681-025-0 04 1 0512-0512 ●
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE SOU 		0-28651-025-0 04 1 0601- ●
126 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 0512- ●
232 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0512- ●
233 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-94342-082-0 02 1 0512-0610 ●
233 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 0611- ●
238 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0512- ●
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28881-470-0 02 1 0512-0512 ●
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0601- ●
241 NUT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-94137-483-0 02 1 0512-0610 ●
241 NUT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 0611- ●
242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0512- ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE SOU 		0-91180-210-0 04 1 0603- ●
