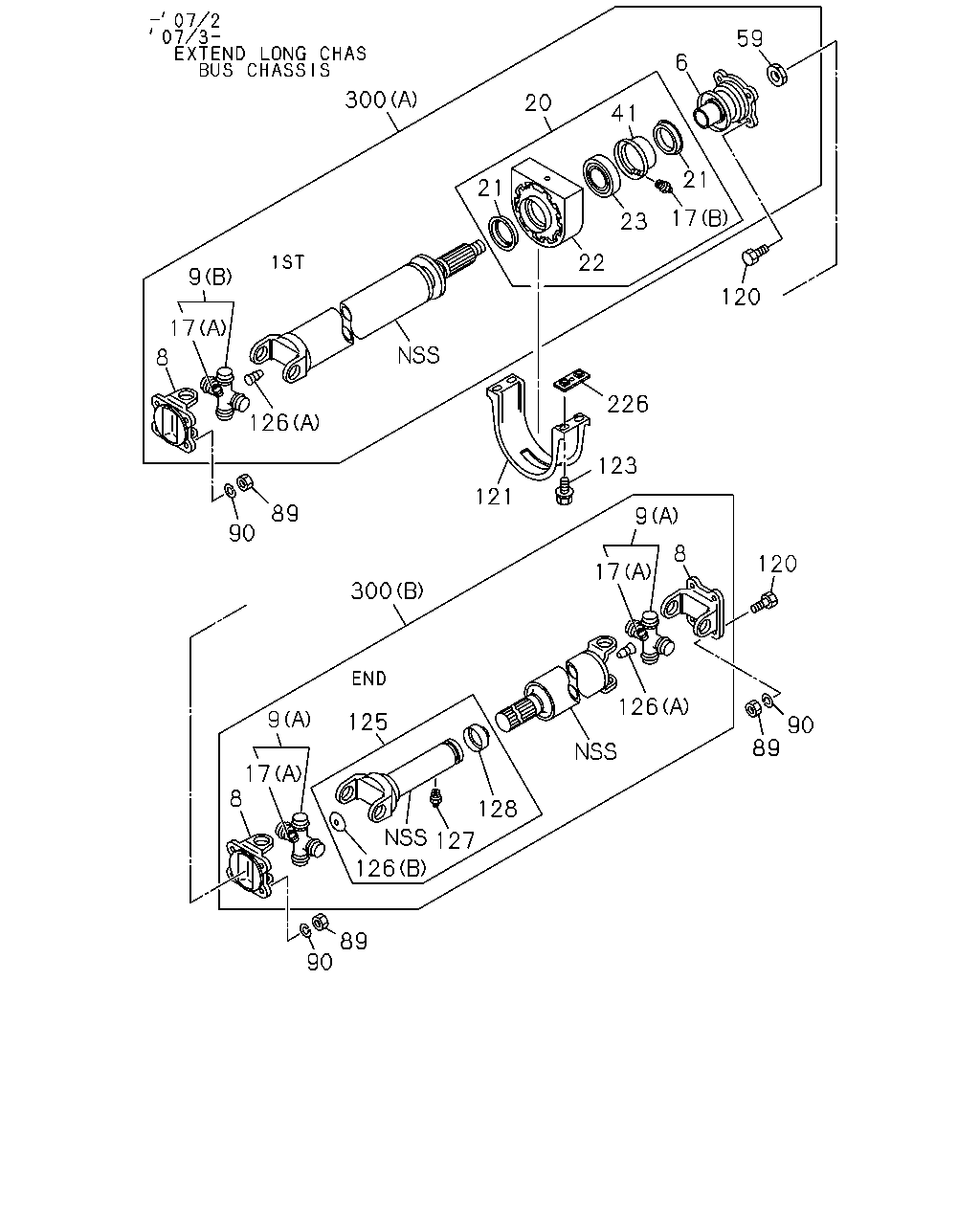

4-01 — PROPELLER SHAFT (#17755) — 165 parça

59 6 300 20 41 21 21 17 23 22 9 120 17 8 226 126 123 121 89 9 90 8 120 17 300 126 9 125 90 89 17 8 128 17 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	0303-	●	●
6	COUPLING ASM; DRIVER,PROP SHAFT	1-37245-115-0	01	1	0303-0511			●
6	COUPLING ASM; DRIVER,PROP SHAFT	1-37245-115-0	01	1	0512-			●	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0303-	●	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	02	1	0303-	●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0303-0511			●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0512-			●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0303-0511			●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0512-			●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97322-749-0	01	1	0303-0612	●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-98033-605-0	01	1	0701-	●	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97322-749-0	02	1	0303-0612	●	●
9	JOURNAL ASM; PROP SHAFT (A)	8-98033-605-0	02	1	0701-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	01	1	0303-0511			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	01	1	0512-			●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-089-0	02	1	0303-0511			●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-103-0	02	1	0512-			●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	9-09031-006-0	01	1	0303-0607	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-0702	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0303-0511	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0512-0512	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0303-0511	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40?	8-97240-194-0	01	1	0303-0511			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40?	8-97240-194-0	01	1	0512-			●	●
20	BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0303-0702	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0703-	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0303-0511			●
20	BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0512-			●	●
21	SEAL; OIL,CENTER BRG ID=49	5-09625-067-1	02	1	0303-0702	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0303-0511			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0512-			●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	5-37516-005-2	01	1	0303-0612	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	8-98020-875-0	01	1	0701-0702	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	8-97131-125-0	01	1	0303-0511			●
22	RUBBER; CUSHION,CENTER BRG,1ST	8-97131-125-0	01	1	0512-			●	●
23	BEARING; CENTER,PROP SHAFT OD=80	5-09800-068-0	01	1	0303-0702	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0303-0511			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0512-			●	●
41	COVER; CENTER BRG,PROP SHAFT	5-37512-004-0	01	1	0303-0612	●	●
41	COVER; CENTER BRG,PROP SHAFT	8-98020-795-0	01	1	0701-0702	●	●
41	COVER; CENTER BRG,PROP SHAFT	1-37529-068-0	01	1	0303-0511			●
41	COVER; CENTER BRG,PROP SHAFT	1-37529-068-0	01	1	0512-			●	●
59	NUT; RET TO SUPPORT M27 H=25	8-97253-126-0	01	1	0304-0612	●	●
59	NUT; RET TO SUPPORT M27 H=25	8-97360-410-0	01	1	0701-	●	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0303-0303	●	●	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0304-0511			●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0512-			●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0303-0511	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0512-0610	●	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0611-	●	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0303-0511	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0512-0603	●	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	0604-	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0303-0511	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0512-0610	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0611-	●	●	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0303-0511	●	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0512-	●	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0303-0511	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0512-0512	●	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-	●	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0303-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0303-0511			●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0512-			●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0303-0511	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0303-0511	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0512-	●	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0512-	●	●	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0303-	●	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0303-0511			●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0512-			●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	0303-	●	●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0303-0511			●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0512-			●	●
226	PLATE; LK,CENTER BRG	8-97101-161-0	02	1	0303-0306	●	●	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0307-0511	●	●	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0512-	●	●	●	●
300	SHAFT ASM; PROP,RR (A) L=774	8-97350-385-3	01	1	0303-	●
300	SHAFT ASM; PROP,RR (B) L=1075	8-97350-389-2	01	1	0303-	●	●
300	SHAFT ASM; PROP,RR (A) L=1222	8-97350-387-3	01	1	0303-		●
300	SHAFT ASM; PROP,RR (A) L=1143	8-97329-077-0	01	1	0303-0511			●
300	SHAFT ASM; PROP,RR (A) L=1058	8-97360-239-0	01	1	0512-			●	●
300	SHAFT ASM; PROP,RR (B) L=1384	8-97129-514-0	01	1	0303-0511			●
300	SHAFT ASM; PROP,RR (B) L=1424	8-97214-110-0	01	1	0512-			●	●

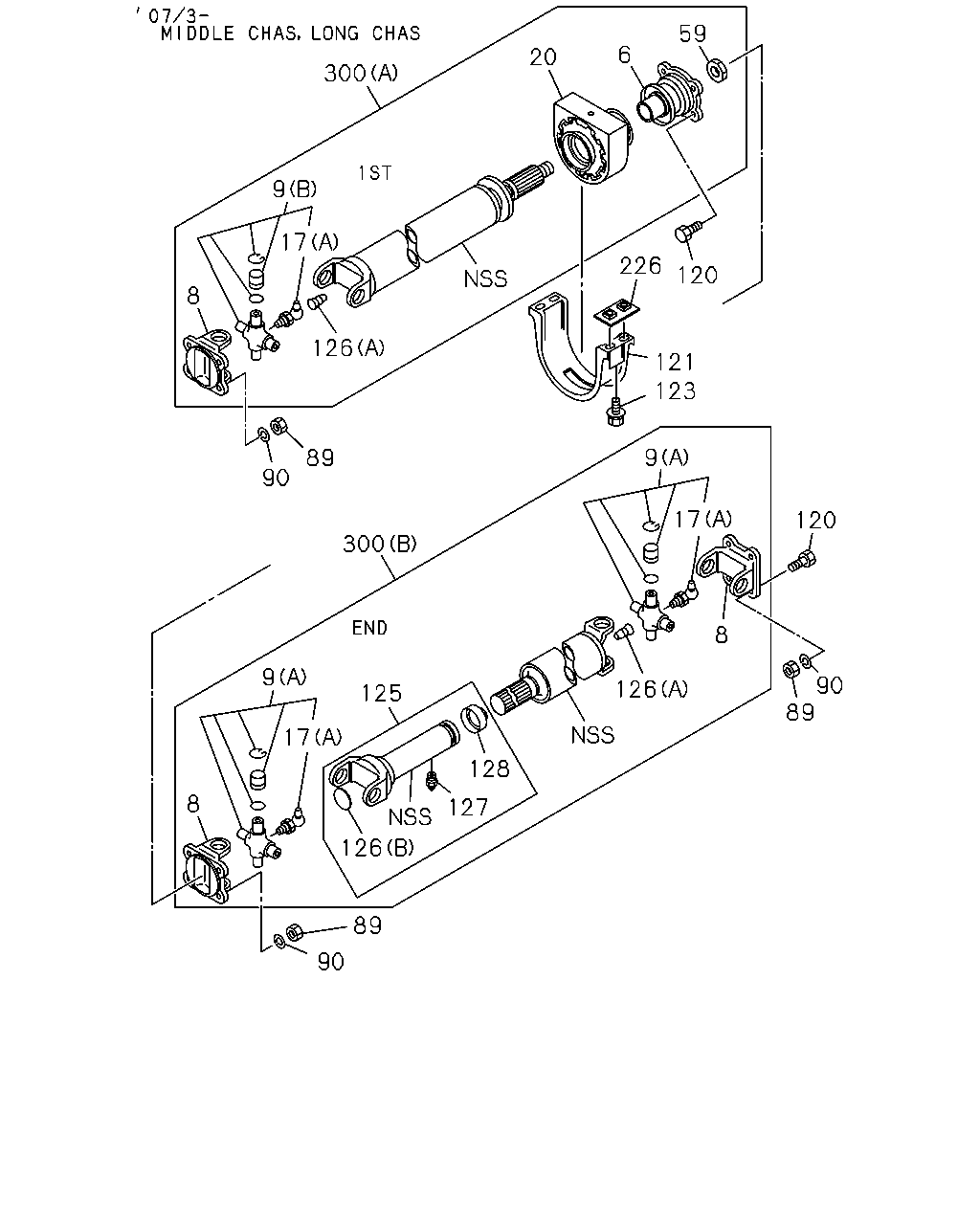

59 6 20 300 9 17 226 120 8 126 121 123 9 89 90 17 120 300 8 9 90 89 126 125 17 128 8 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	0303-	●	●
6	COUPLING ASM; DRIVER,PROP SHAFT	1-37245-115-0	01	1	0303-0511			●
6	COUPLING ASM; DRIVER,PROP SHAFT	1-37245-115-0	01	1	0512-			●	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0303-	●	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	02	1	0303-	●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0303-0511			●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0512-			●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0303-0511			●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0512-			●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97322-749-0	01	1	0303-0612	●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-98033-605-0	01	1	0701-	●	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97322-749-0	02	1	0303-0612	●	●
9	JOURNAL ASM; PROP SHAFT (A)	8-98033-605-0	02	1	0701-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	01	1	0303-0511			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	01	1	0512-			●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-089-0	02	1	0303-0511			●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-103-0	02	1	0512-			●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	9-09031-006-0	01	1	0303-0607	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-0702	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0303-0511	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0512-0512	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0303-0511	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40?	8-97240-194-0	01	1	0303-0511			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40?	8-97240-194-0	01	1	0512-			●	●
20	BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0303-0702	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0703-	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0303-0511			●
20	BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0512-			●	●
59	NUT; RET TO SUPPORT M27 H=25	8-97253-126-0	01	1	0304-0612	●	●
59	NUT; RET TO SUPPORT M27 H=25	8-97360-410-0	01	1	0701-	●	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0303-0303	●	●	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0304-0511			●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0512-			●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0303-0511	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0512-0610	●	●	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0611-	●	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0303-0511	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0512-0603	●	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	0604-	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0303-0511	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0512-0610	●	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0611-	●	●	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0303-0511	●	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0512-	●	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0303-0511	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0512-0512	●	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-	●	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0303-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0303-0511			●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0512-			●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0303-0511	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0303-0511	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0512-	●	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0512-	●	●	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0303-	●	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0303-0511			●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0512-			●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	0303-0607	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-	●	●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	9-09031-010-0	01	1	0303-0511			●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	9-09031-010-0	01	1	0512-0512			●	●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-			●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	0303-	●	●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0303-0511			●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0512-			●	●
226	PLATE; LK,CENTER BRG	8-97101-161-0	02	1	0303-0306	●	●	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0307-0511	●	●	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0512-	●	●	●	●
300	SHAFT ASM; PROP,RR (A) L=774	8-97350-385-3	01	1	0303-	●
300	SHAFT ASM; PROP,RR (B) L=1075	8-97350-389-2	01	1	0303-	●	●
300	SHAFT ASM; PROP,RR (A) L=1222	8-97350-387-3	01	1	0303-		●
300	SHAFT ASM; PROP,RR (A) L=1143	8-97329-077-0	01	1	0303-0511			●
300	SHAFT ASM; PROP,RR (A) L=1058	8-97360-239-0	01	1	0512-			●	●
300	SHAFT ASM; PROP,RR (B) L=1384	8-97129-514-0	01	1	0303-0511			●
300	SHAFT ASM; PROP,RR (B) L=1424	8-97214-110-0	01	1	0512-			●	●
