Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#17754) — 195 parça

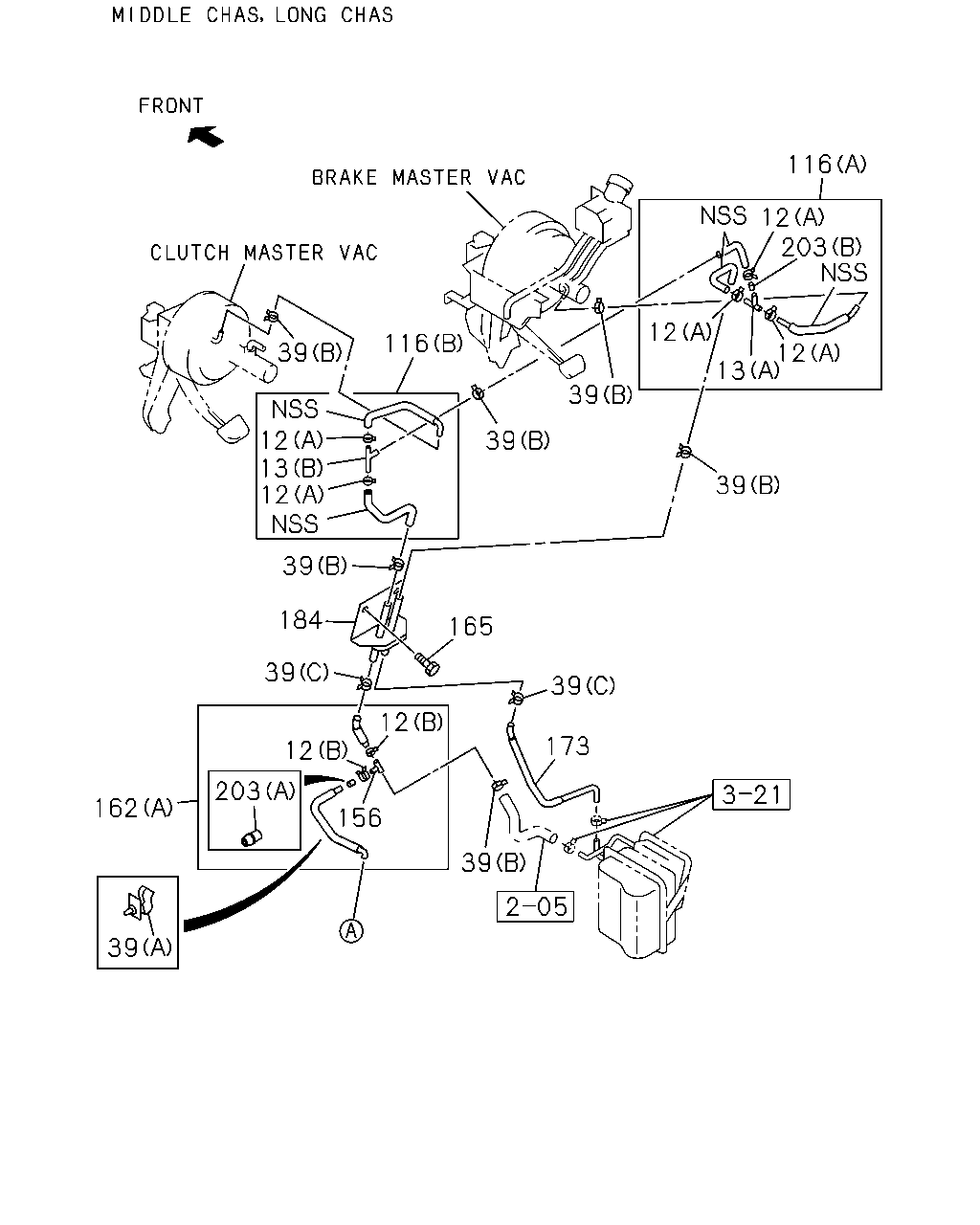

39 12 116 12 116 39 184 165 39 12 108 12 39 203 162 156 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (A) ID=14.5 SOU	8-94167-480-0	02	1	0303-0412	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (A) ID=14.5 SOU	8-94167-480-0	02	1	0501-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5 SOU	8-94367-944-0	02	1	0303-0511	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5 SOU	8-94367-944-0	02	1	0512-	●	●	●	●
12	CLIP; HOSE (A) ID=14.5 SOU	8-94167-480-0	03	1	0303-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	06	1	0303-	●	●
39	CLIP; HOSE,VAC (C) ID=16 SOU	5-09707-023-2	02	1	0303-	●	●
39	CLIP; HOSE,VAC (A) ID=25.5 SOU	8-97077-492-0	01	1	0303-0511	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5 SOU	8-97077-492-0	01	1	0303-0511			●
39	CLIP; HOSE,VAC (A) ID=25.5 SOU	8-97077-492-0	01	1	0512-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5 SOU	8-97077-492-0	01	1	0512-			●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0303-0511	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0303-0511			●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0512-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0512-			●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (C) ID=16 SOU	5-09707-023-2	01	1	0303-0511			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (C) ID=16 SOU	5-09707-023-2	01	1	0512-			●	●
108	GROMMET; PIPE POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	01	1	0303-0511			●
108	GROMMET; PIPE POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	01	1	0512-			●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	02	1	0303-0511			●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	02	1	0512-			●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) SOU	8-97035-968-0	01	1	0303-0403	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0303-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0303-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0303-0511			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0512-			●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY SOU	8-94167-478-0	01	1	0303-0511	●	●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY SOU	8-94167-478-0	01	1	0512-	●	●	●	●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511			●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-			●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A) SOU	8-97178-658-0	01	1	0303-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0502-0511	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0512-	●	●	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97040-991-2	01	1	0303-	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0303-0511	●	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0512-0512	●	●	●	●
165	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	02	1	0601-	●	●	●	●
184	BRACKET; UNION FIX SOU	8-97035-967-3	01	1	0303-0511	●	●	●
184	BRACKET; UNION FIX SOU	8-97035-967-3	01	1	0512-	●	●	●	●
203	VALVE; CHECK (B) SOU	8-94386-540-0	01	1	0303-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A) SOU	8-94104-021-0	01	1	0303-0511	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A) SOU	8-94104-021-0	01	1	0512-	●	●	●	●

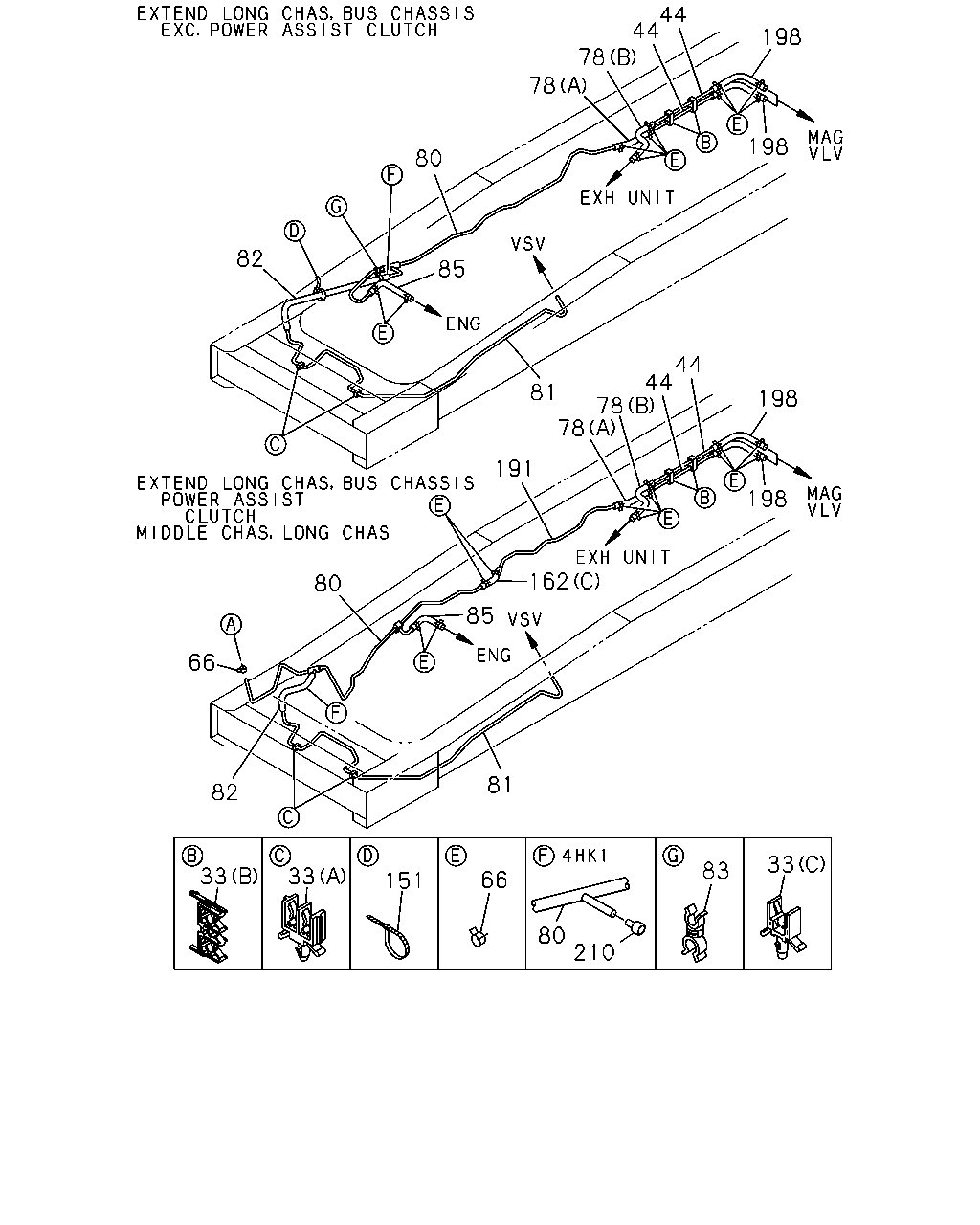

44 44 78 198 78 198 80 82 85 44 44 78 78 81 198 191 198 162 80 85 66 81 82 33 33 33 83 66 151 80 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	02	1	0303-0511	●	●	●
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	02	1	0512-	●	●
33	CLIP; VAC PIPE (C) ID=10 H=40	8-94462-219-0	02	1	0303-0511	●	●
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (C) ID=10 H=40	8-94462-219-0	02	1	0303-0511			●
33	CLIP; VAC PIPE (C) ID=10 H=40	8-94462-219-0	02	1	0512-	●	●
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (C) ID=10 H=40	8-94462-219-0	02	1	0512-			●	●
33	CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0303-	●
33	CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0303-0511		●	●
33	CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0512-		●	●	●
44	PIPE; VAC,MAG VLV	8-97096-971-0	02	1	0303-	●
44	PIPE; VAC,MAG VLV	8-97096-972-0	02	1	0303-0511		●	●
44	PIPE; VAC,MAG VLV	8-97096-972-0	02	1	0512-		●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16 SOU	8-94238-568-0	13	1	0303-0511	●	●
66	CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	13	1	0303-0511			●
66	CLIP; VAC HOSE,M/VAC ID=16 SOU	8-94238-568-0	13	1	0512-	●	●
66	CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	13	1	0512-			●	●
66	CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	10	1	0303-0511			●
66	CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	10	1	0512-			●	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98012-518-0	01	1	0512-0606			●	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98045-768-0	01	1	0607-			●	●
78	HOSE; VAC,PIPE TO PIPE (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0512-	●	●
78	HOSE; VAC,PIPE TO PIPE (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511	●	●	●
78	HOSE; VAC,PIPE TO PIPE (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0512-	●	●
78	HOSE; VAC,PIPE TO PIPE (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511	●	●	●
78	HOSE; VAC,PIPE TO PIPE (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0512-			●	●
80	PIPE; VAC,ENG SIDE	8-97356-592-0	01	1	0303-0511	●	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T)	8-97356-592-0	01	1	0303-0511			●
80	PIPE; VAC,ENG SIDE	8-98010-979-0	01	1	0512-	●	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T)	8-98010-979-0	01	1	0512-			●	●
80	PIPE; VAC,ENG SIDE EXC. POWER ASSIST CLUTCH(S2T)	8-97180-792-2	01	1	0303-0306			●
80	PIPE; VAC,ENG SIDE EXC. POWER ASSIST CLUTCH(S2T)	8-97370-407-0	01	1	0307-0511			●
80	PIPE; VAC,ENG SIDE EXC. POWER ASSIST CLUTCH(S2T)	8-97376-072-1	01	1	0512-			●	●
81	PIPE; VAC,VSV	8-97096-968-5	01	1	0303-0511	●	●	●
81	PIPE; VAC,VSV	8-97096-968-5	01	1	0512-	●	●
82	HOSE; VAC,VSV L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0303-0511	●	●
82	HOSE; VAC,VSV POWER ASSIST CLUTCH(S2T) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0303-0511			●
82	HOSE; VAC,VSV L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0512-	●	●
82	HOSE; VAC,VSV EXC. POWER ASSIST CLUTCH(S2T) L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0303-0511			●
83	CLIP; VSV HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=8.3 & 16.5	8-94169-027-0	01	1	0303-0511			●
85	HOSE; VAC,ENG SIDE	8-97091-966-0	01	1	0303-	●	●
85	HOSE; VAC,ENG SIDE	8-97239-327-0	01	1	0303-0511			●
85	HOSE; VAC,ENG SIDE	8-97239-327-0	01	1	0512-			●	●
151	CLIP; BAND EXC. POWER ASSIST CLUTCH(S2T) L=140 SOU	5-09707-031-1	03	1	0303-0511			●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511			●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-			●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A) SOU	8-97178-658-0	01	1	0303-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0502-0511	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0512-	●	●	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97040-991-2	01	1	0303-	●	●
191	PIPE; VAC	8-97104-170-4	01	1	0303-0511	●	●
191	PIPE; VAC POWER ASSIST CLUTCH(S2T)	8-97104-170-4	01	1	0303-0511			●
191	PIPE; VAC	8-98010-980-1	01	1	0512-	●	●
191	PIPE; VAC POWER ASSIST CLUTCH(S2T)	8-98010-980-1	01	1	0512-			●	●
198	HOSE; VAC,PIPE TO MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0303-0511	●	●	●
198	HOSE; VAC,PIPE TO MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0512-	●	●	●	●
210	RUBBER; CAP	8-97108-680-0	01	1	0512-			●	●

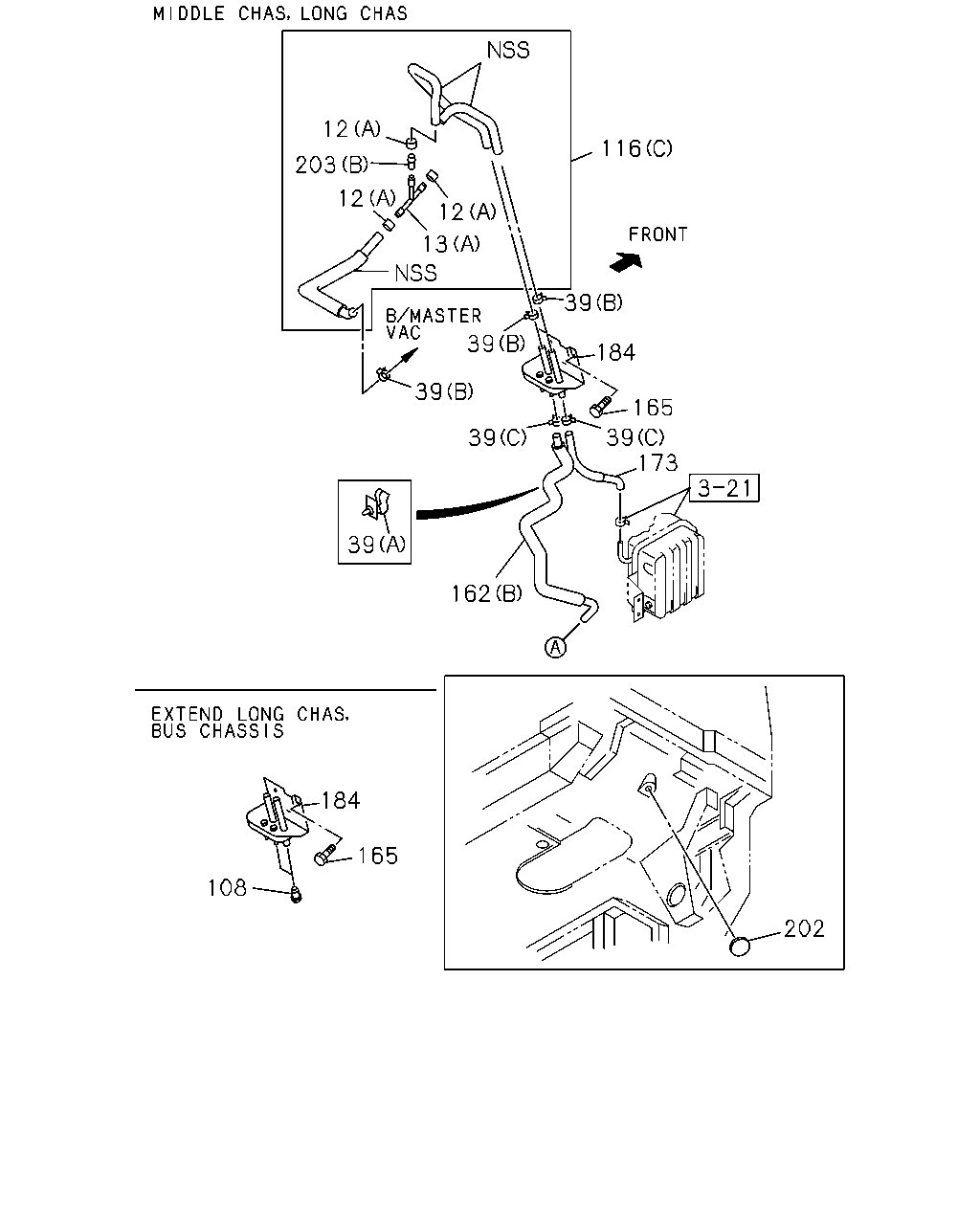

12 116 203 12 12 13 39 39 184 39 165 39 173 39 39 162 184 165 108 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (A) ID=14.5 SOU	8-94167-480-0	02	1	0303-0412	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (A) ID=14.5 SOU	8-94167-480-0	02	1	0501-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5 SOU	8-94367-944-0	02	1	0303-0511	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5 SOU	8-94367-944-0	02	1	0512-	●	●	●	●
12	CLIP; HOSE (A) ID=14.5 SOU	8-94167-480-0	03	1	0303-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) 3WAY SOU	8-94167-478-0	01	1	0303-	●	●
13	JOINT; HOSE,VAC (A) 3WAY SOU	8-94441-184-0	01	1	0303-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	06	1	0303-	●	●
39	CLIP; HOSE,VAC (C) ID=16 SOU	5-09707-023-2	02	1	0303-	●	●
39	CLIP; HOSE,VAC (A) ID=25.5 SOU	8-97077-492-0	01	1	0303-0511	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5 SOU	8-97077-492-0	01	1	0303-0511			●
39	CLIP; HOSE,VAC (A) ID=25.5 SOU	8-97077-492-0	01	1	0512-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5 SOU	8-97077-492-0	01	1	0512-			●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0303-0511	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0303-0511			●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0512-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0512-			●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (C) ID=16 SOU	5-09707-023-2	01	1	0303-0511			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (C) ID=16 SOU	5-09707-023-2	01	1	0512-			●	●
108	GROMMET; PIPE POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	01	1	0303-0511			●
108	GROMMET; PIPE POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	01	1	0512-			●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	02	1	0303-0511			●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) SOU	9-09956-353-0	02	1	0512-			●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) SOU	8-97035-968-0	01	1	0303-0403	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0303-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0303-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0303-0511			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0512-			●	●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511			●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-			●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A) SOU	8-97178-658-0	01	1	0303-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0502-0511	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0512-	●	●	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97040-991-2	01	1	0303-	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0303-0511	●	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0512-0512	●	●	●	●
165	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	02	1	0601-	●	●	●	●
173	HOSE; VAC,VAC TANK SIDE SOU	8-97129-875-0	01	1	0303-	●	●
184	BRACKET; UNION FIX SOU	8-97035-967-3	01	1	0303-0511	●	●	●
184	BRACKET; UNION FIX SOU	8-97035-967-3	01	1	0512-	●	●	●	●
202	SEAL EXC. POWER ASSIST CLUTCH(S2T) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0303-0511	●	●	●
202	SEAL EXC. POWER ASSIST CLUTCH(S2T) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0512-	●	●	●	●
203	VALVE; CHECK (B) SOU	8-94386-540-0	01	1	0303-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A) SOU	8-94104-021-0	01	1	0303-0511	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A) SOU	8-94104-021-0	01	1	0512-	●	●	●	●

116 12 203 12 116 39 12 13 39 12 13 12 39 39 39 184 165 39 39 12 173 12 203 162 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (A) ID=14.5 SOU	8-94167-480-0	02	1	0303-0412	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (A) ID=14.5 SOU	8-94167-480-0	02	1	0501-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5 SOU	8-94367-944-0	02	1	0303-0511	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5 SOU	8-94367-944-0	02	1	0512-	●	●	●	●
12	CLIP; HOSE (A) ID=14.5 SOU	8-94167-480-0	03	1	0303-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) 3WAY SOU	8-94167-478-0	01	1	0303-	●	●
13	JOINT; HOSE,VAC (A) 3WAY SOU	8-94441-184-0	01	1	0303-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	06	1	0303-	●	●
39	CLIP; HOSE,VAC (C) ID=16 SOU	5-09707-023-2	02	1	0303-	●	●
39	CLIP; HOSE,VAC (A) ID=25.5 SOU	8-97077-492-0	01	1	0303-0511	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5 SOU	8-97077-492-0	01	1	0303-0511			●
39	CLIP; HOSE,VAC (A) ID=25.5 SOU	8-97077-492-0	01	1	0512-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5 SOU	8-97077-492-0	01	1	0512-			●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0303-0511	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0303-0511			●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0512-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	03	1	0512-			●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (C) ID=16 SOU	5-09707-023-2	01	1	0303-0511			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (C) ID=16 SOU	5-09707-023-2	01	1	0512-			●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) SOU	8-97035-968-0	01	1	0303-0403	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0303-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0303-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0303-0511			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0512-			●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY SOU	8-94167-478-0	01	1	0303-0511	●	●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY SOU	8-94167-478-0	01	1	0512-	●	●	●	●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0303-0511			●
162	HOSE; VAC (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0512-			●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A) SOU	8-97178-658-0	01	1	0303-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0502-0511	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0512-	●	●	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (B) SOU	8-97040-991-2	01	1	0303-	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0303-0511	●	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0512-0512	●	●	●	●
165	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	02	1	0601-	●	●	●	●
173	HOSE; VAC,VAC TANK SIDE SOU	8-97129-875-0	01	1	0303-	●	●
184	BRACKET; UNION FIX SOU	8-97035-967-3	01	1	0303-0511	●	●	●
184	BRACKET; UNION FIX SOU	8-97035-967-3	01	1	0512-	●	●	●	●
203	VALVE; CHECK (B) SOU	8-94386-540-0	01	1	0303-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A) SOU	8-94104-021-0	01	1	0303-0511	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A) SOU	8-94104-021-0	01	1	0512-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
