3-58 — FIXING PARTS; OIL PIPING (#17753) — 115 parça

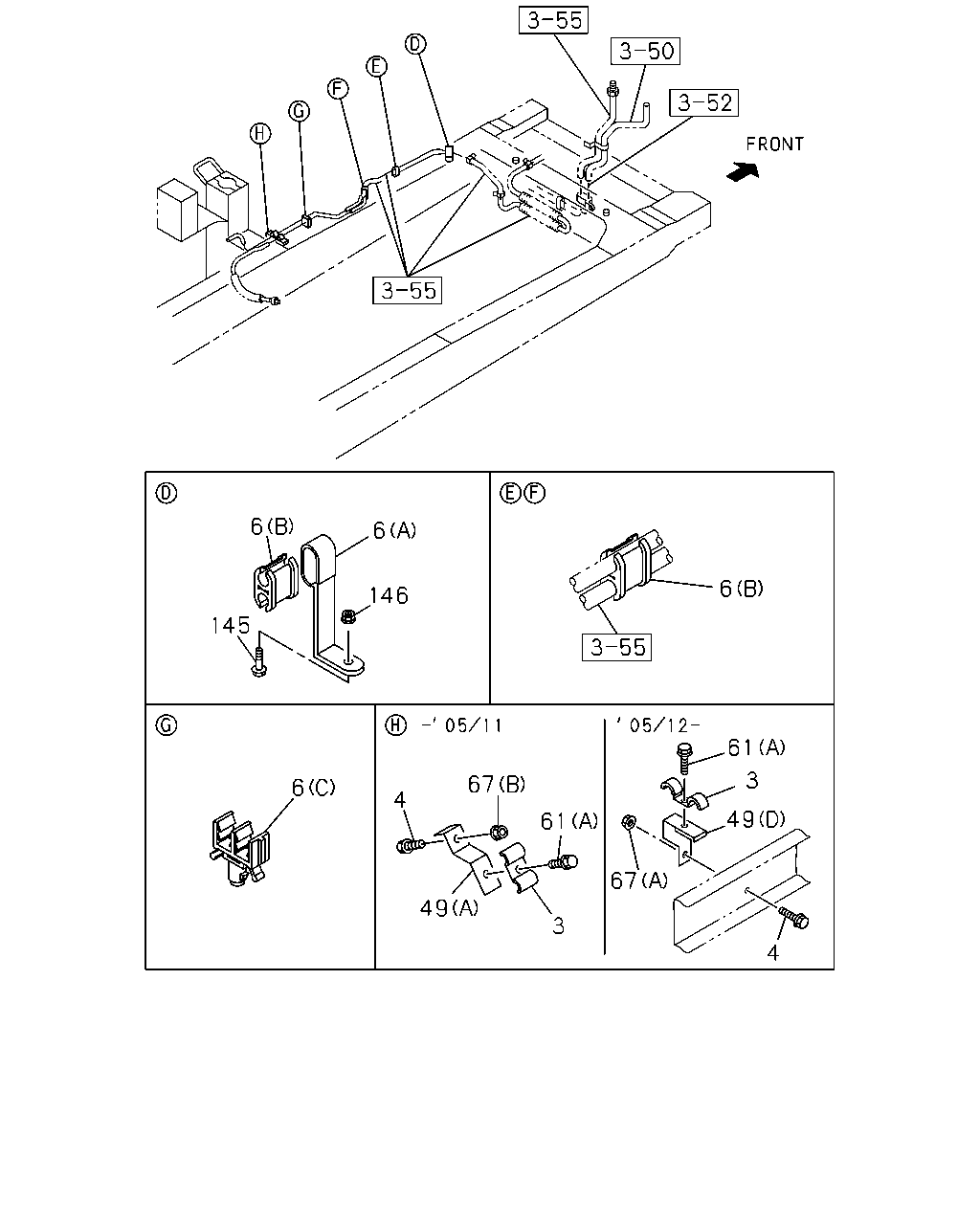

6 6 6 146 145 61 3 67 6 4 49 61 67 49 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; BRK PIPE ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0303-0511	●
3	CLIP; BRK PIPE ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0512-	●	●
4	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0303-0511	●
4	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	01	1	0512-0512	●	●
4	BOLT; BRKT M10X25 FLANGE SOU	0-28651-025-0	01	1	0601-	●	●
6	CLIP; PIPE (D) H=15 ID=14	1-09700-744-0	01	1	0303-0511	●
6	CLIP; PIPE (D) H=15 ID=14	1-09700-744-0	01	1	0512-	●	●
6	CLIP; PIPE (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0303-0511	●
6	CLIP; PIPE (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0512-	●	●
6	CLIP; PIPE (B) ID=10X2 H=22	8-94252-455-2	05	1	0303-0511	●
6	CLIP; PIPE (B) ID=10X2 H=22	8-94252-455-2	05	1	0512-	●	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0303-0511	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0512-	●	●
49	BRACKET; BRK PIPE (A)	8-97177-074-0	01	1	0303-0511	●
49	BRACKET; BRK PIPE (C)	8-97378-054-0	01	1	0512-	●	●
49	BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0303-0511	●
49	BRACKET; BRK PIPE (D)	8-97174-638-0	01	1	0512-	●	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0303-0511	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0512-0512	●	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0303-0511	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512	●	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE SOU	0-28651-025-0	02	1	0601-	●	●
67	NUT; BRKT (B) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●
67	NUT; BRKT (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511	●
67	NUT; BRKT (A) M10 FLANGE SOU	0-91150-110-0	03	1	0512-0602	●	●
67	NUT; BRKT (A) M10 FLANGE SOU	0-91180-110-0	03	1	0603-	●	●
145	BOLT; PIPE M8X20 FLANGE	0-28680-820-0	01	1	0303-0511	●
145	BOLT; PIPE M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
145	BOLT; PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	01	1	0303-0511	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
145	BOLT; PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-	●	●
146	NUT; PIPE M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●
146	NUT; PIPE M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●	●
146	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●	●

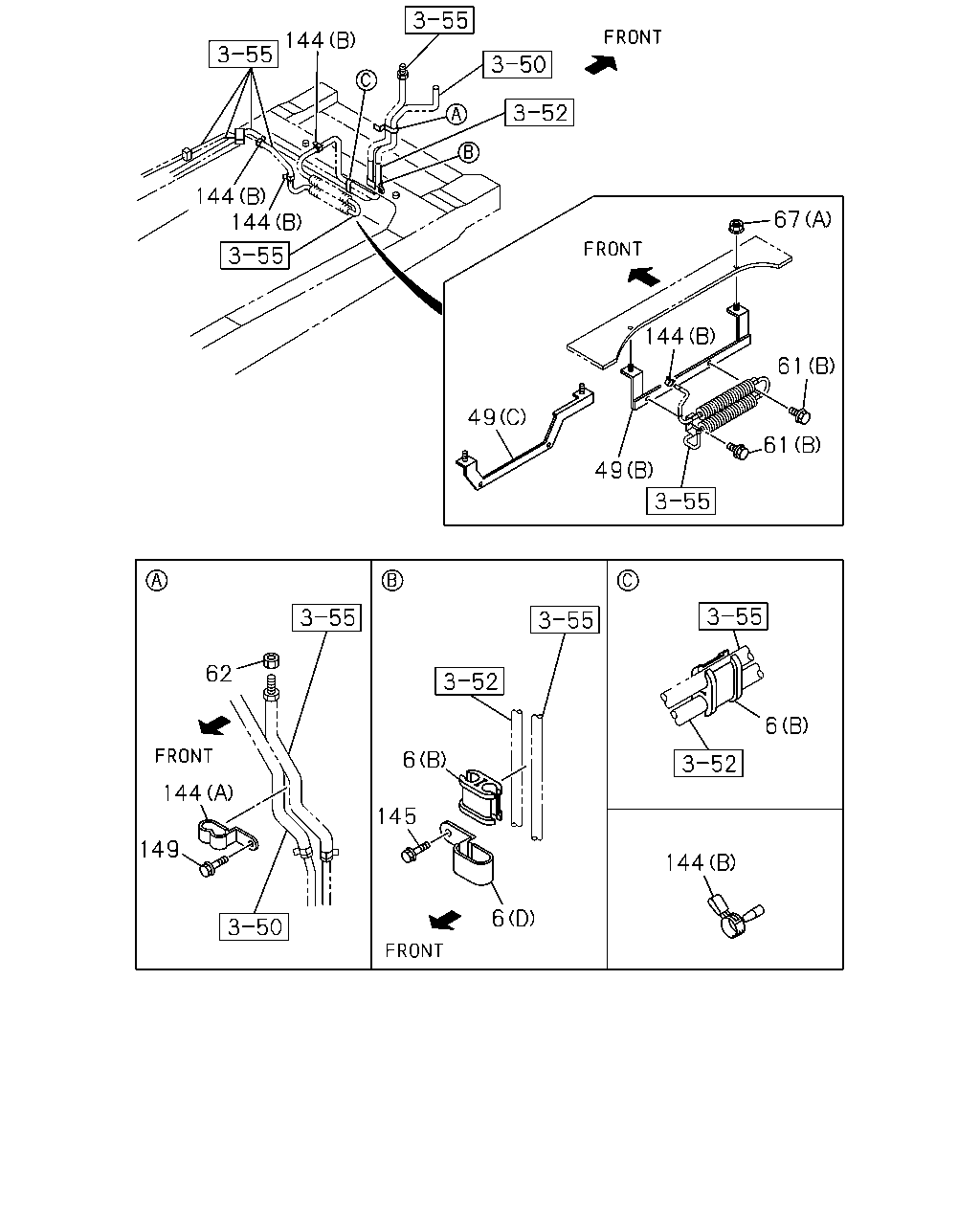

144 144 144 67 144 61 49 61 49 62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; PIPE (D) H=15 ID=14	1-09700-744-0	01	1	0303-0511	●
6	CLIP; PIPE (D) H=15 ID=14	1-09700-744-0	01	1	0512-	●	●
6	CLIP; PIPE (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0303-0511	●
6	CLIP; PIPE (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0512-	●	●
6	CLIP; PIPE (B) ID=10X2 H=22	8-94252-455-2	05	1	0303-0511	●
6	CLIP; PIPE (B) ID=10X2 H=22	8-94252-455-2	05	1	0512-	●	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0303-0511	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0512-	●	●
49	BRACKET; BRK PIPE (A)	8-97177-074-0	01	1	0303-0511	●
49	BRACKET; BRK PIPE (C)	8-97378-054-0	01	1	0512-	●	●
49	BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0303-0511	●
49	BRACKET; BRK PIPE (D)	8-97174-638-0	01	1	0512-	●	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0303-0511	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0512-0512	●	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0303-0511	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512	●	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE SOU	0-28651-025-0	02	1	0601-	●	●
62	NUT M14	9-99111-414-0	01	1	0303-0511	●
62	NUT M14	9-99111-414-0	01	1	0512-0512	●	●
62	NUT M14 SOU	0-91111-514-0	01	1	0601-	●	●
67	NUT; BRKT (B) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●
67	NUT; BRKT (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511	●
67	NUT; BRKT (A) M10 FLANGE SOU	0-91150-110-0	03	1	0512-0602	●	●
67	NUT; BRKT (A) M10 FLANGE SOU	0-91180-110-0	03	1	0603-	●	●
144	CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0303-0511	●
144	CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0512-	●	●
144	CLIP; HOSE (B) ID=11-19.5 SOU	8-94426-597-0	05	1	0303-0511	●
144	CLIP; HOSE (B) ID=11-19.5 SOU	8-94426-597-0	05	1	0512-	●	●
145	BOLT; PIPE M8X20 FLANGE	0-28680-820-0	01	1	0303-0511	●
145	BOLT; PIPE M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
145	BOLT; PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	01	1	0303-0511	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
145	BOLT; PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-	●	●
149	BOLT; HOSE M6X12 FLANGE	0-28080-612-0	01	1	0303-0511	●
149	BOLT; HOSE M6X12 FLANGE	0-28080-612-0	01	1	0512-0512	●	●
149	BOLT; HOSE M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●

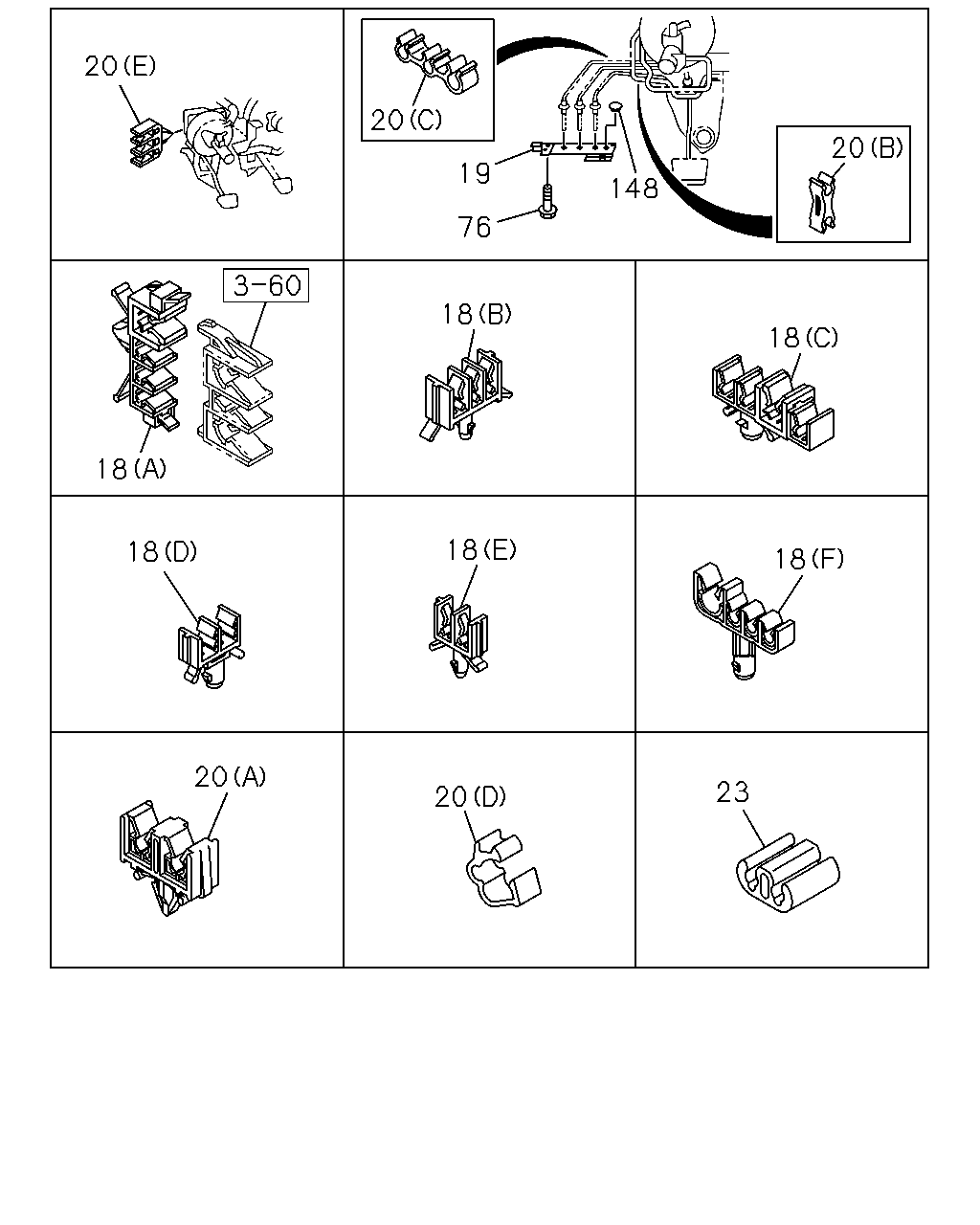

20 20 20 148 19 76 18 18 18 18 18 18 20 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	CLIP; BRK PIPE G.V.W. 7.0-7.5TON(RPX) (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0512-			●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0512-	●	●		●
18	CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0303-0511	●		●	●
18	CLIP; BRK PIPE G.V.W. 7.0-7.5TON(RPX) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0512-			●
18	CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0512-	●	●		●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0512-	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	04	1	0303-			●
18	CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0512-	●	●	●	●
18	CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	01	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	01	1	0512-	●	●	●	●
18	CLIP; BRK PIPE (E) ID=4.8X2	8-94455-816-0	01	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (E) ID=4.8X2	8-94455-816-0	01	1	0512-	●	●	●	●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0512-	●	●	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	08	1	0303-0511	●		●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	09	1	0512-	●	●	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	05	1	0303-				●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	06	1	0303-0511	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	06	1	0512-	●	●
19	BRACKET; OIL PIPE SOU	8-97149-718-2	01	1	0303-0511	●		●	●
19	BRACKET; OIL PIPE SOU	8-97149-718-2	01	1	0512-	●	●	●	●
20	CLIP; BRK PIPE (D) ID=6.35 & 4.76X2 SOU	8-94107-732-1	01	1	0303-0511	●		●	●
20	CLIP; BRK PIPE (D) ID=6.35 & 4.76X2 SOU	8-94107-732-1	01	1	0512-			●	●
20	CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0303-0511	●		●	●
20	CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0512-	●	●	●	●
20	CLIP; BRK PIPE (C) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	0303-0511	●		●	●
20	CLIP; BRK PIPE (C) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	0512-	●	●	●	●
20	CLIP; BRK PIPE (B) ID=4.6X2 SOU	8-94241-454-0	01	1	0303-0511	●		●	●
20	CLIP; BRK PIPE (B) ID=4.6X2 SOU	8-94241-454-0	01	1	0512-	●	●	●	●
20	CLIP; BRK PIPE (E) ID=6.35 & 4.76X2 SOU	8-94250-923-2	01	1	0303-0511	●		●	●
20	CLIP; BRK PIPE (E) ID=6.35 & 4.76X2 SOU	8-94250-923-2	01	1	0512-	●	●	●	●
23	CLAMP; PIPE ID=4.8X2 SOU	8-94389-060-0	01	1	0303-0511	●		●	●
23	CLAMP; PIPE ID=4.8X2 SOU	8-94389-060-0	01	1	0512-	●	●	●	●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0303-0511	●		●	●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●	●	●	●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●	●	●	●
148	GROMMET	8-94294-358-0	01	1	0303-			●	●
