Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#17752) — 33 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
D - NPC5JN
◀
[355A] ALL MODEL (25 parça)
[355A] EXTEND LONG CHAS,BUS CHASSIS (8 parça)
▶
15
8
1
8
14
3
4
5
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HOSE; FLEX,RR BRK
L=405
8-97089-061-0
01
1
0303-0511
●
●
●
1
HOSE; FLEX,RR BRK
L=405
8-97089-061-0
01
1
0512-
●
●
●
●
3
BRACKET; FLEX HOSE,RR BRK
8-97205-714-1
01
1
0303-0511
●
●
●
3
BRACKET; FLEX HOSE,RR BRK
8-97205-714-1
01
1
0512-
●
●
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE SOU
0-91150-108-0
01
1
0303-0511
●
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE SOU
0-91150-108-0
01
1
0512-0602
●
●
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE SOU
0-91180-108-0
01
1
0603-
●
●
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28680-825-0
01
1
0303-0511
●
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28680-825-0
01
1
0512-0512
●
●
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE SOU
0-28650-825-0
01
1
0601-
●
●
●
●
8
CLIP; RR BRK
8-94137-662-0
02
1
0303-0511
●
●
●
8
CLIP; RR BRK
8-94137-662-0
02
1
0512-0610
●
●
●
●
8
CLIP; RR BRK
8-97360-054-0
02
1
0611-
●
●
●
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97206-086-1
01
1
0303-0701
●
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-746-0
01
1
0702-
●
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97212-795-2
01
1
0303-0511
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97212-795-2
01
1
0512-0701
●
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-748-0
01
1
0702-
●
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
8-97116-543-2
01
1
0303-
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
8-97129-745-1
01
1
0303-
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97129-745-1
01
1
0303-
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97122-715-1
01
1
0303-0511
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97122-715-1
01
1
0512-
●
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
8-97183-535-1
01
1
0303-0511
●
●
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
8-97183-535-1
01
1
0512-
●
●
●
●

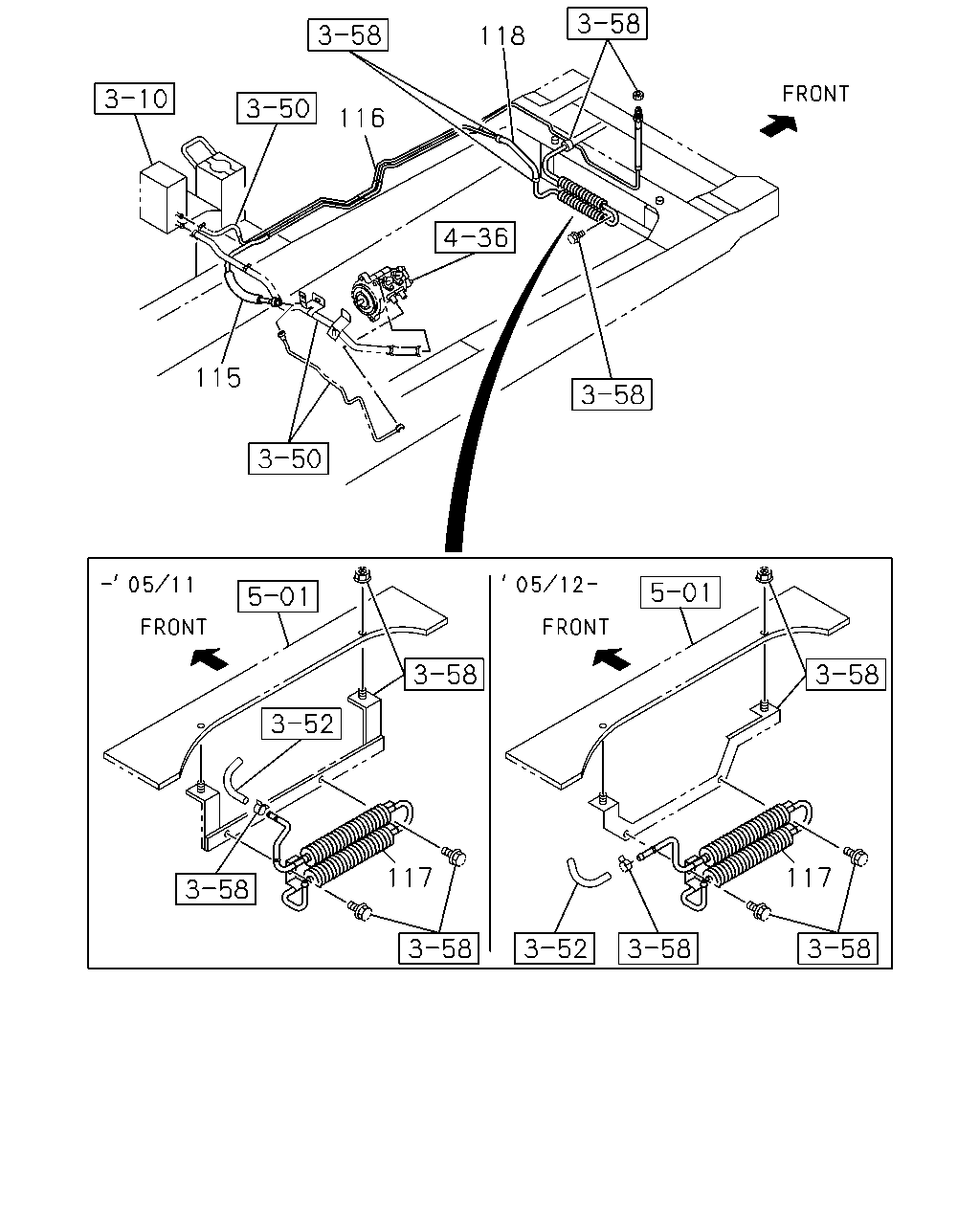

118
116
115
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
115
PIPE; PRESS,HYDRAULIC BRK BOOSTER
8-97177-072-4
01
1
0303-0511
●
115
PIPE; PRESS,HYDRAULIC BRK BOOSTER
8-97385-598-0
01
1
0512-
●
●
116
PIPE; BRK,PIPE TO TANK
8-97180-987-0
01
1
0303-0511
●
116
PIPE; BRK,PIPE TO TANK
8-97330-452-3
01
1
0512-
●
●
117
PIPE; BRK,RETURN
8-97180-991-2
01
1
0303-0511
●
117
PIPE; BRK,RETURN
8-97386-605-0
01
1
0512-
●
●
118
HOSE; PIPE TO PIPE
8-97181-217-2
01
1
0303-0511
●
118
HOSE; PIPE TO PIPE
8-97181-217-2
01
1
0512-
●
●
