◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#17751) — 34 parça
çizim 11389
51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 PIPE; BRK
(A) FRONT 		8-97209-514-0 01 1 0303-0511 ● ● ●
51 PIPE; BRK
(A) FRONT 		8-97209-514-0 01 1 0512- ● ● ● ●
51 PIPE; BRK
(B) REAR 		8-97209-515-0 01 1 0303-0511 ● ● ●
51 PIPE; BRK
(B) REAR 		8-97209-515-0 01 1 0512- ● ● ● ●

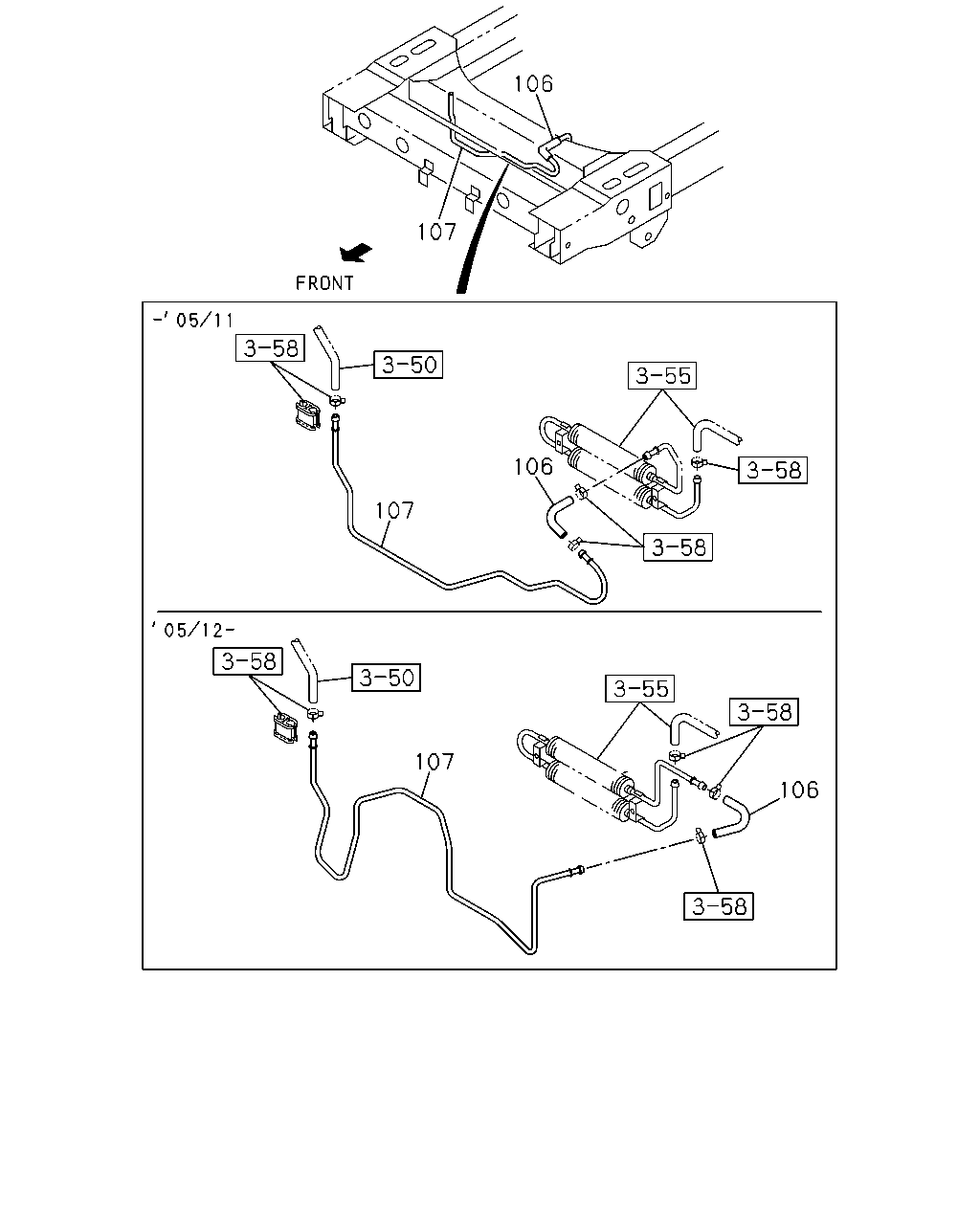

çizim 12940
106 107 106 107 107 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
106 HOSE; FIN PIPE TO PIPE 8-97181-219-2 01 1 0303-0511 ●
106 HOSE; FIN PIPE TO PIPE 8-97386-589-0 01 1 0512- ● ●
107 PIPE; RETURN TO FIN PIPE 8-97180-989-2 01 1 0303-0511 ●
107 PIPE; RETURN TO FIN PIPE 8-97385-601-0 01 1 0512- ● ●

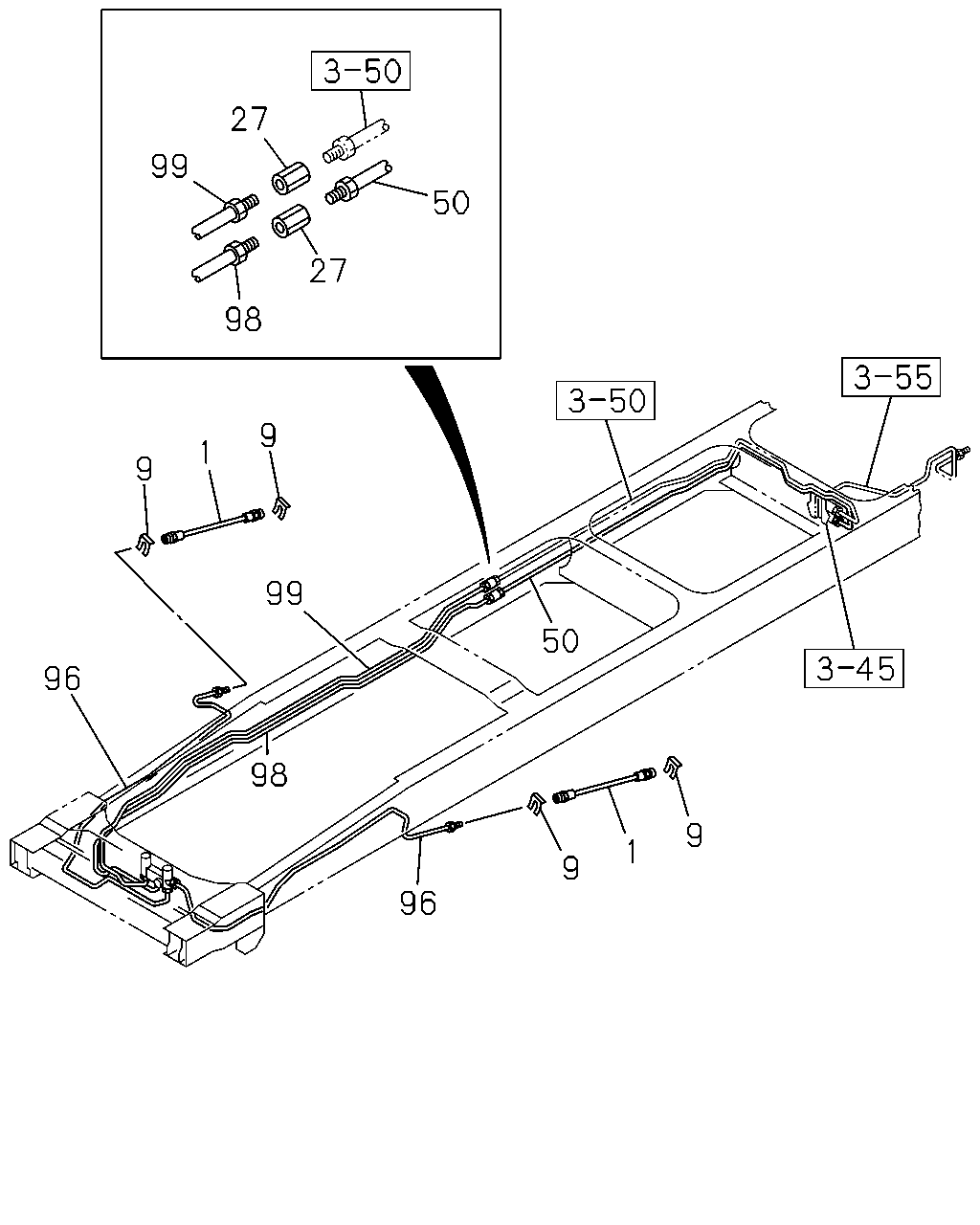

çizim 52763
27 99 50 27 98 9 1 9 99 50 96 98 9 1 9 96
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0303-0511 ● ● ●
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0512- ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0303-0511 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0303-0511 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0512-0610 ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0512-0610 ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 02 1 0303-0511 ● ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 02 1 0512-0607 ● ● ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ● ●
50 PIPE; BRK,UNION TO VLV
FRONT SERVICED BY L=2300 		5-47411-785-0 01 1 0303- ●
50 PIPE; BRK,UNION TO VLV
FRONT SERVICED BY L=2720 		5-47411-788-0 01 1 0303- ●
50 PIPE; BRK,UNION TO VLV
FRONT SERVICED BY L=3035 		5-47411-789-0 01 1 0303-0511 ●
50 PIPE; BRK,UNION TO VLV
FRONT SERVICED BY L=3035 		5-47411-789-0 01 1 0512- ● ●
96 PIPE ASM; 6 WAY 8-97096-950-0 01 1 0512- ● ●
96 PIPE ASM; 6 WAY 8-97096-950-0 01 1 0303-0511 ● ● ●
96 PIPE ASM; 6 WAY 8-97377-923-0 01 1 0512- ● ●
96 PIPE ASM; 6 WAY 8-97096-954-1 01 1 0303-0511 ● ● ●
96 PIPE ASM; 6 WAY 8-97096-954-1 01 1 0512- ● ● ● ●
98 PIPE ASM; 4/6 WAY
FRONT 		8-97142-710-0 01 1 0512- ● ●
98 PIPE ASM; 4/6 WAY
FRONT 		8-97142-710-0 01 1 0303-0511 ● ● ●
98 PIPE ASM; 4/6 WAY
FRONT 		8-97376-059-0 01 1 0512- ● ●
99 PIPE ASM; 4/5/6 WAY
REAR 		8-97142-709-0 01 1 0512- ● ●
99 PIPE ASM; 4/5/6 WAY
REAR 		8-97142-709-0 01 1 0303-0511 ● ● ●
99 PIPE ASM; 4/5/6 WAY
REAR 		8-97376-061-0 01 1 0512- ● ●
