◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#1775) — 194 parça

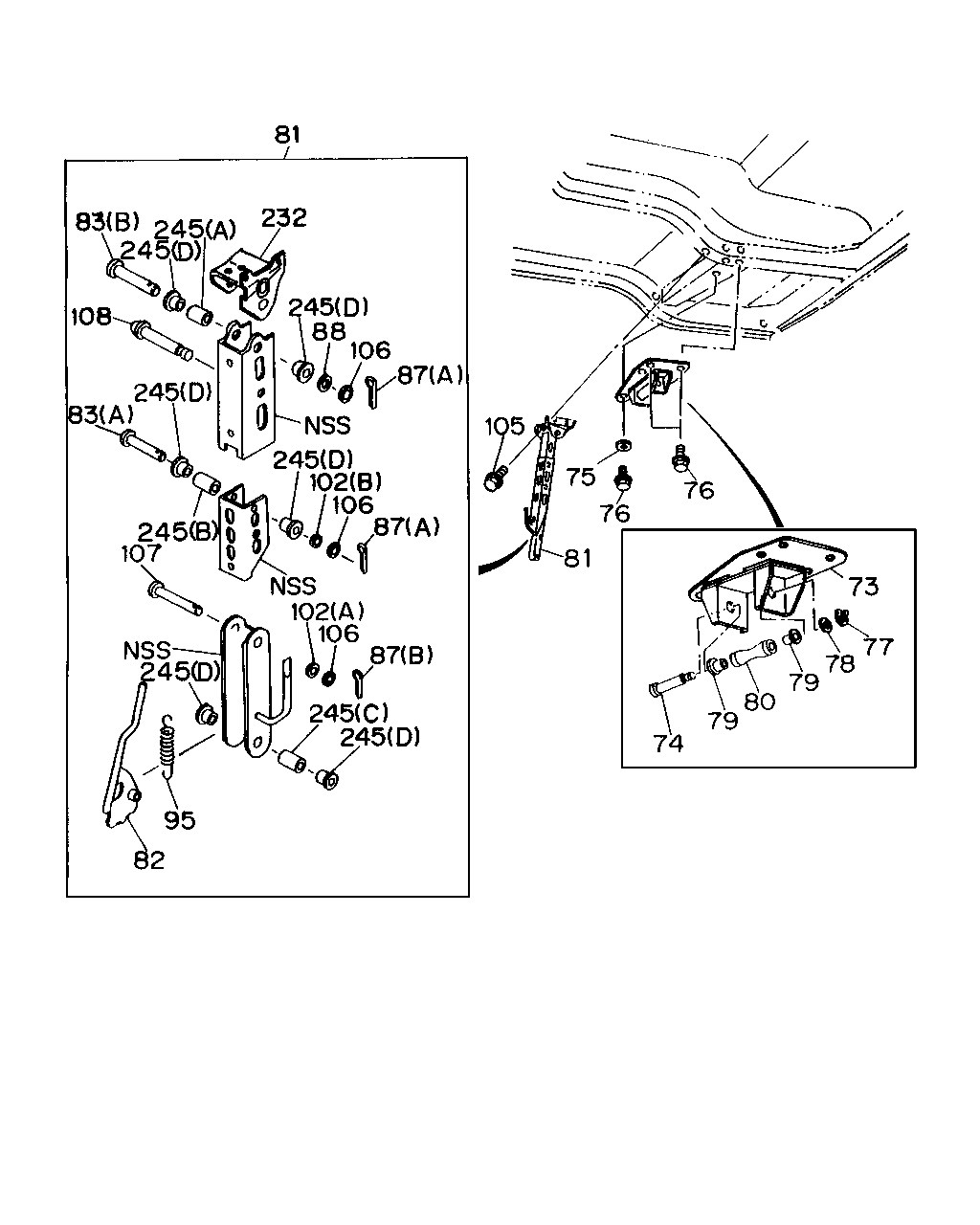

çizim 27741
81 232 245 245 245 83 108 245 83 245 87 106 88 102 245 106 107 87 102 106 87 245 245 245 95 82 74 79 80 79 78 77 73 76 75 81 76 105
BalonParca AdiParca NoAdetTipApplied Date A B
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-859-0 02 1 9002- ●
73 PAD; TORSION BAR
EXC. AUTO CAB TILT<WV2> 		1-53459-645-0 02 1 9002- ●
73 PAD; TORSION BAR 1-53459-645-0 02 1 9002- ●
74 PIN; ROLLER
14X65 		1-53459-345-0 02 1 9002- ● ●
75 WASHER; PL,PAD 1-09985-111-0 02 1 9002- ● ●
76 BOLT; PAD
M10X25 W/LK&PL WASHER 		0-50141-025-0 06 1 9002- ● ●
77 RING; SNAP 1-09588-032-0 02 1 9002- ● ●
78 WASHER; PL
ID=15 OD=26 		9-09164-514-0 02 1 9002- ● ●
79 BUSHING; ROLLER 5-33659-053-0 04 1 9002- ● ●
80 ROLLER 1-53459-357-2 02 1 9002- ● ●
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-214-1 01 1 9002- ●
81 STAY ASM; CAB TILT 1-65570-214-1 01 1 9002- ●
82 LEVER; CAB STAY LK
EXC. AUTO CAB TILT<WV2> 		1-62500-416-0 01 1 9002- ●
82 LEVER; CAB STAY LK 1-62500-416-0 01 1 9002- ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) OD=14 L=62 		9-08234-462-0 01 1 9002- ●
83 PIN; JOINT,CAB STAY
(A) OD=14 L=62 		9-08234-462-0 01 1 9002- ●
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) OD=14 L=66 		9-08234-466-0 01 1 9002- ●
83 PIN; JOINT,CAB STAY
(B) OD=14 L=66 		9-08234-466-0 01 1 9002- ●
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (A) 		1-09987-080-0 02 1 9002- ●
87 PIN; SPLIT,CAB STAY PIN
(A) 		1-09987-080-0 02 1 9002- ●
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (B) OD=2.8 L=18 		9-08113-018-0 01 1 9002- ●
87 PIN; SPLIT,CAB STAY PIN
(B) OD=2.8 L=18 		9-08113-018-0 01 1 9002- ●
88 WASHER; PL,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9002- ●
88 WASHER; PL,CAB STAY PIN
ID=15 		9-09160-514-0 01 1 9002- ●
95 SPRING; RETURN,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-09585-064-1 01 1 9002- ●
95 SPRING; RETURN,CAB STAY 1-09585-064-1 01 1 9002- ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ●
102 WASHER; PL,CAB STAY
(A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ●
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 01 1 9002- ●
102 WASHER; PL,CAB STAY
(B) ID=15 		9-09160-514-0 01 1 9002- ●
105 BOLT; CAB STAY
M10X25 W/LK&PL WASHER 		1-09980-488-0 03 1 9002- ● ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=11.3 		5-09550-001-0 01 1 9002- ●
106 WASHER; WAVE,CAB STAY
ID=11.3 		5-09550-001-0 01 1 9002- ●
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 02 1 9002- ●
106 WASHER; WAVE,CAB STAY
ID=15 OD=25 		8-11053-111-0 02 1 9002- ●
107 PIN; LK LEVER
EXC. AUTO CAB TILT<WV2> 		9-08234-033-0 01 1 9002- ●
107 PIN; LK LEVER 9-08234-033-0 01 1 9002- ●
108 PIN; ADJ,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-62500-518-0 01 1 9002- ●
108 PIN; ADJ,CAB STAY 1-62500-518-0 01 1 9002- ●
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-215-1 01 1 9002- ● ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (A) L=41.0 		1-53459-626-0 01 1 9002- ●
245 BUSHING; CAB STAY
(A) L=41.0 		1-53459-626-0 01 1 9002- ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (B) L=31.5 		1-53459-627-0 01 1 9002- ●
245 BUSHING; CAB STAY
(B) L=31.5 		1-53459-627-0 01 1 9002- ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (C) L=27.5 		1-53459-628-0 01 1 9002- ●
245 BUSHING; CAB STAY
(C) L=27.5 		1-53459-628-0 01 1 9002- ●
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (D) L=12.0 		1-53459-971-0 06 1 9002- ●
245 BUSHING; CAB STAY
(D) L=12.0 		1-53459-971-0 06 1 9002- ●

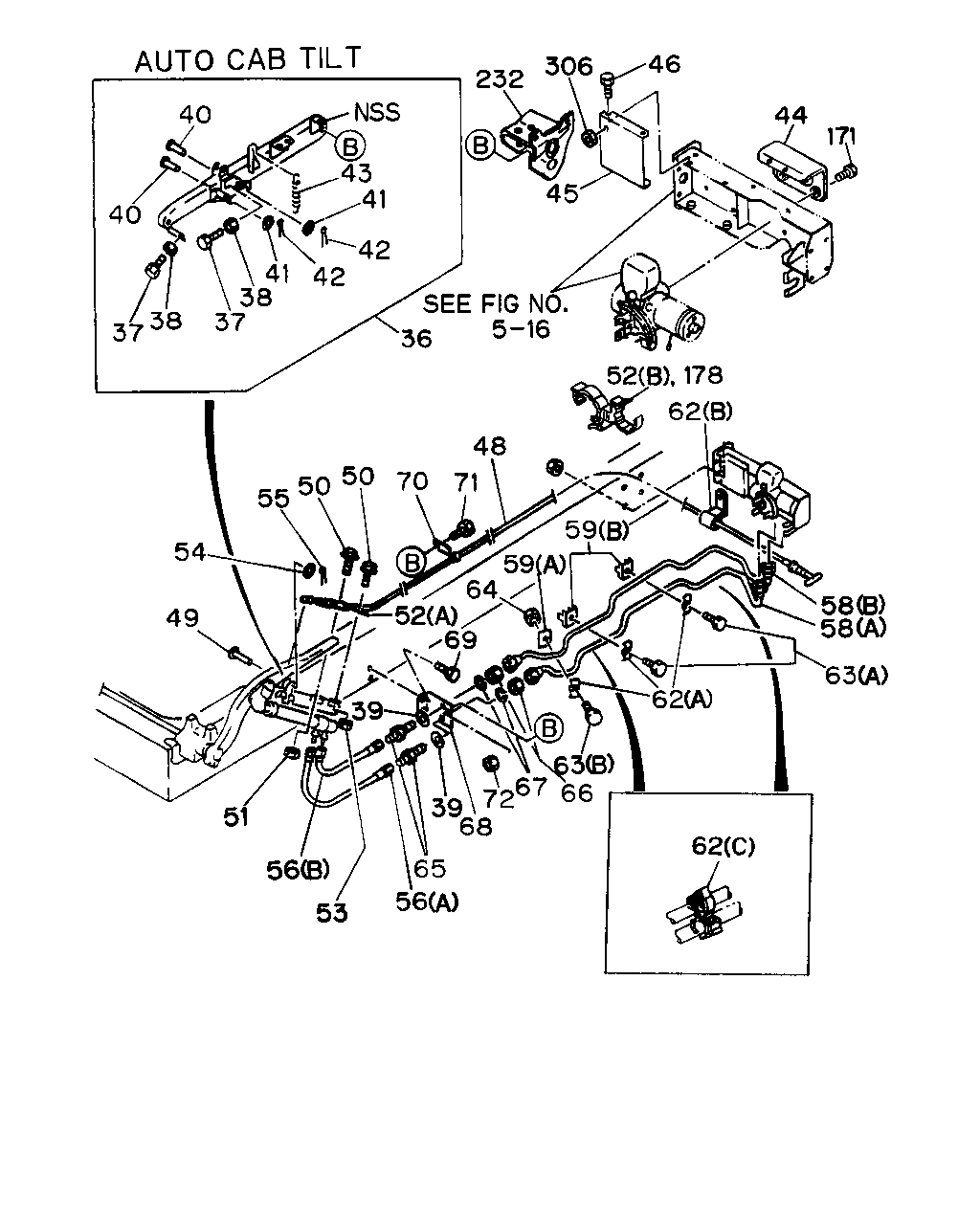

çizim 29027
40 40 37 38 37 38 41 42 42 41 43 232 306 46 44 171 45 36 52 178 48 71 70 50 50 55 54 49 52 59 64 59 62 58 58 63 62 62 63 66 67 72 68 39 65 56 53 56 51 39 69
BalonParca AdiParca NoAdetTipApplied Date A B
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002- ●
37 BOLT; STOP SW ADJ
AUTO CAB TILT<WV2> 		1-09000-330-0 02 1 9002- ●
38 NUT; LK
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9002- ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=26 		9-09160-514-0 01 1 9002- ●
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> OD=30 		9-09160-614-0 01 1 9002- ●
40 PIN; LK
AUTO CAB TILT<WV2> OD=14 L=52 		1-09744-062-0 01 1 9002- ●
40 PIN; LK
AUTO CAB TILT<WV2> OD=10 L=42 		9-08234-042-0 01 1 9002- ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ●
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 02 1 9002- ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> L=18 OD=2.8 L=18 		9-08113-018-0 01 1 9002- ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 02 1 9002- ●
43 SPRING; RETURN,LEVER
AUTO CAB TILT<WV2> 		9-09942-604-0 01 1 9002- ●
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53459-902-0 01 1 9002-9306 ●
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53458-232-1 01 1 9307- ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53459-869-1 01 1 9002-9206 ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53458-445-0 01 1 9207-9501 ●
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> EXC. ANTI NOISE EQUIPMENT<SV9> 		1-53458-445-0 01 1 9502- ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01900-820-0 04 1 9002-9204 ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9206 ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9207-9501 ●
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 02 1 9502- ●
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> 		1-53459-720-2 01 1 9002- ●
49 PIN; JAW FIX
AUTO CAB TILT<WV2> 		9-08233-828-0 01 1 9002- ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002- ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01910-820-0 01 1 9002-9005 ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9302 ●
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303- ●
51 NUT; CONT CABLE
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002- ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (A) ID=11 L=28 		9-09525-055-0 01 1 9002- ●
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9103- ●
53 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002- ●
54 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 9002- ●
55 PIN; SPLIT
AUTO CAB TILT<WV2> OD=1.8 L=15 		9-08112-015-0 01 1 9002- ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (B) L=650 		1-09364-432-3 01 1 9002- ●
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (A) L=600 		1-09364-437-2 01 1 9002- ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1566 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306 ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1571 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306 ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1566 SERVICED BY L=1700 		1-47426-391-0 01 1 9307- ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1571 SERVICED BY L=1700 		1-47426-391-0 01 1 9307- ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (A) L=50 		1-47475-299-2 01 1 9002- ●
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (B) 		1-47475-427-1 02 1 9002- ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (A) 		1-09700-651-0 03 1 9002- ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) 		1-09700-868-0 02 1 9002- ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) 		8-94252-372-0 04 1 9002-9006 ●
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=6-10 & 6-10 		1-09709-192-1 01 1 9007- ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9002-9204 ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9302 ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X16 FLANGE 		0-28080-816-0 01 1 9303- ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X45 W/LK WASHER 		9-01900-845-0 02 1 9002-9204 ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9205-9302 ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X50 FLANGE 		0-28080-850-0 02 1 9303-9306 ●
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X50 FLANGE 		0-28080-850-0 03 1 9307- ●
64 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002- ●
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> M14 		9-09223-308-1 02 1 9002- ●
66 NUT; UNION,OIL PIPE
AUTO CAB TILT<WV2> M14 		9-99111-414-0 02 1 9002- ●
67 WASHER; LK,UNION,OIL PIPE
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002- ●
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47475-314-1 01 1 9002-9210 ●
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47476-765-1 01 1 9211- ●
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9002- ●
70 CLIP; UNION BRKT
AUTO CAB TILT<WV2> 		1-09700-098-0 01 1 9002- ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 		9-01910-620-0 01 1 9002-9005 ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9006-9210 ●
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9211- ●
72 NUT
AUTO CAB TILT<WV2> M6 		9-09110-406-0 01 1 9002- ●
171 BOLT; BRKT
10PD1 STD ENG(40L) AUTO CAB TILT<WV2> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9206 ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9207-9302 ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ●
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=6-10 & 10-14 		1-09709-201-1 01 1 9103-9409 ●
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=12-16 & 12-16 		1-09709-191-0 01 1 9410- ●
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-215-1 01 1 9002- ● ●
306 NUT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8 FLANGE 		5-09440-005-0 01 1 9207-9306 ●

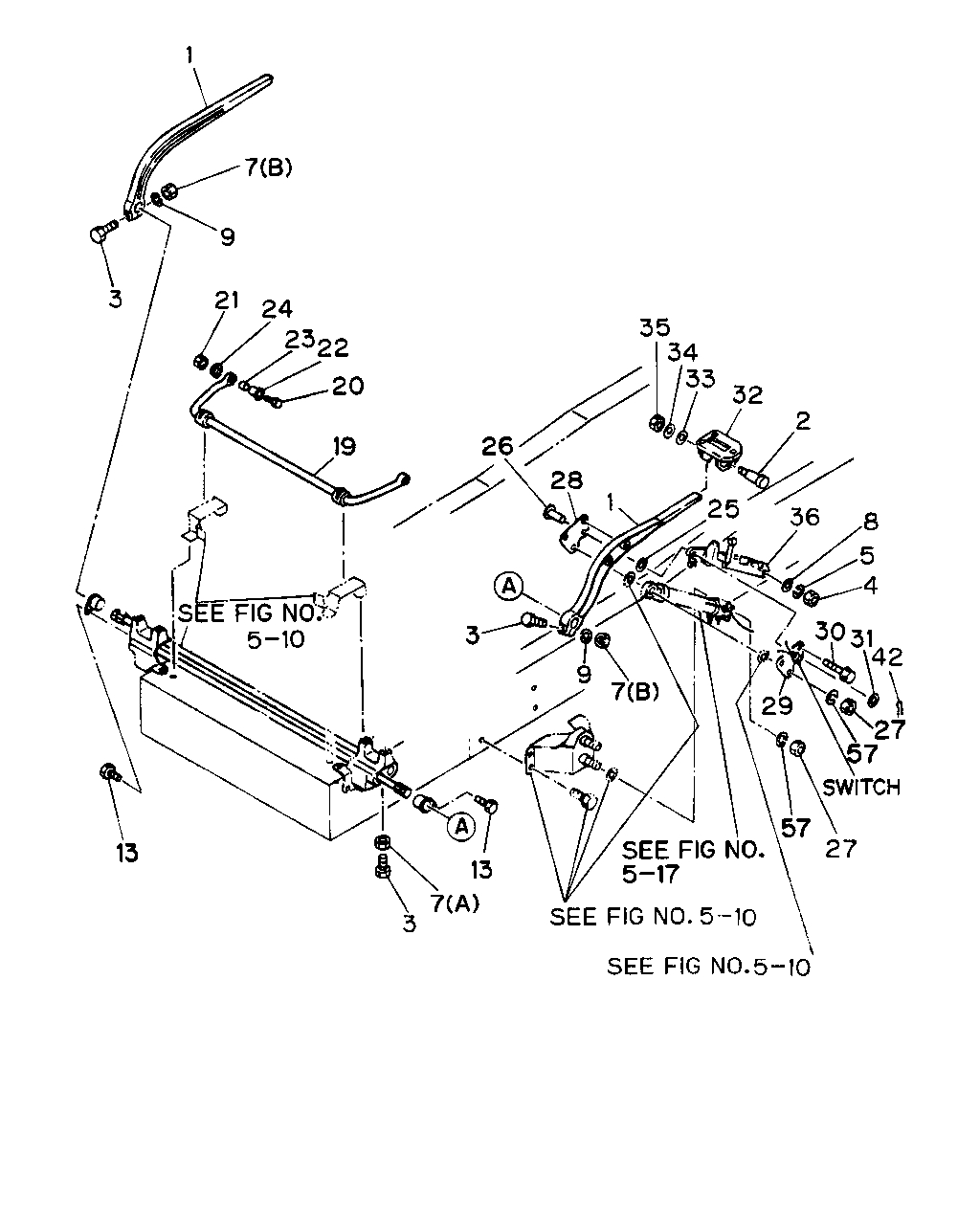

çizim 29062
1 7 9 21 24 20 22 23 19 26 35 34 33 32 2 36 8 4 42 31 30 27 57 7 9 29 57 27 13 7 3 3 1 25 28 13 3 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; TORSION BAR 1-53459-341-4 01 1 9002- ● ●
1 LEVER; TORSION BAR 1-53459-342-4 01 1 9002- ● ●
2 PIN; HANGER
AUTO CAB TILT<WV2> 		1-53459-452-0 02 1 9002- ●
3 BOLT; LEVER
M10X30 		1-09000-283-0 02 1 9002- ● ●
3 BOLT; LEVER
M12X65 		9-91061-265-0 02 1 9002- ● ●
4 NUT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002- ●
5 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 02 1 9002- ●
7 NUT; LK,LEVER
(A) M10 		9-09110-510-0 02 1 9002- ● ●
7 NUT; LK,LEVER
(B) M12 		9-99110-512-0 02 1 9002- ● ●
8 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 02 1 9002- ●
9 WASHER; LK
ID=12.2 		9-09150-612-0 02 1 9002- ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 		9-01970-616-0 02 1 9002-9005 ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9006- ● ●
19 BAR; STAB,CAB SUSP 1-53459-788-1 01 1 9002- ● ●
20 BOLT 1-09000-353-0 02 1 9002- ● ●
21 NUT
M10 		9-09111-410-0 02 1 9002- ● ●
22 BUSHING; STABILIZER 1-53459-786-1 01 1 9002- ● ●
23 TUBE; DIST 1-53459-787-3 02 1 9002- ● ●
24 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9002- ● ●
25 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 OD=30 		9-09160-614-0 02 1 9002- ●
26 PIN; STAY
AUTO CAB TILT<WV2> 		9-08234-452-0 01 1 9002- ●
27 NUT; OIL CYL
AUTO CAB TILT<WV2> M14 		9-99110-514-0 02 1 9002- ●
28 BRACKET; OIL CYL,UPR,INNER
AUTO CAB TILT<WV2> 		1-53459-362-3 01 1 9002- ●
29 BRACKET; OIL CYL,UPR,OUTER
AUTO CAB TILT<WV2> 		1-53459-361-2 01 1 9002- ●
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 		9-01911-245-0 02 1 9002-9005 ●
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9006- ●
31 WASHER; WAVE
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9002- ●
32 HANGER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-53459-451-4 02 1 9002- ●
33 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 01 1 9002- ●
34 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 01 1 9002- ●
35 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 01 1 9002- ●
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002- ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> L=18 OD=2.8 L=18 		9-08113-018-0 01 1 9002- ●
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 02 1 9002- ●
57 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002- ●

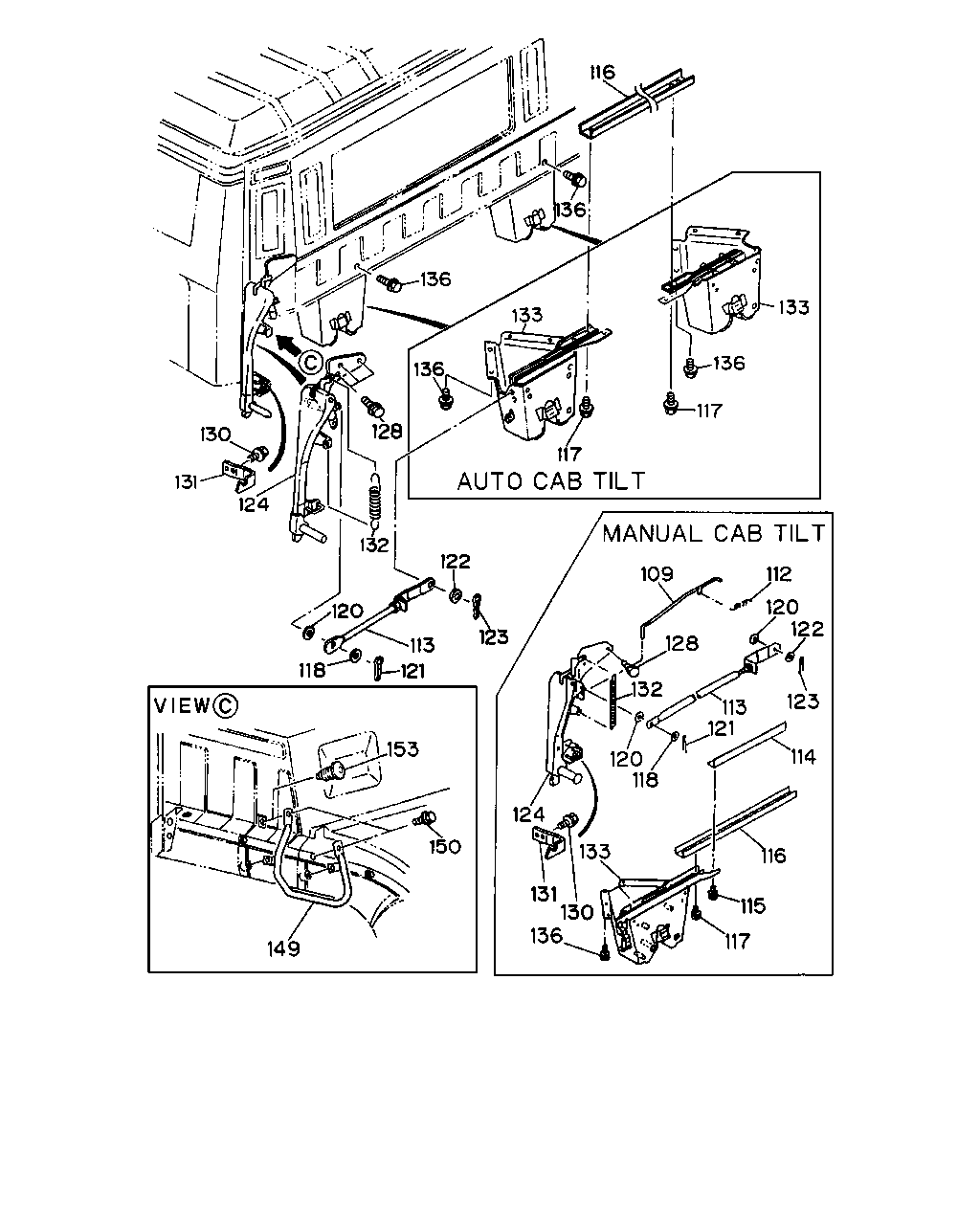

çizim 29081
136 116 136 133 136 133 136 117 117 128 130 131 132 122 123 113 120 118 121 124 153 150 149 136 130 117 115 116 114 123 113 121 118 124 133 131 120 132 128 122 109 112 120
BalonParca AdiParca NoAdetTipApplied Date A B
109 ROD; SAFETY,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-446-3 01 1 9002- ●
109 ROD; SAFETY,CAB LK 1-79717-446-3 01 1 9002- ●
112 SPRING; RETURN,SAFETY ROD
EXC. AUTO CAB TILT<WV2> 		1-79717-417-0 01 1 9002- ●
112 SPRING; RETURN,SAFETY ROD 1-79717-417-0 01 1 9002- ●
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 9002- ● ●
114 ARM ASM; CONN,SAFETY
EXC. AUTO CAB TILT<WV2> 		1-79717-469-1 01 1 9002- ●
114 ARM ASM; CONN,SAFETY 1-79717-469-1 01 1 9002- ●
115 BOLT; CONN ARM
EXC. AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002- ●
115 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002- ●
116 ARM ASM; CONN 1-79717-435-1 01 1 9002- ● ●
117 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ●
118 WASHER; PL,CONNROD
ID=10.5 OD=18 		1-09985-173-0 01 1 9002- ● ●
120 WASHER; NYLON
ID=10.5 OD=16 		9-09855-178-0 01 1 9002- ● ●
121 PIN; SPLIT,CONNROD 1-09987-077-0 01 1 9002- ● ●
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 01 1 9002- ● ●
123 PIN; SPLIT,CAB LOCK ROD 1-09987-078-0 01 1 9002- ● ●
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> CAB UP 50MM(W60) 		1-79717-600-2 01 1 9103- ●
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> EXC. CAB UP 50MM(W60) 		1-79717-595-2 01 1 9103- ●
124 LEVER ASM; HAND,CAB LK
EXC. AUTO CAB TILT<WV2>,CAB UP 50MM(W60) 		1-79717-494-9 01 1 9002- ● ●
124 LEVER ASM; HAND,CAB LK
CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2> 		1-79717-502-9 01 1 9002- ● ●
128 BOLT; BRKT
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002- ● ●
130 BOLT; BRKT,SAFETY KEY
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9002- ● ●
131 BRACKET; SAFETY KEY 1-79717-501-1 01 1 9002- ● ●
132 SPRING; HAND LEVER 1-09985-148-0 01 1 9002- ● ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-508-6 01 1 9002- ●
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-507-6 01 1 9002- ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-506-6 01 1 9002- ●
133 LOCK ASM; CAB
EXC. CHINA EQUIPMENT(YT2) 		1-79717-506-6 01 1 9002- ●
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-505-6 01 1 9002- ●
133 LOCK ASM; CAB
EXC. CHINA EQUIPMENT(YT2) 		1-79717-505-6 01 1 9002- ●
133 LOCK ASM; CAB
CHINA EQUIPMENT(YT2) 		1-79717-532-0 01 1 9002- ●
133 LOCK ASM; CAB
CHINA EQUIPMENT(YT2) 		1-79717-531-0 01 1 9002- ●
136 BOLT; CAB LK
M8X20 		1-09980-529-0 16 1 9002- ● ●
149 HANDLE; TILT
EXC. AUTO CAB TILT<WV2>,CAB UP 50MM(W60) 		1-71997-490-1 01 1 9002- ● ●
149 HANDLE; TILT
CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2> 		1-71997-630-0 01 1 9002- ● ●
150 BOLT; TILT HANDLE
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9002- ●
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 04 1 9002- ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		1-09980-495-0 04 1 9002- ●
153 PLUG; DUMMY,GRIP TILT
AUTO CAB TILT<WV2> D4.7X11 		1-76378-154-0 01 1 9002- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
