Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#17748) — 34 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
D - NPC5JN
◀
[331A] MIDDLE CHAS,LONG CHAS (13 parça)
[331A] EXTEND LONG CHAS,BUS CHASSIS (21 parça)
▶
1
17
16
24
15
12
11
23
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV)
8-97162-798-1
01
1
0303-
●
1
MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX)
8-97162-800-1
01
1
0303-
●
1
MASTER VAC ASM; BRK
8-97162-800-1
01
1
0303-
●
3
RETAINER; FRT SHELL,M/VAC
SOU
9-83315-319-0
01
1
0303-
●
●
11
FILTER; M/VAC
SOU
8-97205-576-0
01
1
0303-
●
●
12
SILENCER; M/VAC
SOU
8-97205-577-0
01
1
0303-
●
●
15
RETAINER; GUARD,M/VAC
SOU
8-94375-083-0
01
1
0303-
●
●
16
NUT; VLV ROD,M/VAC
M10 SOU
1-52139-008-0
01
1
0303-
●
●
17
CLEVIS; YOKE,M/VAC
SOU
8-97224-610-0
01
1
0303-
●
●
23
SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV)
8-97261-943-0
01
1
0303-
●
23
SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX) SOU
8-97079-350-0
01
1
0303-
●
23
SEAL; M/VAC
SOU
8-97079-350-0
01
1
0303-
●
24
GUARD; VLV BODY,M/VAC
SOU
8-97205-578-0
01
1
0303-
●
●

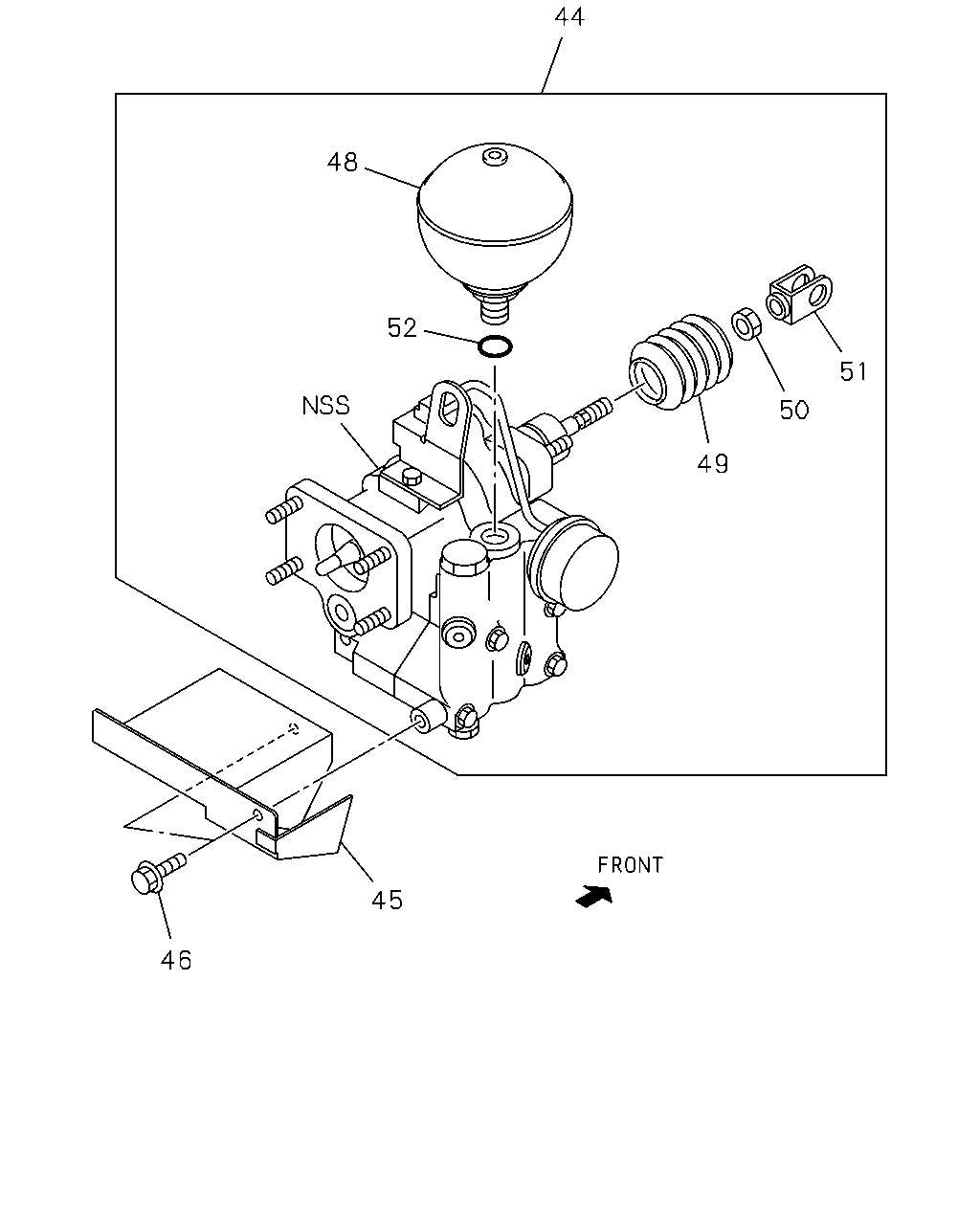

44
48
52
51
50
49
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
44
BOOSTER; HYDRAULIC BRK
SOU
8-97209-212-0
01
1
0303-0511
●
44
BOOSTER; HYDRAULIC BRK
SOU
8-97209-212-0
01
1
0512-0610
●
●
44
BOOSTER; HYDRAULIC BRK
8-98031-414-0
01
1
0611-
●
●
45
PROTECTOR; HEAT
SOU
8-97182-354-1
01
1
0303-0511
●
45
PROTECTOR; HEAT
SOU
8-97182-354-1
01
1
0512-
●
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28080-610-0
02
1
0303-0511
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28080-610-0
02
1
0512-0512
●
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
02
1
0601-
●
●
48
ACCUMULATOR; HYDRO BOOSTER
SOU
8-97191-040-0
01
1
0303-0511
●
48
ACCUMULATOR; HYDRO BOOSTER
SOU
8-97191-040-0
01
1
0512-0610
●
●
48
ACCUMULATOR; HYDRO BOOSTER
8-98038-346-0
01
1
0611-
●
●
49
GUARD; HYDRO BRK BOOSTER
SOU
8-97191-043-0
01
1
0303-0511
●
49
GUARD; HYDRO BRK BOOSTER
SOU
8-97191-043-0
01
1
0512-
●
●
50
NUT; HYDRO BRK BOOSTER
SOU
8-97191-042-0
01
1
0303-0511
●
50
NUT; HYDRO BRK BOOSTER
SOU
8-97191-042-0
01
1
0512-0610
●
●
50
NUT; HYDRO BRK BOOSTER
8-98038-349-0
01
1
0611-
●
●
51
CLEVIS; HYDRO BRK BOOSTER
SOU
8-97191-041-0
01
1
0303-0511
●
51
CLEVIS; HYDRO BRK BOOSTER
SOU
8-97191-041-0
01
1
0512-0610
●
●
51
CLEVIS; HYDRO BRK BOOSTER
8-98038-347-0
01
1
0611-
●
●
52
GASKET; HYDRO BRK BOOSTER
SOU
8-97191-038-0
01
1
0303-0511
●
52
GASKET; HYDRO BRK BOOSTER
SOU
8-97191-038-0
01
1
0512-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
