◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#17747) — 58 parça

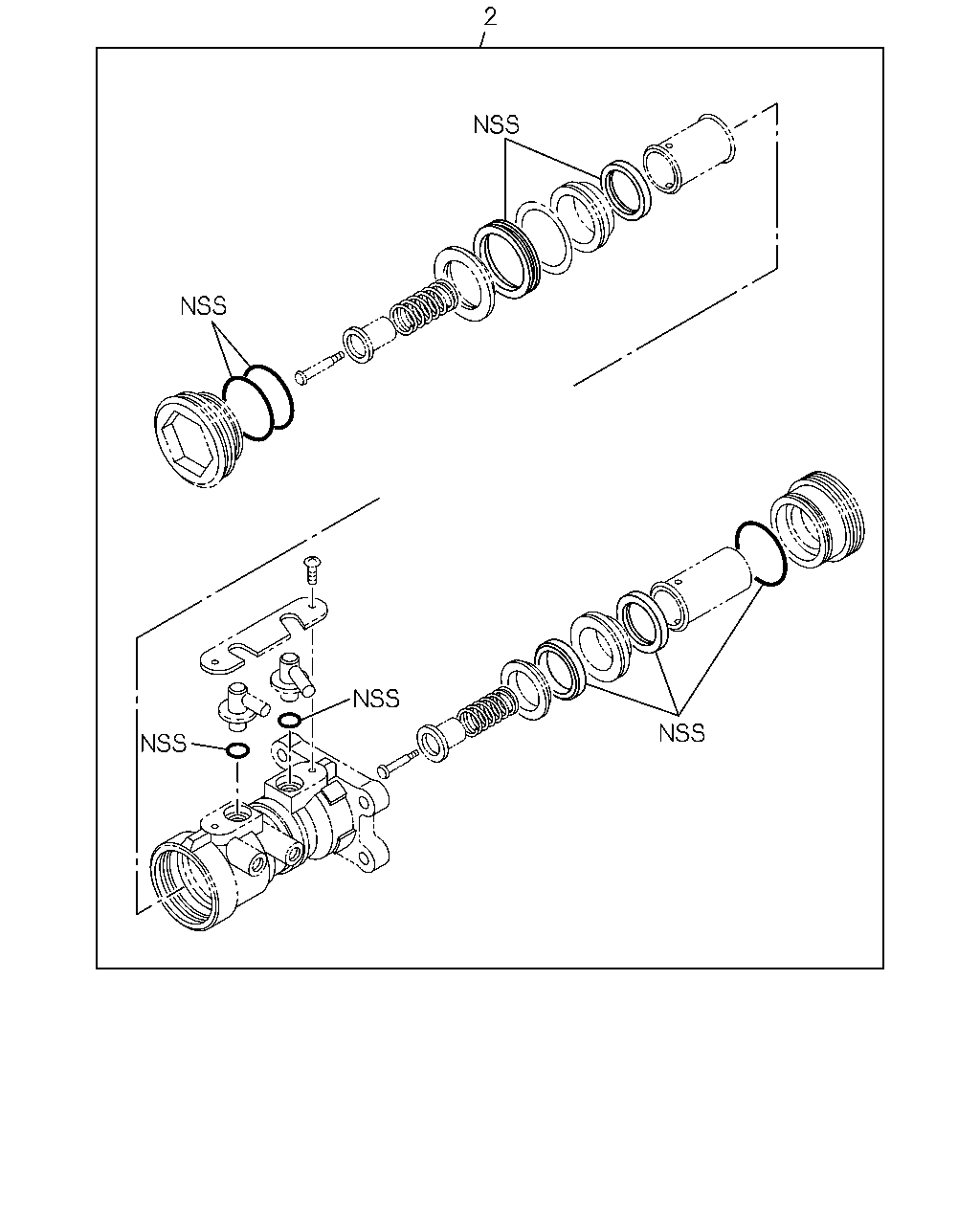

çizim 13263
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97130-470-0 01 1 0303- ●
2 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97130-471-0 01 1 0303- ●
2 REPAIR KIT; BRK,M/CYL
SOU 		8-97130-471-0 01 1 0303- ●
2 REPAIR KIT; BRK,M/CYL
SOU 		8-97254-775-0 01 1 0303-0511 ●
2 REPAIR KIT; BRK,M/CYL
SOU 		8-97254-775-0 01 1 0512- ● ●

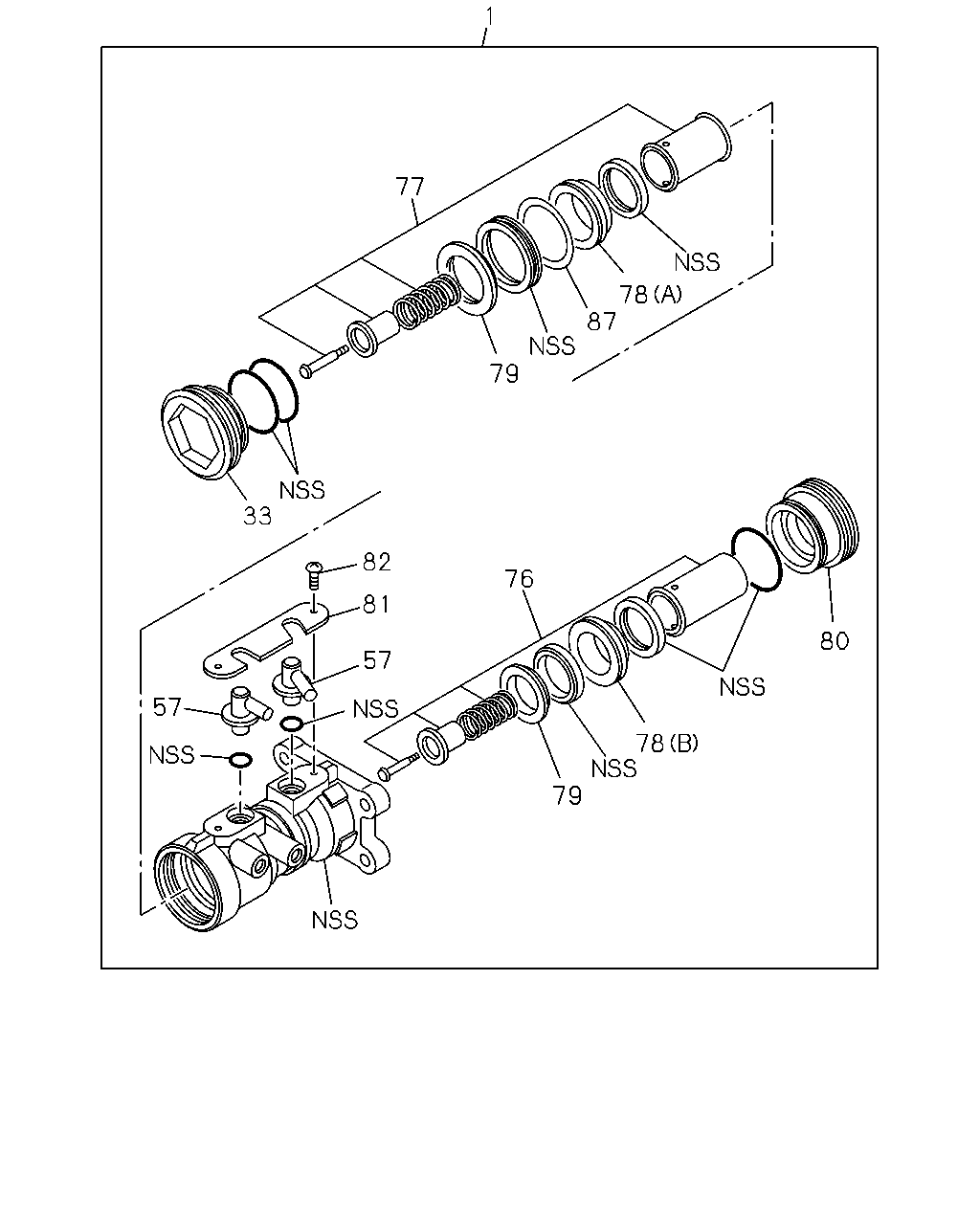

çizim 57082
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97224-373-0 01 1 0303- ●
1 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97224-370-0 01 1 0303- ●
1 CYLINDER ASM; BRK MASTER
SOU 		8-97224-370-0 01 1 0303- ●
1 CYLINDER ASM; BRK MASTER
SOU 		8-97254-770-0 01 1 0303-0511 ●
1 CYLINDER ASM; BRK MASTER
SOU 		8-97254-770-0 01 1 0512- ● ●
33 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97186-696-0 01 1 0303- ●
33 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97186-697-0 01 1 0303- ●
33 PLUG; END,M/CYL
SOU 		8-97186-697-0 01 1 0303- ●
33 PLUG; END,M/CYL
SOU 		8-97186-699-0 01 1 0303-0511 ●
33 PLUG; END,M/CYL
SOU 		8-97186-699-0 01 1 0512- ● ●
57 NIPPLE; BRK M/CYL
SOU 		8-97130-442-0 02 1 0303- ● ●
57 NIPPLE; BRK M/CYL
SOU 		8-97130-441-0 02 1 0303-0511 ●
57 NIPPLE; BRK M/CYL
SOU 		8-97130-441-0 02 1 0512- ● ●
76 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97224-636-0 01 1 0303- ●
76 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97224-643-0 01 1 0303- ●
76 PISTON ASM; PRIMARY
SOU 		8-97224-643-0 01 1 0303- ●
76 PISTON ASM; PRIMARY
SOU 		8-97224-641-0 01 1 0303-0511 ●
76 PISTON ASM; PRIMARY
SOU 		8-97224-641-0 01 1 0512- ● ●
77 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97224-635-0 01 1 0303- ●
77 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97224-642-0 01 1 0303- ●
77 PISTON ASM; SECONDARY
SOU 		8-97224-642-0 01 1 0303- ●
77 PISTON ASM; SECONDARY
SOU 		8-97224-640-0 01 1 0303-0511 ●
77 PISTON ASM; SECONDARY
SOU 		8-97224-640-0 01 1 0512- ● ●
78 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) (A) SOU 		8-97130-454-0 01 1 0303- ●
78 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) (B) SOU 		8-97217-310-0 01 1 0303- ●
78 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) (A) SOU 		8-97130-455-0 01 1 0303- ●
78 BUSHING; MASTER CYL
(A) SOU 		8-97130-455-0 01 1 0303- ●
78 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) (B) SOU 		8-97217-312-0 01 1 0303- ●
78 BUSHING; MASTER CYL
(B) SOU 		8-97217-312-0 01 1 0303- ●
78 BUSHING; MASTER CYL
(A) SOU 		8-97170-695-0 01 1 0303-0511 ●
78 BUSHING; MASTER CYL
(A) SOU 		8-97170-695-0 01 1 0512- ● ●
78 BUSHING; MASTER CYL
(B) SOU 		8-97207-685-0 01 1 0303-0511 ●
78 BUSHING; MASTER CYL
(B) SOU 		8-97207-685-0 01 1 0512- ● ●
79 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97130-462-0 02 1 0303- ●
79 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97130-463-0 02 1 0303- ●
79 SUPPORTER; CUP
SOU 		8-97130-463-0 02 1 0303- ●
79 SUPPORTER; CUP
SOU 		8-97170-698-0 02 1 0303-0511 ●
79 SUPPORTER; CUP
SOU 		8-97170-698-0 02 1 0512- ● ●
80 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97130-448-0 01 1 0303- ●
80 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97130-449-0 01 1 0303- ●
80 COVER; MASTER CYL
SOU 		8-97130-449-0 01 1 0303- ●
80 COVER; MASTER CYL
SOU 		8-97170-692-0 01 1 0303-0511 ●
80 COVER; MASTER CYL
SOU 		8-97170-692-0 01 1 0512- ● ●
81 HOLDER; NIPPLE
SOU 		8-97130-445-0 01 1 0303- ● ●
81 HOLDER; NIPPLE
SOU 		8-97130-444-0 01 1 0303-0511 ●
81 HOLDER; NIPPLE
SOU 		8-97130-444-0 01 1 0512- ● ●
82 SCREW; HOLDER
SOU 		8-97130-446-0 02 1 0303-0511 ● ● ●
82 SCREW; HOLDER
SOU 		8-97130-446-0 02 1 0512- ● ● ● ●
87 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97130-458-0 01 1 0303- ●
87 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX) SOU 		8-97130-459-0 01 1 0303- ●
87 SPACER; CUP
SOU 		8-97130-459-0 01 1 0303- ●
87 SPACER; CUP
SOU 		8-97170-696-0 01 1 0303-0511 ●
87 SPACER; CUP
SOU 		8-97170-696-0 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
