Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
3 - Brakes, Brake System
▶
3-21 - VACUUM TANK
▶

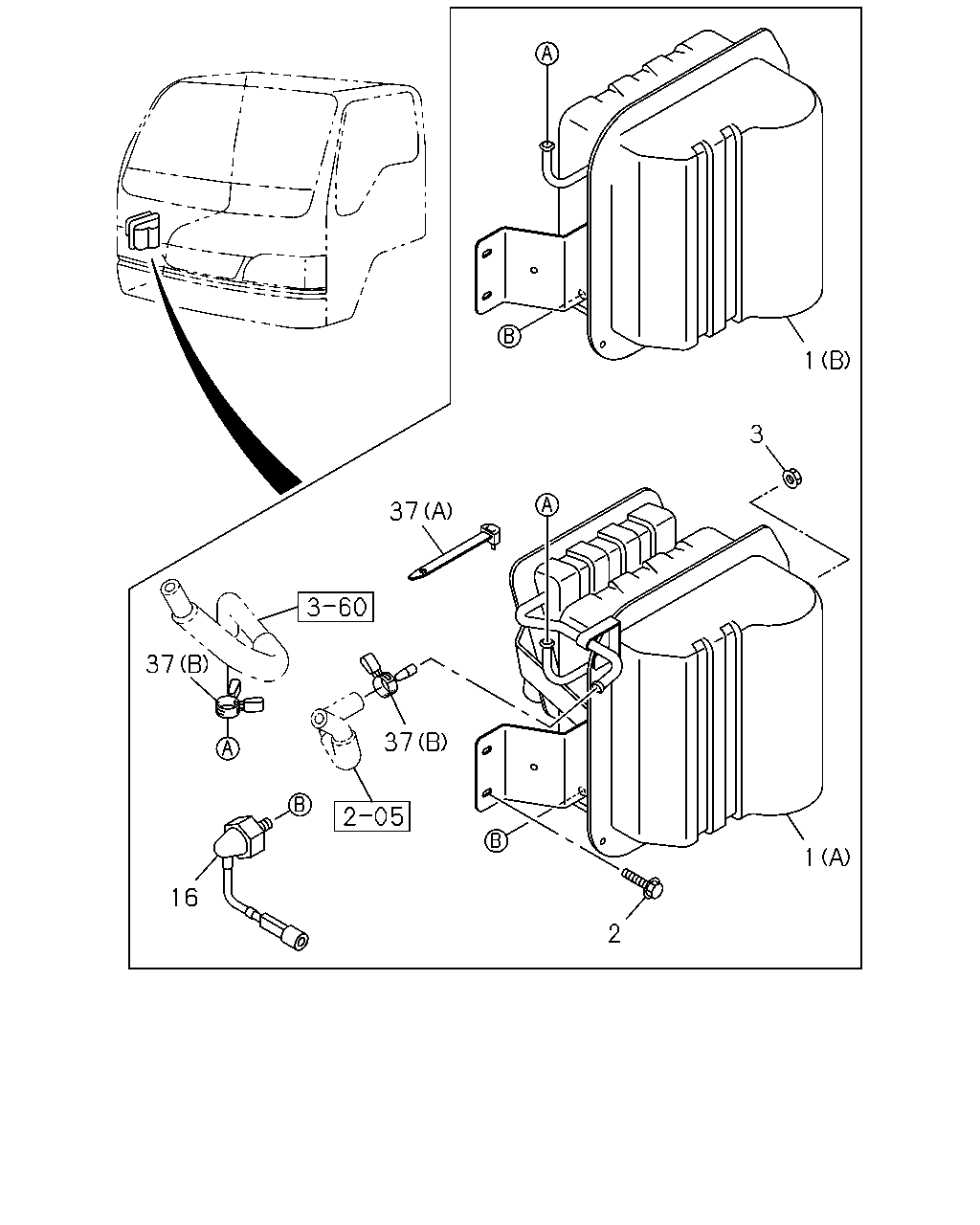

3-21 — VACUUM TANK
(#17746) — 45 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
D - NPC5JN
◀
[321A] MIDDLE CHAS,LONG CHAS (23 parça)
[321A] EXTEND LONG CHAS,BUS CHASSIS (22 parça)
▶
1
3
37
37
37
1
16
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-97062-399-5
01
1
0303-
●
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97073-471-4
01
1
0303-
●
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-97172-122-1
01
1
0303-0511
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-97172-122-1
01
1
0512-
●
●
2
BOLT; VAC TANK
M8X20 FLANGE
0-28680-820-0
02
1
0303-0511
●
●
2
BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) M8X20 FLANGE
0-28680-820-0
02
1
0303-0511
●
2
BOLT; VAC TANK
M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
●
●
2
BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
●
●
2
BOLT; VAC TANK
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
2
BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
3
NUT; VAC TANK TO BRKT
M8 FLANGE SOU
0-91150-108-0
01
1
0303-0511
●
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) M8 FLANGE SOU
0-91150-108-0
01
1
0303-0511
●
3
NUT; VAC TANK TO BRKT
M8 FLANGE SOU
0-91150-108-0
01
1
0512-0602
●
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) M8 FLANGE SOU
0-91150-108-0
01
1
0512-0602
●
●
3
NUT; VAC TANK TO BRKT
M8 FLANGE SOU
0-91180-108-0
01
1
0603-
●
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) M8 FLANGE SOU
0-91180-108-0
01
1
0603-
●
●
16
SWITCH; VAC
SOU
8-97073-374-1
01
1
0303-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (A) L=219.5 SOU
1-09987-136-0
01
1
0303-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
02
1
0303-
●
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0303-0511
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0303-0511
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0512-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0512-
●
●
1
3
37
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-97062-399-5
01
1
0303-
●
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97073-471-4
01
1
0303-
●
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-97172-122-1
01
1
0303-0511
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-97172-122-1
01
1
0512-
●
●
2
BOLT; VAC TANK
M8X20 FLANGE
0-28680-820-0
02
1
0303-0511
●
●
2
BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) M8X20 FLANGE
0-28680-820-0
02
1
0303-0511
●
2
BOLT; VAC TANK
M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
●
●
2
BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
●
●
2
BOLT; VAC TANK
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
2
BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
3
NUT; VAC TANK TO BRKT
M8 FLANGE SOU
0-91150-108-0
01
1
0303-0511
●
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) M8 FLANGE SOU
0-91150-108-0
01
1
0303-0511
●
3
NUT; VAC TANK TO BRKT
M8 FLANGE SOU
0-91150-108-0
01
1
0512-0602
●
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) M8 FLANGE SOU
0-91150-108-0
01
1
0512-0602
●
●
3
NUT; VAC TANK TO BRKT
M8 FLANGE SOU
0-91180-108-0
01
1
0603-
●
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) M8 FLANGE SOU
0-91180-108-0
01
1
0603-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (A) L=219.5 SOU
1-09987-136-0
01
1
0303-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
02
1
0303-
●
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0303-0511
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0303-0511
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0512-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU
8-94238-568-0
01
1
0512-
●
●
