◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#17745) — 99 parça

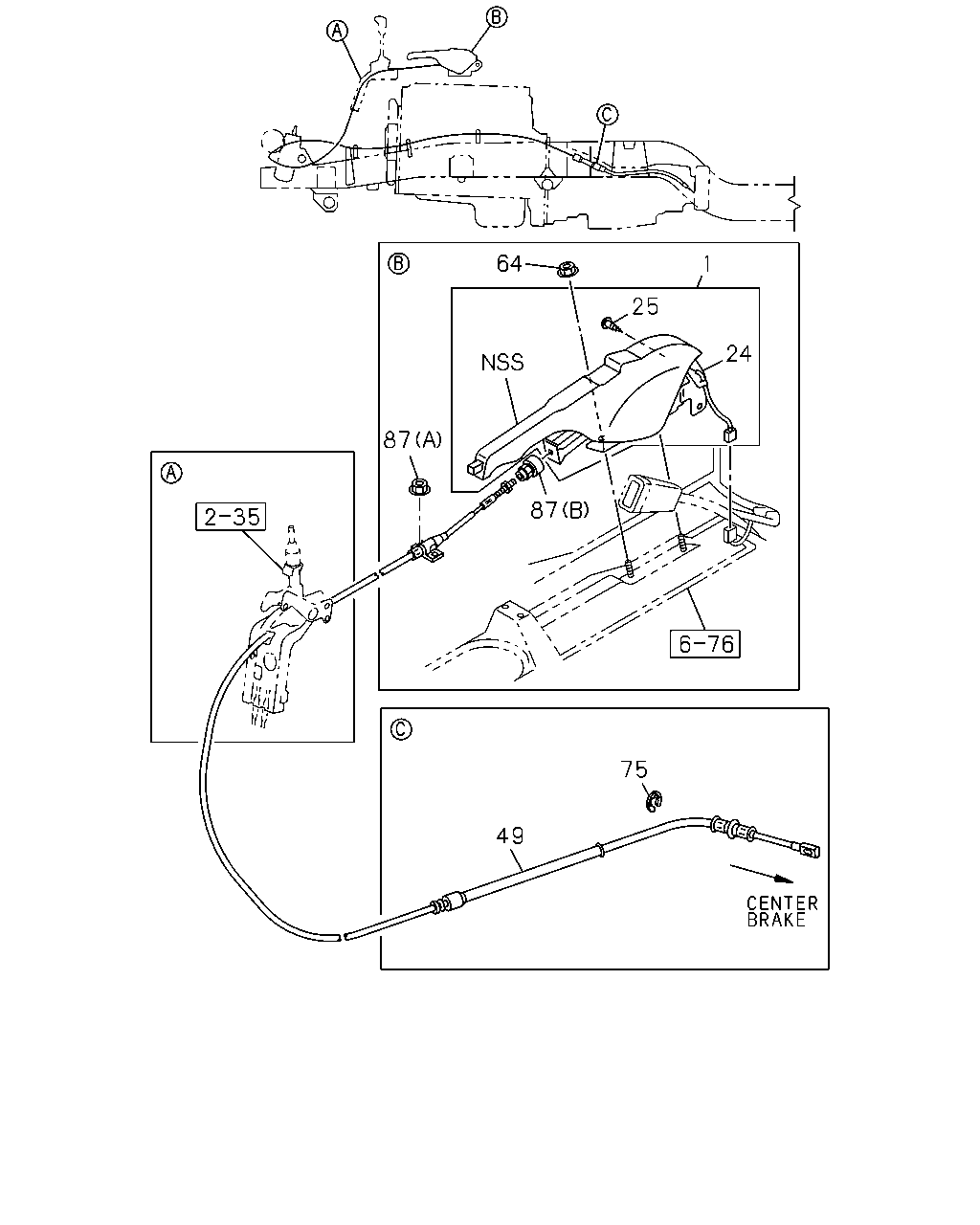

çizim 54211
64 1 25 24 87 87 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0303-0511 ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97582-333-2 01 1 0512-0610 ● ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97409-386-0 01 1 0611- ● ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0303-0511 ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0512- ● ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0303-0511 ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0512- ● ● ● ●
49 CABLE; PARKING BRK 8-97350-534-0 01 1 0303- ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0303-0511 ● ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0512-0610 ● ● ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 0303-0604 ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 02 1 0303-0511 ● ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 02 1 0512-0602 ● ● ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 0603- ● ● ● ●
87 NUT
(B) 		8-97088-730-1 01 1 0303-0310 ● ● ●
87 NUT
(B) M6 		1-71996-312-0 01 1 0311-0511 ● ● ●
87 NUT
(B) M6 		1-71996-312-0 01 1 0512-0611 ● ● ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ● ●

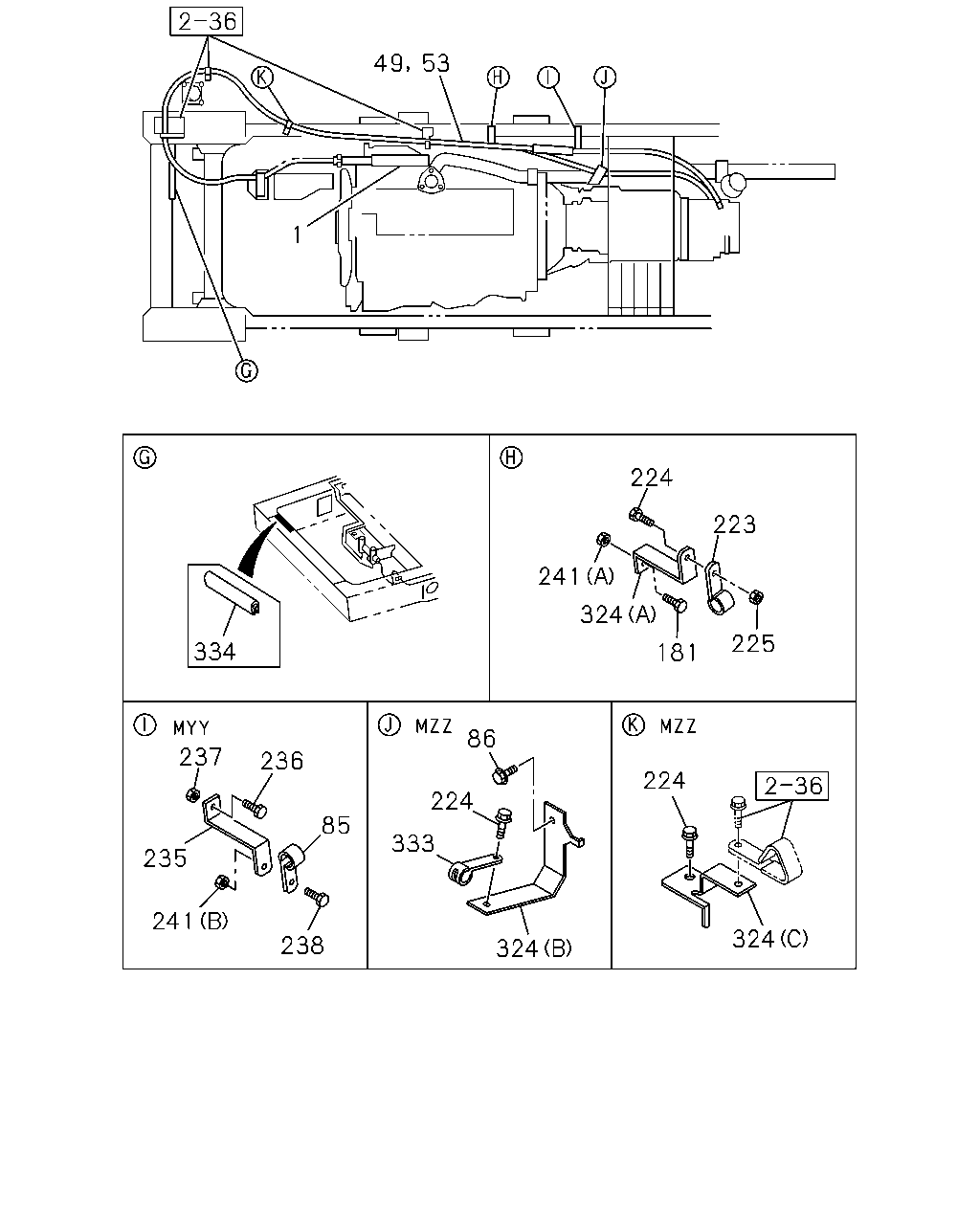

çizim 56548
49 53 1 24 223 241 324 225 334 181 86 237 236 224 224 85 333 235 241 324 238 324
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0303-0511 ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97582-333-2 01 1 0512-0610 ● ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97409-386-0 01 1 0611- ● ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0303-0511 ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0512- ● ● ● ●
49 CABLE; PARKING BRK 8-97350-534-0 01 1 0303- ● ●
53 CABLE; PARK BRK,FRT LWR 8-97096-461-3 01 1 0303-0511 ●
53 CABLE; PARK BRK,FRT LWR 8-98010-843-0 01 1 0512- ● ●
85 CLIP; BRKT
ID=12 L=70 		1-09700-097-1 01 1 0303- ● ●
86 BOLT
M10X16 FLANGE 		0-28181-016-0 01 1 0303-0511 ●
86 BOLT
M10X16 FLANGE 		0-28181-016-0 01 1 0512-0512 ● ●
86 BOLT
M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ●
181 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 0303-0511 ● ● ●
181 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 0512-0512 ● ● ● ●
181 BOLT; BRKT
M10X30 FLANGE SOU 		0-28651-030-0 01 1 0601- ● ● ● ●
223 CLIP; PARKING BRK CABLE
ID=16 L=28 		9-09525-556-0 01 1 0303-0511 ● ● ●
223 CLIP; PARKING BRK CABLE
ID=16 L=28 		9-09525-556-0 01 1 0512-0606 ● ● ● ●
223 CLIP; PARKING BRK CABLE
ID=16 L=28 		0-95235-556-0 01 1 0607- ● ● ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ● ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ● ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ● ● ●
235 BRACKET; CONT CABLE TO FRAME 8-97325-052-0 01 1 0303- ● ●
236 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 01 1 0303-0512 ● ●
236 BOLT; BRKT TO FRAME
M10X35 FLANGE SOU 		0-28651-035-0 01 1 0601- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0602 ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0512 ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
241 NUT; BRKT
(B) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0602 ● ●
241 NUT; BRKT
(B) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
241 NUT; BRKT
(A) M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0511 ● ● ●
241 NUT; BRKT
(A) M10 FLANGE SOU 		0-91150-110-0 01 1 0512-0602 ● ● ● ●
241 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ● ● ●
324 BRACKET
(A) 		8-97188-151-0 01 1 0512- ● ●
324 BRACKET
(C) 		8-98012-620-1 01 1 0512- ● ●
324 BRACKET
(A) 		8-97103-822-1 01 1 0303-0511 ● ● ●
324 BRACKET
(A) 		8-97103-822-1 01 1 0512- ● ●
324 BRACKET
(B) 		8-97307-874-0 01 1 0303-0511 ●
324 BRACKET
(B) 		8-97307-874-0 01 1 0512- ● ●
333 CLIP; CABLE
ID=11 L=60 		9-09525-096-0 01 1 0303-0511 ●
333 CLIP; CABLE
ID=11 L=60 		9-09525-096-0 01 1 0512-0606 ● ●
333 CLIP; CABLE
ID=11 L=60 		0-95235-096-0 01 1 0607- ● ●
334 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0303-0511 ● ● ●
334 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0512- ● ● ● ●

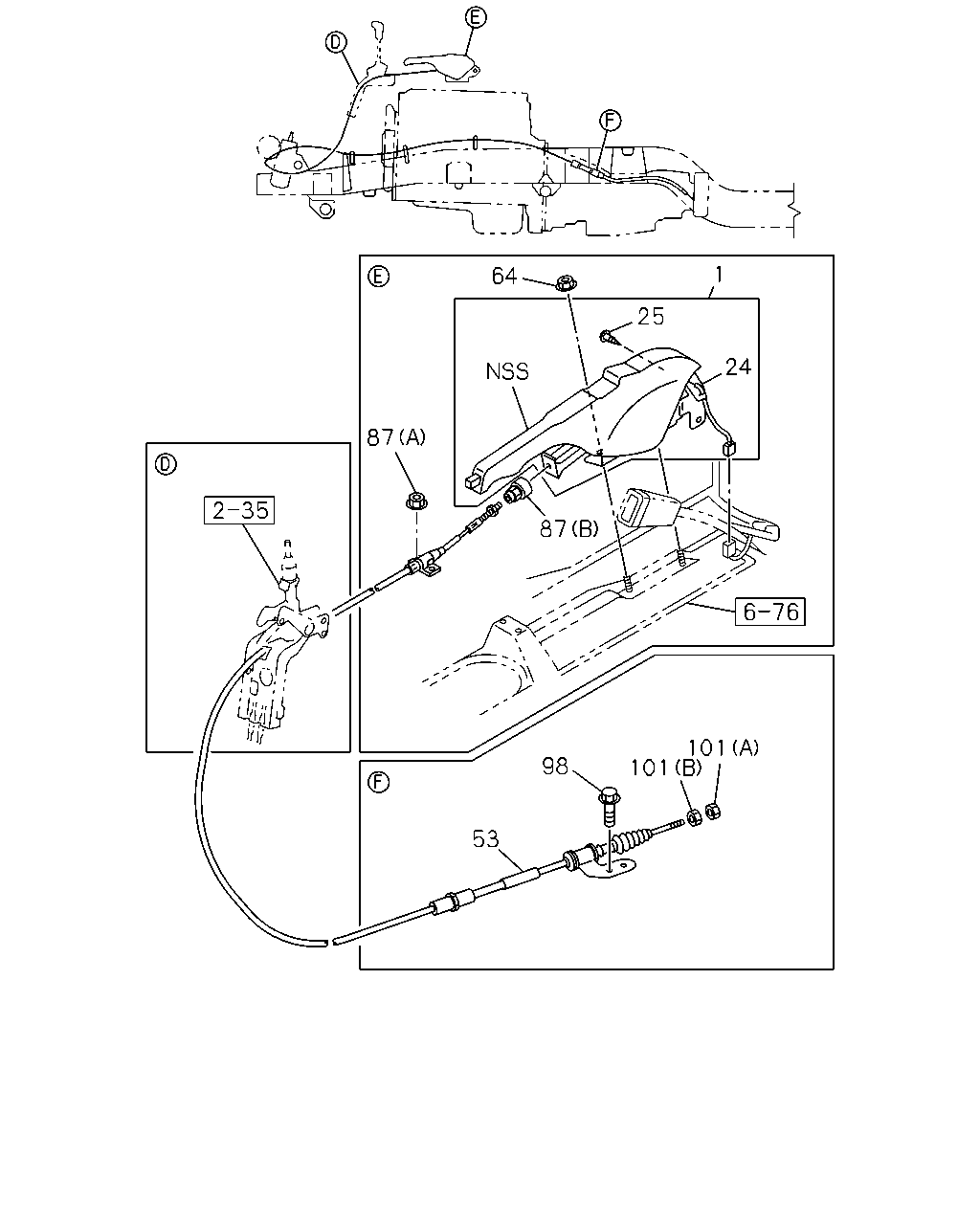

çizim 56841
1 64 25 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0303-0511 ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97582-333-2 01 1 0512-0610 ● ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97409-386-0 01 1 0611- ● ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0303-0511 ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0512- ● ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0303-0511 ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0512- ● ● ● ●
53 CABLE; PARK BRK,FRT LWR 8-97096-461-3 01 1 0303-0511 ●
53 CABLE; PARK BRK,FRT LWR 8-98010-843-0 01 1 0512- ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0303-0511 ● ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0512-0610 ● ● ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 02 1 0303-0511 ● ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 02 1 0512-0602 ● ● ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 0603- ● ● ● ●
87 NUT
(B) 		8-97088-730-1 01 1 0303-0310 ● ● ●
87 NUT
(B) M6 		1-71996-312-0 01 1 0311-0511 ● ● ●
87 NUT
(B) M6 		1-71996-312-0 01 1 0512-0611 ● ● ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ● ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28681-030-0 02 1 0303-0511 ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28681-030-0 02 1 0512-0512 ● ●
98 BOLT; RR COVER
M10X30 FLANGE SOU 		0-28651-030-0 02 1 0601- ● ●
101 NUT; CABLE TO LEVER
(A) M8 		9-09110-408-0 01 1 0303-0511 ●
101 NUT; CABLE TO LEVER
(A) M8 		9-09110-408-0 01 1 0512-0512 ● ●
101 NUT; CABLE TO LEVER
(A) M8 SOU 		0-91110-508-0 01 1 0601- ● ●
101 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 0303-0511 ●
101 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 0512- ● ●
