Sayfa 3-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶

3-10 — BRAKE PEDAL AND CONTROL (#17744) — 158 parça

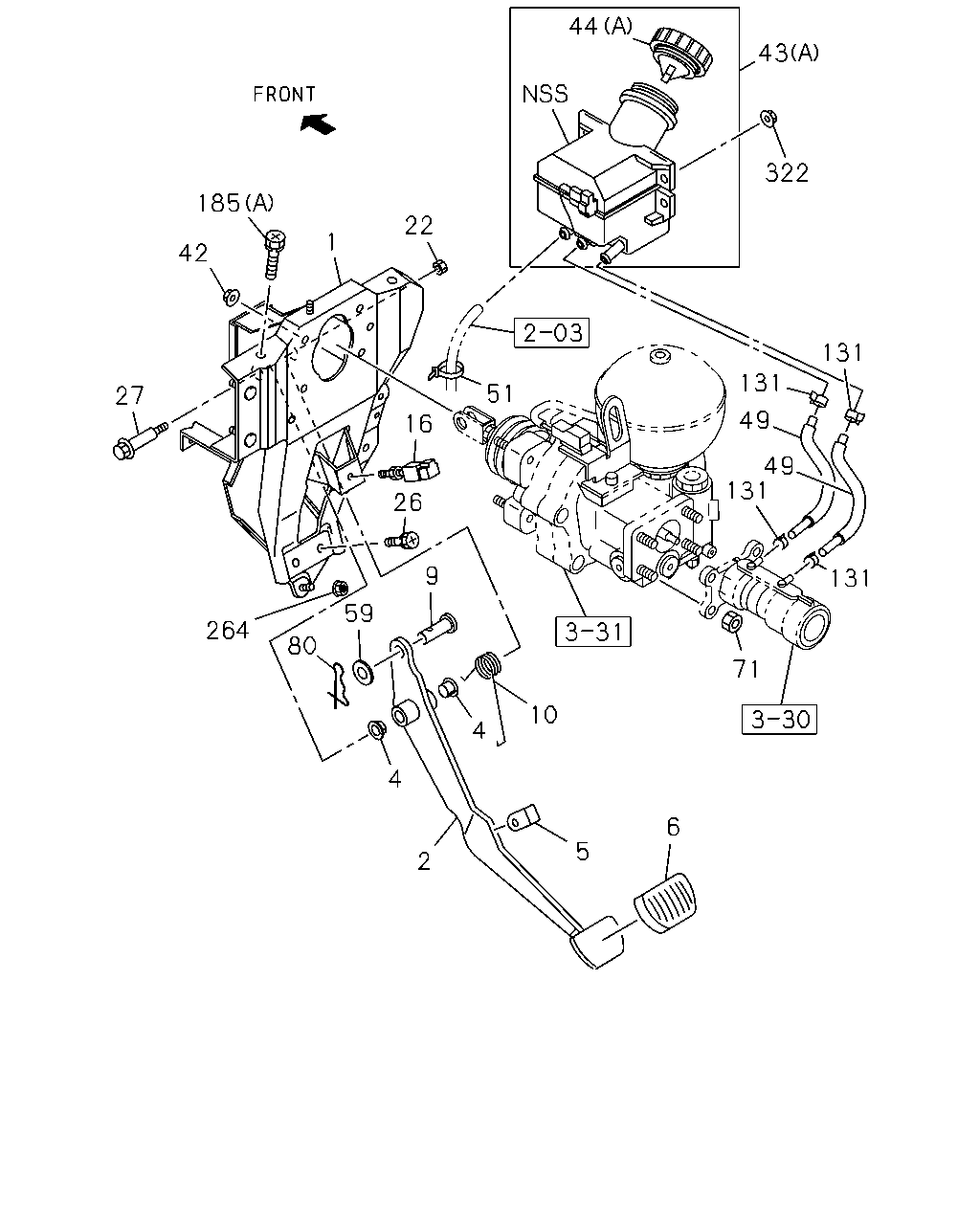

44 43 322 185 22 1 42 131 131 51 27 49 16 49 131 26 9 131 59 264 80 71 10 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET ASM; PEDAL SOU	8-97896-968-3	01	1	0303-0511	●	●	●
1	BRACKET ASM; PEDAL SOU	8-97896-968-5	01	1	0512-	●	●	●	●
2	PEDAL; BRK SOU	8-97853-210-3	01	1	0303-	●	●
2	PEDAL; BRK SOU	8-97867-871-3	01	1	0303-0511			●
2	PEDAL; BRK SOU	8-97867-871-3	01	1	0512-			●	●
4	BUSHING; BRK PEDAL SOU	8-94238-596-0	02	1	0303-0511	●	●	●
4	BUSHING; BRK PEDAL SOU	8-94238-596-0	02	1	0512-	●	●	●	●
5	STOPPER; BRK PEDAL SOU	8-97853-602-1	01	1	0303-0511	●	●	●
5	STOPPER; BRK PEDAL SOU	8-97853-602-1	01	1	0512-	●	●	●	●
6	COVER; BRK PEDAL SOU	8-97853-413-2	01	1	0303-0511	●	●	●
6	COVER; BRK PEDAL SOU	8-97853-413-2	01	1	0512-	●	●	●	●
9	PIN; JAW JOINT SOU	8-94410-276-0	01	1	0303-0511	●	●	●
9	PIN; JAW JOINT SOU	8-94410-276-0	01	1	0512-	●	●	●	●
10	SPRING; RETURN,BRK PEDAL SOU	8-97853-212-1	01	1	0303-0511	●	●	●
10	SPRING; RETURN,BRK PEDAL SOU	8-97853-212-1	01	1	0512-	●	●	●	●
16	SWITCH; STOP LAMP SOU	8-97855-187-0	01	1	0303-0511	●	●	●
16	SWITCH; STOP LAMP SOU	8-97855-187-0	01	1	0512-	●	●	●	●
22	NUT; SHAFT M10 FLANGE SOU	1-09440-022-0	01	1	0303-0511	●	●	●
22	NUT; SHAFT M10 FLANGE SOU	1-09440-022-0	01	1	0512-	●	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER SOU	8-97313-188-0	02	1	0303-0511	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER SOU	8-97313-188-0	02	1	0512-	●	●	●	●
27	SHAFT; BRK PEDAL SOU	8-97866-667-0	01	1	0303-0511	●	●	●
27	SHAFT; BRK PEDAL SOU	8-97866-667-0	01	1	0512-	●	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0303-0511	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0512-	●	●	●	●
43	TANK ASM; OIL (A) SOU	8-97179-813-1	01	1	0303-0511	●	●	●
43	TANK ASM; OIL (A) SOU	8-97179-813-1	01	1	0512-	●	●	●	●
43	TANK ASM; OIL (B)	8-97306-217-0	01	1	0303-0511			●
43	TANK ASM; OIL (B)	8-97306-217-0	01	1	0512-			●	●
44	CAP; OIL TANK (A) SOU	8-97178-291-1	01	1	0303-0511	●	●	●
44	CAP; OIL TANK (A) SOU	8-97178-291-1	01	1	0512-	●	●	●	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0303-0511			●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0512-			●	●
49	HOSE; OIL TANK TO BRK M/CYL SOU	8-97129-583-0	02	1	0303-0511	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL SOU	8-97129-583-0	02	1	0512-	●	●	●	●
51	CLIP; HOSE,OIL TANK L=140 SOU	5-09707-031-1	01	1	0303-0511	●	●	●
51	CLIP; HOSE,OIL TANK L=140 SOU	5-09707-031-1	01	1	0512-	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0303-0511	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0512-0605	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-	●	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0303-0511	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0512-	●	●	●	●
80	PIN; SNAP,BRK PEDAL SOU	8-94279-912-0	01	1	0303-0511	●	●	●
80	PIN; SNAP,BRK PEDAL SOU	8-94279-912-0	01	1	0512-	●	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY SOU	8-97130-480-0	04	1	0303-0511	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY SOU	8-97130-480-0	04	1	0512-	●	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0303-0511	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0512-0512	●	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-	●	●	●	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511			●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512			●	●
185	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-			●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE SOU	8-97046-127-0	01	1	0303-0511	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE SOU	8-97046-127-0	01	1	0512-0610	●	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-	●	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0303-0511	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0512-0602	●	●	●	●
322	NUT; OIL TANK M6 FLANGE SOU	0-91180-106-0	02	1	0603-	●	●	●	●

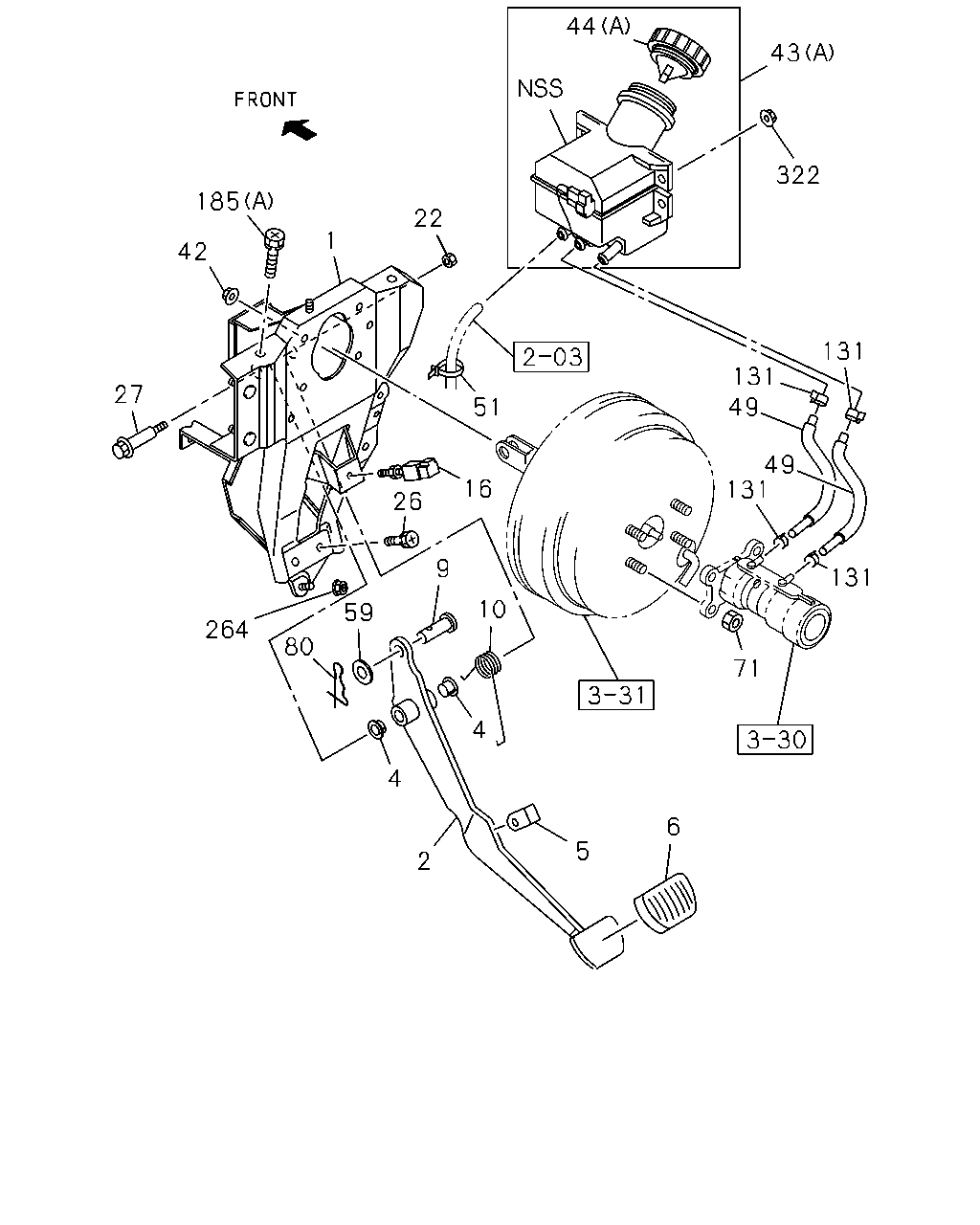

44 43 322 185 22 1 42 131 131 49 27 51 49 131 16 26 9 131 59 10 264 80 71 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET ASM; PEDAL SOU	8-97896-968-3	01	1	0303-0511	●	●	●
1	BRACKET ASM; PEDAL SOU	8-97896-968-5	01	1	0512-	●	●	●	●
2	PEDAL; BRK SOU	8-97853-210-3	01	1	0303-	●	●
2	PEDAL; BRK SOU	8-97867-871-3	01	1	0303-0511			●
2	PEDAL; BRK SOU	8-97867-871-3	01	1	0512-			●	●
4	BUSHING; BRK PEDAL SOU	8-94238-596-0	02	1	0303-0511	●	●	●
4	BUSHING; BRK PEDAL SOU	8-94238-596-0	02	1	0512-	●	●	●	●
5	STOPPER; BRK PEDAL SOU	8-97853-602-1	01	1	0303-0511	●	●	●
5	STOPPER; BRK PEDAL SOU	8-97853-602-1	01	1	0512-	●	●	●	●
6	COVER; BRK PEDAL SOU	8-97853-413-2	01	1	0303-0511	●	●	●
6	COVER; BRK PEDAL SOU	8-97853-413-2	01	1	0512-	●	●	●	●
9	PIN; JAW JOINT SOU	8-94410-276-0	01	1	0303-0511	●	●	●
9	PIN; JAW JOINT SOU	8-94410-276-0	01	1	0512-	●	●	●	●
10	SPRING; RETURN,BRK PEDAL SOU	8-97853-212-1	01	1	0303-0511	●	●	●
10	SPRING; RETURN,BRK PEDAL SOU	8-97853-212-1	01	1	0512-	●	●	●	●
16	SWITCH; STOP LAMP SOU	8-97855-187-0	01	1	0303-0511	●	●	●
16	SWITCH; STOP LAMP SOU	8-97855-187-0	01	1	0512-	●	●	●	●
22	NUT; SHAFT M10 FLANGE SOU	1-09440-022-0	01	1	0303-0511	●	●	●
22	NUT; SHAFT M10 FLANGE SOU	1-09440-022-0	01	1	0512-	●	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER SOU	8-97313-188-0	02	1	0303-0511	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER SOU	8-97313-188-0	02	1	0512-	●	●	●	●
27	SHAFT; BRK PEDAL SOU	8-97866-667-0	01	1	0303-0511	●	●	●
27	SHAFT; BRK PEDAL SOU	8-97866-667-0	01	1	0512-	●	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0303-0511	●	●	●
42	NUT; BRK PEDAL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0512-	●	●	●	●
43	TANK ASM; OIL (A) SOU	8-97179-813-1	01	1	0303-0511	●	●	●
43	TANK ASM; OIL (A) SOU	8-97179-813-1	01	1	0512-	●	●	●	●
43	TANK ASM; OIL (B)	8-97306-217-0	01	1	0303-0511			●
43	TANK ASM; OIL (B)	8-97306-217-0	01	1	0512-			●	●
44	CAP; OIL TANK (A) SOU	8-97178-291-1	01	1	0303-0511	●	●	●
44	CAP; OIL TANK (A) SOU	8-97178-291-1	01	1	0512-	●	●	●	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0303-0511			●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0512-			●	●
49	HOSE; OIL TANK TO BRK M/CYL SOU	8-97129-583-0	02	1	0303-0511	●	●	●
49	HOSE; OIL TANK TO BRK M/CYL SOU	8-97129-583-0	02	1	0512-	●	●	●	●
51	CLIP; HOSE,OIL TANK L=140 SOU	5-09707-031-1	01	1	0303-0511	●	●	●
51	CLIP; HOSE,OIL TANK L=140 SOU	5-09707-031-1	01	1	0512-	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0303-0511	●	●	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0512-0605	●	●	●	●
59	WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-	●	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0303-0511	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER SOU	8-94279-050-0	04	1	0512-	●	●	●	●
80	PIN; SNAP,BRK PEDAL SOU	8-94279-912-0	01	1	0303-0511	●	●	●
80	PIN; SNAP,BRK PEDAL SOU	8-94279-912-0	01	1	0512-	●	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY SOU	8-97130-480-0	04	1	0303-0511	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY SOU	8-97130-480-0	04	1	0512-	●	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0303-0511	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0512-0512	●	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-	●	●	●	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511			●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512			●	●
185	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-			●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE SOU	8-97046-127-0	01	1	0303-0511	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE SOU	8-97046-127-0	01	1	0512-0610	●	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-	●	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0303-0511	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0512-0602	●	●	●	●
322	NUT; OIL TANK M6 FLANGE SOU	0-91180-106-0	02	1	0603-	●	●	●	●

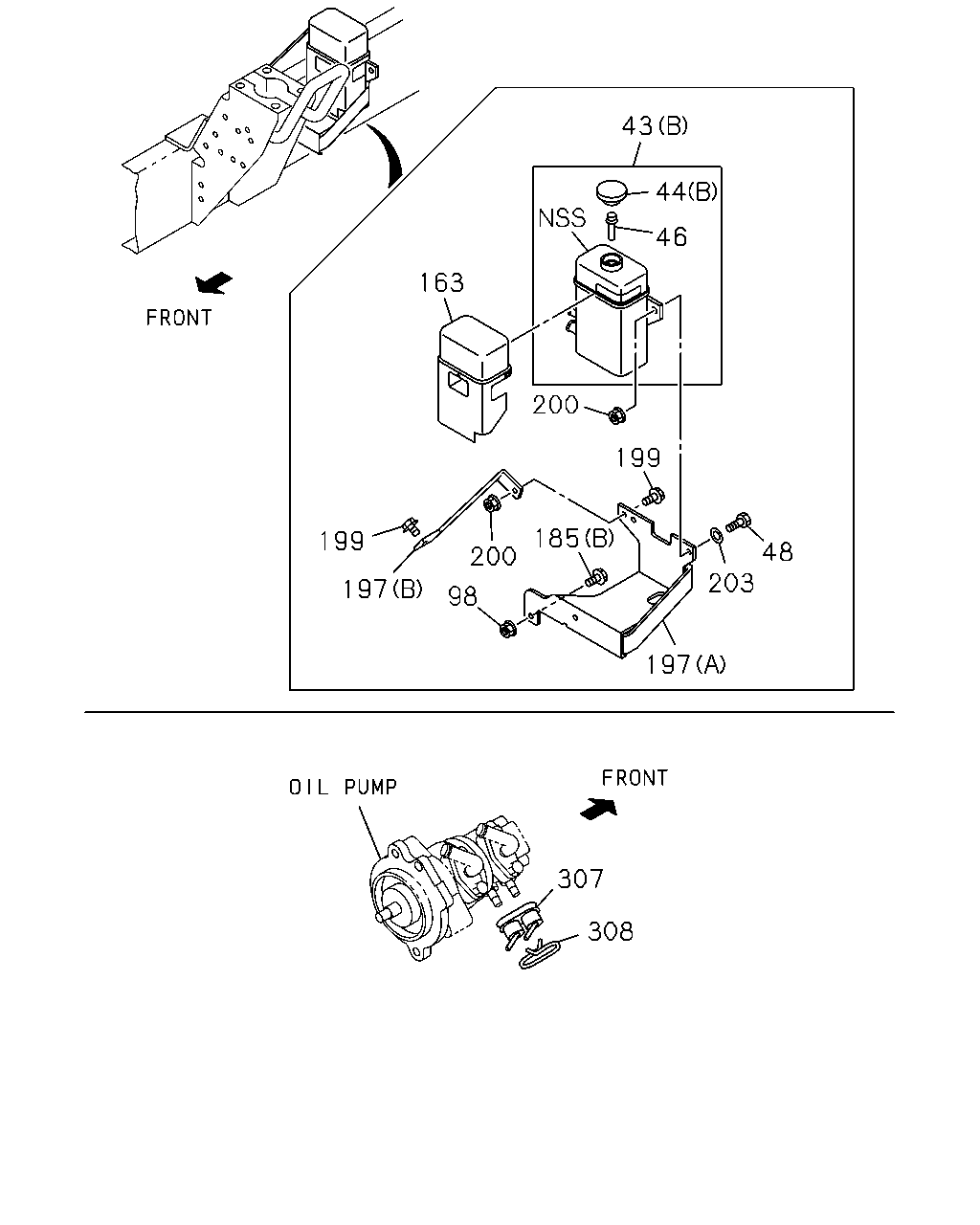

43 44 46 163 200 199 185 199 48 203 200 197 98 197 307 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
43	TANK ASM; OIL (A) SOU	8-97179-813-1	01	1	0303-0511	●	●	●
43	TANK ASM; OIL (A) SOU	8-97179-813-1	01	1	0512-	●	●	●	●
43	TANK ASM; OIL (B)	8-97306-217-0	01	1	0303-0511			●
43	TANK ASM; OIL (B)	8-97306-217-0	01	1	0512-			●	●
44	CAP; OIL TANK (A) SOU	8-97178-291-1	01	1	0303-0511	●	●	●
44	CAP; OIL TANK (A) SOU	8-97178-291-1	01	1	0512-	●	●	●	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0303-0511			●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0512-			●	●
46	FILTER; RESERVOIR,BRK	8-97094-732-0	01	1	0303-0511			●
46	FILTER; RESERVOIR,BRK	8-97094-732-0	01	1	0512-			●	●
48	BOLT; OIL TANK TO BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0511			●
48	BOLT; OIL TANK TO BRKT M8X25 FLANGE	0-28680-825-0	02	1	0512-0512			●	●
48	BOLT; OIL TANK TO BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-			●	●
98	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511			●
98	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602			●	●
98	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-			●	●
163	COVER; OIL TANK	8-97164-749-1	01	1	0303-0511			●
163	COVER; OIL TANK	8-97164-749-1	01	1	0512-			●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0303-0511	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0512-0512	●	●	●	●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-	●	●	●	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511			●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512			●	●
185	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-			●	●
197	BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0303-0511			●
197	BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0512-			●	●
197	BRACKET; OIL TANK (B)	8-97181-897-0	01	1	0303-0511			●
197	BRACKET; OIL TANK (B)	8-97333-555-2	01	1	0512-			●	●
199	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0511			●
199	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	0512-0512			●	●
199	BOLT; OIL TANK BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-			●	●
200	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511			●
200	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602			●	●
200	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	0603-			●	●
200	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511			●
200	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602			●	●
200	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-			●	●
203	WASHER; PL,OIL TANK ID=8.4 OD=22	9-09160-708-0	02	1	0303-0511			●
203	WASHER; PL,OIL TANK ID=8.4 OD=22	9-09160-708-0	02	1	0512-0605			●	●
203	WASHER; PL,OIL TANK ID=8.4 OD=22 SOU	0-91610-708-0	02	1	0606-			●	●
307	CAP; EYE JOINT	8-97166-154-1	01	1	0303-0307			●
308	CLAMP; PUMP CAP	8-97166-181-1	01	1	0303-0307			●
