◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#17742) — 127 parça

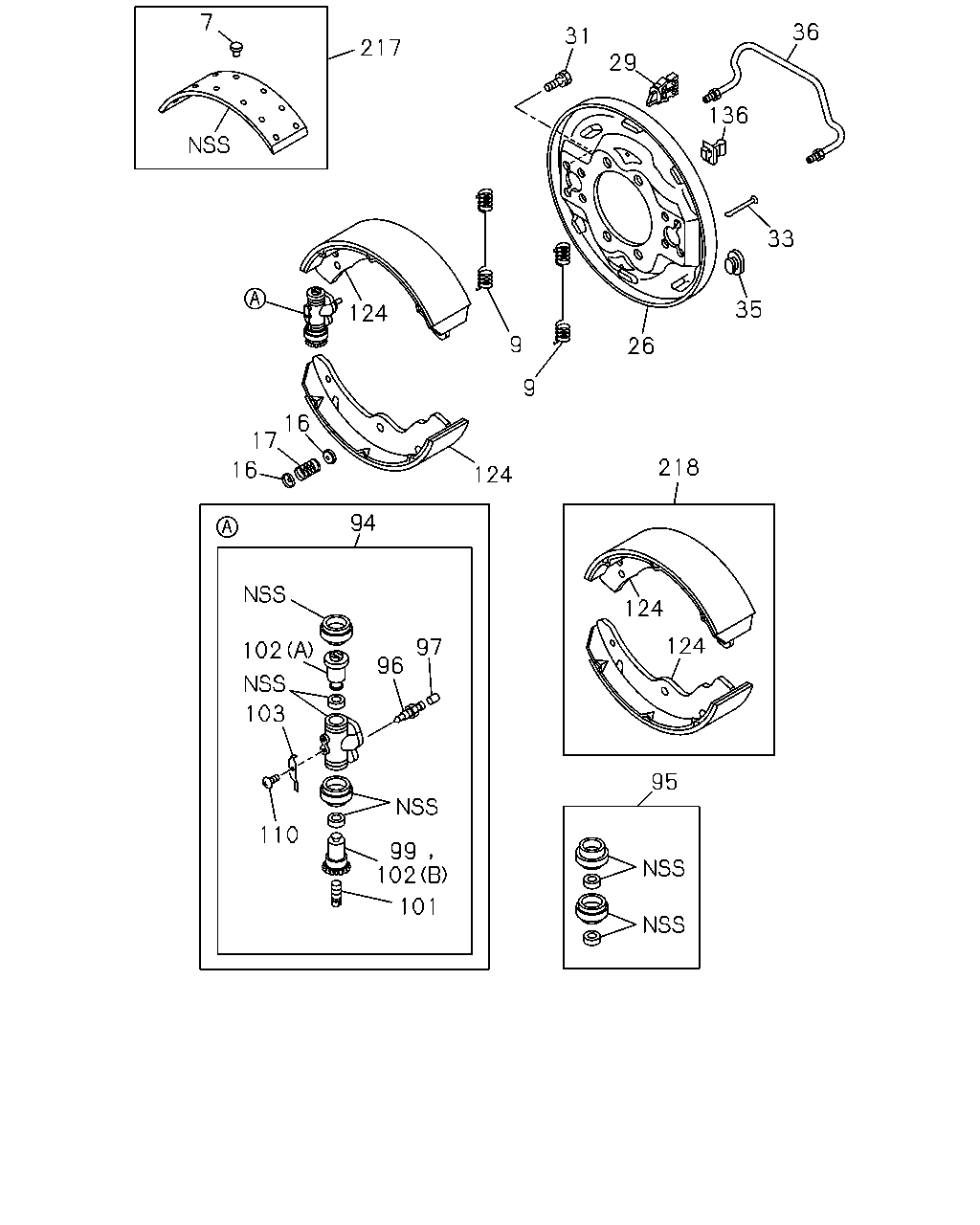

çizim 56891
7 36 31 217 29 136 33 35 124 9 26 9 16 17 218 16 124 94 124 124 97 102 96 103 95 110 99 102 101
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		1-09732-029-0 40 1 0303- ●
7 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) SOU 		1-09732-029-0 48 1 0303- ●
7 RIVET; LINING,RR BRK
SOU 		1-09732-029-0 48 1 0303- ●
7 RIVET; LINING,RR BRK
SOU 		1-09732-029-0 64 1 0303-0511 ●
7 RIVET; LINING,RR BRK
SOU 		1-09732-029-0 64 1 0512- ● ●
9 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) SOU 		5-09583-118-0 04 1 0303- ●
9 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0303- ●
9 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0303- ●
9 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0303-0511 ●
9 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0512- ● ●
16 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 0303-0511 ● ● ●
16 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 0512- ● ● ● ●
17 SPRING; SHOE HOLD DOWN
SOU 		5-09580-101-1 04 1 0303-0511 ● ● ●
17 SPRING; SHOE HOLD DOWN
SOU 		5-09580-101-1 04 1 0512- ● ● ● ●
26 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97078-605-0 01 1 0303- ●
26 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97078-606-0 01 1 0303- ●
26 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-573-0 01 1 0303- ●
26 PLATE; BACK,RR BRK 8-97223-573-0 01 1 0303- ●
26 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-574-0 01 1 0303- ●
26 PLATE; BACK,RR BRK 8-97223-574-0 01 1 0303- ●
26 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0303-0511 ●
26 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0512- ● ●
26 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0303-0511 ●
26 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0512- ● ●
29 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV) 		8-94128-306-0 02 1 0303- ●
29 CLIP; PIPE,BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 02 1 0303-0511 ●
29 CLIP; PIPE,BRK 8-97022-086-0 02 1 0303-0511 ● ●
29 CLIP; PIPE,BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 02 1 0512- ●
29 CLIP; PIPE,BRK 8-97022-086-0 02 1 0512- ● ● ●
31 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) SOU 		5-09030-016-1 16 1 0303- ●
31 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 0303-0511 ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0303-0511 ● ●
31 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 0512- ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0512- ● ● ●
33 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) SOU 		5-47162-001-0 04 1 0303- ●
33 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 0303- ●
33 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 0303- ●
33 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0303-0511 ●
33 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0512- ● ●
35 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) 		8-94171-287-0 02 1 0303- ●
35 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) 		8-97017-507-0 02 1 0303-0511 ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0303-0511 ● ●
35 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) 		8-97017-507-0 02 1 0512- ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0512- ● ● ●
36 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		8-94154-916-0 02 1 0303- ●
36 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 0303- ●
36 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0303- ●
36 PIPE; OIL,RR BRK 8-97079-847-0 02 1 0303-0511 ●
36 PIPE; OIL,RR BRK 8-97079-847-0 02 1 0512- ● ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) FRONT 		8-97179-350-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) REAR 		8-97179-351-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) FRONT,REAR 		8-97179-352-0 02 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97332-225-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97332-225-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97332-226-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97332-226-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) FRONT,REAR 		8-97332-227-0 02 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
FRONT,REAR 		8-97332-227-0 02 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
FRONT,REAR 		8-97353-570-0 02 1 0303-0511 ●
94 CYLINDER; WHEEL,RR BRK
FRONT,REAR 		8-97353-570-0 02 1 0512- ● ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97353-571-0 01 1 0303-0511 ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97353-571-0 01 1 0512- ● ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97353-572-0 01 1 0303-0511 ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97353-572-0 01 1 0512- ● ●
95 CUP SET; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-87831-621-0 01 1 0303- ●
95 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		5-87832-051-0 02 1 0303- ●
95 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0303- ●
95 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0303-0511 ●
95 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0512- ● ●
96 SCREW; BLEEDER,RR BRK 8-98050-477-0 01 1 0711- ● ●
96 SCREW; BLEEDER,RR BRK
SOU 		9-47615-027-0 01 1 0303-0511 ● ● ●
96 SCREW; BLEEDER,RR BRK
SOU 		9-47615-027-0 01 1 0512-0710 ● ● ● ●
96 SCREW; BLEEDER,RR BRK
SOU 		9-47615-027-0 01 1 0711-0711 ● ●
96 SCREW; BLEEDER,RR BRK
SOU 		8-98050-476-0 01 1 0712- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
SOU 		8-98050-479-0 01 1 0711-0711 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
SOU 		8-98050-479-0 01 1 0712- ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
SOU 		1-47619-009-0 01 1 0303-0511 ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
SOU 		1-47619-009-0 01 1 0512-0710 ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
SOU 		1-47619-009-0 01 1 0711-0711 ● ●
99 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-622-0 02 1 0303- ●
99 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97332-229-0 02 1 0303- ●
99 PISTON; RR WHEEL CYL 8-97332-229-0 02 1 0303- ●
99 PISTON; RR WHEEL CYL 8-97353-579-0 02 1 0303-0511 ●
99 PISTON; RR WHEEL CYL 8-97353-579-0 02 1 0512- ● ●
101 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-623-0 04 1 0303- ●
101 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 0303-0511 ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0303-0511 ● ●
101 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 0512- ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0512- ● ● ●
102 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (A) D=25.4 		8-94128-531-1 04 1 0303- ●
102 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (B) 		8-97078-622-0 02 1 0303- ●
102 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97332-043-0 04 1 0303- ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97332-043-0 04 1 0303- ●
102 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97332-229-0 02 1 0303- ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97332-229-0 02 1 0303- ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97353-578-0 04 1 0303-0511 ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97353-578-0 04 1 0512- ● ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97353-579-0 02 1 0303-0511 ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97353-579-0 02 1 0512- ● ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0303-0511 ● ● ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0512- ● ● ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0303-0511 ● ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0512- ● ● ● ●
124 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97287-778-0 04 1 0303- ●
124 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0303- ●
124 SHOE ASM; BRK,RR 8-97201-061-0 04 1 0303- ●
124 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0303-0511 ●
124 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0512- ● ●
136 GROMMET
G.V.W. 6.0-6.5TON(RPV) 		9-09756-034-0 02 1 0303-0303 ●
136 GROMMET
G.V.W. 6.0-6.5TON(RPV) 		9-09756-034-0 04 1 0303- ●
136 GROMMET
G.V.W. 7.0-7.5TON(RPX) 		8-97044-742-1 02 1 0303-0303 ●
136 GROMMET 8-97044-742-1 02 1 0303-0303 ●
136 GROMMET
G.V.W. 7.0-7.5TON(RPX) 		8-97044-742-1 04 1 0303-0511 ●
136 GROMMET 8-97044-742-1 04 1 0303-0511 ● ●
136 GROMMET
G.V.W. 7.0-7.5TON(RPX) 		8-97044-742-1 04 1 0512- ●
136 GROMMET 8-97044-742-1 04 1 0512- ● ● ●
136 GROMMET 8-97044-742-1 04 1 0303-0303 ●
217 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		5-87831-801-0 01 1 0303- ●
217 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0303- ●
217 LINING KIT; RR BRK 5-87831-774-0 01 1 0303- ●
217 LINING KIT; RR BRK 5-87831-692-0 01 1 0303-0511 ●
217 LINING KIT; RR BRK 5-87831-692-0 01 1 0512- ● ●
218 SHOE KIT; BRK,RR
G.V.W. 6.0-6.5TON(RPV) SOU 		5-87832-047-0 01 1 0303- ●
218 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 0303- ●
218 SHOE KIT; BRK,RR 5-87831-775-0 01 1 0303- ●
218 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0303-0511 ●
218 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0512- ● ●
