3-01 — FRONT WHEEL BRAKE (#17741) — 148 parça

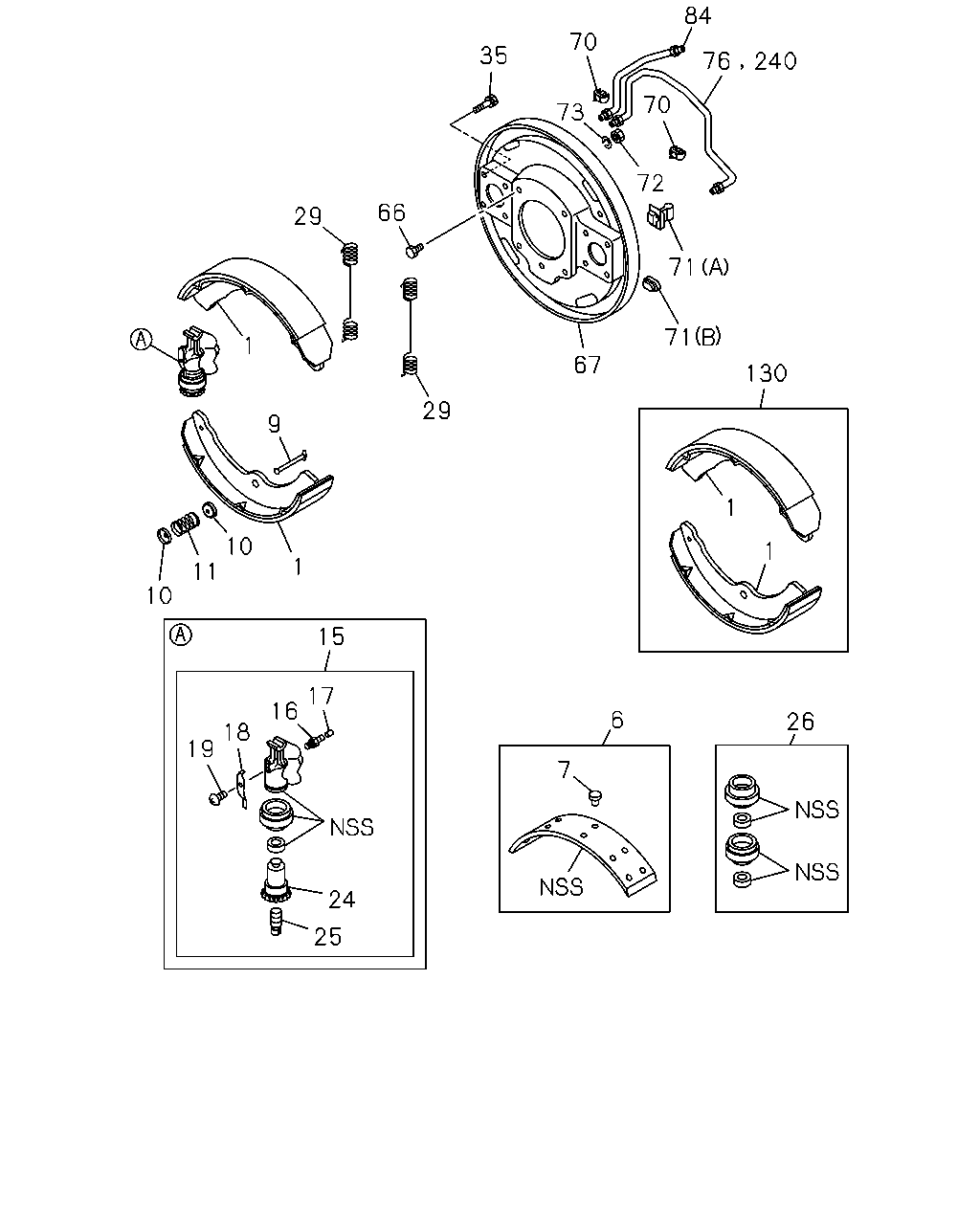

çizim 55731
84 70 35 70 73 72 66 29 71 71 1 67 130 29 9 1 10 1 1 11 10 15 17 16 6 26 18 19 7 24 25 76 240
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0303- ●
1 SHOE; BRK,FRT 8-97201-061-0 04 1 0303- ●
1 SHOE; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97287-778-0 04 1 0303- ●
1 SHOE; BRK,FRT 8-97188-455-0 04 1 0303-0511 ●
1 SHOE; BRK,FRT 8-97188-455-0 04 1 0512- ● ●
6 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0303- ●
6 LINING KIT; FRT BRK 5-87831-774-0 01 1 0303- ●
6 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		5-87831-801-0 01 1 0303- ●
6 LINING KIT; FRT BRK 5-87831-692-0 01 1 0303-0511 ●
6 LINING KIT; FRT BRK 5-87831-692-0 01 1 0512- ● ●
7 RIVET; LINING,FRT BRK
G.V.W. 7.0-7.5TON(RPX) SOU 		1-09732-029-0 48 1 0303- ●
7 RIVET; LINING,FRT BRK
SOU 		1-09732-029-0 48 1 0303- ●
7 RIVET; LINING,FRT BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		1-09732-029-0 40 1 0303- ●
7 RIVET; LINING,FRT BRK
SOU 		1-09732-029-0 64 1 0303-0511 ●
7 RIVET; LINING,FRT BRK
SOU 		1-09732-029-0 64 1 0512- ● ●
9 PIN; SHOE HOLDER
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 0303- ●
9 PIN; SHOE HOLDER 8-97022-089-0 04 1 0303- ●
9 PIN; SHOE HOLDER
G.V.W. 6.0-6.5TON(RPV) SOU 		5-47162-001-0 04 1 0303- ●
9 PIN; SHOE HOLDER 8-97122-870-0 04 1 0303-0511 ●
9 PIN; SHOE HOLDER 8-97122-870-0 04 1 0512- ● ●
10 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 0303-0511 ● ● ●
10 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 0512- ● ● ● ●
11 SPRING; SHOE HOLDING
SOU 		5-09580-101-1 04 1 0303-0511 ● ● ●
11 SPRING; SHOE HOLDING
SOU 		5-09580-101-1 04 1 0512- ● ● ● ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-818-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-818-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-819-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-819-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-820-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-820-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-821-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-821-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) FRONT SOU 		8-97170-950-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) FRONT SOU 		8-97170-951-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) REAR SOU 		8-97170-952-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) REAR SOU 		8-97170-953-0 01 1 0303- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-573-0 01 1 0303-0511 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-573-0 01 1 0512- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-574-0 01 1 0303-0511 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-574-0 01 1 0512- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-575-0 01 1 0303-0511 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-575-0 01 1 0512- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-576-0 01 1 0303-0511 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-576-0 01 1 0512- ● ●
16 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 0711- ● ●
16 SCREW; BLEEDER,FRT BRK
SOU 		9-47615-027-0 02 1 0303-0511 ● ● ●
16 SCREW; BLEEDER,FRT BRK
SOU 		9-47615-027-0 02 1 0512-0710 ● ● ● ●
16 SCREW; BLEEDER,FRT BRK
SOU 		9-47615-027-0 02 1 0711-0711 ● ●
16 SCREW; BLEEDER,FRT BRK
SOU 		8-98050-476-0 02 1 0712- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		8-98050-479-0 02 1 0711-0711 ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		8-98050-479-0 02 1 0712- ● ● ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		1-47619-009-0 02 1 0303-0511 ● ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		1-47619-009-0 02 1 0512-0710 ● ● ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		1-47619-009-0 02 1 0711-0711 ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0303-0511 ● ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0512- ● ● ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0303-0511 ● ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0512- ● ● ● ●
24 PISTON; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 0303- ●
24 PISTON; FRT WHEEL CYL 8-94414-700-1 04 1 0303- ●
24 PISTON; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-621-0 04 1 0303- ●
24 PISTON; FRT WHEEL CYL 8-97353-579-0 04 1 0303-0511 ●
24 PISTON; FRT WHEEL CYL 8-97353-579-0 04 1 0512- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 0303-0511 ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 0303-0511 ● ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 0512- ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 0512- ● ● ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-623-0 04 1 0303- ●
26 CUP SET; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		5-87831-598-0 01 1 0303- ●
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 01 1 0303- ●
26 CUP SET; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-87831-602-0 01 1 0303- ●
26 CUP SET; FRT WHEEL CYL 5-87832-080-0 01 1 0303-0511 ●
26 CUP SET; FRT WHEEL CYL 5-87832-080-0 01 1 0512- ● ●
29 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0303- ●
29 SPRING; RETURN,FRT BRK SHOE 8-97022-087-0 04 1 0303- ●
29 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.0-6.5TON(RPV) SOU 		5-09583-118-0 04 1 0303- ●
29 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 0303-0511 ●
29 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 0512- ● ●
35 BOLT; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) SOU 		5-09030-016-1 16 1 0303- ●
35 BOLT; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97022-088-0 16 1 0303-0502 ●
35 BOLT; FRT WHEEL CYL 8-97022-088-0 16 1 0303-0502 ●
35 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0303-0502 ●
35 BOLT; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 0503-0511 ●
35 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0503-0511 ● ●
35 BOLT; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 0512- ●
35 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0512- ● ● ●
66 BOLT; OIL SHIELD COVER
M12X33 		9-09600-043-3 08 1 0303-0611 ● ●
66 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 0612- ● ●
66 BOLT; OIL SHIELD COVER
M14X35 		8-97122-853-2 08 1 0303-0511 ●
66 BOLT; OIL SHIELD COVER
M14X35 		8-97122-853-2 08 1 0512-0611 ● ●
66 BOLT; OIL SHIELD COVER
M14X40 		8-98007-879-0 08 1 0612- ● ●
67 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97302-596-0 01 1 0303- ●
67 PLATE; BACK,FRT BRK 8-97302-596-0 01 1 0303- ●
67 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97302-597-0 01 1 0303- ●
67 PLATE; BACK,FRT BRK 8-97302-597-0 01 1 0303- ●
67 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97302-588-0 01 1 0303- ●
67 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		8-97302-589-0 01 1 0303- ●
67 PLATE; BACK,FRT BRK 8-97160-410-0 01 1 0303-0511 ●
67 PLATE; BACK,FRT BRK 8-97160-410-0 01 1 0512- ● ●
67 PLATE; BACK,FRT BRK 8-97160-411-0 01 1 0303-0511 ●
67 PLATE; BACK,FRT BRK 8-97160-411-0 01 1 0512- ● ●
70 CLIP; PIPE HOLD
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 04 1 0303-0511 ●
70 CLIP; PIPE HOLD 8-97022-086-0 04 1 0303-0511 ● ●
70 CLIP; PIPE HOLD
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 04 1 0512- ●
70 CLIP; PIPE HOLD 8-97022-086-0 04 1 0512- ● ● ●
70 CLIP; PIPE HOLD
G.V.W. 6.0-6.5TON(RPV) 		8-94128-306-0 02 1 0303- ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97017-507-0 02 1 0303-0511 ●
71 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 0303-0511 ● ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97017-507-0 02 1 0512- ●
71 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 0512- ● ● ●
71 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) (B) 		8-94171-287-0 02 1 0303- ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97044-742-1 04 1 0303-0511 ●
71 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 0303-0511 ● ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97044-742-1 04 1 0512- ●
71 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 0512- ● ● ●
71 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) (A) 		9-09756-034-0 04 1 0303- ●
72 NUT; OIL SHIELD COVER
M12 		9-99110-512-0 08 1 0303-0512 ● ●
72 NUT; OIL SHIELD COVER
M12 SOU 		0-91110-512-0 08 1 0601- ● ●
72 NUT; OIL SHIELD COVER
M14 		9-99110-514-0 08 1 0303-0511 ●
72 NUT; OIL SHIELD COVER
M14 		9-99110-514-0 08 1 0512-0512 ● ●
72 NUT; OIL SHIELD COVER
M14 SOU 		0-91110-514-0 08 1 0601- ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		9-09150-612-0 08 1 0303-0603 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-612-0 08 1 0604-0611 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-812-0 08 1 0612- ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 		9-09150-614-0 08 1 0303-0511 ●
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 		9-09150-614-0 08 1 0512-0603 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 SOU 		0-91510-614-0 08 1 0604-0611 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 SOU 		0-91510-814-0 08 1 0612- ● ●
76 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97079-847-0 02 1 0303-0511 ●
76 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 0303-0511 ● ●
76 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97079-847-0 02 1 0512- ●
76 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 0512- ● ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) 		8-97039-676-0 01 1 0303-0511 ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0303-0511 ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) 		8-97039-676-0 01 1 0512- ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0512- ● ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) 		8-97039-677-0 01 1 0303-0511 ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0303-0511 ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) 		8-97039-677-0 01 1 0512- ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0512- ● ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) SOU 		8-94154-917-0 01 1 0303- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) SOU 		8-94154-918-0 01 1 0303- ●
130 SHOE KIT; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 0303- ●
130 SHOE KIT; BRK,FRT 5-87831-775-0 01 1 0303- ●
130 SHOE KIT; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) SOU 		5-87832-047-0 01 1 0303- ●
130 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 0303-0511 ●
130 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 0512- ● ●
240 PIPE; OIL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) SOU 		8-94154-916-0 02 1 0303- ●
