2-85 — POWER TAKE OFF CONTROL (#17740) — 134 parça

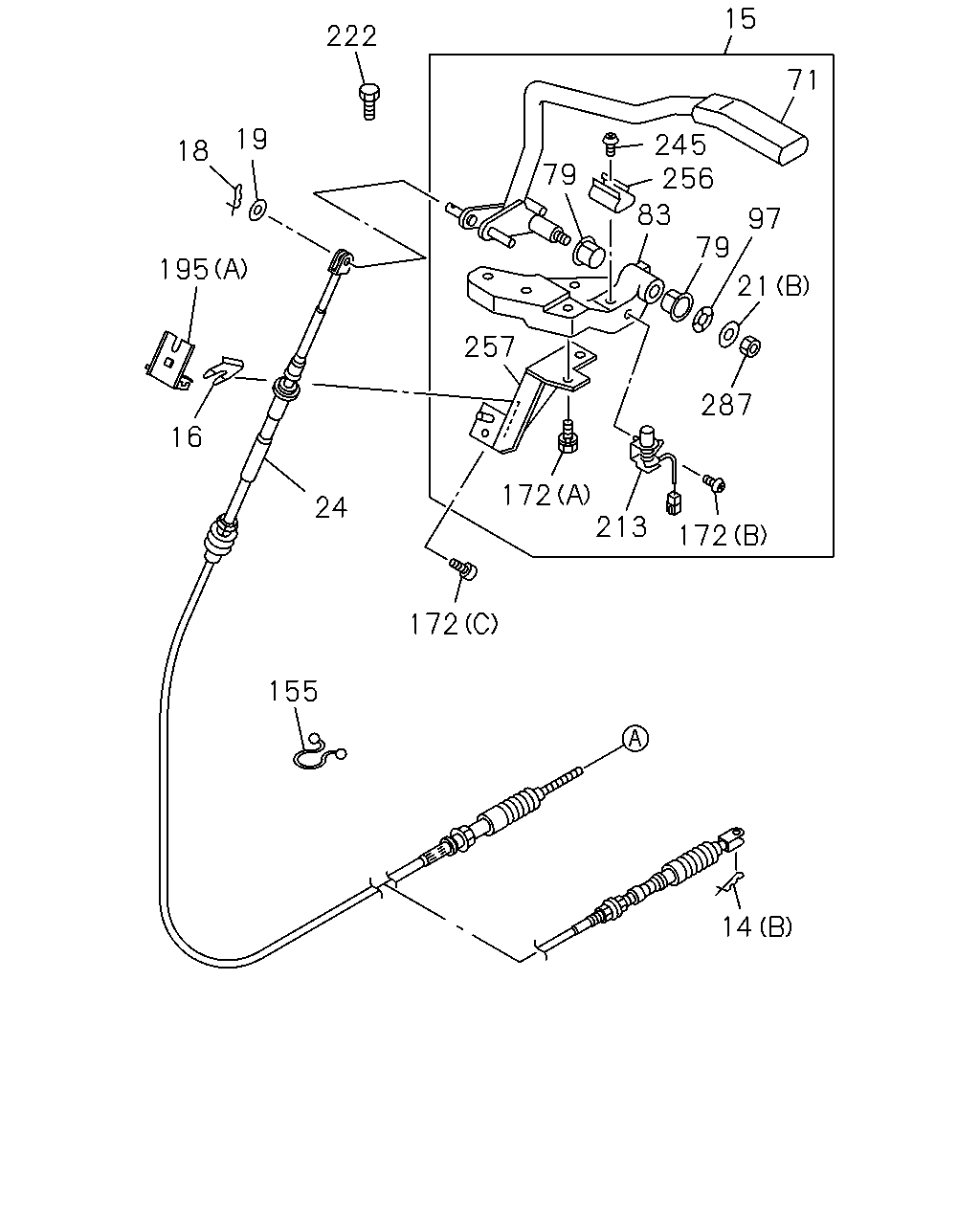

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 172 155 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (A) SOU	1-09987-158-1	01	1	0303-0805	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (A)	8-97581-216-0	01	1	0806-	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	9-08113-018-0	01	1	0303-0606		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	0-81123-018-0	01	1	0607-		●
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-3	01	1	0303-	●	●
16	CLIP; CABLE,PTO SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) SOU	8-94152-900-0	01	1	0303-	●	●
18	PIN; SNAP,PTO CABLE SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0303-	●	●
19	WASHER; PL,PTO CABLE SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) ID=8.4	9-09160-508-0	01	1	0303-0605	●	●
19	WASHER; PL,PTO CABLE SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) ID=8.4 OD=16 SOU	0-91610-508-0	01	1	0606-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0303-0605	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0303-0511	●	●
21	WASHER; PL,CONT LEVER SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0512-0605	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 SOU	0-91610-708-0	01	1	0606-	●	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3027	8-97352-393-1	01	1	0303-	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3294	8-97329-044-0	01	1	0303-0511		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3333	8-98020-128-1	01	1	0512-		●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE(V66) SOU	8-97177-806-1	01	1	0303-	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) SOU	8-94238-596-0	02	1	0303-	●	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66) SOU	8-97117-352-0	01	1	0303-	●	●
97	WASHER; LK PTO TRANSMISSION SIDE(V66) ID=15 OD=25 SOU	8-11053-111-0	01	1	0303-	●	●
155	CLIP; CABLE PTO TRANSMISSION SIDE(V66) ID=15 SOU	1-09709-003-0	01	1	0303-0511	●	●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (E) M10X30 FLANGE	0-28681-030-0	01	1	0512-0512		●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (E) M10X30 FLANGE SOU	0-28651-030-0	01	1	0601-		●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE SOU	0-28650-825-0	03	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0511	●	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-	●
172	BOLT; BRKT SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511	●	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0303-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0303-0604	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97248-931-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97248-932-1	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (H)	8-98018-978-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (F)	8-98020-130-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (G)	8-97231-502-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97085-695-3	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97085-695-3	01	1	0512-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0512-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0512-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A) SOU	8-97088-407-1	01	1	0303-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97229-563-0	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (E)	8-97229-563-0	01	1	0512-	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66) SOU	8-97041-412-1	01	1	0303-0308	●	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97370-568-0	01	1	0309-	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE(V66) M8X14 FLANGE	0-28080-814-0	04	1	0303-	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0303-0604	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-	●	●
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66) SOU	8-97117-351-0	01	1	0303-	●	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66) SOU	8-97088-406-3	01	1	0303-	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) M8 W/LK WASHER SOU	8-94279-050-0	01	1	0303-	●	●

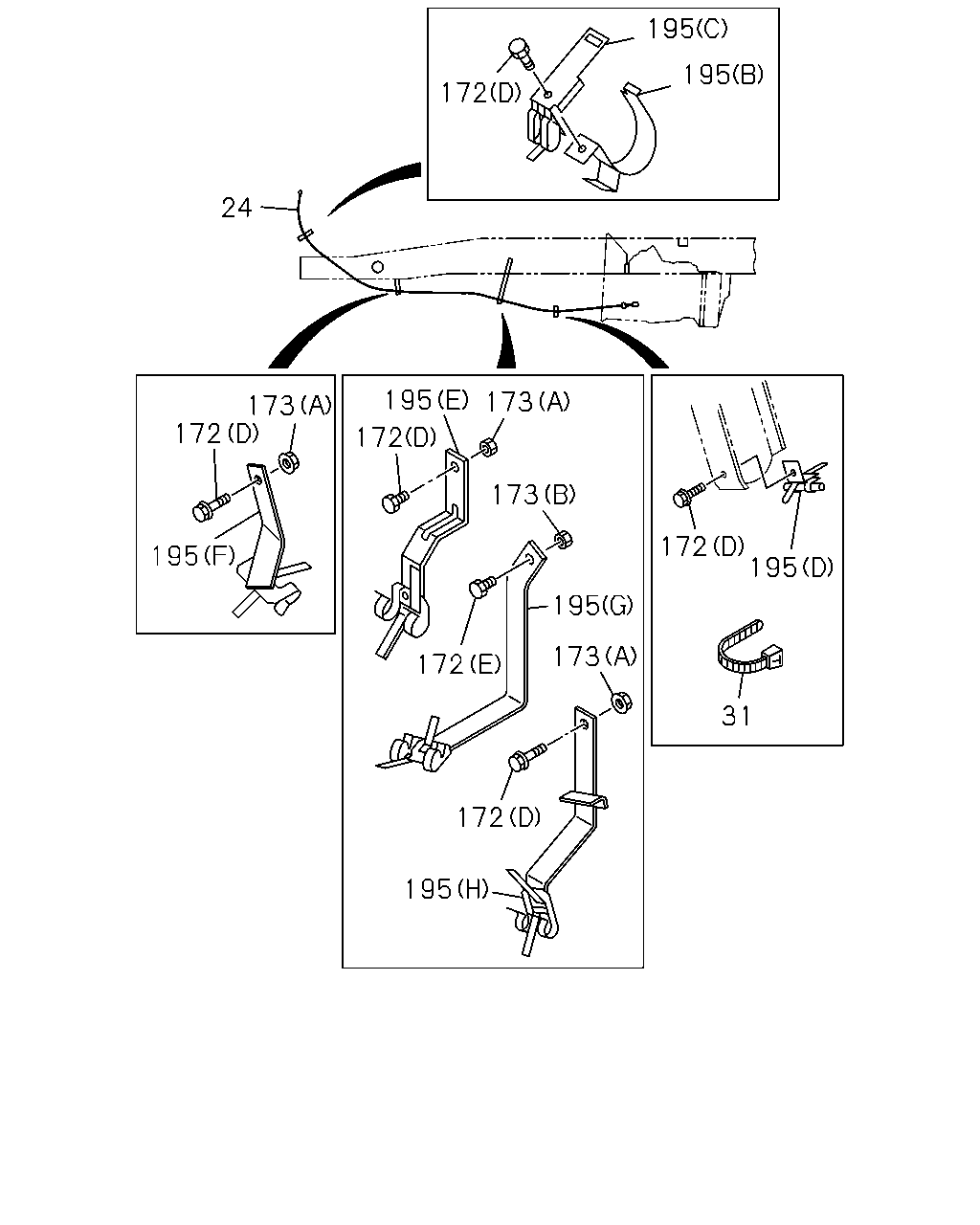

195 195 172 24 195 173 173 172 172 173 172 195 195 195 173 172 31 172 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3027	8-97352-393-1	01	1	0303-	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3294	8-97329-044-0	01	1	0303-0511		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3333	8-98020-128-1	01	1	0512-		●
31	CLIP; BAND,CABLE 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) L=250 SOU	5-09707-030-1	01	1	0512-		●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (E) M10X30 FLANGE	0-28681-030-0	01	1	0512-0512		●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (E) M10X30 FLANGE SOU	0-28651-030-0	01	1	0601-		●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
172	BOLT; BRKT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE SOU	0-28650-825-0	03	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0511	●	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-	●
172	BOLT; BRKT SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511	●	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●
172	BOLT; BRKT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0303-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0303-0604	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) (B) M10 FLANGE SOU	0-91150-110-0	01	1	0512-0602		●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) (B) M10 FLANGE SOU	0-91180-110-0	01	1	0603-		●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602		●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8 FLANGE SOU	0-91180-108-0	02	1	0603-		●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97248-931-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97248-932-1	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (H)	8-98018-978-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (F)	8-98020-130-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (G)	8-97231-502-0	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97085-695-3	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97085-695-3	01	1	0512-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0512-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0512-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A) SOU	8-97088-407-1	01	1	0303-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97229-563-0	01	1	0303-0511	●	●
195	BRACKET; CONT CABLE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (E)	8-97229-563-0	01	1	0512-	●

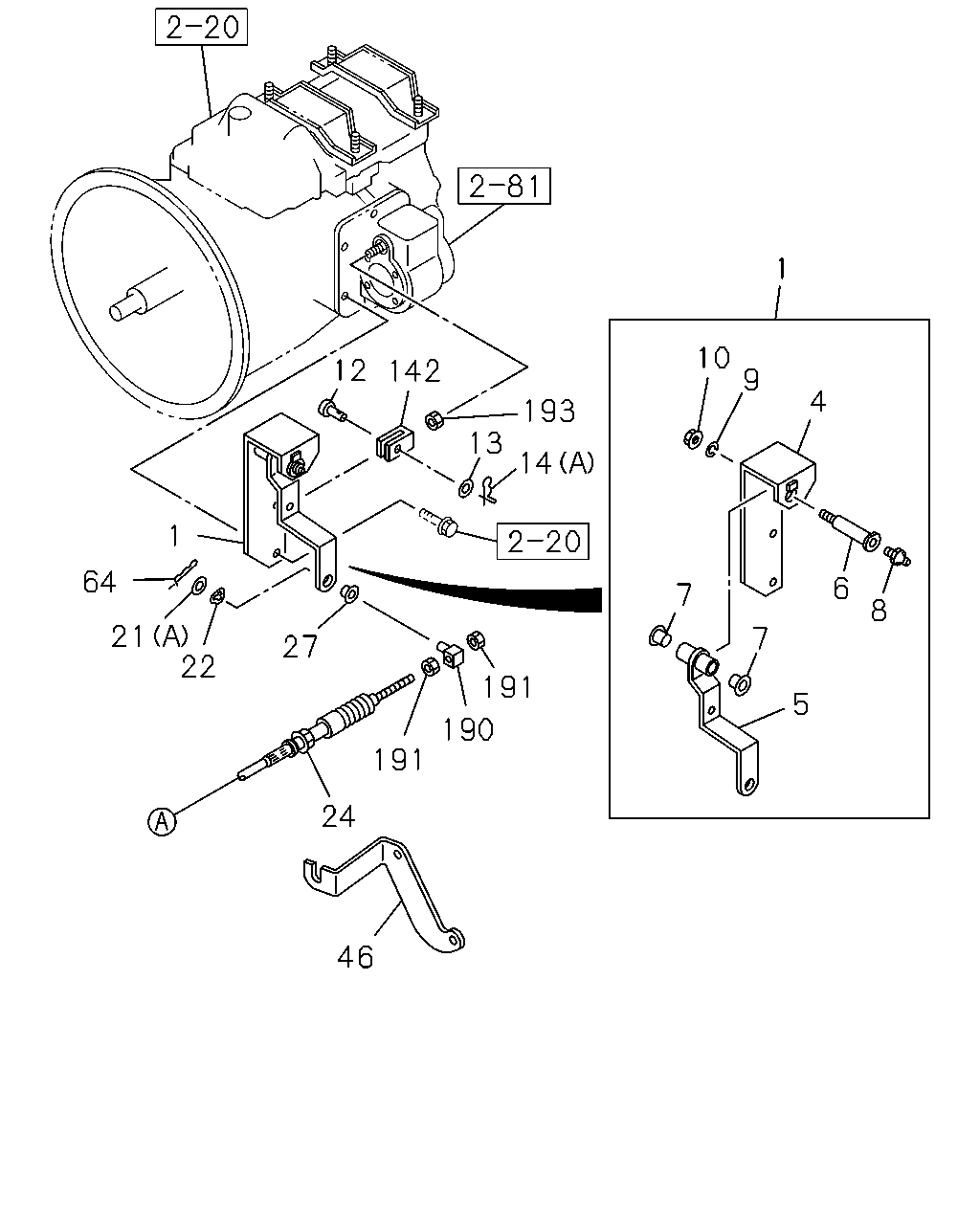

1 10 9 12 142 4 193 13 14 1 64 6 7 8 21 22 7 27 191 5 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0303-	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0303-	●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0303-	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0303-	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0303-	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0303-0607	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0303-0603	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2 SOU	0-91510-508-0	01	1	0604-	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	0303-0512	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8 SOU	0-91110-508-0	01	1	0601-	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0303-0610	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	0303-0605	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (A) SOU	1-09987-158-1	01	1	0303-0805	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (A)	8-97581-216-0	01	1	0806-	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	9-08113-018-0	01	1	0303-0606		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	0-81123-018-0	01	1	0607-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0303-0605	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0303-0511	●	●
21	WASHER; PL,CONT LEVER SINGLE CAB(NP*S) PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0512-0605	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 SOU	0-91610-708-0	01	1	0606-	●	●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) ID=8.5 T=0.3	5-09509-001-0	01	1	0303-	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3027	8-97352-393-1	01	1	0303-	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3294	8-97329-044-0	01	1	0303-0511		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3333	8-98020-128-1	01	1	0512-		●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94367-367-0	01	1	0303-	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0303-	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0303-	●
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0303-	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94366-842-2	01	1	0303-	●
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6	9-09110-506-0	02	1	0303-0512	●
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6 SOU	0-91110-506-0	02	1	0601-	●
193	NUT PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	0303-0512	●
193	NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-	●
