Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#1774) — 210 parça

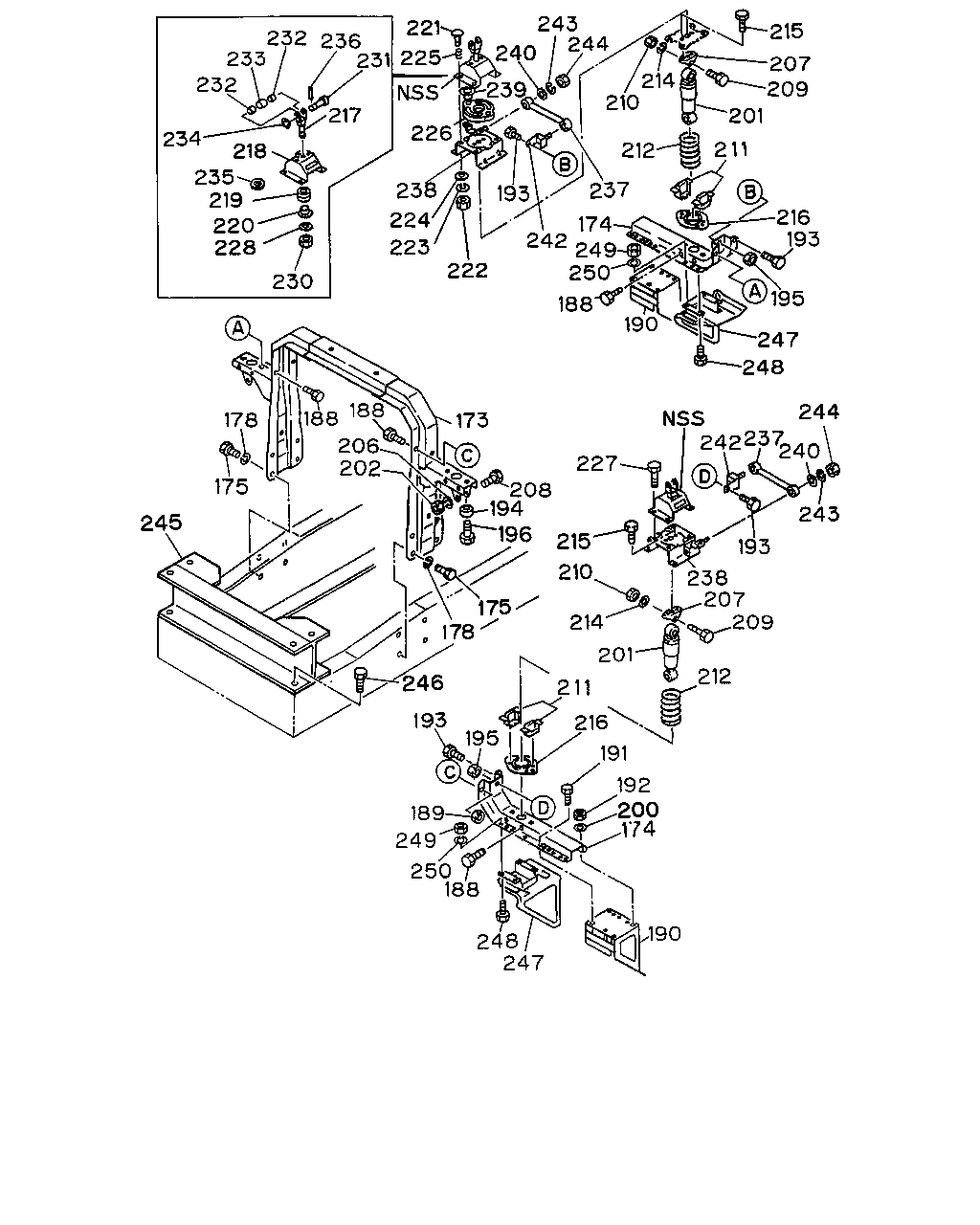

232 236 233 232 234 217 231 218 235 228 220 219 230 223 224 238 226 239 240 243 244 225 221 214 209 207 215 201 210 212 211 237 193 222 242 174 249 216 193 195 247 190 188 250 248 244 242 237 240 243 227 215 193 238 207 209 212 214 201 210 211 216 191 192 200 174 190 247 248 188 250 249 193 195 189 246 175 178 196 194 208 173 188 202 206 188 178 175 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP 50MM(W60)	1-53450-510-4	01	1	9411-9412	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP 50MM(W60)	1-53450-507-5	01	1	9501-9501	●
173	MEMBER; CAB MTG RR CAB UP 50MM(W60)	1-53450-428-7	01	1	9002-	●
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP 50MM(W60)	1-53450-485-3	01	1	9411-9501	●
173	MEMBER; CAB MTG RR	1-53450-485-3	01	1	9411-9501		●
173	MEMBER; CAB MTG RR EXC. CAB UP 50MM(W60)	1-53450-485-3	01	1	9502-	●
173	MEMBER; CAB MTG RR	1-53450-485-3	01	1	9502-		●
173	MEMBER; CAB MTG RR EXC. CAB UP 50MM(W60)	1-53450-485-3	01	1	9002-9410	●
173	MEMBER; CAB MTG RR	1-53450-485-3	01	1	9002-9410		●
174	OUTRIGGER	1-53456-153-6	02	1	9002-9210	●	●
174	OUTRIGGER	1-53456-242-1	02	1	9211-	●	●
175	BOLT; MEMBER TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> M14X40	9-92061-440-0	08	1	9307-	●
175	BOLT; MEMBER TO FRAME CAB UP 50MM(W60) M14X45	9-92061-445-0	08	1	9002-	●	●
175	BOLT; MEMBER TO FRAME EXC. CAB UP 50MM(W60) M14X35	9-92061-435-0	08	1	9002-9306	●	●
175	BOLT; MEMBER TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,CAB UP 50MM(W60) M14X35	9-92061-435-0	08	1	9307-	●
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9307-		●
178	WASHER; LK,MEMBER ID=14.2	9-09150-614-0	08	1	9002-	●	●
188	BOLT; OUTRIGGER M10X25	9-01911-025-0	08	1	9002-9002	●	●
188	BOLT; OUTRIGGER M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-	●	●
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
189	NUT; OUTRIGGER M12	9-99110-412-0	02	1	9002-9304	●	●
189	NUT; OUTRIGGER M12	9-99110-512-0	02	1	9305-	●	●
190	BRACKET; MUD GUARD	1-79930-477-3	02	1	9002-	●	●
191	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
191	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●
191	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●	●
191	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-9304	●	●
192	NUT; BRKT FIX M10	9-09110-410-0	08	1	9002-9009	●	●
192	NUT; BRKT FIX M10	9-09110-510-0	03	1	9010-	●	●
193	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9002-	●	●
193	BOLT; BRKT M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●
193	BOLT; BRKT M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
194	SEAT; RUBBER	1-53459-320-0	04	1	9002-	●	●
195	NUT; BRKT FIX M10	9-09110-510-0	02	1	9002-	●	●
196	BOLT; CAB SUSP MTG	1-09009-090-0	04	1	9002-	●	●
200	WASHER; PL,BRKT FIX ID=10.5 OD=22	9-09160-610-0	08	1	9002-9101	●	●
200	WASHER; PL,BRKT FIX ID=10.5 OD=22	9-09160-610-0	04	1	9102-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-152-0	02	1	9002-9404	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-450-1	02	1	9405-	●	●
202	NUT; S/ABS M12	9-99110-412-0	02	1	9002-9304	●	●
202	NUT; S/ABS M12	9-99110-512-0	02	1	9305-	●	●
206	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-	●	●
207	BRACKET; S/ABS	1-51681-299-0	02	1	9002-	●	●
208	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005	●	●
208	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-	●	●
209	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005	●	●
209	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-	●	●
210	NUT; S/ABS M12	9-99110-412-0	02	1	9002-9304	●	●
210	NUT; S/ABS M12	9-99110-512-0	02	1	9305-	●	●
211	RUBBER; CUSHION,S/ABS	1-53366-050-1	04	1	9002-	●	●
212	SPRING; COIL	1-09580-351-0	02	1	9002-	●	●
214	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-	●	●
215	BOLT; BRKT TO HOLDER M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
216	HOLDER; COIL SPR,CAB BACK	1-53459-319-0	02	1	9002-	●	●
217	JAW; CAB HOOK	1-53459-373-1	02	1	9002-	●	●
218	HOLDER	1-53459-838-0	02	1	9002-9106	●	●
218	HOLDER	1-53458-290-0	02	1	9107-	●	●
219	SPRING; COIL,CAB HOOK	1-09580-350-1	02	1	9002-	●	●
220	GUIDE; SPR	1-53459-374-0	02	1	9002-	●	●
221	PLATE AUTO CAB TILT<WV2>	1-53459-546-1	01	1	9002-	●
222	NUT; PLATE FIX AUTO CAB TILT<WV2> M10	9-09110-510-0	01	1	9002-	●
223	WASHER; LK AUTO CAB TILT<WV2> ID=10.2	9-09150-510-0	01	1	9002-	●
224	WASHER; PL AUTO CAB TILT<WV2> ID=10.5 OD=22	9-09160-610-0	01	1	9002-	●
225	SPRING AUTO CAB TILT<WV2>	1-09580-400-0	01	1	9002-	●
226	RUBBER; BUFFER	1-53459-539-0	02	1	9002-	●	●
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	9-01970-825-0	08	1	9002-9005	●	●
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9006-9306	●	●
227	BOLT; BUFFER RUBBER ROD M8X25 FLANGE	0-28080-825-0	08	1	9307-	●	●
228	WASHER; PL	1-09503-152-0	02	1	9002-	●	●
230	NUT M14	9-99110-514-0	02	1	9002-	●	●
231	PIN; CAB HOOK	1-53459-375-0	02	1	9002-	●	●
232	BUSHING; COLLAR	5-33659-053-0	04	1	9002-	●	●
233	COLLAR; CAB HOOK	1-53459-376-0	02	1	9002-	●	●
234	RING; SNAP	1-09588-032-0	02	1	9002-	●	●
235	ROLLER; GUIDE	1-53459-377-0	02	1	9002-	●	●
236	PIN; SPR,ROLLER	1-09748-018-0	02	1	9002-	●	●
237	ROD ASM; LATERAL	1-53459-337-5	02	1	9002-9012	●	●
237	ROD ASM; LATERAL	1-53459-730-1	02	1	9101-9207	●	●
237	ROD ASM; LATERAL	1-53458-288-0	02	1	9208-	●	●
238	BRACKET; BUFFER,RH AUTO CAB TILT<WV2>	1-53459-545-1	01	1	9002-	●
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>	1-53459-330-4	01	1	9002-9108	●
238	BRACKET; BUFFER,RH	1-53459-330-4	01	1	9002-9108		●
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>	1-53458-292-0	01	1	9109-	●
238	BRACKET; BUFFER,RH	1-53458-292-0	01	1	9109-		●
238	BRACKET; BUFFER,RH	1-53459-329-4	01	1	9002-9108	●	●
238	BRACKET; BUFFER,RH	1-53458-291-0	01	1	9109-	●	●
239	BUSHING; BRKT,BUFFER AUTO CAB TILT<WV2>	1-09330-055-0	01	1	9002-	●
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	04	1	9002-	●	●
242	BRACKET; LATERAL ROD	1-53454-224-2	01	1	9002-	●	●
242	BRACKET; LATERAL ROD	1-53454-223-2	01	1	9002-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	04	1	9002-	●	●
244	NUT; LATERAL ROD M12	9-99110-412-0	04	1	9002-9304	●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	04	1	9305-	●	●
245	MEMBER; CROSS,CAB MTG CAB UP 50MM(W60)	8-94300-477-6	01	1	9002-9306	●	●
245	MEMBER; CROSS,CAB MTG CAB UP 50MM(W60)	8-94300-477-6	01	1	9307-	●
246	BOLT; C/MBR FIX CAB UP 50MM(W60) M14X50	9-91066-450-0	04	1	9002-	●	●
247	PROTECTOR ASM; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>	1-79930-378-6	01	1	9002-	●	●
247	PROTECTOR ASM; HEAT V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>	1-79930-379-6	01	1	9002-	●	●
248	BOLT; HEAT PROTECTOR M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-9009	●	●
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-9009	●	●
248	BOLT; HEAT PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER	0-50041-025-0	02	1	9010-	●	●
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER	0-50041-025-0	02	1	9010-	●	●
249	NUT; PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9002-	●	●
249	NUT; PROTECTOR V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9002-	●	●
250	WASHER; LK EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●
250	WASHER; LK V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●

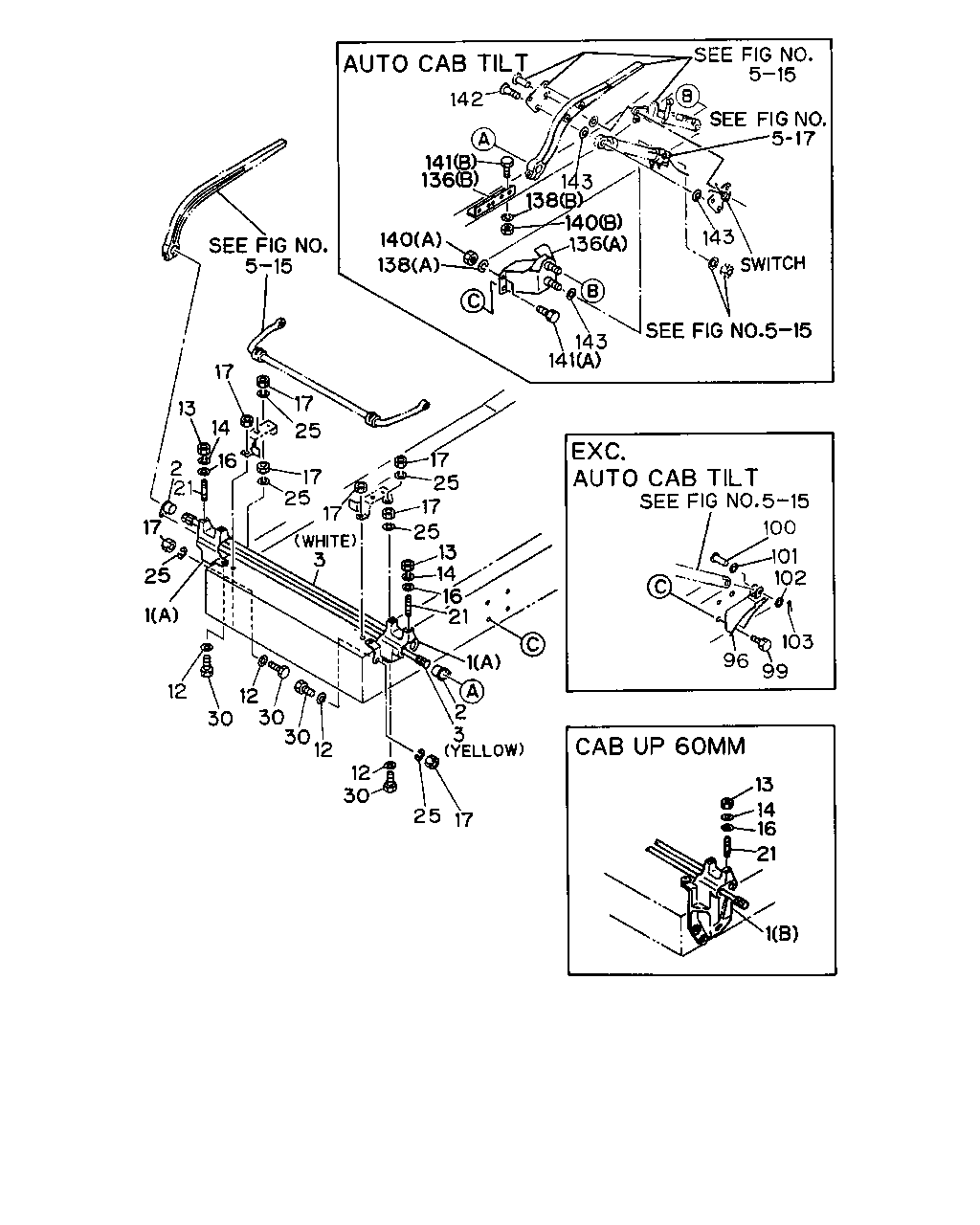

142 141 143 136 138 140 136 140 138 143 143 141 17 13 17 14 25 25 17 17 17 25 25 17 3 13 14 16 21 1 2 3 17 25 30 12 12 30 30 12 30 12 1 17 25 21 2 16 100 101 102 103 99 96 13 14 16 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB UP 50MM(W60) (B)	1-53453-092-0	02	1	9002-	●
1	BRACKET; CAB MTG EXC. CAB UP 50MM(W60) (A)	1-53453-036-4	02	1	9002-	●
1	BRACKET; CAB MTG (A)	1-53453-037-3	02	1	9307-		●
1	BRACKET; CAB MTG CAB UP 50MM(W60) (B)	1-53453-049-1	02	1	9002-9306		●
1	BRACKET; CAB MTG EXC. CAB UP 50MM(W60) (A)	1-53453-037-3	02	1	9002-9306		●
2	BUSHING; TORSION BAR	1-53459-837-0	02	1	9002-	●	●
3	TORSION BAR YELLOW	1-09585-089-1	01	1	9002-	●	●
3	TORSION BAR WHITE	1-09585-090-1	01	1	9002-	●	●
12	WASHER; LK,BRKT CAB UP 50MM(W60) ID=15	9-09651-069-0	12	1	9002-	●	●
12	WASHER; LK,BRKT EXC. CAB UP 50MM(W60) ID=15	9-09651-069-0	10	1	9002-	●	●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9002-	●	●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9002-	●	●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9002-	●	●
17	NUT; BRKT,CAB TILT CAB UP 50MM(W60) M14	9-99110-514-0	12	1	9002-	●	●
17	NUT; BRKT,CAB TILT EXC. CAB UP 50MM(W60) M14	9-99110-514-0	10	1	9002-	●	●
21	STUD; BRKT,CAB TILT	9-94321-235-0	04	1	9002-	●	●
25	WASHER; LK,BRKT,CAB TILT CAB UP 50MM(W60) ID=14.2	9-09150-614-0	12	1	9002-	●	●
25	WASHER; LK,BRKT,CAB TILT EXC. CAB UP 50MM(W60) ID=14.2	9-09150-614-0	10	1	9002-	●	●
30	BOLT; CAB FRT FOOT CAB UP 50MM(W60) M14X63	1-09000-348-0	02	1	9002-	●	●
30	BOLT; CAB FRT FOOT CAB UP 50MM(W60) M14X50	9-91066-450-0	10	1	9002-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP 50MM(W60) M14X75	1-09000-292-0	02	1	9002-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP 50MM(W60) M14X50	9-91066-450-0	06	1	9002-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP 50MM(W60) M14X55	9-91066-455-0	02	1	9002-	●	●
96	BRACKET; CAB STAY CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29>	1-53459-629-0	01	1	9002-9009	●
96	BRACKET; CAB STAY CAB UP 50MM(W60)	1-53459-629-0	01	1	9002-9009		●
96	BRACKET; CAB STAY CAB UP 50MM(W60) NYLON TUBE AIR PIPING<Z29> EXC. AUTO CAB TILT<WV2>	1-53459-743-0	01	1	9002-9009	●
96	BRACKET; CAB STAY CAB UP 50MM(W60) EXC. AUTO CAB TILT<WV2>	1-53459-743-0	01	1	9010-	●	●
96	BRACKET; CAB STAY NYLON TUBE AIR PIPING<Z29> EXC. AUTO CAB TILT<WV2>,CAB UP 50MM(W60)	1-53459-742-0	01	1	9002-9101	●
96	BRACKET; CAB STAY EXC. AUTO CAB TILT<WV2>,CAB UP 50MM(W60)	1-53459-622-0	01	1	9102-	●	●
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35	9-01911-235-0	04	1	9002-9005	●
99	BOLT; BRKT M12X35	9-01911-235-0	04	1	9002-9005		●
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-	●
99	BOLT; BRKT M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-		●
100	PIN; JOINT EXC. AUTO CAB TILT<WV2>	9-08234-455-0	01	1	9002-	●
100	PIN; JOINT	9-08234-455-0	01	1	9002-		●
101	WASHER; WAVE EXC. AUTO CAB TILT<WV2> ID=15 OD=25	8-11053-111-0	01	1	9002-	●
101	WASHER; WAVE ID=15 OD=25	8-11053-111-0	01	1	9002-		●
102	WASHER; PL,CAB STAY EXC. AUTO CAB TILT<WV2> ID=15	9-09160-514-0	01	1	9002-	●
102	WASHER; PL,CAB STAY ID=15	9-09160-514-0	01	1	9002-		●
103	PIN; SPLIT,CAB STAY EXC. AUTO CAB TILT<WV2> OD=3.7 L=25	9-08114-025-0	01	1	9002-	●
103	PIN; SPLIT,CAB STAY OD=3.7 L=25	9-08114-025-0	01	1	9002-		●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> (A)	1-53459-378-3	01	1	9002-	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> CAB UP 50MM(W60) (B)	1-53459-446-2	01	1	9002-9306	●
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> (A) ID=12.2	9-09150-612-0	04	1	9002-	●
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) (B) ID=14.2	9-09150-514-0	04	1	9002-9306	●
140	NUT; BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) (B) M14	9-99110-414-0	04	1	9002-9306	●
140	NUT; BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) (A) M12	9-99110-512-0	02	1	9002-9306	●
141	BOLT; BRKT AUTO CAB TILT<WV2> (A) M12X45	9-91066-245-0	04	1	9002-	●
141	BOLT; BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) (B) M14X40	9-92051-440-0	04	1	9002-9005	●
141	BOLT; BRKT AUTO CAB TILT<WV2> CAB UP 50MM(W60) (B) M14X40	0-20801-440-0	04	1	9006-9306	●
142	PIN; OIL CYL,UPR AUTO CAB TILT<WV2>	1-53459-352-0	01	1	9002-	●
143	SPACER; OIL CYL,LWR AUTO CAB TILT<WV2>	1-53459-463-0	04	1	9002-	●

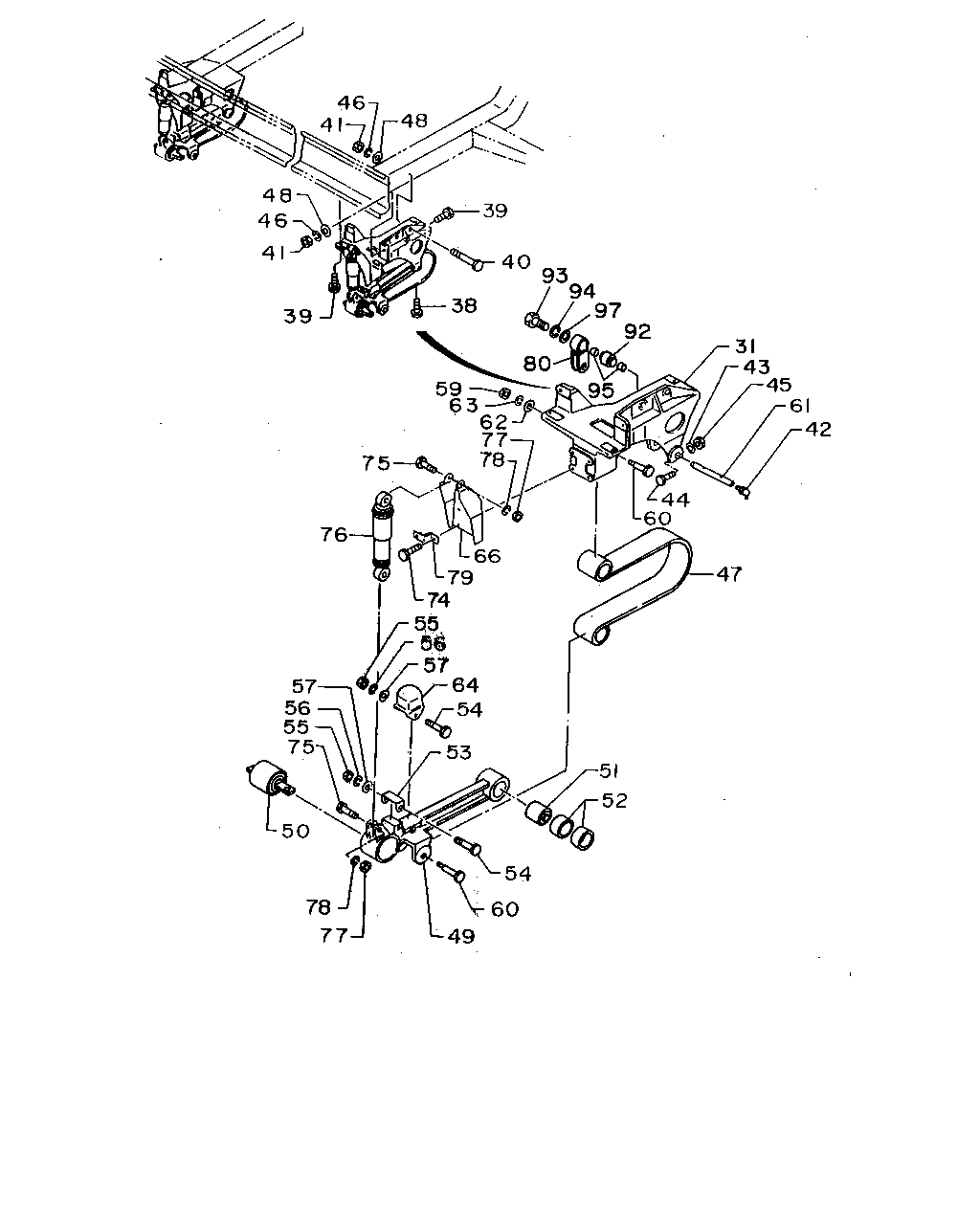

46 41 48 39 40 38 93 94 97 92 31 43 45 61 42 44 47 60 78 77 62 63 59 80 95 66 79 74 55 56 57 64 54 53 51 52 54 60 49 77 78 50 75 57 56 55 76 75 39 41 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BRACKET; CAB	1-53453-033-4	01	1	9002-	●	●
31	BRACKET; CAB	1-53453-032-4	01	1	9002-	●	●
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●	●
39	BOLT; CAB TO BRKT M10X30	1-09980-546-0	08	1	9002-	●	●
40	BOLT; CAB TO BRKT M10X100	1-09980-547-0	04	1	9002-	●	●
41	NUT M10	9-09110-410-0	08	1	9002-	●	●
42	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●
43	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-	●	●
44	BOLT; PIN LOCK M8X50	9-01050-850-0	02	1	9002-9005	●	●
44	BOLT; PIN LOCK M8X50	0-10810-850-0	02	1	9006-	●	●
45	NUT M8	9-09110-408-0	02	1	9002-	●	●
46	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●	●
47	SPRING; LEAF,"U"	1-53459-387-4	02	1	9002-	●	●
48	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9002-	●	●
49	ARM; LINK	1-53459-297-2	02	1	9002-	●	●
50	BUSHING; RUBBER	1-53459-308-2	02	1	9002-9004	●	●
50	BUSHING; RUBBER	1-53459-974-0	02	1	9005-9108	●	●
50	BUSHING; RUBBER	1-53458-293-1	02	1	9109-	●	●
51	BUSHING; RUBBER	1-53459-315-2	02	1	9002-	●	●
52	BUSHING; RUBBER	1-09330-068-0	04	1	9002-	●	●
53	RUBBER; STOPPER	1-53459-314-0	02	1	9002-	●	●
54	BOLT; RUBBER M8X70	9-01055-870-0	04	1	9002-9005	●	●
54	BOLT; RUBBER M8X70	0-10805-870-0	04	1	9006-	●	●
55	NUT; RUBBER M8	9-09110-408-0	04	1	9002-	●	●
56	WASHER; LK ID=8.2	9-09150-508-0	04	1	9002-	●	●
57	WASHER; PL ID=8.4	9-09160-508-0	08	1	9002-	●	●
59	NUT M10	9-09110-410-0	04	1	9002-	●	●
60	PIN; "U" LEAF SPRING	1-53459-307-3	04	1	9002-	●	●
61	PIN; BRKT TO LINK ARM	1-53459-540-0	02	1	9002-	●	●
62	WASHER; PL ID=10.5 OD=18	9-09160-510-0	04	1	9002-	●	●
63	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●	●
64	RUBBER; CUSHION	1-53366-089-0	02	1	9002-9010	●	●
64	RUBBER; CUSHION	1-53366-122-0	02	1	9011-9404	●	●
64	RUBBER; CUSHION	1-53366-110-0	02	1	9405-	●	●
66	BRACKET; S/ABS	1-53459-305-2	02	1	9002-	●	●
74	BOLT; BRKT FIX M8X22	9-01910-822-0	08	1	9002-9005	●	●
74	BOLT; BRKT FIX M8X22 W/LK WASHER	0-50040-822-0	08	1	9006-	●	●
75	BOLT; S/ABS M12X60	9-91056-260-0	04	1	9002-9005	●	●
75	BOLT; S/ABS M12X60	0-10806-260-0	04	1	9006-	●	●
76	ABSORBER ASM; SHOCK	1-51630-151-0	02	1	9002-9404	●	●
76	ABSORBER ASM; SHOCK	1-51630-449-1	02	1	9405-	●	●
77	NUT M12	9-99110-412-0	04	1	9002-	●	●
78	WASHER; LK ID=12.2	9-09150-512-0	04	1	9002-	●	●
79	BRACKET; FLEX SHAFT	1-83129-033-1	02	1	9002-	●	●
80	LINK ASM; STABILIZER W/BUSHING	1-53459-608-0	02	1	9002-	●	●
92	BUSHING; RUBBER	1-53459-417-2	02	1	9002-	●	●
93	BOLT; PIN	1-09000-354-0	02	1	9002-	●	●
94	WASHER; DISH	1-09500-007-0	02	1	9002-9105	●	●
94	WASHER; DISH	1-09500-028-0	02	1	9106-	●	●
95	BUSHING; RUBBER	1-09330-069-0	04	1	9002-	●	●
97	WASHER; PL ID=17	9-09160-516-0	02	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
