Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#17739) — 186 parça

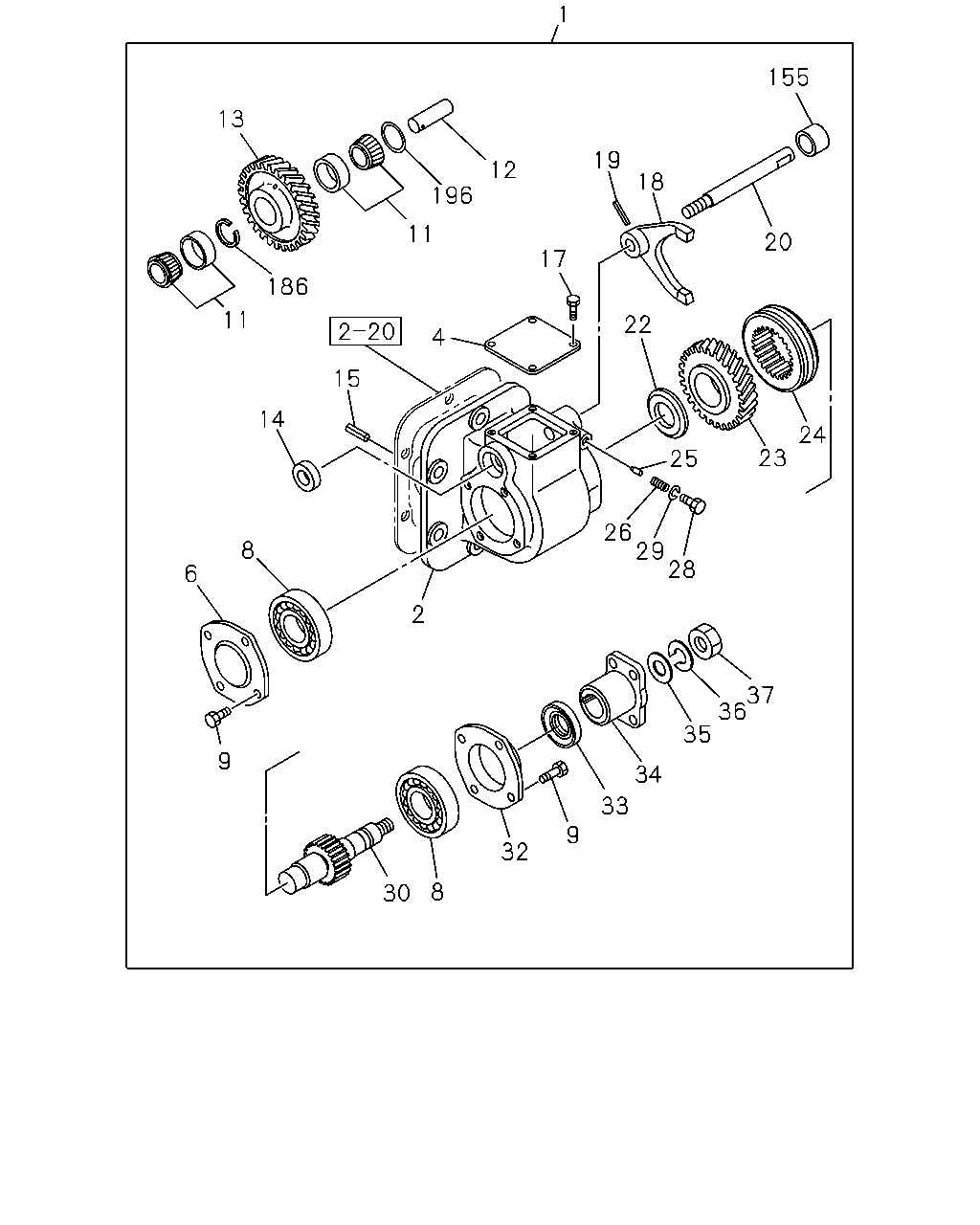

1 155 13 19 12 18 196 11 20 17 186 11 22 4 15 14 24 23 25 26 29 28 8 6 2 37 36 35 9 34 33 9 32 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-97286-908-7	01	1	0303-	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97309-237-3	01	1	0303-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0303-	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0303-		●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0303-0511	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0512-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0512-0701	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0702-	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	0303-0402	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0303-0402		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0403-0511	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0512-0701		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0303-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	08	1	0512-0701	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	08	1	0702-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	08	1	0303-0511	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	08	1	0512-0701		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0512-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0303-	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09811-144-0	01	1	0303-0511		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0303-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0303-		●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0303-	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0303-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0303-0509	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0510-	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0303-		●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0303-	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09678-514-0	01	1	0303-		●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	04	1	0303-0511	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	04	1	0512-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0303-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-819-0	01	1	0303-0506		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0507-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0303-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0303-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-707-0	01	1	0303-0511	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0512-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-247-2	01	1	0303-0701		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-934-0	01	1	0702-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0512-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0303-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-38226-046-0	01	1	0303-0511		●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0303-0805	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0303-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0303-	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0303-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0303-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0303-		●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0303-0511	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8X1.25	8-98038-424-0	01	1	0512-	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0303-0511	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2 SOU	0-91510-808-0	01	1	0512-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0303-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-241-0	01	1	0303-0310		●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97374-129-1	01	1	0311-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97350-757-3	01	1	0303-0511	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0303-0511		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0512-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0303-	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97350-755-0	01	1	0303-0511	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0512-	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0512-0701	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0702-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0303-0511	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0512-0701		●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2 SOU	0-91510-814-0	01	1	0512-0701	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2 SOU	0-91510-814-0	01	1	0702-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0303-0511	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0512-0701		●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0512-0701	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0702-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0303-0511	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0512-0701		●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) OD=24 L=31	9-33545-011-0	01	1	0303-0402	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97374-349-0	01	1	0403-0511	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0512-	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0303-		●
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0303-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0303-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0303-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0303-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0303-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0303-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0303-	●

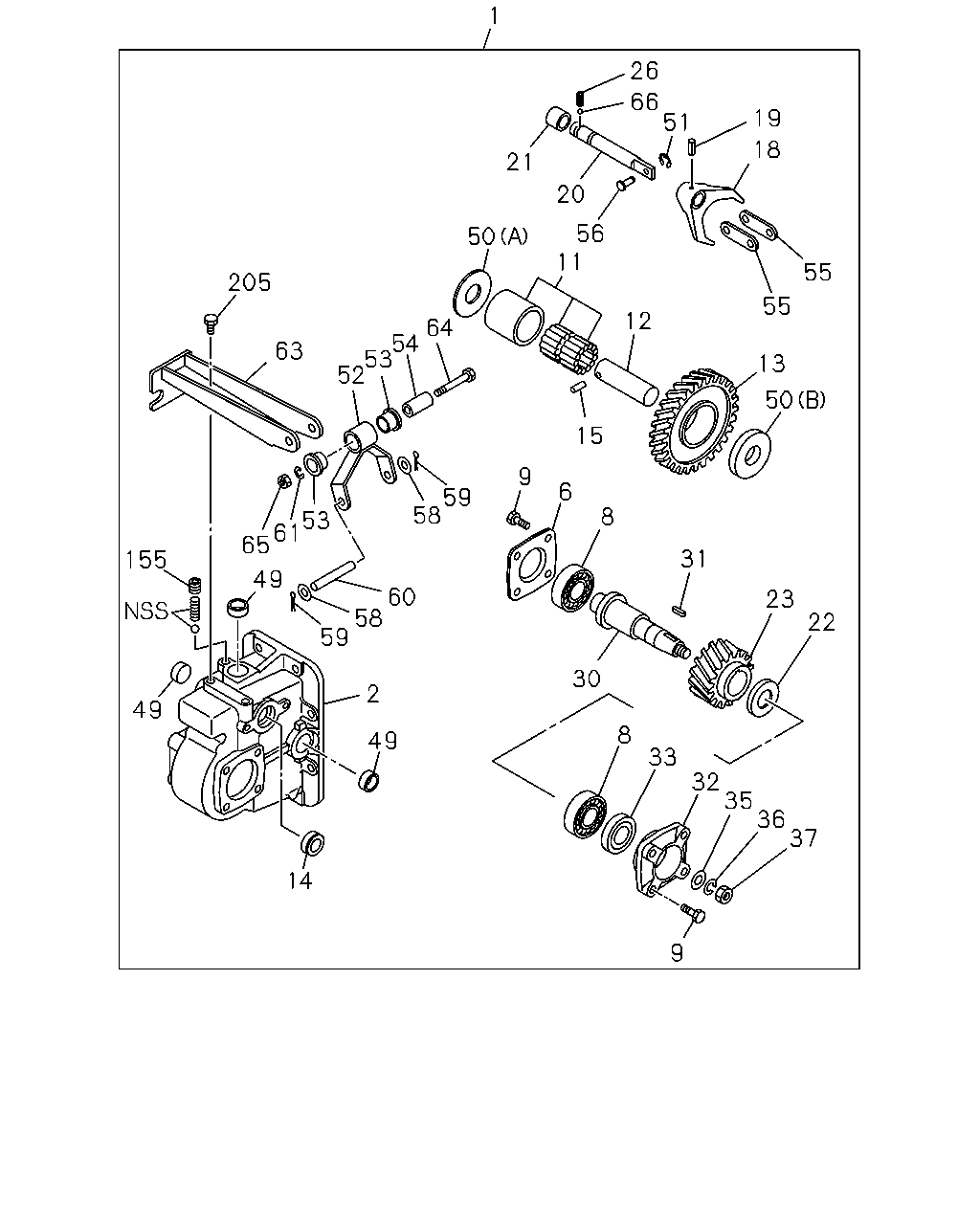

1 26 66 51 19 18 21 20 56 11 50 55 205 55 12 64 54 53 52 63 13 50 15 9 6 59 58 53 61 65 8 31 155 49 60 58 59 23 22 30 2 49 8 49 33 32 35 36 37 14 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-97286-908-7	01	1	0303-	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97309-237-3	01	1	0303-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0303-	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0303-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0512-0701	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0702-	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	0303-0402	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0303-0402		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0403-0511	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0512-0701		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0303-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	08	1	0512-0701	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	08	1	0702-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	08	1	0303-0511	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	08	1	0512-0701		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0512-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0303-	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09811-144-0	01	1	0303-0511		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0303-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0303-		●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0303-	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0303-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0303-0509	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0510-	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0303-		●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0303-	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09678-514-0	01	1	0303-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0303-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-819-0	01	1	0303-0506		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0507-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0303-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0303-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-707-0	01	1	0303-0511	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0512-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-247-2	01	1	0303-0701		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-934-0	01	1	0702-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09600-085-0	01	1	0303-0701		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-619-0	01	1	0702-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0512-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0303-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-38226-046-0	01	1	0303-0511		●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0303-0805	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0303-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0303-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0303-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0303-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-241-0	01	1	0303-0310		●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97374-129-1	01	1	0311-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	0512-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	1-09735-024-0	01	1	0303-0511		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97350-757-3	01	1	0303-0511	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0303-0511		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0512-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0303-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0512-0701	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0702-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0303-0511	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0512-0701		●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2 SOU	0-91510-814-0	01	1	0512-0701	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2 SOU	0-91510-814-0	01	1	0702-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0303-0511	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0512-0701		●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0512-0701	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0702-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0303-0511	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0512-0701		●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09600-084-0	03	1	0303-0701		●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98037-773-0	03	1	0702-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) (A)	1-38226-058-1	01	1	0303-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) (B)	8-97305-818-0	01	1	0303-		●
51	RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=6	9-09185-406-0	01	1	0303-0701		●
51	RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=6	0-91805-506-0	01	1	0702-		●
52	LEVER; CONT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-250-0	01	1	0303-		●
53	BUSHING; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09330-023-0	02	1	0303-		●
54	COLLAR; DIST,CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38321-003-1	01	1	0303-		●
55	PLATE; LEVER JOINT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38313-036-0	02	1	0303-0701		●
55	PLATE; LEVER JOINT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-938-0	02	1	0702-		●
56	PIN; PLATE TO LVR & ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) OD=8 L=21	9-08213-821-0	01	1	0303-0701		●
56	PIN; PLATE TO LVR & ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-942-0	01	1	0702-		●
58	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) ID=10.5 OD=18	9-09160-510-0	02	1	0303-0701		●
58	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) ID=10.5 SOU	0-91610-510-0	02	1	0702-		●
59	PIN; PTO CONT LEVER PTO TRANSMISSION SIDE(V66) OD=2.8 L=18	9-08113-018-0	02	1	0303-0701		●
59	PIN; PTO CONT LEVER PTO TRANSMISSION SIDE(V66) OD=2.8 L=18	0-81123-018-0	02	1	0702-		●
60	SHAFT; PTO CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97309-251-0	01	1	0303-0701		●
60	SHAFT; PTO CONT LEVER PTO TRANSMISSION SIDE(V66)	8-98046-935-0	01	1	0702-		●
61	WASHER; LK,CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=10.2	9-09150-510-0	01	1	0303-0701		●
61	WASHER; LK,CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=10.2 SOU	0-91510-810-0	01	1	0702-		●
63	BRACKET; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-249-1	01	1	0303-		●
64	BOLT; CONT LEVER PTO TRANSMISSION SIDE(V66) M10X60	0-10806-060-0	01	1	0303-0701		●
64	BOLT; CONT LEVER PTO TRANSMISSION SIDE(V66) M10X60 FLANGE SOU	0-28051-060-0	01	1	0702-		●
65	NUT; CONT LEVER PTO TRANSMISSION SIDE(V66) M10	9-09110-510-0	01	1	0303-0701		●
65	NUT; CONT LEVER PTO TRANSMISSION SIDE(V66) M10 SOU	0-91110-510-0	01	1	0702-		●
66	BALL; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-00097-009-0	01	1	0303-		●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) OD=24 L=31	9-33545-011-0	01	1	0303-0402	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97374-349-0	01	1	0403-0511	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0512-	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0303-		●
205	BOLT; BRKT,PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	0-28181-020-0	02	1	0303-0701		●
205	BOLT; BRKT,PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) M10X16 FLANGE	0-28151-016-0	02	1	0702-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
