◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#17737) — 97 parça

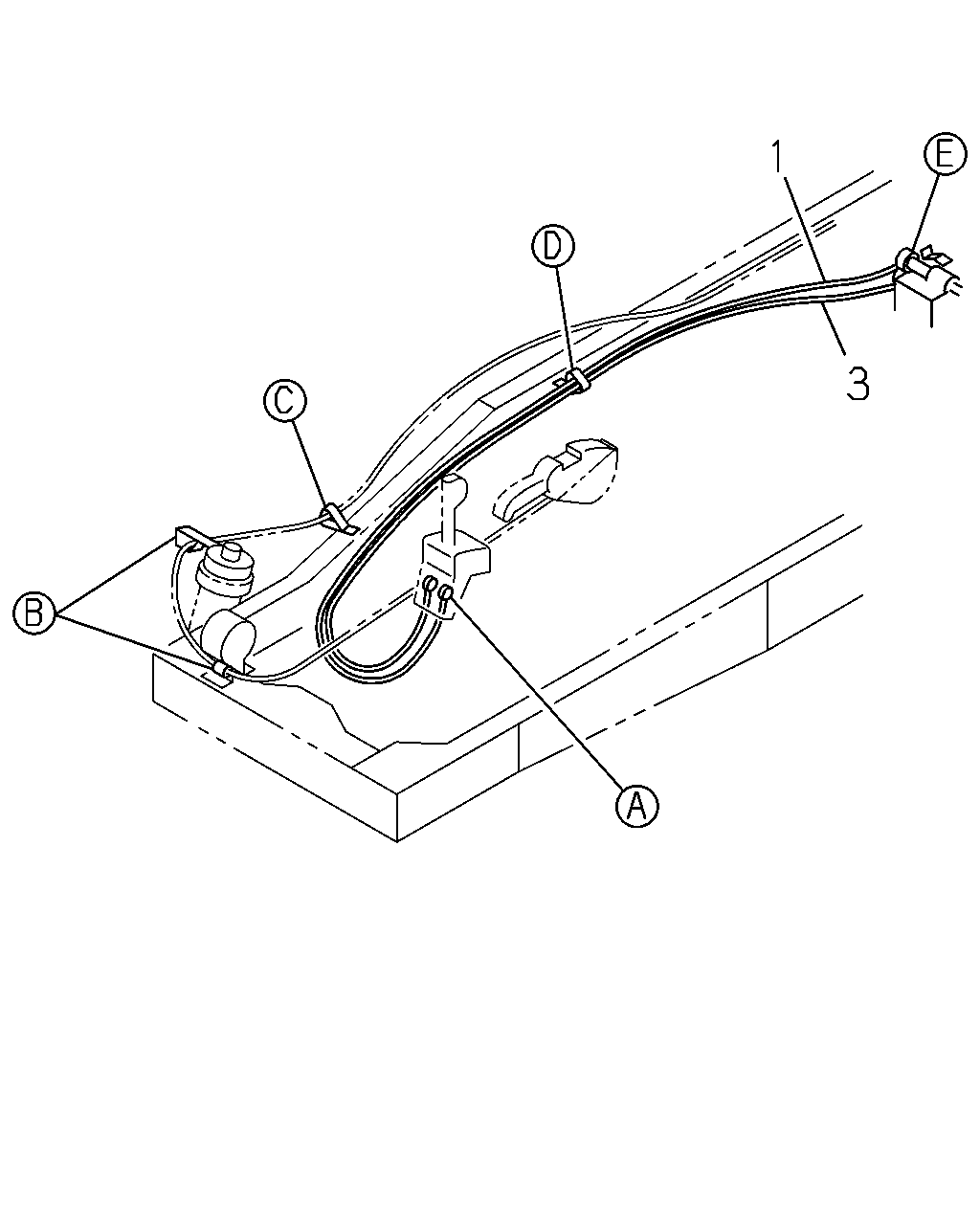

çizim 13627
1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2973 		8-97350-421-1 01 1 0303- ●
1 CABLE; SHIFT,TRANS CONT 8-97259-000-3 01 1 0303-0511 ●
1 CABLE; SHIFT,TRANS CONT
L=3070 		8-97329-417-1 01 1 0512- ●
3 CABLE; SELECT,TRANS CONT
L=3031 		8-97350-422-0 01 1 0303-0511 ●
3 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=3031 		8-97350-422-0 01 1 0512- ●
3 CABLE; SELECT,TRANS CONT
L=3055 		8-97259-001-3 01 1 0303-0511 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3151 		8-98009-288-0 01 1 0512- ●

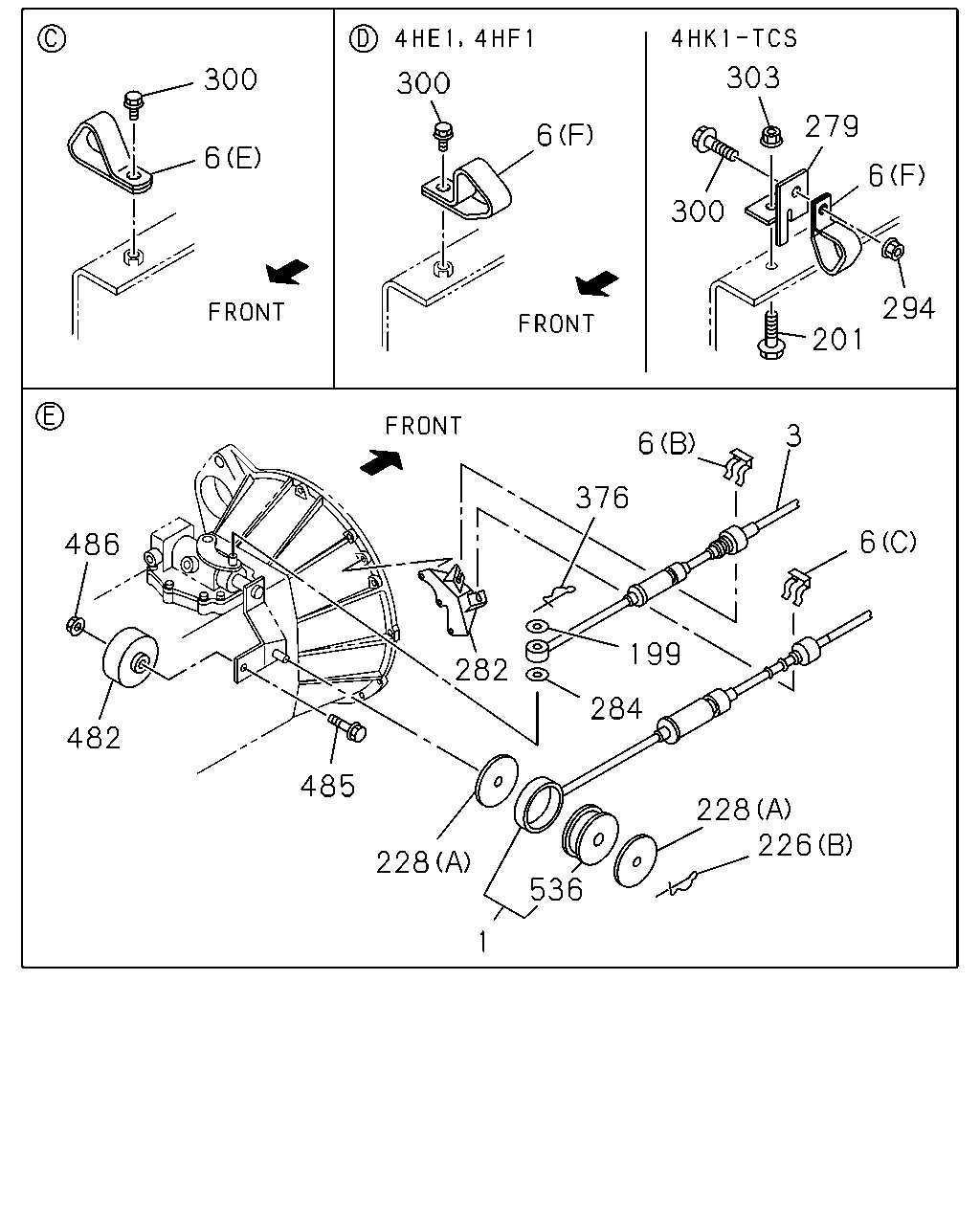

çizim 53488
303 300 300 279 6 6 6 300 294 201 3 6 376 6 486 199 282 284 482 485 228 226 228 536 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2973 		8-97350-421-1 01 1 0303- ●
1 CABLE; SHIFT,TRANS CONT 8-97259-000-3 01 1 0303-0511 ●
1 CABLE; SHIFT,TRANS CONT
L=3070 		8-97329-417-1 01 1 0512- ●
3 CABLE; SELECT,TRANS CONT
L=3031 		8-97350-422-0 01 1 0303-0511 ●
3 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=3031 		8-97350-422-0 01 1 0512- ●
3 CABLE; SELECT,TRANS CONT
L=3055 		8-97259-001-3 01 1 0303-0511 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3151 		8-98009-288-0 01 1 0512- ●
6 CLIP; CABLE
(E) 		8-97036-333-1 01 1 0303- ● ●
6 CLIP; CABLE
(E) 		8-97036-333-1 01 1 0303- ● ●
6 CLIP; CABLE
(F) 		8-97036-332-1 01 1 0303- ● ●
6 CLIP; CABLE
(D) 		8-97147-985-0 01 1 0303- ● ●
6 CLIP; CABLE
(C) ID=22.2 		1-09701-209-1 01 1 0303- ● ●
6 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0303- ● ●
6 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0303- ● ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 0303-0605 ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 0606- ● ●
201 BOLT; BRKT
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
201 BOLT; BRKT
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ●
226 PIN; SHIFT CABLE
(A) L=27.7 SOU 		8-94111-137-0 01 1 0303- ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0303- ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0303- ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0303-0605 ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 SOU 		0-91614-508-0 01 1 0606- ● ●
279 BRACKET; CABLE TO FRAME
4HK1-TCS ENG(RJS) 		8-97171-065-0 01 1 0512- ●
282 BRACKET; TRANS SIDE 8-97311-441-1 01 1 0303- ●
282 BRACKET; TRANS SIDE 8-97311-442-1 01 1 0303- ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0303- ● ●
294 NUT; CLIP
M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ●
294 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ●
300 BOLT; CLIP
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ●
300 BOLT; CLIP
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
300 BOLT; CLIP
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
300 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
300 BOLT; CLIP
POWER STEERING<N40> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512 ● ●
300 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601- ● ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ● ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE SOU 		0-28050-816-0 01 1 0601- ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0602 ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91150-108-0 02 1 0303-0602 ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 0603- ● ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0303- ● ●
482 WEIGHT; SHIFT CABLE 8-97066-730-2 01 1 0303-0305 ● ●
485 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 0303-0305 ● ●
486 NUT; WEIGHT
M12 FLANGE 		8-94436-194-0 01 1 0303-0305 ● ●
536 DAMPER; CABLE 8-98097-681-0 01 1 0711- ● ●

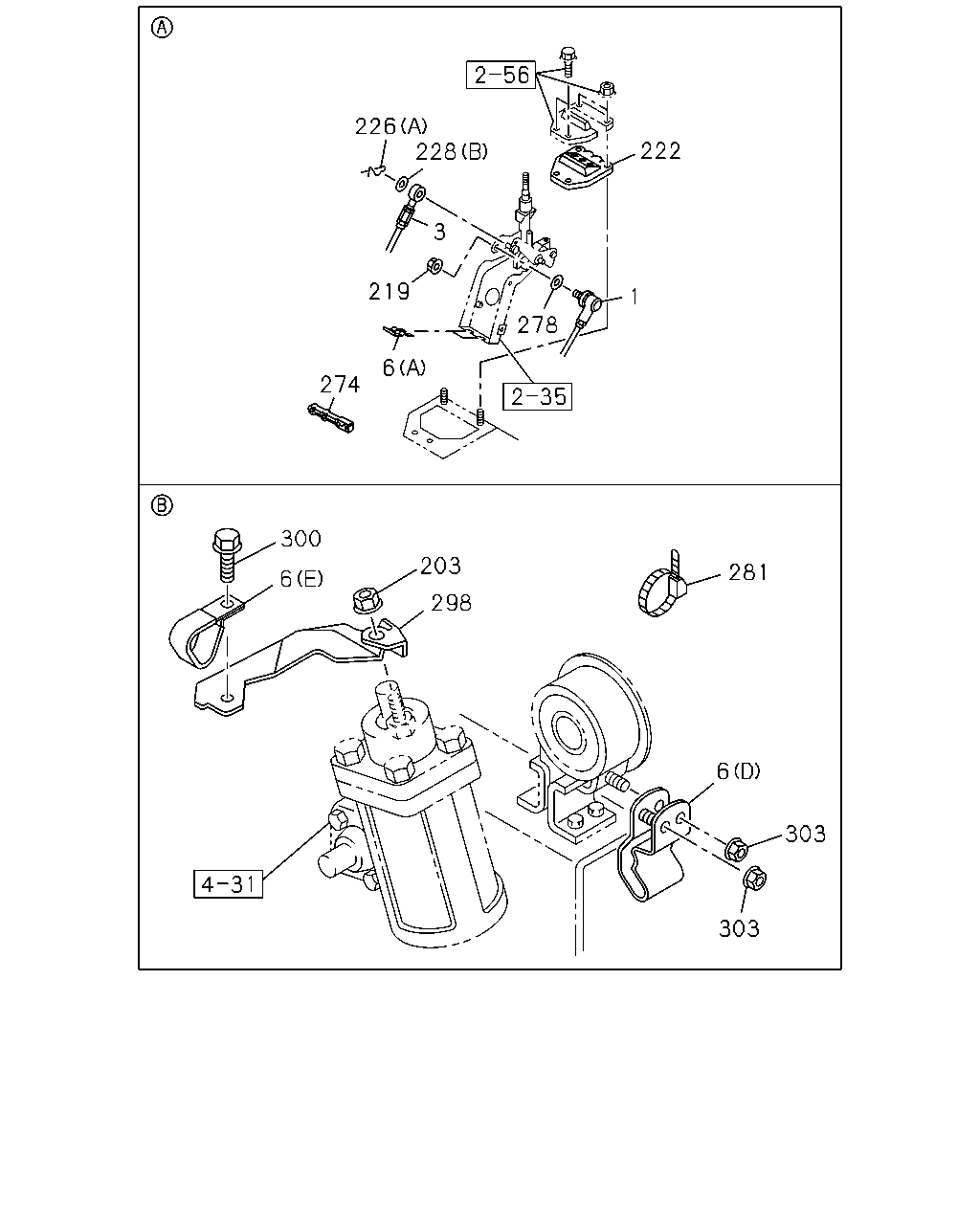

çizim 57058
226 228 222 3 219 1 278 6 274 300 203 281 6 298 6 303 303
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2973 		8-97350-421-1 01 1 0303- ●
1 CABLE; SHIFT,TRANS CONT 8-97259-000-3 01 1 0303-0511 ●
1 CABLE; SHIFT,TRANS CONT
L=3070 		8-97329-417-1 01 1 0512- ●
3 CABLE; SELECT,TRANS CONT
L=3031 		8-97350-422-0 01 1 0303-0511 ●
3 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=3031 		8-97350-422-0 01 1 0512- ●
3 CABLE; SELECT,TRANS CONT
L=3055 		8-97259-001-3 01 1 0303-0511 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3151 		8-98009-288-0 01 1 0512- ●
6 CLIP; CABLE
(E) 		8-97036-333-1 01 1 0303- ● ●
6 CLIP; CABLE
(E) 		8-97036-333-1 01 1 0303- ● ●
6 CLIP; CABLE
(F) 		8-97036-332-1 01 1 0303- ● ●
6 CLIP; CABLE
(D) 		8-97147-985-0 01 1 0303- ● ●
6 CLIP; CABLE
(C) ID=22.2 		1-09701-209-1 01 1 0303- ● ●
6 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0303- ● ●
6 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0303- ● ●
203 NUT; BRKT FIX
POWER STEERING<N40> M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0602 ● ●
203 NUT; BRKT FIX
POWER STEERING<N40> M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 SOU 		8-94363-045-0 01 1 0303- ● ●
222 GROMMET; CABLE 8-97065-212-1 01 1 0303- ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 SOU 		8-94111-137-0 01 1 0303- ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0303- ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0303- ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0303-0605 ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 SOU 		0-91614-508-0 01 1 0606- ● ●
274 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 0512- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0303-0604 ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605- ● ●
281 CLIP; BAND
L=250 SOU 		5-09707-030-1 01 1 0303- ● ●
298 BRACKET
POWER STEERING<N40> 		8-97288-446-0 01 1 0303- ● ●
300 BOLT; CLIP
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ●
300 BOLT; CLIP
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
300 BOLT; CLIP
POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
300 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
300 BOLT; CLIP
POWER STEERING<N40> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512 ● ●
300 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601- ● ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ● ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE SOU 		0-28050-816-0 01 1 0601- ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0602 ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91150-108-0 02 1 0303-0602 ● ●
303 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 0603- ● ●
