◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#17736) — 37 parça

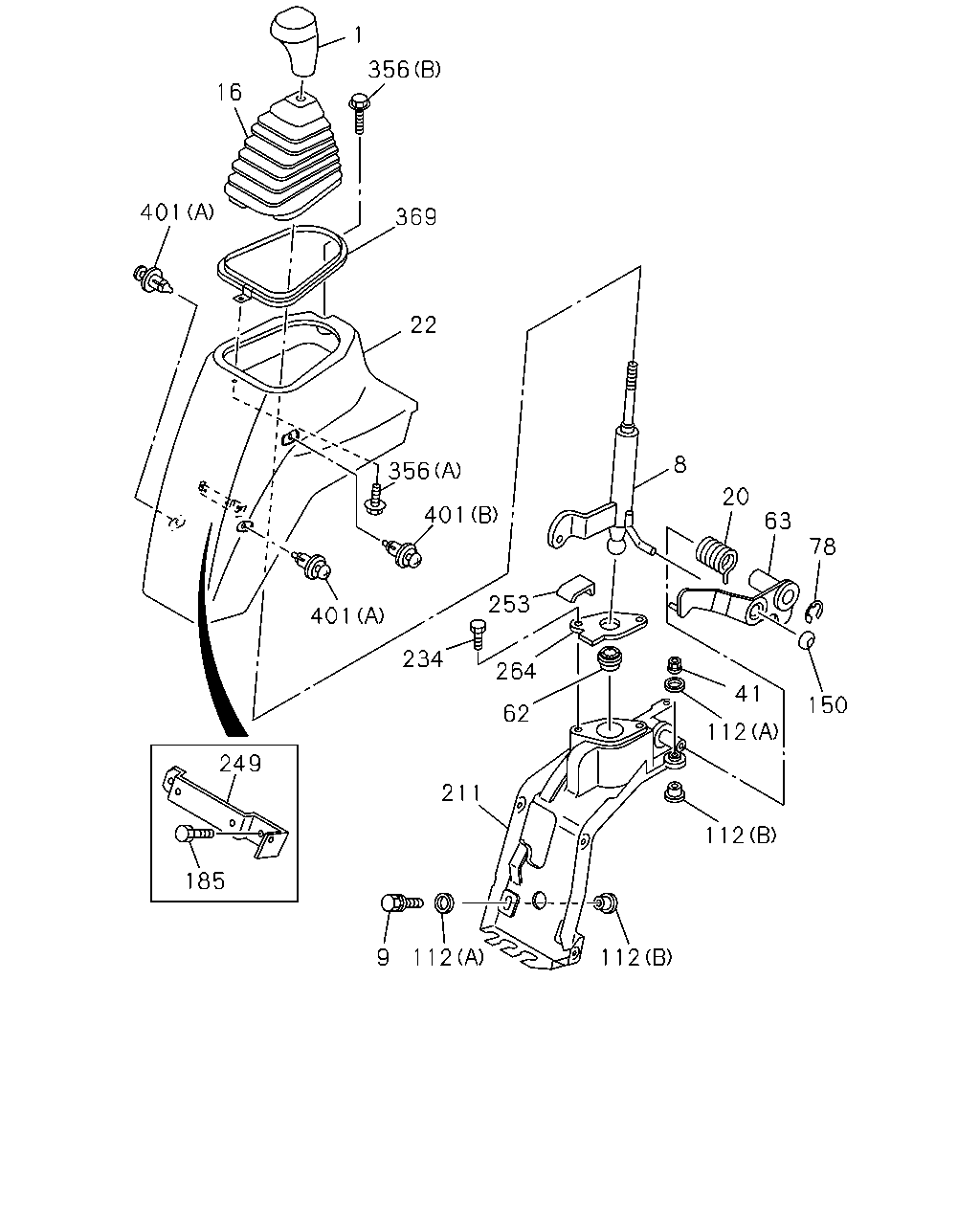

çizim 56865
1 356 16 401 369 22 8 356 20 401 63 78 253 401 234 264 41 150 62 112 249 211 112 185 9 112 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
BLACK 		8-97196-286-1 01 1 0303- ●
1 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 0303- ●
8 LEVER; CHANGE
SOU 		8-97204-506-0 01 1 0303- ●
8 LEVER; CHANGE
SOU 		8-97204-507-0 01 1 0303- ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER SOU 		8-94438-324-1 02 1 0303- ● ●
16 BOOT; CHANGE LEVER 8-97066-287-2 01 1 0303- ● ●
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0303- ● ●
22 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97867-625-3 01 1 0303-0511 ● ●
22 COVER; DUST,CHANGE LEVER
GRAY 		8-97582-878-3 01 1 0512- ● ●
41 NUT; CHANGE LEVER
M8 FLANGE SOU 		8-97046-127-0 02 1 0303-0610 ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
62 SEAT; BALL,CHANGE LEVER
SOU 		8-97011-895-1 01 1 0303- ● ●
63 LEVER; RELAY,SELECT
SOU 		8-97143-199-0 01 1 0303- ●
63 LEVER; RELAY,SELECT
SOU 		8-97163-768-0 01 1 0303- ●
78 RING; SNAP,CHANGE LEVER
ID=10 		9-09185-410-0 01 1 0303-0604 ● ●
78 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 0605- ● ●
112 RUBBER; CUSHION
(A) SOU 		8-97091-426-0 04 1 0303- ● ●
112 RUBBER; CUSHION
(B) SOU 		8-97091-427-0 04 1 0303- ● ●
150 BALL; DETENT,CONT LEVER
SOU 		8-97049-147-0 01 1 0303- ● ●
185 BOLT; BRKT,COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ● ●
185 BOLT; BRKT,COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0303- ● ●
234 BOLT; BRKT
SOU 		8-97204-512-0 02 1 0303-0310 ● ●
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0311- ● ●
249 BRACKET; COVER
SOU 		8-97065-170-0 01 1 0303- ● ●
253 STOPPER; CHANGE LEVER
SOU 		8-97204-510-0 01 1 0303- ● ●
264 PLATE; COVER
SOU 		8-97204-511-0 01 1 0303- ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0303-0604 ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 0605- ● ●
356 SCREW; COVER
(B) M6X12 SOU 		8-97094-854-0 01 1 0303-0612 ● ●
356 SCREW; COVER
(B) M6X12 		0-38050-612-0 01 1 0701- ● ●
369 RETAINER; REINF 8-97066-288-1 01 1 0303- ● ●
401 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0303-0511 ● ●
401 CLIP; COVER
(A) GRAY 		8-97582-240-0 02 1 0512-0602 ● ●
401 CLIP; COVER
(A) GRAY 		8-97582-240-0 03 1 0603- ● ●
401 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0303-0511 ● ●
401 CLIP; COVER
(B) GRAY 		8-97582-796-0 01 1 0512-0602 ● ●
