2-30 — GEAR SHIFTER AND QUADRANT BOX (#17735) — 127 parça

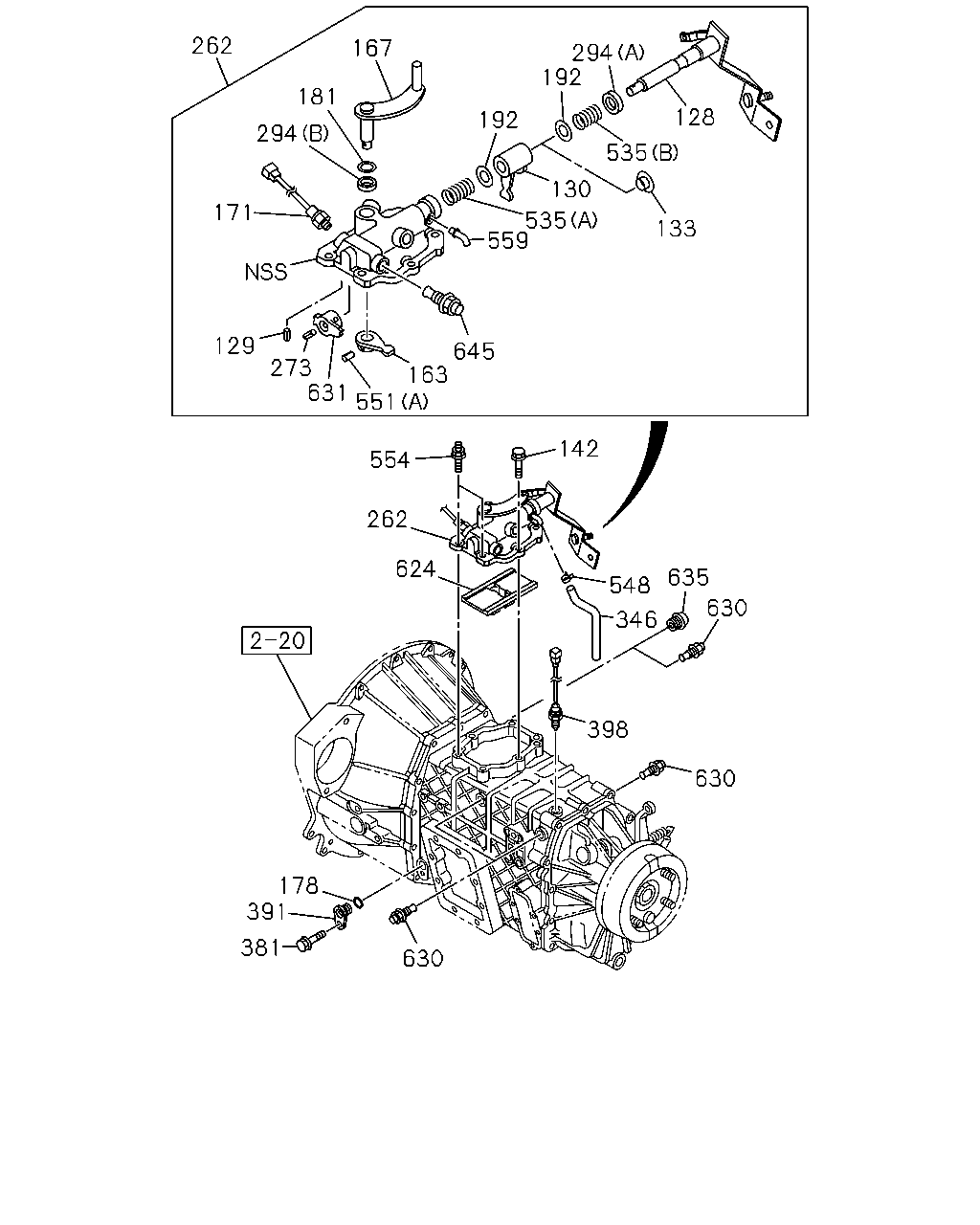

çizim 14066
262 167 294 192 181 128 192 294 535 130 171 535 559 133 129 645 163 551 273 631 142 554 262 624 635 548 630 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 0304- ●
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0303-0303 ● ●
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0304- ●
129 PIN; SPR,SHIFT
D=4 		1-09748-031-0 01 1 0303- ● ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0303- ● ●
133 SEAT; SPR 8-97305-667-0 01 1 0303- ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0303-0604 ● ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0605- ● ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0303- ● ●
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0303-0611 ● ●
167 LEVER; SELECT,EXTERNAL 8-98039-434-0 01 1 0612- ● ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0303-0611 ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0612- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0303- ● ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0303-0303 ● ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0304- ● ●
192 WASHER; PL 8-97305-661-0 02 1 0304- ●
192 WASHER; PL 8-97305-661-0 02 1 0303-0303 ● ●
192 WASHER; PL 8-97305-661-0 01 1 0304- ●
262 BOX ASM; SHIFT CONT 8-97256-825-7 01 1 0303-0404 ●
262 BOX ASM; SHIFT CONT 8-97362-750-2 01 1 0405- ●
262 BOX ASM; SHIFT CONT 8-97256-823-9 01 1 0303-0611 ●
262 BOX ASM; SHIFT CONT 8-98039-441-0 01 1 0612- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0303- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0303-0303 ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0304- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0303- ● ●
346 HOSE; AIR 8-97309-855-0 01 1 0303- ● ●
381 BOLT
M6X16 FLANGE 		0-28680-616-0 01 1 0303-0512 ● ●
381 BOLT
M6X16 FLANGE SOU 		0-28650-616-0 01 1 0601- ● ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 0303- ● ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0303-0604 ● ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0605- ● ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 0303- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 0303- ●
535 SPRING; LEVER
(A) 		8-97305-659-0 01 1 0303- ●
535 SPRING; LEVER
(B) 		8-97305-660-0 01 1 0303- ●
548 CLIP; HOSE 8-97031-674-0 01 1 0303- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0508- ●
551 PIN; SPRING
(A) L=17 		1-09748-032-0 01 1 0303- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0303-0507 ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0508- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0303- ● ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0303-0604 ● ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605- ● ●
559 PIPE; BREATHER 8-97305-517-0 02 1 0303-0507 ●
559 PIPE; BREATHER 8-97305-517-0 01 1 0303-0507 ●
559 PIPE; BREATHER 8-97305-517-0 01 1 0508-0604 ● ●
559 PIPE; BREATHER 8-97358-318-0 01 1 0605- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0303- ● ●
630 DETENT ASM 8-97241-341-0 03 1 0303-0604 ●
630 DETENT ASM 8-98019-536-0 03 1 0605- ●
630 DETENT ASM 8-97241-341-0 04 1 0303-0604 ●
630 DETENT ASM 8-98019-536-0 04 1 0605- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0303- ● ●
635 PLUG; DETENT 8-97229-313-2 01 1 0303-0611 ●
635 PLUG; DETENT 8-97380-892-0 01 1 0612- ●
645 DETENT ASM 8-97241-341-0 01 1 0405-0604 ●
645 DETENT ASM 8-98019-536-0 01 1 0605- ●

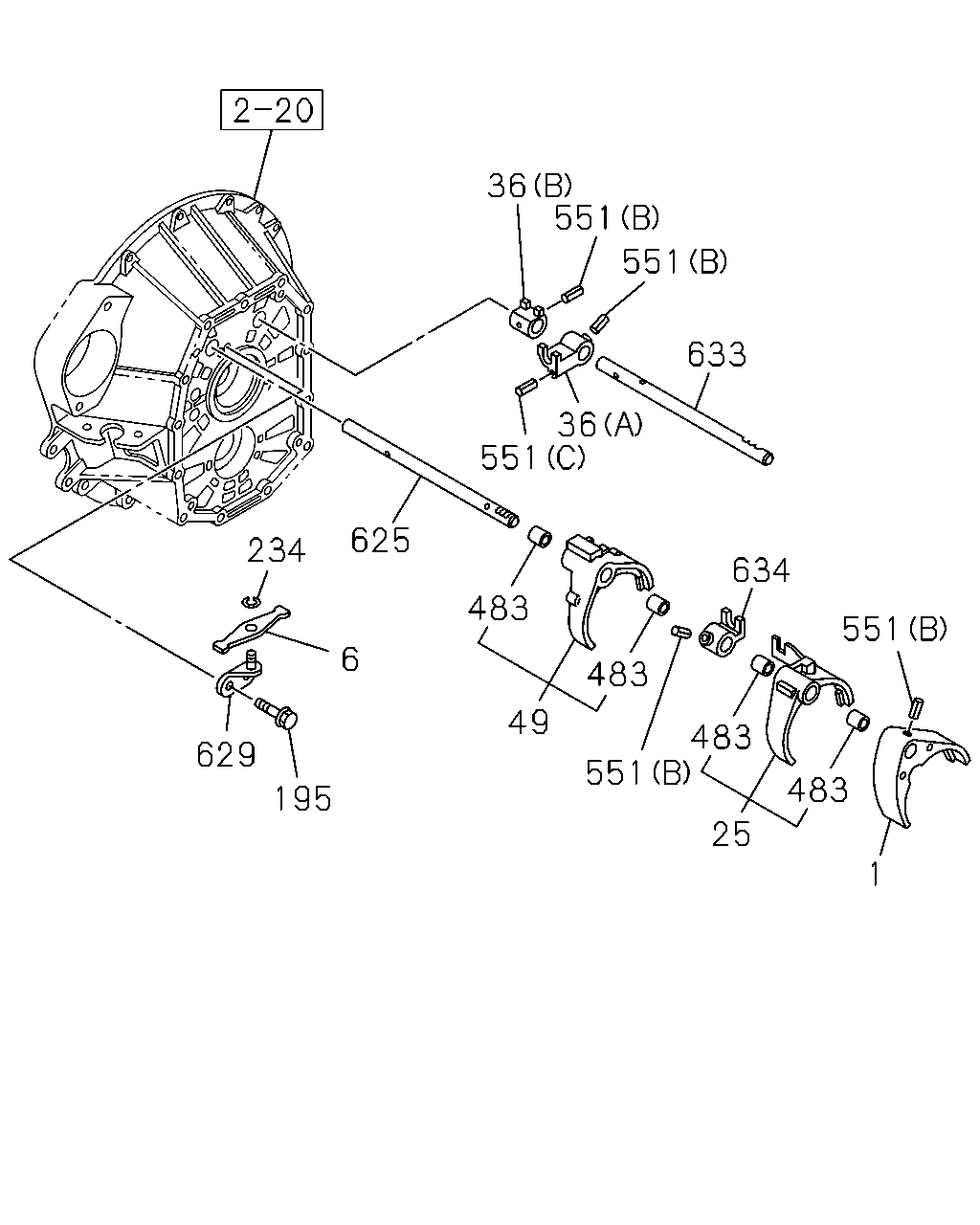

çizim 54884
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0303- ●
1 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0303- ●
6 LEVER; RELAY 8-97241-344-0 01 1 0303- ●
25 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0303-0404 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405- ●
25 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0303-0507 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 0508- ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 0303- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 0303- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0303- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0303-0507 ●
49 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 0508- ●
195 BOLT
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0303-0604 ● ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 0303- ●
234 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0303-0507 ●
234 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0508-0604 ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0605- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0303- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0508- ●
551 PIN; SPRING
(A) L=17 		1-09748-032-0 01 1 0303- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0303-0507 ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0508- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0303- ● ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-333-3 01 1 0303-0404 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 0405- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-332-2 01 1 0303-0507 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-735-0 01 1 0508- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 0303- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 0303- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97358-832-0 01 1 0303-0404 ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0405- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 0303- ●

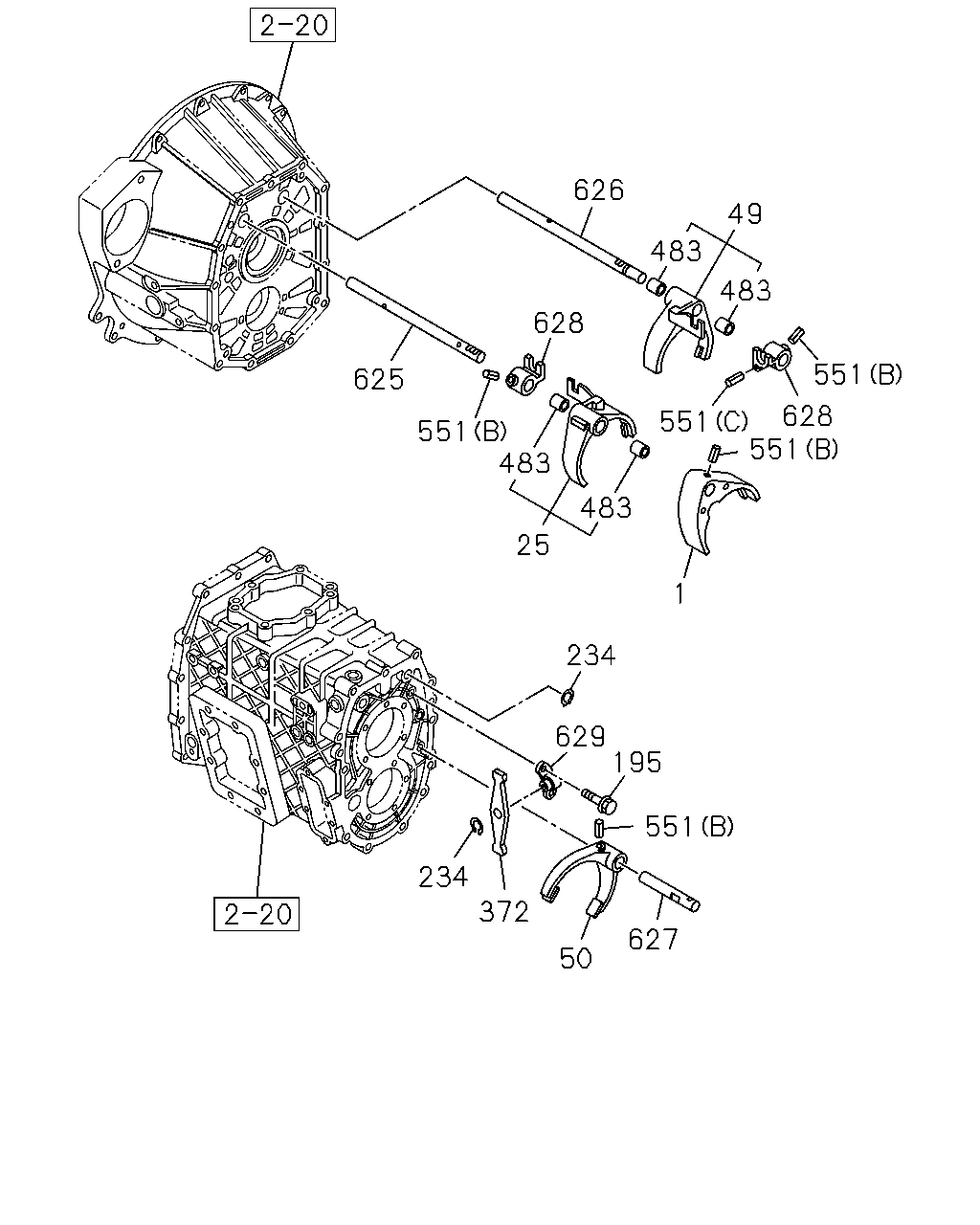

çizim 56746
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0303- ●
1 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0303- ●
25 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0303-0404 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405- ●
25 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0303-0507 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 0508- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0303- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0303-0507 ●
49 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 0508- ●
50 ARM; SHIFT,6TH 8-97241-324-1 01 1 0303- ●
195 BOLT
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0303-0604 ● ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 0303- ●
234 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0303-0507 ●
234 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0508-0604 ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0605- ●
372 LEVER; RELAY,6TH 8-97241-342-0 01 1 0303- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0303- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 05 1 0508- ●
551 PIN; SPRING
(A) L=17 		1-09748-032-0 01 1 0303- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0303-0507 ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0508- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0303- ● ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-333-3 01 1 0303-0404 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 0405- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-332-2 01 1 0303-0507 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-735-0 01 1 0508- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-334-1 01 1 0303-0507 ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97383-754-0 01 1 0508-0801 ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98107-548-0 01 1 0802- ●
627 ROD; GEAR SHIFT,6TH SUB 8-97241-339-0 01 1 0303-0805 ●
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0806- ●
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0303- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 0303- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 0303- ●
