Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#17734) — 367 parça

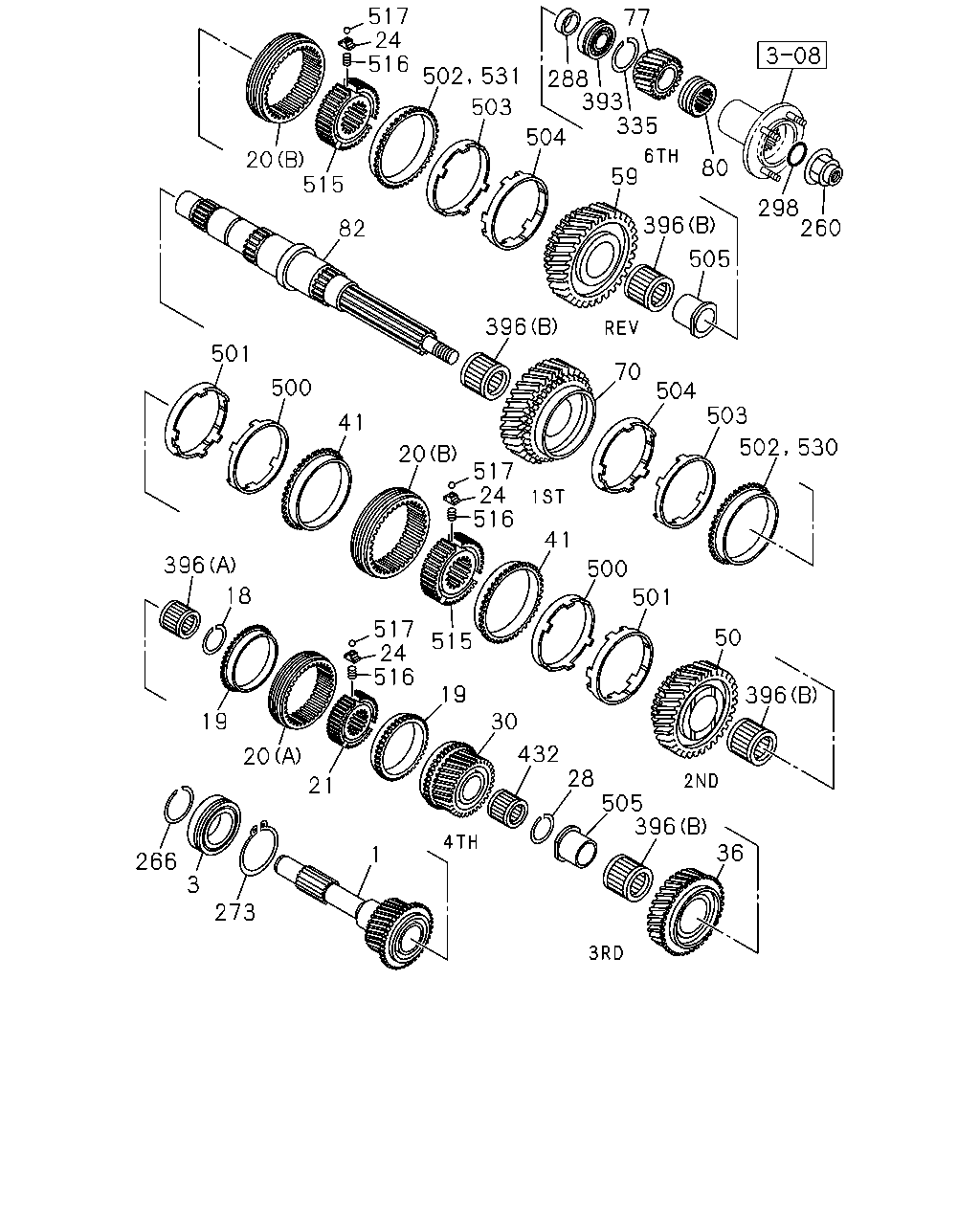

517 24 516 77 502 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 502 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 1 266 3 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0303-	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0303-0308		●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97372-362-0	01	1	0309-0506		●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-090-0	01	1	0507-		●
3	BEARING; TOP GEAR SHAFT	8-97253-098-1	01	1	0303-	●
3	BEARING; TOP GEAR SHAFT	8-97253-097-1	01	1	0303-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0303-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0303-		●
19	RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0303-		●
20	SLEEVE (B)	8-97241-295-2	02	1	0303-		●
20	SLEEVE (A)	8-97241-296-1	02	1	0303-		●
21	HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0303-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	0303-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	12	1	0303-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0303-	●	●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0303-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0303-	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0303-		●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0303-	●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0303-		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0303-	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0303-		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0303-	●
59	GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0303-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0303-0404	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0303-		●
77	GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0303-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0303-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0303-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0303-	●
82	SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0303-		●
260	NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0303-0604	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0605-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	0303-	●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	0303-		●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0303-	●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0303-		●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0303-	●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0303-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-94481-411-0	01	1	0303-0507	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0508-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0303-		●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	0303-	●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	0303-		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	0303-	●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	0303-		●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0303-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0303-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0303-		●
432	BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0303-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0303-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0303-		●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0303-	●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0303-		●
502	RING; BLOCK,LOW & REV Z=54	8-97241-305-2	02	1	0303-0402		●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0303-	●
503	RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0303-		●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0303-	●
504	RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0303-		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0303-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	0303-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0303-		●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0303-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0303-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0303-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0303-		●
530	RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-		●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0303-	●
531	RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-		●
531	RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0303-0305	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-	●

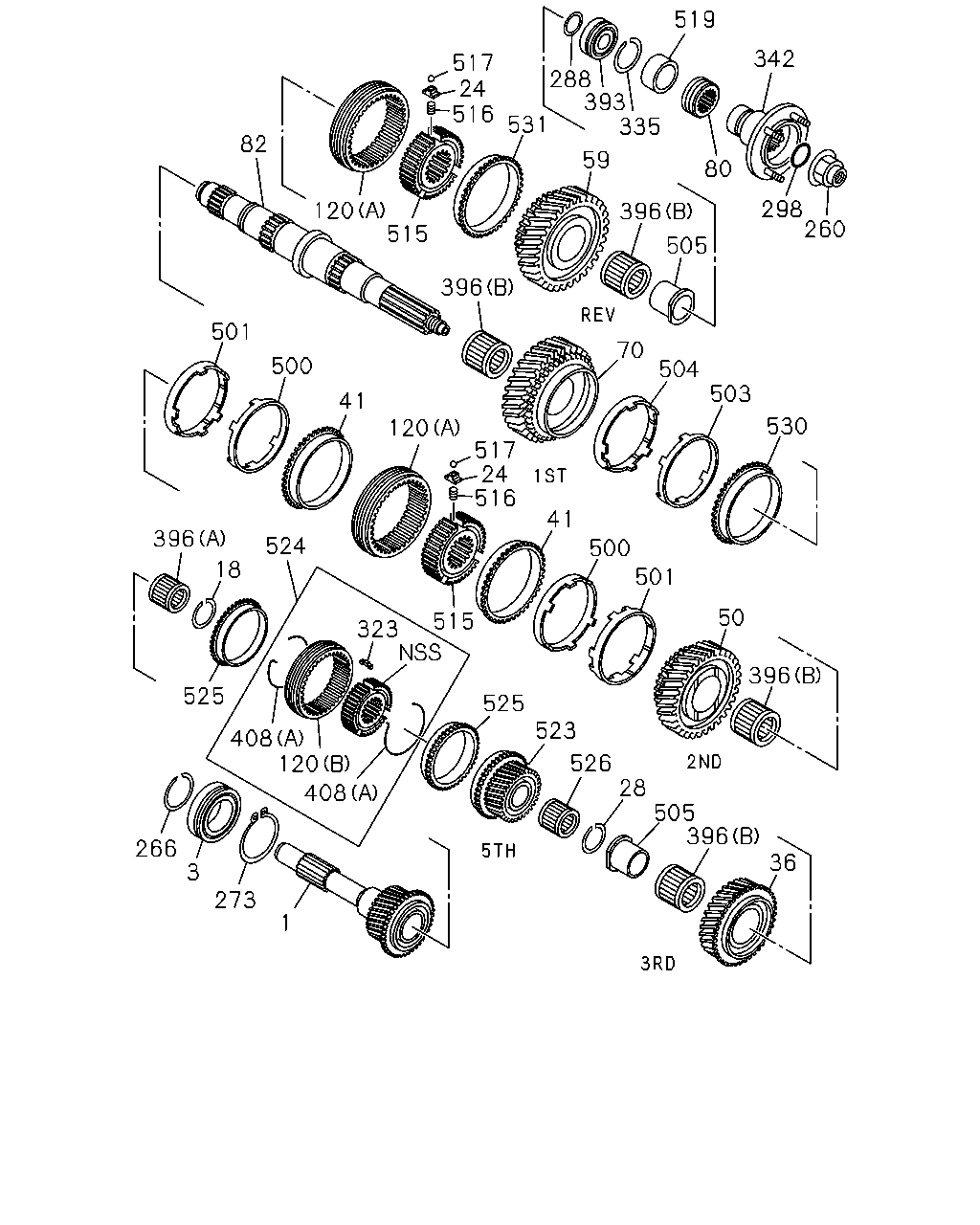

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 50 515 323 396 525 525 523 408 120 526 28 505 396 36 408 266 3 273 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0303-	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0303-0308		●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97372-362-0	01	1	0309-0506		●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-090-0	01	1	0507-		●
3	BEARING; TOP GEAR SHAFT	8-97253-098-1	01	1	0303-	●
3	BEARING; TOP GEAR SHAFT	8-97253-097-1	01	1	0303-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0303-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0303-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	0303-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	12	1	0303-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0303-	●	●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0303-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0303-	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0303-		●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0303-	●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0303-		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0303-	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0303-		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0303-	●
59	GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0303-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0303-0404	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0303-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0303-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0303-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0303-	●
82	SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0303-		●
120	SLEEVE (B)	8-94421-871-1	01	1	0512-	●
120	SLEEVE (A)	8-97241-296-1	02	1	0303-	●
260	NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0303-0604	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0605-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	0303-	●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	0303-		●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0303-	●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0303-		●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0303-	●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0303-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-94481-411-0	01	1	0303-0507	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0508-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0303-		●
323	INSERT	8-94448-202-2	03	1	0303-	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	0303-	●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	0303-		●
342	FLANGE; OUTPUT	8-97252-814-1	01	1	0303-0604	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	0605-	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	0303-	●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	0303-		●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0303-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0303-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0303-		●
408	SPRING (A)	8-94422-075-0	02	1	0303-0404	●
408	SPRING (A)	8-97366-040-1	02	1	0405-	●
408	SPRING (B)	8-94148-196-0	03	1	0303-0404	●	●
408	SPRING (B)	8-94148-196-0	03	1	0405-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0303-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0303-		●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0303-	●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0303-		●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0303-	●
503	RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0303-		●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0303-	●
504	RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0303-		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0303-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	0303-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0303-		●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0303-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0303-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0303-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0303-		●
519	COLLAR; MAINSHAFT END,5TH	8-97252-940-0	01	1	0303-	●
523	GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0303-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0303-0404	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0303-	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0303-	●
530	RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-		●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0303-	●
531	RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-		●
531	RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0303-0305	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-	●

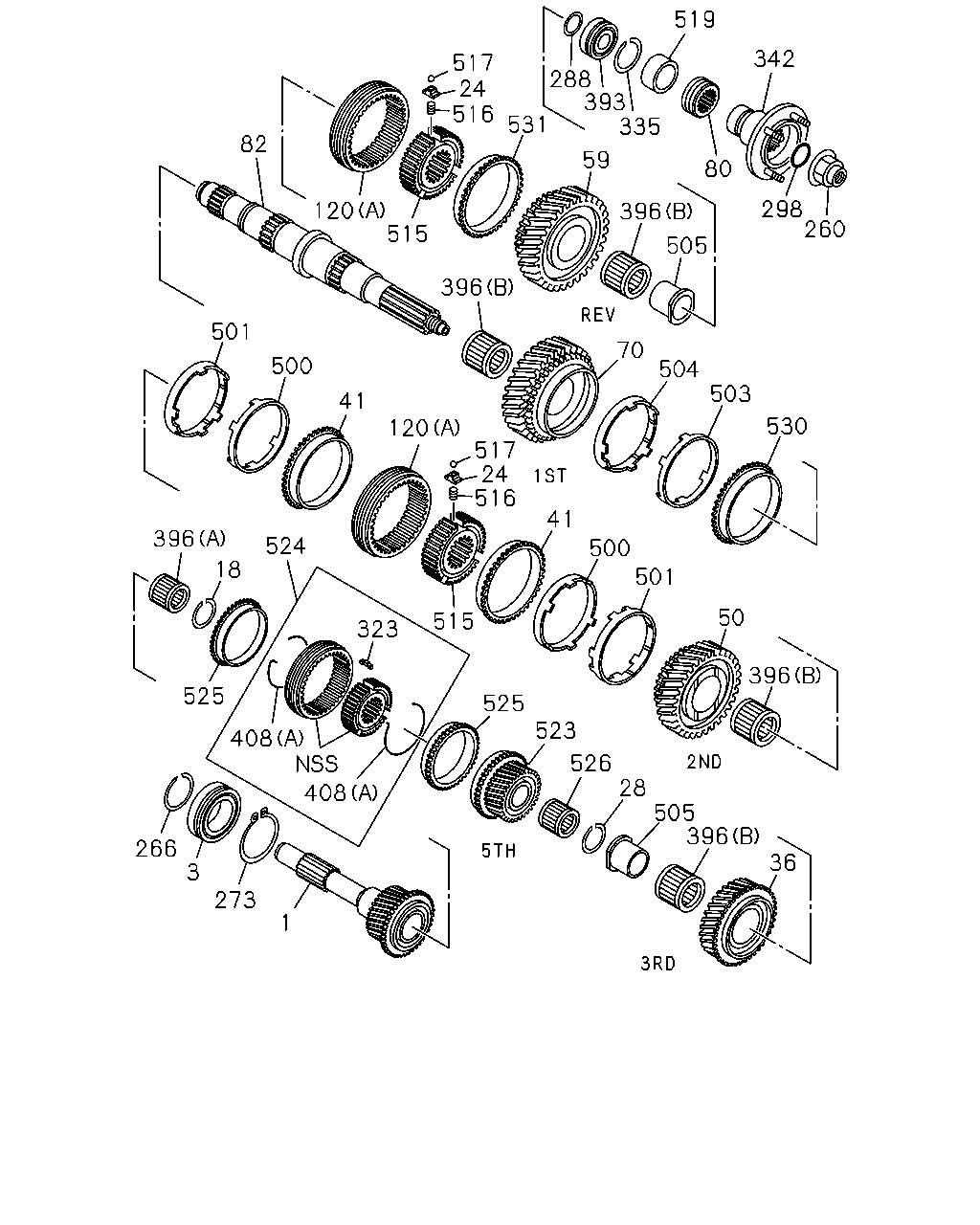

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 50 515 323 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0303-	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0303-0308		●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97372-362-0	01	1	0309-0506		●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-090-0	01	1	0507-		●
3	BEARING; TOP GEAR SHAFT	8-97253-098-1	01	1	0303-	●
3	BEARING; TOP GEAR SHAFT	8-97253-097-1	01	1	0303-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0303-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0303-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	0303-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	12	1	0303-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0303-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0303-	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0303-		●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0303-	●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0303-		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0303-	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0303-		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0303-	●
59	GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0303-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0303-0404	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0303-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0303-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0303-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0303-	●
82	SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0303-		●
120	SLEEVE (B)	8-94421-871-1	01	1	0512-	●
120	SLEEVE (A)	8-97241-296-1	02	1	0303-	●
260	NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0303-0604	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0605-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	0303-	●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	0303-		●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0303-	●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0303-		●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0303-	●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0303-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-94481-411-0	01	1	0303-0507	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0508-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0303-		●
323	INSERT	8-94448-202-2	03	1	0303-	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	0303-	●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	0303-		●
342	FLANGE; OUTPUT	8-97252-814-1	01	1	0303-0604	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	0605-	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	0303-	●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	0303-		●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0303-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0303-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0303-		●
408	SPRING (A)	8-94422-075-0	02	1	0303-0404	●
408	SPRING (A)	8-97366-040-1	02	1	0405-	●
408	SPRING (B)	8-94148-196-0	03	1	0303-0404	●	●
408	SPRING (B)	8-94148-196-0	03	1	0405-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0303-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0303-		●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0303-	●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0303-		●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0303-	●
503	RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0303-		●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0303-	●
504	RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0303-		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0303-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	0303-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0303-		●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0303-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0303-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0303-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0303-		●
519	COLLAR; MAINSHAFT END,5TH	8-97252-940-0	01	1	0303-	●
523	GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0303-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0303-0404	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0303-	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0303-	●
530	RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-		●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0303-	●
531	RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-		●
531	RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0303-0305	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-	●

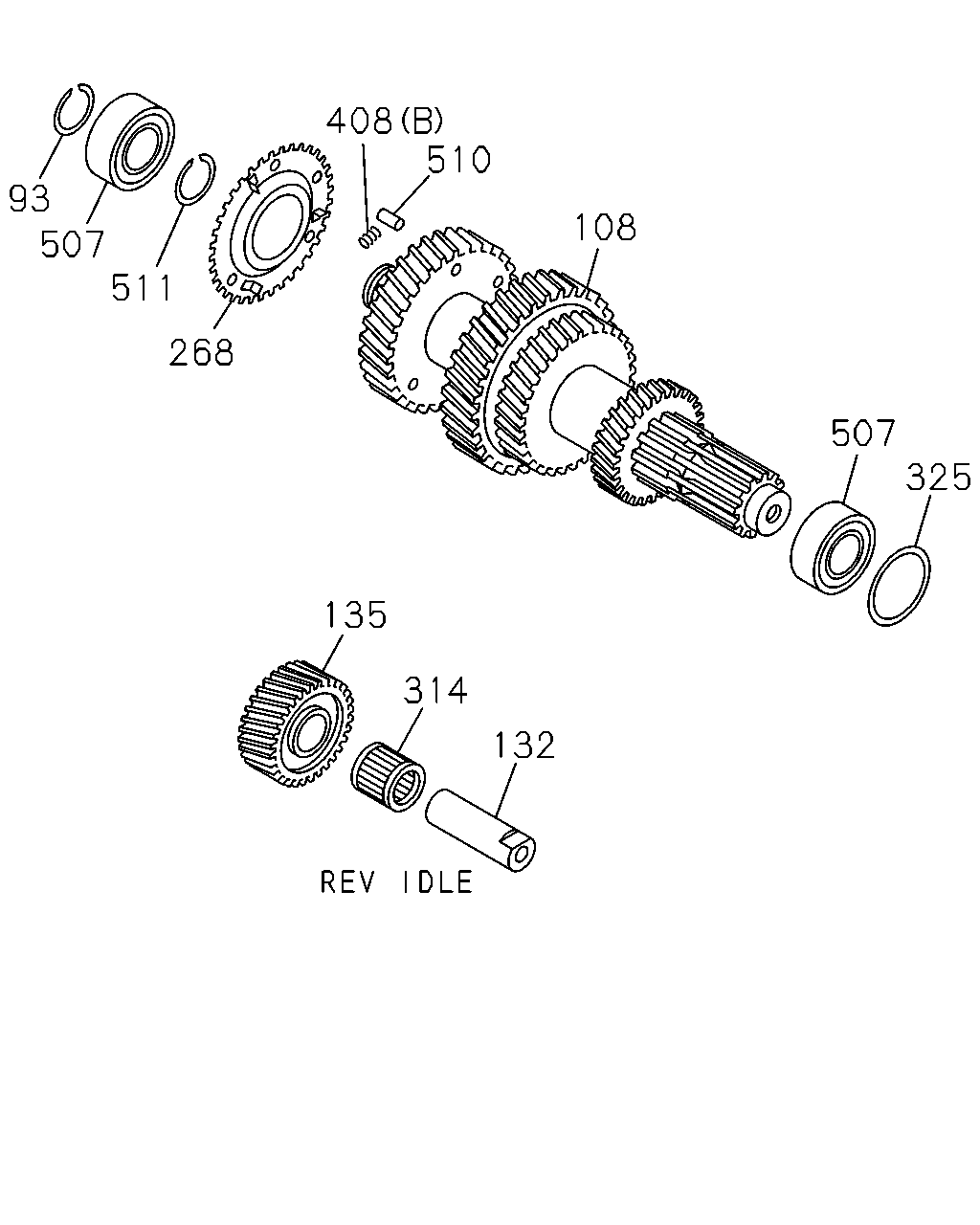

408 510 93 108 507 511 268 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0303-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0303-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0303-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0303-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0303-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0303-		●
108	SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0303-0404	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	0405-	●
108	SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0303-		●
132	SHAFT; REV	8-97252-655-0	01	1	0303-	●	●
135	GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0303-0512	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0601-	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0303-		●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0303-	●
268	PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0303-0404		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0303-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0303-		●
408	SPRING (A)	8-94422-075-0	02	1	0303-0404	●
408	SPRING (A)	8-97366-040-1	02	1	0405-	●
408	SPRING (B)	8-94148-196-0	03	1	0303-0404	●	●
408	SPRING (B)	8-94148-196-0	03	1	0405-	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0303-	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0303-		●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	0303-0404	●	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	0405-	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0303-0404	●	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-	●

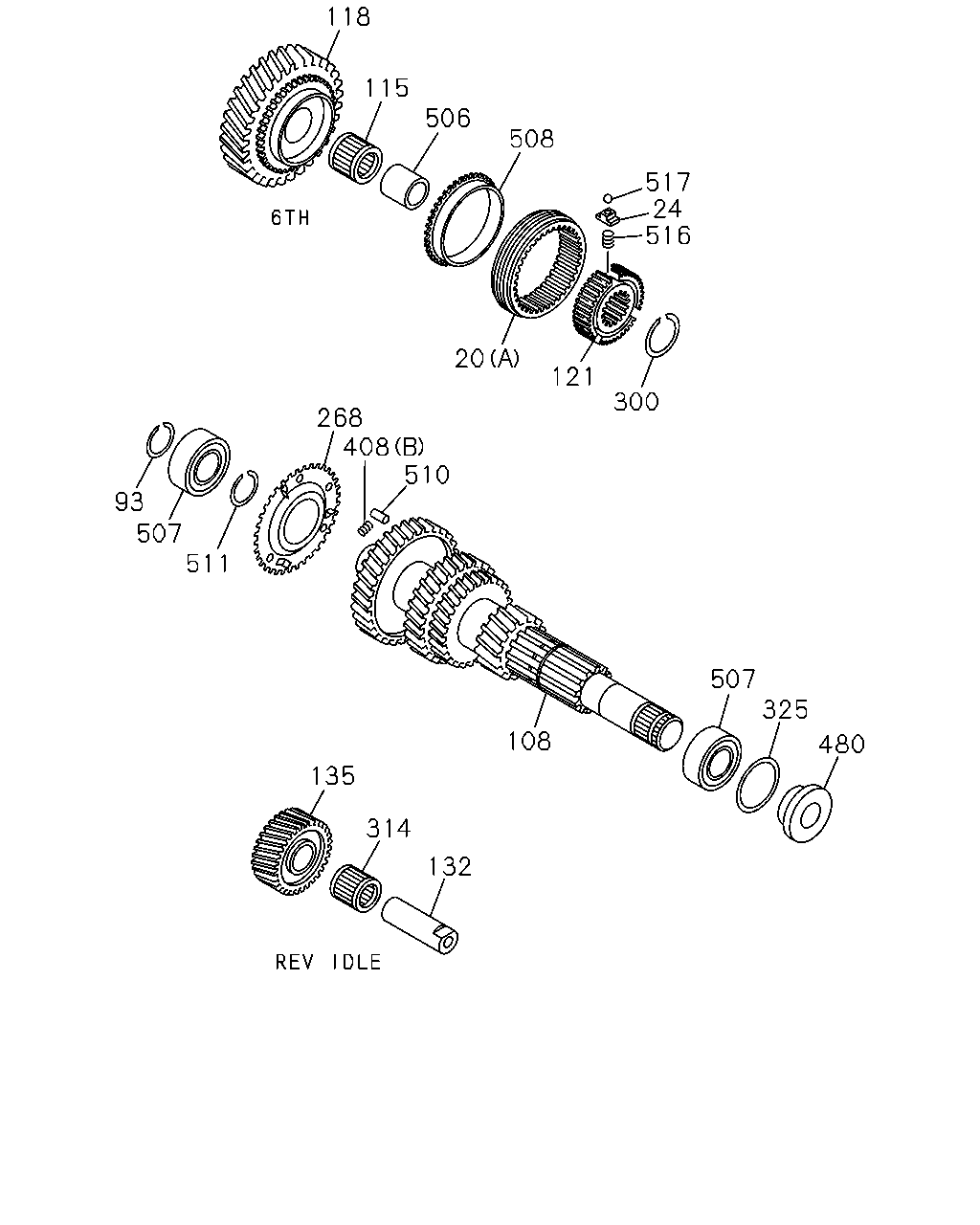

118 115 506 508 517 24 516 20 121 300 268 408 510 93 507 511 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (B)	8-97241-295-2	02	1	0303-		●
20	SLEEVE (A)	8-97241-296-1	02	1	0303-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	0303-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	12	1	0303-		●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0303-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0303-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0303-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0303-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0303-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0303-		●
108	SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0303-0404	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	0405-	●
108	SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0303-		●
115	BEARING; NEEDLE,6TH,COUNTER	8-97253-113-0	01	1	0303-		●
118	GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0303-		●
121	HUB; CLU,6TH	8-97241-301-2	01	1	0303-		●
132	SHAFT; REV	8-97252-655-0	01	1	0303-	●	●
135	GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0303-0512	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0601-	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0303-		●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0303-	●
268	PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0303-0404		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0303-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0303-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0303-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0303-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0303-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0303-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0303-0404	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0303-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0303-		●
408	SPRING (A)	8-94422-075-0	02	1	0303-0404	●
408	SPRING (A)	8-97366-040-1	02	1	0405-	●
408	SPRING (B)	8-94148-196-0	03	1	0303-0404	●	●
408	SPRING (B)	8-94148-196-0	03	1	0405-	●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	0303-		●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0303-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0303-	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0303-		●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0303-		●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	0303-0404	●	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	0405-	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0303-0404	●	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0303-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0303-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0303-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
