2-20 — MANUAL TRANSMISSION ASM AND CASE (#17732) — 174 parça

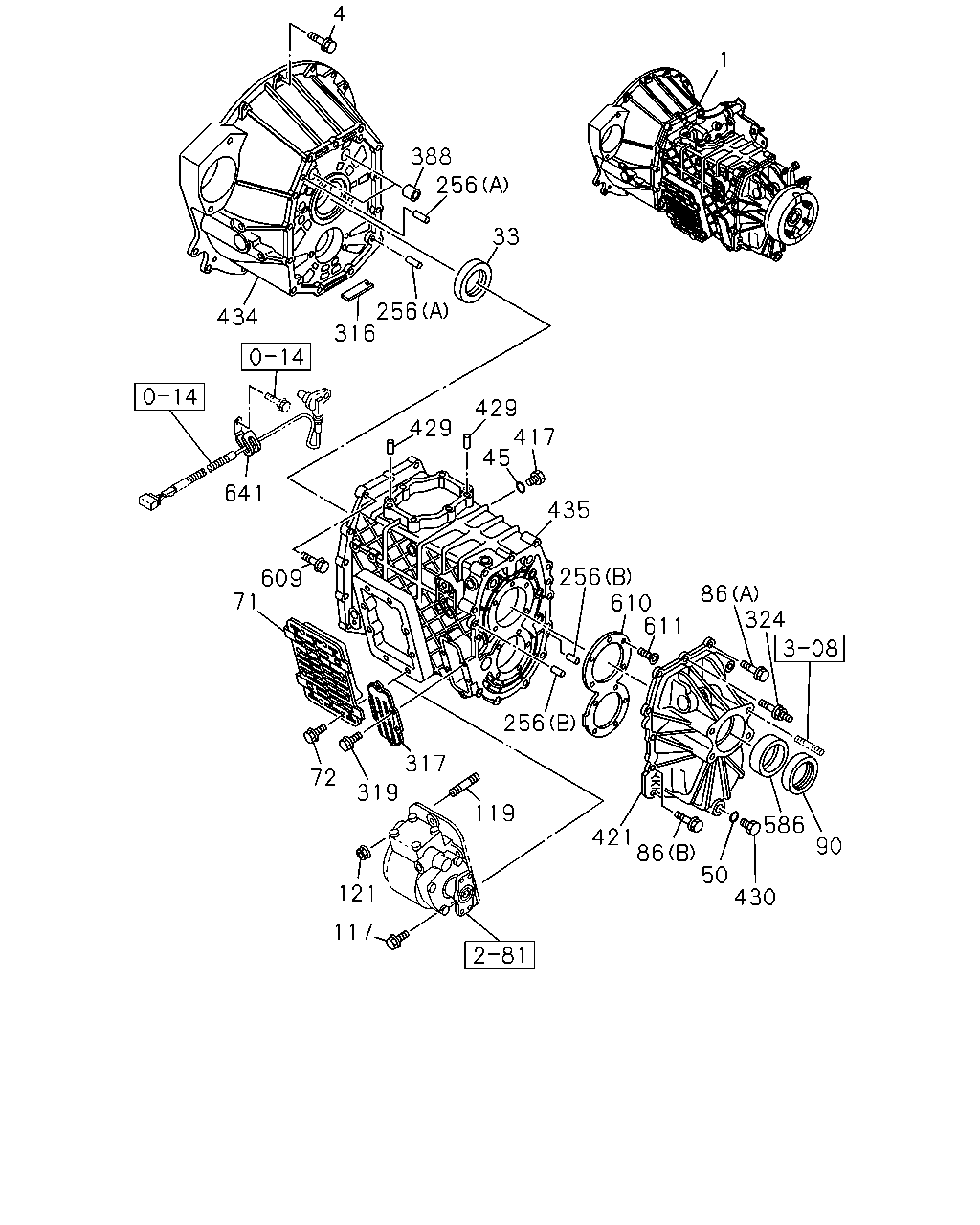

4 1 388 256 33 256 316 434 429 429 417 45 641 435 256 610 611 609 71 86 324 256 317 72 319 119 586 421 86 50 430 90 121 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0303-0404	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-	●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0303-0404	●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0303-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0303-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X30 FLANGE	0-28181-030-0	02	1	0303-0511	●	●
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X30 FLANGE	0-28181-030-0	02	1	0303-0511		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28151-030-0	02	1	0601-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X35 FLANGE	0-28181-035-0	03	1	0303-0511	●	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28151-035-0	03	1	0601-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE SOU	8-94399-863-1	02	1	0303-0511	●	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X55 FLANGE SOU	8-94399-863-1	02	1	0512-0611		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE SOU	8-94399-863-1	02	1	0512-0611	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0303-0512	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0303-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0303-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0303-	●	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0303-	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	0303-		●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	08	1	0303-		●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	06	1	0303-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0303-0512	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0303-0604	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97253-552-1	01	1	0303-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97253-551-1	01	1	0303-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0303-0512	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	0-28181-028-0	06	1	0303-0706		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	9-04411-025-0	03	1	0303-0604	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	03	1	0605-	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	9-04411-025-0	02	1	0303-0604		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	02	1	0605-		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91150-210-0	03	1	0303-0602	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE SOU	0-91180-210-0	03	1	0603-	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91150-210-0	02	1	0303-0602		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE SOU	0-91180-210-0	02	1	0603-		●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0303-	●	●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0303-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0303-	●	●
317	COVER; CASE	8-97252-626-0	01	1	0303-	●	●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0303-0512	●	●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	0601-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0303-0604	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-	●	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0303-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0303-0604	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-	●	●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0303-0507	●
421	COVER; RR,TRANS	8-98020-029-0	01	1	0508-	●
421	COVER; RR,TRANS	8-97238-934-4	01	1	0303-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0303-	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0303-0604	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-	●	●
434	HOUSING; CLU	8-97237-099-5	01	1	0303-	●
434	HOUSING; CLU	8-97238-930-4	01	1	0303-		●
435	CASE; TRANS	8-97252-623-7	01	1	0303-0403	●
435	CASE; TRANS	8-97379-375-0	01	1	0404-	●
435	CASE; TRANS	8-97252-622-5	01	1	0303-0408		●
435	CASE; TRANS	8-97382-868-1	01	1	0409-		●
586	BEARING; NEEDLE	8-97253-108-0	01	1	0303-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0303-0512	●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0601-	●	●
610	RETAINER; BRG	8-97241-315-1	01	1	0303-	●
610	RETAINER; BRG	8-97241-314-2	01	1	0303-		●
611	SCREW M10X27	8-97254-834-2	11	1	0303-0604	●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	0605-	●
611	SCREW M10X27	8-97254-834-2	10	1	0303-0604		●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	0605-		●
641	CLIP; CAM SENSOR 4HK1-TCS ENG(RJS) ID=8	8-94107-659-0	01	1	0512-		●

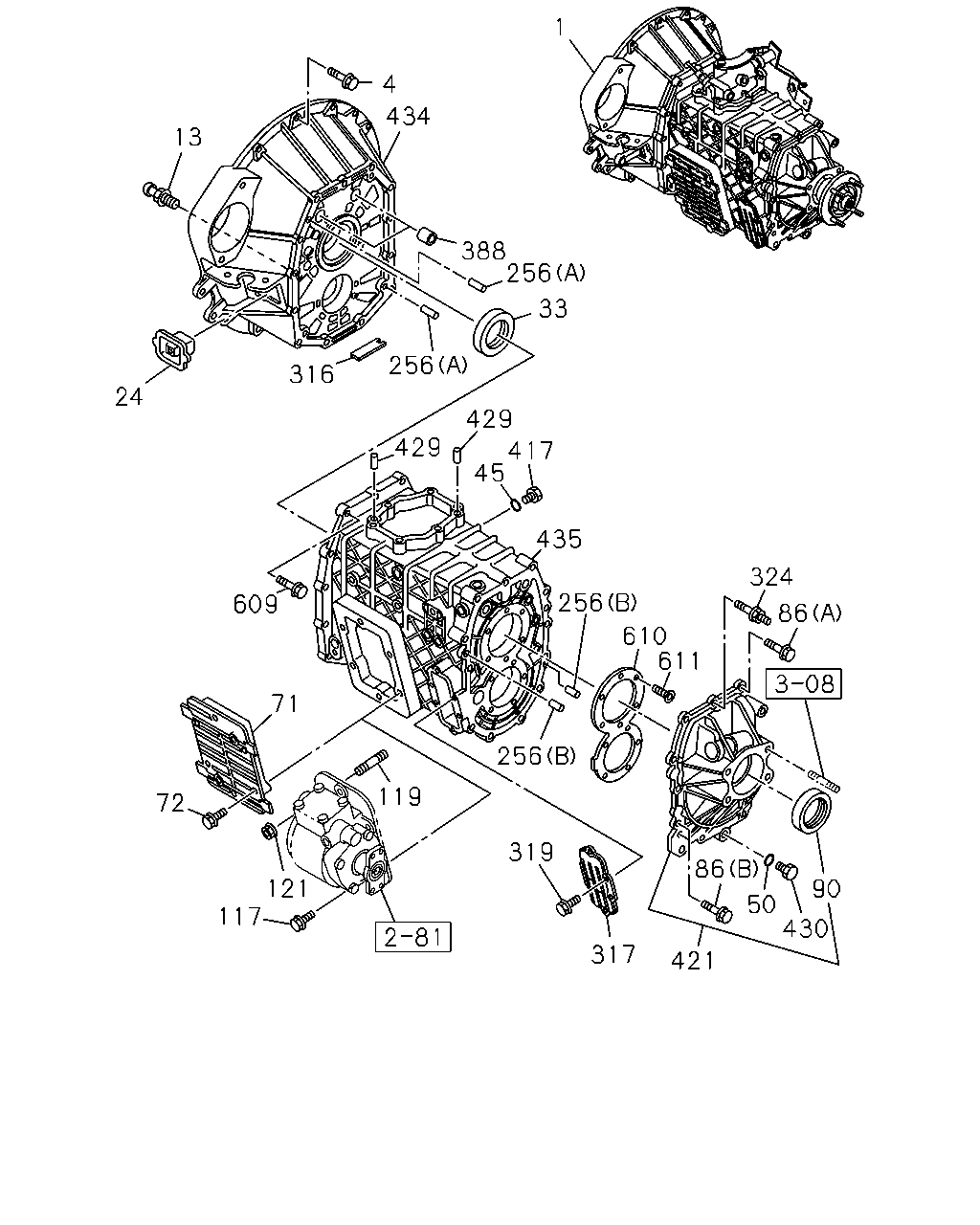

1 4 434 13 388 256 33 256 316 24 429 429 417 45 435 256 324 609 86 610 611 256 71 119 72 86 319 121 117 90 50 430 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0303-0404	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-	●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0303-0404	●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0303-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0303-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X30 FLANGE	0-28181-030-0	02	1	0303-0511	●	●
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X30 FLANGE	0-28181-030-0	02	1	0303-0511		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28151-030-0	02	1	0601-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X35 FLANGE	0-28181-035-0	03	1	0303-0511	●	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28151-035-0	03	1	0601-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE SOU	8-94399-863-1	02	1	0303-0511	●	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X55 FLANGE SOU	8-94399-863-1	02	1	0512-0611		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE SOU	8-94399-863-1	02	1	0512-0611	●
4	BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0303-0512	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-	●
13	SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0303-	●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0303-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0303-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0303-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0303-	●	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0303-	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	0303-		●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	08	1	0303-		●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	06	1	0303-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0303-0512	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0303-0604	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97253-552-1	01	1	0303-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97253-551-1	01	1	0303-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0303-0512	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	0-28181-028-0	06	1	0303-0706		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	9-04411-025-0	03	1	0303-0604	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	03	1	0605-	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	9-04411-025-0	02	1	0303-0604		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	02	1	0605-		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91150-210-0	03	1	0303-0602	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE SOU	0-91180-210-0	03	1	0603-	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91150-210-0	02	1	0303-0602		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) M10 FLANGE SOU	0-91180-210-0	02	1	0603-		●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0303-	●	●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0303-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0303-	●	●
317	COVER; CASE	8-97252-626-0	01	1	0303-	●	●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0303-0512	●	●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	0601-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0303-0604	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-	●	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0303-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0303-0604	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-	●	●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0303-0507	●
421	COVER; RR,TRANS	8-98020-029-0	01	1	0508-	●
421	COVER; RR,TRANS	8-97238-934-4	01	1	0303-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0303-	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0303-0604	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-	●	●
434	HOUSING; CLU	8-97237-099-5	01	1	0303-	●
434	HOUSING; CLU	8-97238-930-4	01	1	0303-		●
435	CASE; TRANS	8-97252-623-7	01	1	0303-0403	●
435	CASE; TRANS	8-97379-375-0	01	1	0404-	●
435	CASE; TRANS	8-97252-622-5	01	1	0303-0408		●
435	CASE; TRANS	8-97382-868-1	01	1	0409-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0303-0512	●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0601-	●	●
610	RETAINER; BRG	8-97241-315-1	01	1	0303-	●
610	RETAINER; BRG	8-97241-314-2	01	1	0303-		●
611	SCREW M10X27	8-97254-834-2	11	1	0303-0604	●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	0605-	●
611	SCREW M10X27	8-97254-834-2	10	1	0303-0604		●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	0605-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
