2-03 — CLUTCH PEDAL AND CONTROL (#17726) — 66 parça

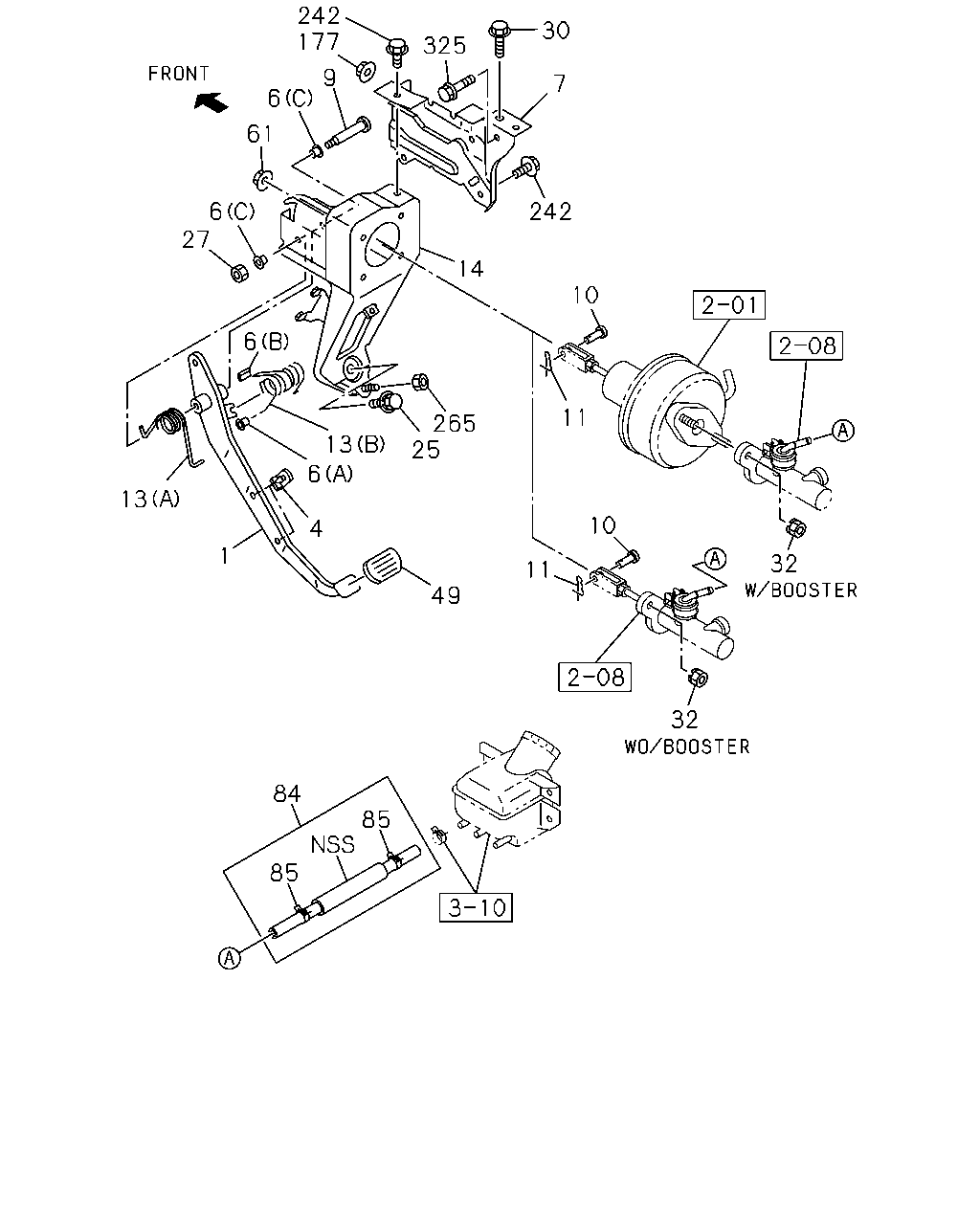

çizim 53023
242 177 30 325 9 6 7 61 242 6 27 14 10 6 11 265 25 13 6 13 10 4 1 11 32 49 32 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PEDAL; CLU
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97857-984-2 01 1 0303-0511 ● ●
1 PEDAL; CLU
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97857-984-2 01 1 0303-0511 ●
1 PEDAL; CLU
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97857-984-2 01 1 0512- ● ●
1 PEDAL; CLU
4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97857-984-2 01 1 0512- ● ●
1 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) SOU 		8-97853-220-2 01 1 0303-0511 ● ● ●
1 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) SOU 		8-97853-220-2 01 1 0512- ● ● ● ●
4 STOPPER; CLU PEDAL
SOU 		8-97853-534-1 02 1 0303-0511 ● ● ●
4 STOPPER; CLU PEDAL
SOU 		8-97853-534-1 02 1 0512- ● ● ● ●
6 BUSHING; CLU PEDAL
(C) SOU 		8-94238-596-0 02 1 0303-0511 ● ● ●
6 BUSHING; CLU PEDAL
(C) SOU 		8-94238-596-0 02 1 0512- ● ● ● ●
6 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		8-97853-619-0 02 1 0303-0511 ● ●
6 BUSHING; CLU PEDAL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		8-97853-619-0 02 1 0303-0511 ●
6 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		8-97853-619-0 02 1 0512- ● ●
6 BUSHING; CLU PEDAL
4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		8-97853-619-0 02 1 0512- ● ●
6 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-620-0 01 1 0303-0511 ● ●
6 BUSHING; CLU PEDAL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-620-0 01 1 0303-0511 ●
6 BUSHING; CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-620-0 01 1 0512- ● ●
6 BUSHING; CLU PEDAL
4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-620-0 01 1 0512- ● ●
7 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0303-0511 ● ● ●
7 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0512- ● ● ● ●
9 PIN; CLU PEDAL
SOU 		8-97866-667-0 01 1 0303-0511 ● ● ●
9 PIN; CLU PEDAL
SOU 		8-97866-667-0 01 1 0512- ● ● ● ●
10 PIN; CLU PEDAL
SOU 		8-94410-276-0 01 1 0303-0511 ● ● ●
10 PIN; CLU PEDAL
SOU 		8-94410-276-0 01 1 0512- ● ● ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
SOU 		8-94279-912-0 01 1 0303-0511 ● ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
SOU 		8-94279-912-0 01 1 0512- ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-221-1 01 1 0303-0511 ● ●
13 SPRING; ASSIST,CLU PEDAL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-221-1 01 1 0303-0511 ●
13 SPRING; ASSIST,CLU PEDAL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-221-1 01 1 0512- ● ●
13 SPRING; ASSIST,CLU PEDAL
4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-221-1 01 1 0512- ● ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) SOU 		8-97853-535-1 01 1 0303-0511 ● ● ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) SOU 		8-97853-535-1 01 1 0512- ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0303-0511 ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0303-0511 ●
14 BRACKET ASM; CLU PEDAL MTG
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0512- ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0512- ● ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0303-0511 ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0512- ● ● ● ●
25 BOLT; PEDAL
M10X22 W/PL WASHER SOU 		8-97313-188-0 01 1 0303-0511 ● ● ●
25 BOLT; PEDAL
M10X22 W/PL WASHER SOU 		8-97313-188-0 01 1 0512- ● ● ● ●
27 NUT; FULCRUM PIN
M10 FLANGE SOU 		1-09440-022-0 01 1 0303-0511 ● ● ●
27 NUT; FULCRUM PIN
M10 FLANGE SOU 		1-09440-022-0 01 1 0512- ● ● ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 0303-0511 ● ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 0512-0512 ● ● ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ● ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER SOU 		8-94279-050-0 02 1 0303-0511 ● ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER SOU 		8-94279-050-0 02 1 0512- ● ● ● ●
49 RUBBER; PAD,CLU PEDAL
SOU 		8-97853-413-2 01 1 0303-0511 ● ● ●
49 RUBBER; PAD,CLU PEDAL
SOU 		8-97853-413-2 01 1 0512- ● ● ● ●
61 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER SOU 		8-94279-050-0 04 1 0303-0511 ● ● ●
61 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER SOU 		8-94279-050-0 04 1 0512- ● ● ● ●
84 HOSE; RUBBER,CLU LINE
SOU 		8-97135-025-0 01 1 0303-0511 ● ● ●
84 HOSE; RUBBER,CLU LINE
SOU 		8-97135-025-0 01 1 0512- ● ● ● ●
85 CLIP; HOSE TO M/CYL
SOU 		8-97130-480-0 02 1 0303-0511 ● ● ●
85 CLIP; HOSE TO M/CYL
SOU 		8-97130-480-0 02 1 0512- ● ● ● ●
177 NUT; BRKT
M8 W/LK WASHER SOU 		8-94279-050-0 02 1 0303-0511 ● ● ●
177 NUT; BRKT
M8 W/LK WASHER SOU 		8-94279-050-0 02 1 0512- ● ● ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 0303-0511 ● ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 0512-0512 ● ● ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28450-816-0 02 1 0601- ● ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE SOU 		8-97046-127-0 01 1 0303-0511 ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE SOU 		8-97046-127-0 01 1 0512-0610 ● ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 0303-0511 ● ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ● ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ●
