2-01 — CLUTCH (#17725) — 73 parça

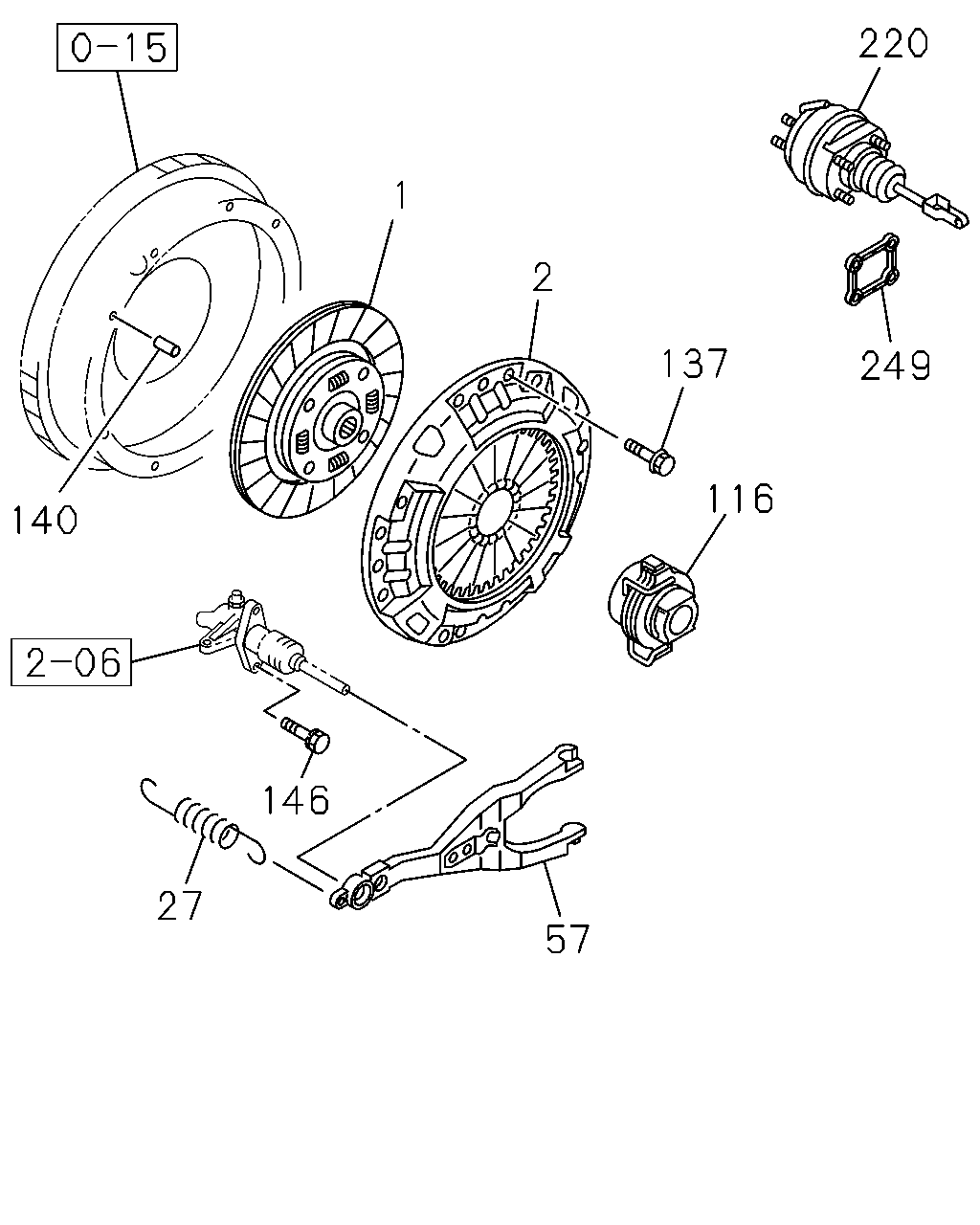

220 1 2 137 249 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 4HF1 ENG(RLS)	8-97320-355-0	01	1	0303-0412	●
1	DISC; CLUTCH 4HF1 ENG(RLS)	8-97377-149-0	01	1	0501-	●
1	DISC; CLUTCH 4HE1 ENG(RLY)	8-97259-940-0	01	1	0303-0308		●
1	DISC; CLUTCH 4HE1 ENG(RLY)	8-97367-795-0	01	1	0309-0511		●
1	DISC; CLUTCH 4HK1-TCS ENG(RJS)	8-97367-795-0	01	1	0512-		●
2	PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0303-0303	●
2	PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97351-833-0	01	1	0303-0412	●
2	PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0501-	●
2	PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97038-831-2	01	1	0303-0303		●
2	PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97351-794-0	01	1	0303-0511		●
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	8-97351-794-0	01	1	0512-		●
27	SPRING; RETURN,SHIFT FORK	8-97184-359-0	01	1	0303-	●
27	SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0303-		●
57	FORK; SHIFT,CLU	8-97255-303-0	01	1	0303-	●
57	FORK; SHIFT,CLU	8-97310-456-1	01	1	0303-		●
116	BLOCK; SHIFT,CLU	8-97255-313-0	01	1	0303-	●
137	BOLT; CLU COVER 4HE1 ENG(RLY) M10X16 FLANGE	0-28081-016-0	10	1	0303-0511		●
137	BOLT; CLU COVER 4HF1 ENG(RLS) M10X16 FLANGE	0-28081-016-0	10	1	0303-0511	●
137	BOLT; CLU COVER 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28081-016-0	10	1	0512-0512		●
137	BOLT; CLU COVER 4HF1 ENG(RLS) M10X16 FLANGE	0-28081-016-0	10	1	0512-0512	●
137	BOLT; CLU COVER 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28051-016-0	10	1	0601-		●
137	BOLT; CLU COVER 4HF1 ENG(RLS) M10X16 FLANGE	0-28051-016-0	10	1	0601-	●
140	PIN; STRAIGHT 4HE1 ENG(RLY) L=25	8-94410-361-0	02	1	0303-0511		●
140	PIN; STRAIGHT 4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0303-0511	●
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	0512-		●
140	PIN; STRAIGHT 4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0512-	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE	0-28680-830-0	02	1	0303-0512	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) SOU	8-97162-962-1	01	1	0303-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) SOU	8-97166-854-1	01	1	0303-0511		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) SOU	8-97166-854-1	01	1	0512-		●
249	SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T) SOU	8-97167-489-0	01	1	0303-	●	●

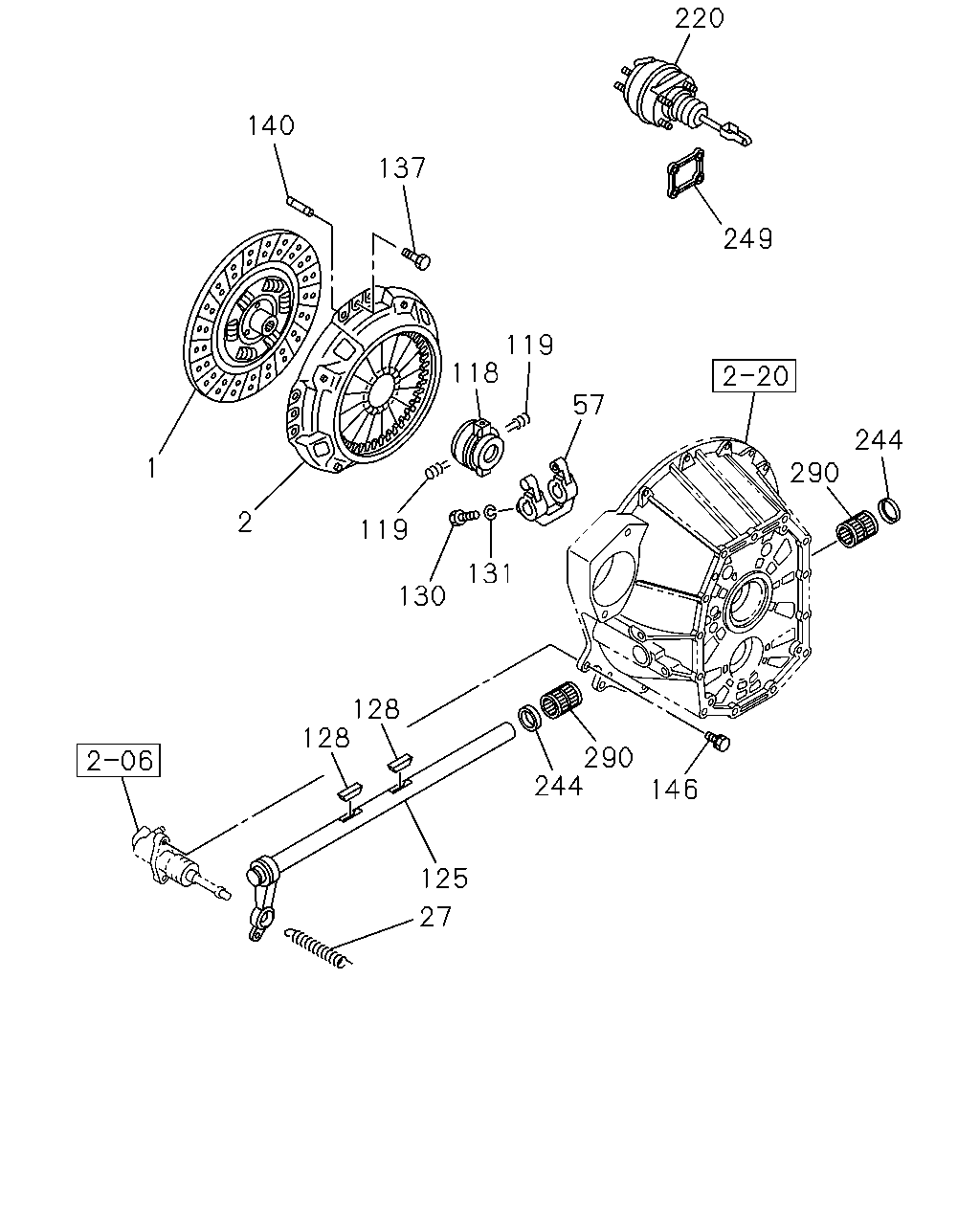

220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 4HF1 ENG(RLS)	8-97320-355-0	01	1	0303-0412	●
1	DISC; CLUTCH 4HF1 ENG(RLS)	8-97377-149-0	01	1	0501-	●
1	DISC; CLUTCH 4HE1 ENG(RLY)	8-97259-940-0	01	1	0303-0308		●
1	DISC; CLUTCH 4HE1 ENG(RLY)	8-97367-795-0	01	1	0309-0511		●
1	DISC; CLUTCH 4HK1-TCS ENG(RJS)	8-97367-795-0	01	1	0512-		●
2	PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0303-0303	●
2	PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97351-833-0	01	1	0303-0412	●
2	PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0501-	●
2	PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97038-831-2	01	1	0303-0303		●
2	PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97351-794-0	01	1	0303-0511		●
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	8-97351-794-0	01	1	0512-		●
27	SPRING; RETURN,SHIFT FORK	8-97184-359-0	01	1	0303-	●
27	SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0303-		●
57	FORK; SHIFT,CLU	8-97255-303-0	01	1	0303-	●
57	FORK; SHIFT,CLU	8-97310-456-1	01	1	0303-		●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	0303-		●
119	SPRING; SHIFT FORK	1-31329-024-0	02	1	0303-		●
125	SHAFT; CLU	8-97310-435-0	01	1	0303-		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0303-		●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0303-0512		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-		●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0303-0603		●
131	WASHER; LK,SHIFT FORK ID=8.2 SOU	0-91510-508-0	01	1	0604-		●
137	BOLT; CLU COVER 4HE1 ENG(RLY) M10X16 FLANGE	0-28081-016-0	10	1	0303-0511		●
137	BOLT; CLU COVER 4HF1 ENG(RLS) M10X16 FLANGE	0-28081-016-0	10	1	0303-0511	●
137	BOLT; CLU COVER 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28081-016-0	10	1	0512-0512		●
137	BOLT; CLU COVER 4HF1 ENG(RLS) M10X16 FLANGE	0-28081-016-0	10	1	0512-0512	●
137	BOLT; CLU COVER 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28051-016-0	10	1	0601-		●
137	BOLT; CLU COVER 4HF1 ENG(RLS) M10X16 FLANGE	0-28051-016-0	10	1	0601-	●
140	PIN; STRAIGHT 4HE1 ENG(RLY) L=25	8-94410-361-0	02	1	0303-0511		●
140	PIN; STRAIGHT 4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0303-0511	●
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	0512-		●
140	PIN; STRAIGHT 4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0512-	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE	0-28680-830-0	02	1	0303-0512	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) SOU	8-97162-962-1	01	1	0303-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) SOU	8-97166-854-1	01	1	0303-0511		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) SOU	8-97166-854-1	01	1	0512-		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0303-		●
249	SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T) SOU	8-97167-489-0	01	1	0303-	●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	0303-		●
