Sayfa 1-50 - Isuzu EPC

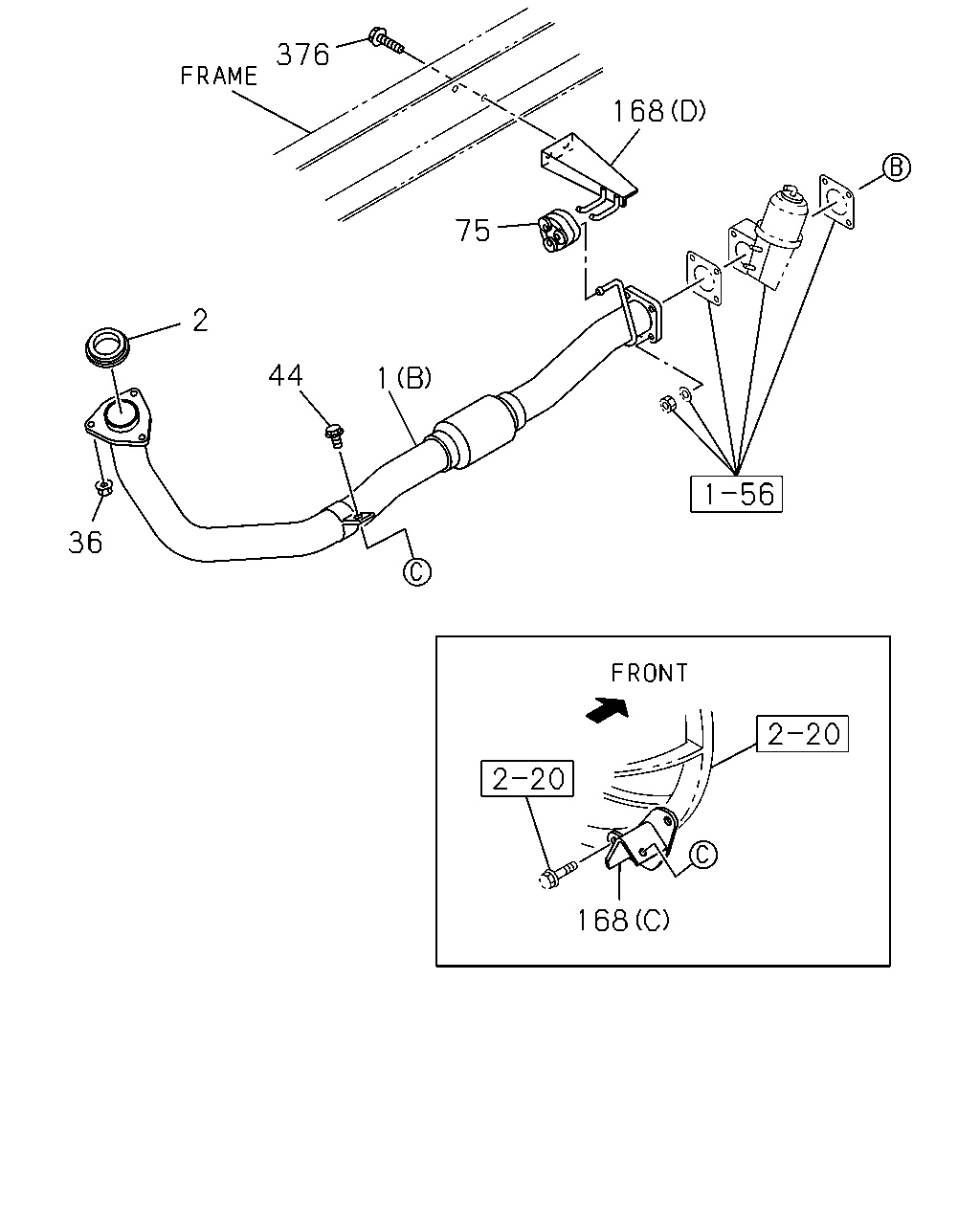

1-50 — EXHAUST PIPE AND SILENCER (#17722) — 380 parça

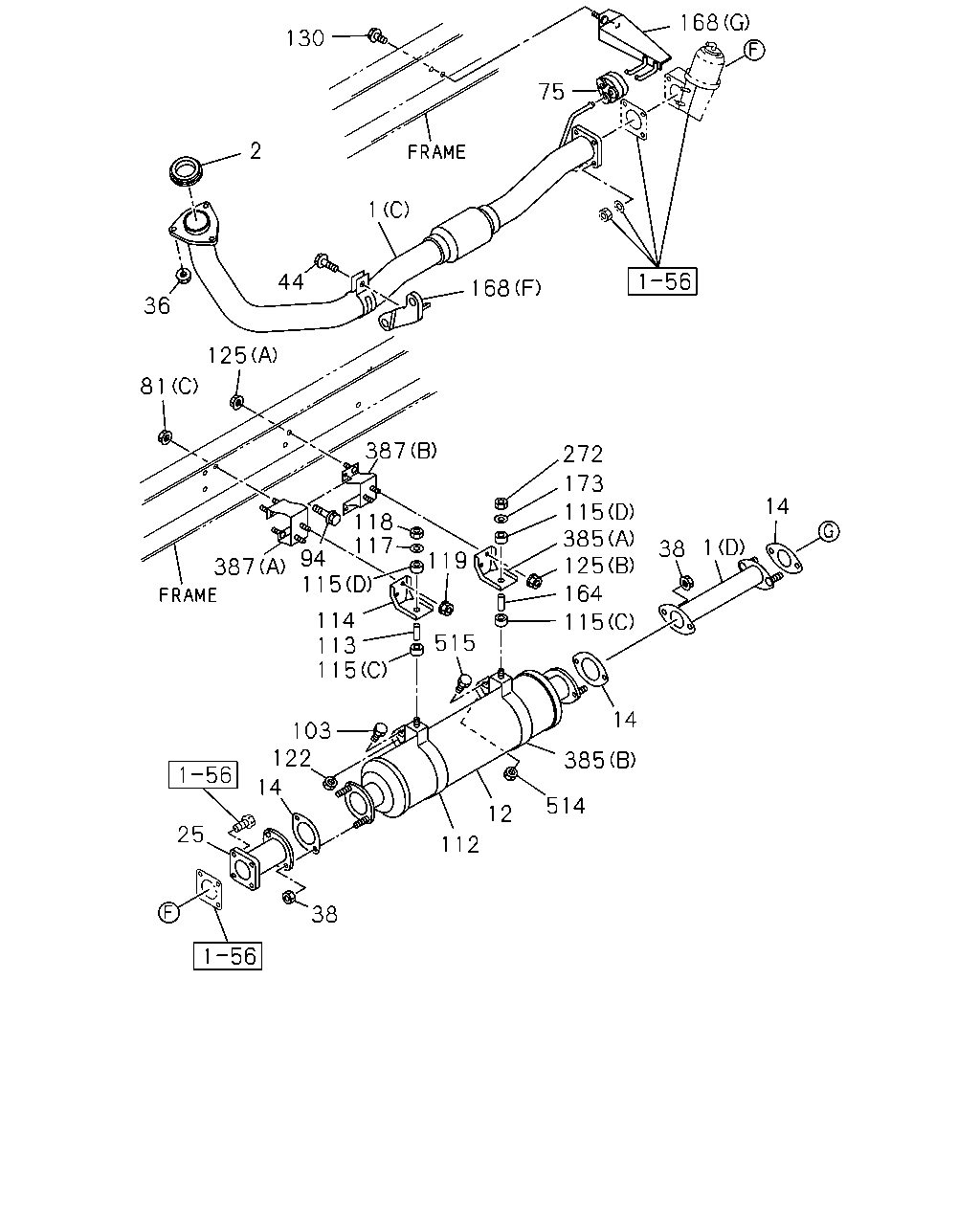

168 130 75 2 1 44 168 36 125 81 387 272 173 14 115 385 125 118 117 1 38 119 94 115 387 164 114 113 115 115 515 14 103 122 385 14 514 12 25 112 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-97307-804-0	01	1	0512-	●	●
1	PIPE; EXH 4HF1 ENG(RLS) (A)	8-97256-415-1	01	1	0303-			●	●
1	PIPE; EXH 4HE1 ENG(RLY) (B)	8-97134-449-0	01	1	0303-0511		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-97365-227-1	01	1	0512-	●	●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS) SOU	8-97180-749-2	01	1	0303-0408			●	●
2	GASKET; PIPE TO MANIF 4HE1 ENG(RLY) SOU	8-97180-749-2	01	1	0303-0408		●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0409-0511			●	●
2	GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0511		●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0512-			●	●
2	GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	0512-	●	●
12	SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0303-			●	●
12	SILENCER ASM; EXH 4HE1 ENG(RLY)	8-97114-564-1	01	1	0303-0511		●
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS)	8-97222-489-1	01	1	0512-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0303-0511		●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0303-0511		●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0512-	●	●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0512-	●	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HK1-TCS ENG(RJS) ID=64.7 SOU	8-94328-352-0	01	1	0512-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS)	8-97361-723-0	01	1	0303-			●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY)	8-97361-724-0	01	1	0303-0511		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS)	8-97185-798-0	01	1	0512-	●	●
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0303-0511			●	●
36	NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE SOU	8-97096-192-1	03	1	0303-0511		●
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-			●	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-	●	●
38	NUT; SILENCER 4HF1 ENG(RLS) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511			●	●
38	NUT; SILENCER 4HE1 ENG(RLY) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●
38	NUT; SILENCER M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●	●	●
38	NUT; SILENCER 4HK1-TCS ENG(RJS) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●
38	NUT; SILENCER M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●	●	●
38	NUT; SILENCER 4HK1-TCS ENG(RJS) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802			●	●
44	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28081-040-0	01	1	0512-0512	●	●
44	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28051-040-0	01	1	0601-	●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X35 FLANGE	0-28080-835-0	01	1	0303-0312			●	●
44	BOLT; BRKT 4HE1 ENG(RLY) M8X35 FLANGE	0-28080-835-0	01	1	0303-0312		●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0511			●	●
44	BOLT; BRKT 4HE1 ENG(RLY) M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0511		●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0707			●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801			●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-			●	●
75	RUBBER; SUPPORT,BRKT 4HF1 ENG(RLS) SOU	8-97166-498-0	01	1	0303-			●	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY)	8-97080-694-0	01	1	0303-0511		●
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS)	8-97080-694-0	01	1	0512-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (C) M10 FLANGE SOU	0-91150-110-0	03	1	0512-0602	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (C) M10 FLANGE SOU	0-91180-110-0	03	1	0603-	●	●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511			●	●
81	NUT; BRKT 4HE1 ENG(RLY) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602			●	●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-			●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28681-030-0	01	1	0512-0512	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X30 FLANGE SOU	0-28651-030-0	01	1	0601-	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0303-0511		●	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0512-	●	●	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M8X45	0-20800-845-0	01	1	0512-	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802	●	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0303-0511		●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0707	●	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801	●	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-	●	●	●	●
112	BRACKET; HANGER 4HK1-TCS ENG(RJS)	8-97207-224-0	01	1	0512-	●	●
112	BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0303-0511			●	●
112	BRACKET; HANGER 4HE1 ENG(RLY)	8-97076-020-0	01	1	0303-0511		●
112	BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0512-			●	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	01	1	0303-0511		●	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●	●	●
114	BRACKET; EXH SILENCER 4HK1-TCS ENG(RJS)	8-94329-857-0	01	1	0512-	●	●
114	BRACKET; EXH SILENCER 4HF1 ENG(RLS)	8-97041-227-0	01	1	0303-0511			●	●
114	BRACKET; EXH SILENCER 4HE1 ENG(RLY)	8-97041-227-0	01	1	0303-0511		●
114	BRACKET; EXH SILENCER 4HF1 ENG(RLS)	8-97041-227-0	01	1	0512-			●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (C)	8-97379-882-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (C)	8-97379-882-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (D)	8-97379-927-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (D)	8-97379-927-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0303-0511		●	●	●
115	RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0512-			●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0303-0511		●	●	●
115	RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0512-			●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0303-0511		●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0512-	●	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0303-0511		●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0512-	●	●	●	●
119	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511		●	●	●
119	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●	●	●
119	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0303-0511		●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0512-0512	●	●	●	●
122	NUT; HANGER BRKT M8 SOU	0-91110-508-0	01	1	0601-	●	●	●	●
125	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●
125	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●
125	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●
125	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●
130	BOLT; BRKT 4HF1 ENG(RLS) M10X35 FLANGE	0-28681-035-0	01	1	0303-0511			●	●
130	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	01	1	0512-0512	●	●	●	●
130	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	01	1	0601-	●	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0303-0511		●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HK1-TCS ENG(RJS) L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (E)	8-97096-651-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (B)	8-97350-516-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (C)	8-94370-046-4	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (F)	8-97365-228-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97134-450-1	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (G)	8-97214-433-0	01	1	0512-	●	●
173	WASHER; PL 4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	01	1	0512-	●	●
272	NUT; FLANGE 4HK1-TCS ENG(RJS) M10 FLANGE	5-09440-006-0	01	1	0512-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (A)	8-94329-857-0	01	1	0512-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (B)	8-97207-224-0	01	1	0512-	●	●
387	SPACER; BRKT 4HK1-TCS ENG(RJS) (B)	8-97172-493-2	01	1	0512-	●	●
387	SPACER; BRKT 4HK1-TCS ENG(RJS) (A)	8-97218-212-0	01	1	0512-	●	●
514	NUT; BAND 4HK1-TCS ENG(RJS) M8	9-09110-408-0	01	1	0512-0512	●	●
514	NUT; BAND 4HK1-TCS ENG(RJS) M8 SOU	0-91110-508-0	01	1	0601-	●	●
515	BOLT; BAND 4HK1-TCS ENG(RJS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0801	●	●
515	BOLT; BAND 4HK1-TCS ENG(RJS) M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802	●	●
515	BOLT; BAND 4HK1-TCS ENG(RJS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-	●	●

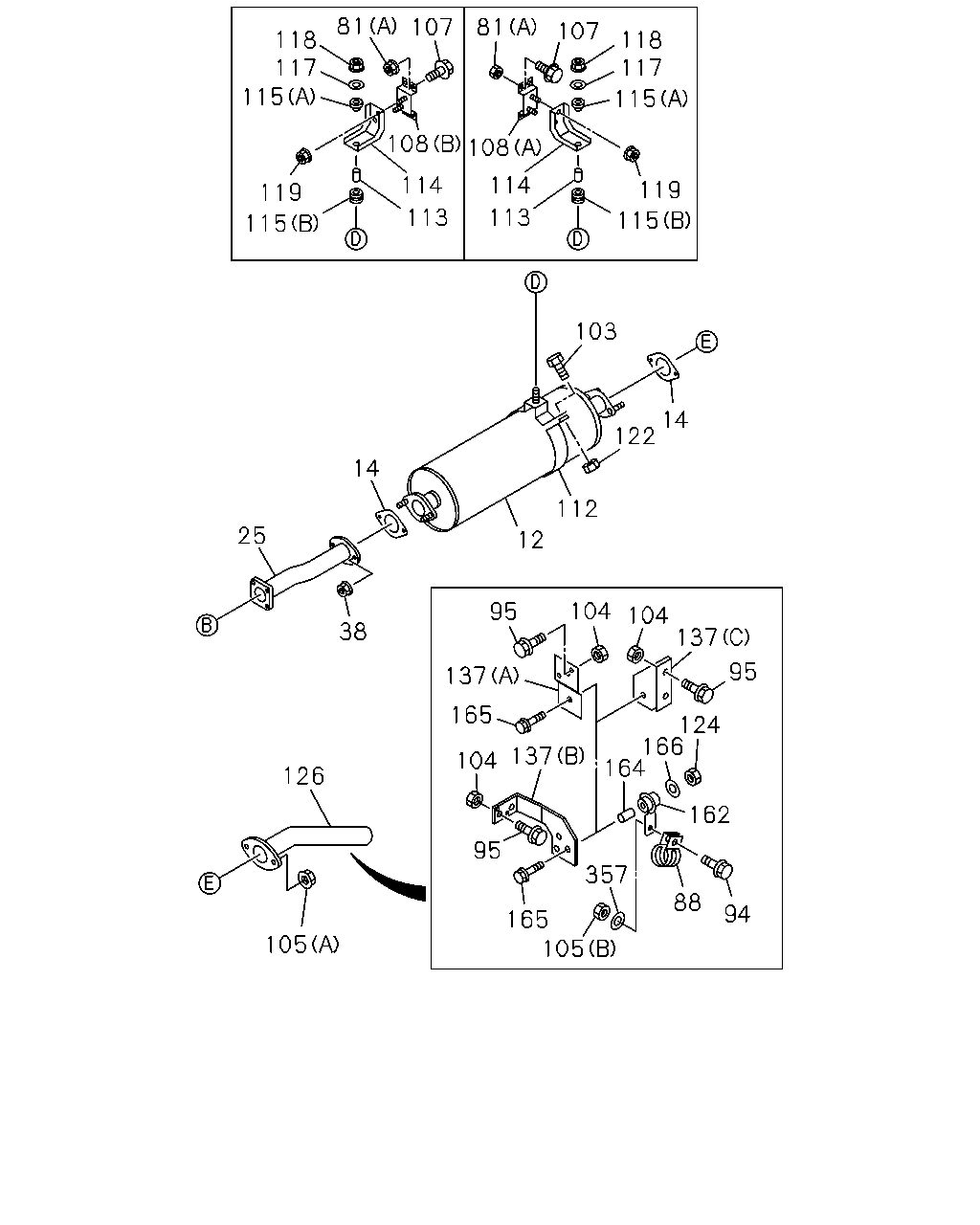

81 107 81 107 118 117 115 118 117 115 108 108 114 114 119 119 113 113 115 115 103 14 122 14 112 25 12 104 95 104 137 38 95 137 165 124 166 164 137 104 126 162 95 357 88 94 165 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0303-			●	●
12	SILENCER ASM; EXH 4HE1 ENG(RLY)	8-97114-564-1	01	1	0303-0511		●
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS)	8-97222-489-1	01	1	0512-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0303-0511		●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0303-0511		●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0512-	●	●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 SOU	8-94328-352-0	01	1	0512-	●	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HK1-TCS ENG(RJS) ID=64.7 SOU	8-94328-352-0	01	1	0512-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS)	8-97361-723-0	01	1	0303-			●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY)	8-97361-724-0	01	1	0303-0511		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS)	8-97185-798-0	01	1	0512-	●	●
38	NUT; SILENCER 4HF1 ENG(RLS) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511			●	●
38	NUT; SILENCER 4HE1 ENG(RLY) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●
38	NUT; SILENCER M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●	●	●
38	NUT; SILENCER 4HK1-TCS ENG(RJS) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●
38	NUT; SILENCER M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●	●	●
38	NUT; SILENCER 4HK1-TCS ENG(RJS) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (C) M10 FLANGE SOU	0-91150-110-0	03	1	0512-0602	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (C) M10 FLANGE SOU	0-91180-110-0	03	1	0603-	●	●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511			●	●
81	NUT; BRKT 4HE1 ENG(RLY) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602			●	●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-			●	●
88	CLAMP; EXH PIPE ID=61.6 SOU	8-97010-307-0	01	1	0303-0511		●	●	●
88	CLAMP; EXH PIPE ID=61.6 SOU	8-97010-307-0	01	1	0512-	●	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) ID=61.6 SOU	8-97010-307-0	01	1	0512-	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28681-030-0	01	1	0512-0512	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X30 FLANGE SOU	0-28651-030-0	01	1	0601-	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0303-0511		●	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0512-	●	●	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M8X45	0-20800-845-0	01	1	0512-	●	●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0512			●
95	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-			●
95	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0303-0511		●		●
95	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0512-0512	●	●		●
95	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	0601-	●	●		●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802	●	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0303-0511		●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0707	●	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801	●	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-	●	●	●	●
104	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602			●
104	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-			●
104	NUT; BRKT M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●		●
104	NUT; BRKT M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●		●
104	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●		●
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●	●	●
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●	●	●
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0303-0511		●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0512-0512	●	●	●	●
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M8	9-09110-408-0	01	1	0512-0512	●	●
105	NUT; CLAMP (B) M8 SOU	0-91110-508-0	01	1	0601-	●	●	●	●
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M8 SOU	0-91110-508-0	01	1	0601-	●	●
107	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE	0-28681-030-0	02	1	0303-0511			●	●
107	BOLT; BRKT 4HE1 ENG(RLY) M10X30 FLANGE	0-28681-030-0	02	1	0303-0511		●
107	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE	0-28681-030-0	02	1	0512-0512			●	●
107	BOLT; BRKT 4HF1 ENG(RLS) M10X30 FLANGE SOU	0-28651-030-0	02	1	0601-			●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 4HF1 ENG(RLS) (A)	8-97096-649-2	01	1	0303-			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 4HF1 ENG(RLS) (B)	8-94378-511-1	01	1	0303-0511				●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 4HE1 ENG(RLY) (B)	8-94378-511-1	01	1	0303-0511		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 4HF1 ENG(RLS) (B)	8-94378-511-1	01	1	0512-				●
112	BRACKET; HANGER 4HK1-TCS ENG(RJS)	8-97207-224-0	01	1	0512-	●	●
112	BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0303-0511			●	●
112	BRACKET; HANGER 4HE1 ENG(RLY)	8-97076-020-0	01	1	0303-0511		●
112	BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0512-			●	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	01	1	0303-0511		●	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●	●	●
114	BRACKET; EXH SILENCER 4HK1-TCS ENG(RJS)	8-94329-857-0	01	1	0512-	●	●
114	BRACKET; EXH SILENCER 4HF1 ENG(RLS)	8-97041-227-0	01	1	0303-0511			●	●
114	BRACKET; EXH SILENCER 4HE1 ENG(RLY)	8-97041-227-0	01	1	0303-0511		●
114	BRACKET; EXH SILENCER 4HF1 ENG(RLS)	8-97041-227-0	01	1	0512-			●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (C)	8-97379-882-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (C)	8-97379-882-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (D)	8-97379-927-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (D)	8-97379-927-0	01	1	0512-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0303-0511		●	●	●
115	RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0512-			●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0303-0511		●	●	●
115	RUBBER; MTG,SILENCER 4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0512-			●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0303-0511		●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0512-	●	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0303-0511		●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0512-	●	●	●	●
119	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511		●	●	●
119	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●	●	●
119	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0303-0511		●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0512-0512	●	●	●	●
122	NUT; HANGER BRKT M8 SOU	0-91110-508-0	01	1	0601-	●	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511		●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91150-110-0	01	1	0512-0602	●	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91180-110-0	01	1	0603-	●	●	●	●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98011-818-0	01	1	0512-	●	●
126	PIPE; EXH,RR	8-97240-342-1	01	1	0303-0511		●	●	●
126	PIPE; EXH,RR	8-97240-342-1	01	1	0512-			●	●
137	BRACKET; TAIL PIPE (C)	8-97185-801-0	01	1	0512-	●	●
137	BRACKET; TAIL PIPE (A)	8-97360-458-0	01	1	0303-			●
137	BRACKET; TAIL PIPE (B)	8-97360-459-0	01	1	0303-0511		●		●
137	BRACKET; TAIL PIPE (B)	8-97360-459-0	01	1	0512-				●
162	RUBBER; SUPPORT,TAIL PIPE L=115 SOU	8-94156-256-0	01	1	0303-0511		●	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115 SOU	8-94156-256-0	01	1	0512-	●	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0303-0511		●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HK1-TCS ENG(RJS) L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0303-0511		●	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0512-0512	●	●	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE SOU	0-28051-070-0	01	1	0601-	●	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0303-0511		●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0512-0605	●	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●	●	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0303-0511		●	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0512-0605	●	●	●	●
357	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) ID=8.4 OD=18	9-09164-608-0	01	1	0512-0605	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●	●
357	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●

376 168 75 2 44 1 36 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-97307-804-0	01	1	0512-	●	●
1	PIPE; EXH 4HF1 ENG(RLS) (A)	8-97256-415-1	01	1	0303-			●	●
1	PIPE; EXH 4HE1 ENG(RLY) (B)	8-97134-449-0	01	1	0303-0511		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-97365-227-1	01	1	0512-	●	●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS) SOU	8-97180-749-2	01	1	0303-0408			●	●
2	GASKET; PIPE TO MANIF 4HE1 ENG(RLY) SOU	8-97180-749-2	01	1	0303-0408		●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0409-0511			●	●
2	GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0511		●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0512-			●	●
2	GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	0512-	●	●
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0303-0511			●	●
36	NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE SOU	8-97096-192-1	03	1	0303-0511		●
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-			●	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-	●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802			●	●
44	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28081-040-0	01	1	0512-0512	●	●
44	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28051-040-0	01	1	0601-	●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X35 FLANGE	0-28080-835-0	01	1	0303-0312			●	●
44	BOLT; BRKT 4HE1 ENG(RLY) M8X35 FLANGE	0-28080-835-0	01	1	0303-0312		●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0511			●	●
44	BOLT; BRKT 4HE1 ENG(RLY) M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0511		●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0707			●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801			●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-			●	●
75	RUBBER; SUPPORT,BRKT 4HF1 ENG(RLS) SOU	8-97166-498-0	01	1	0303-			●	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY)	8-97080-694-0	01	1	0303-0511		●
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS)	8-97080-694-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (E)	8-97096-651-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (B)	8-97350-516-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (C)	8-94370-046-4	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (F)	8-97365-228-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97134-450-1	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (G)	8-97214-433-0	01	1	0512-	●	●
376	BOLT; BRKT 4HE1 ENG(RLY) M10X35 FLANGE	0-28681-035-0	02	1	0303-0511		●

130 168 75 2 1 36 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-97307-804-0	01	1	0512-	●	●
1	PIPE; EXH 4HF1 ENG(RLS) (A)	8-97256-415-1	01	1	0303-			●	●
1	PIPE; EXH 4HE1 ENG(RLY) (B)	8-97134-449-0	01	1	0303-0511		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-97365-227-1	01	1	0512-	●	●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS) SOU	8-97180-749-2	01	1	0303-0408			●	●
2	GASKET; PIPE TO MANIF 4HE1 ENG(RLY) SOU	8-97180-749-2	01	1	0303-0408		●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0409-0511			●	●
2	GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0511		●
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0512-			●	●
2	GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	0512-	●	●
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0303-0511			●	●
36	NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE SOU	8-97096-192-1	03	1	0303-0511		●
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-			●	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-	●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802			●	●
44	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28081-040-0	01	1	0512-0512	●	●
44	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28051-040-0	01	1	0601-	●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X35 FLANGE	0-28080-835-0	01	1	0303-0312			●	●
44	BOLT; BRKT 4HE1 ENG(RLY) M8X35 FLANGE	0-28080-835-0	01	1	0303-0312		●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0511			●	●
44	BOLT; BRKT 4HE1 ENG(RLY) M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0511		●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0707			●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801			●	●
44	BOLT; BRKT 4HF1 ENG(RLS) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-			●	●
75	RUBBER; SUPPORT,BRKT 4HF1 ENG(RLS) SOU	8-97166-498-0	01	1	0303-			●	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY)	8-97080-694-0	01	1	0303-0511		●
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS)	8-97080-694-0	01	1	0512-	●	●
130	BOLT; BRKT 4HF1 ENG(RLS) M10X35 FLANGE	0-28681-035-0	01	1	0303-0511			●	●
130	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	01	1	0512-0512	●	●	●	●
130	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	01	1	0601-	●	●	●	●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (E)	8-97096-651-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (B)	8-97350-516-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (C)	8-94370-046-4	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (F)	8-97365-228-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97134-450-1	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (G)	8-97214-433-0	01	1	0512-	●	●

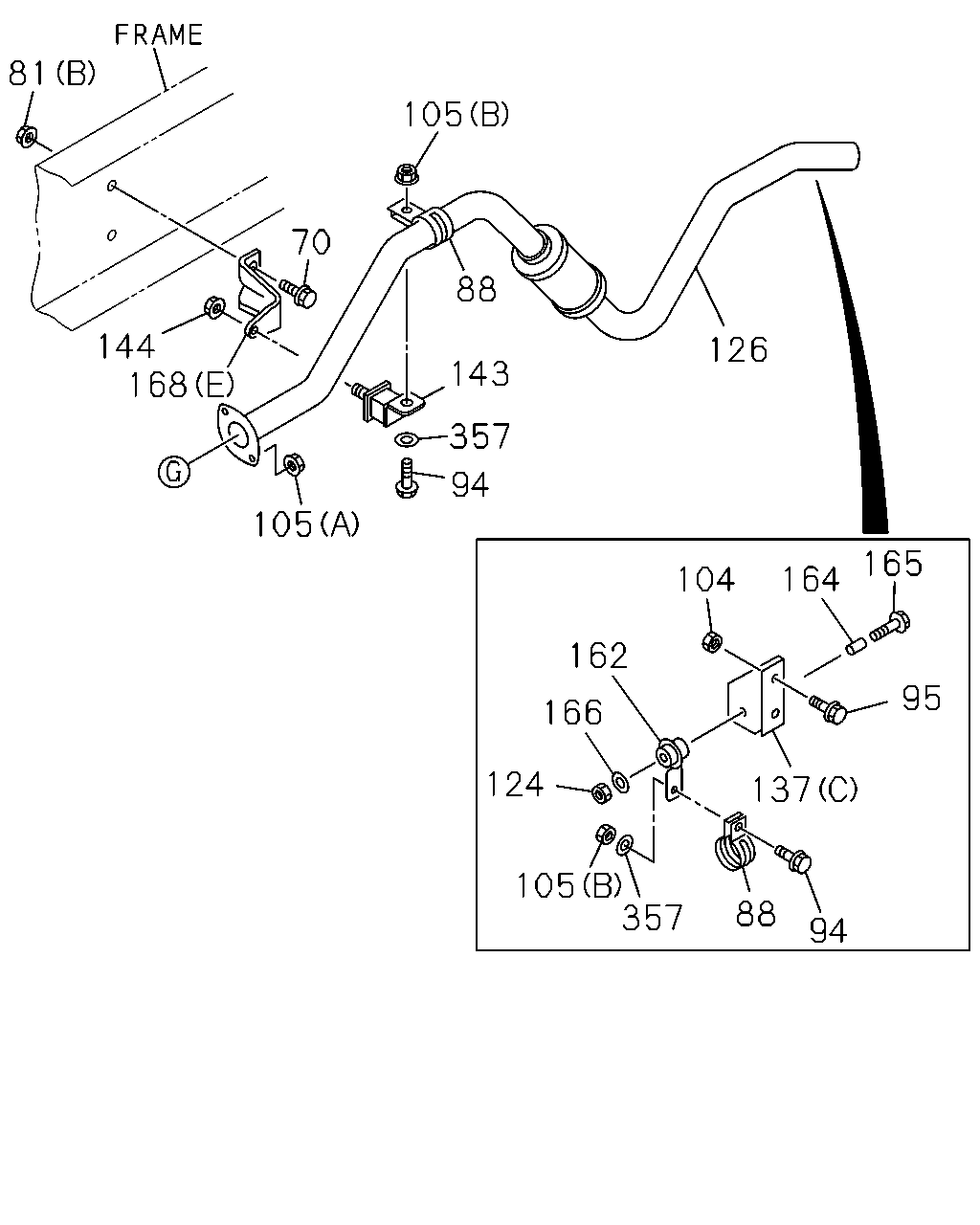

81 105 70 88 144 168 126 143 357 94 105 165 164 104 162 95 166 124 137 105 357 88 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
70	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (C) M10 FLANGE SOU	0-91150-110-0	03	1	0512-0602	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) (C) M10 FLANGE SOU	0-91180-110-0	03	1	0603-	●	●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511			●	●
81	NUT; BRKT 4HE1 ENG(RLY) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602			●	●
81	NUT; BRKT 4HF1 ENG(RLS) (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-			●	●
88	CLAMP; EXH PIPE ID=61.6 SOU	8-97010-307-0	01	1	0303-0511		●	●	●
88	CLAMP; EXH PIPE ID=61.6 SOU	8-97010-307-0	01	1	0512-	●	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) ID=61.6 SOU	8-97010-307-0	01	1	0512-	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28681-030-0	01	1	0512-0512	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X30 FLANGE SOU	0-28651-030-0	01	1	0601-	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0303-0511		●	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0512-	●	●	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M8X45	0-20800-845-0	01	1	0512-	●	●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0512			●
95	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-			●
95	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0303-0511		●		●
95	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0512-0512	●	●		●
95	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	0601-	●	●		●
104	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602			●
104	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-			●
104	NUT; BRKT M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●		●
104	NUT; BRKT M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●		●
104	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●		●
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511		●	●	●
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●	●	●	●
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●	●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0303-0511		●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0512-0512	●	●	●	●
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M8	9-09110-408-0	01	1	0512-0512	●	●
105	NUT; CLAMP (B) M8 SOU	0-91110-508-0	01	1	0601-	●	●	●	●
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M8 SOU	0-91110-508-0	01	1	0601-	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511		●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91150-110-0	01	1	0512-0602	●	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91180-110-0	01	1	0603-	●	●	●	●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98011-818-0	01	1	0512-	●	●
126	PIPE; EXH,RR	8-97240-342-1	01	1	0303-0511		●	●	●
126	PIPE; EXH,RR	8-97240-342-1	01	1	0512-			●	●
137	BRACKET; TAIL PIPE (C)	8-97185-801-0	01	1	0512-	●	●
137	BRACKET; TAIL PIPE (A)	8-97360-458-0	01	1	0303-			●
137	BRACKET; TAIL PIPE (B)	8-97360-459-0	01	1	0303-0511		●		●
137	BRACKET; TAIL PIPE (B)	8-97360-459-0	01	1	0512-				●
143	RUBBER; SUPPORT 4HK1-TCS ENG(RJS)	8-97371-655-1	01	1	0512-	●	●
144	NUT; MTG RUBBER 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●	●
144	NUT; MTG RUBBER 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115 SOU	8-94156-256-0	01	1	0303-0511		●	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115 SOU	8-94156-256-0	01	1	0512-	●	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0303-0511		●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HK1-TCS ENG(RJS) L=37.5 SOU	9-22151-217-0	01	1	0512-	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0303-0511		●	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0512-0512	●	●	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE SOU	0-28051-070-0	01	1	0601-	●	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0303-0511		●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0512-0605	●	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●	●	●	●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (E)	8-97096-651-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (A)	8-97238-728-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (B)	8-97350-516-0	01	1	0303-			●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (C)	8-94370-046-4	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (F)	8-97365-228-0	01	1	0512-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97134-450-1	01	1	0303-0511		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (G)	8-97214-433-0	01	1	0512-	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0303-0511		●	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0512-0605	●	●	●	●
357	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) ID=8.4 OD=18	9-09164-608-0	01	1	0512-0605	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●	●
357	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
