1-45 — WATER SEDIMENTER; FUEL (#17721) — 102 parça

62 26 1 7 9 5 36 87 37 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SEDIMENTER; FUEL 4HK1-TCS ENG(RJS)	8-98017-806-2	01	1	0512-	●	●
1	SEDIMENTER; FUEL 4HF1 ENG(RLS)	8-94144-933-3	01	1	0303-0511			●	●
1	SEDIMENTER; FUEL 4HE1 ENG(RLY)	8-94144-933-3	01	1	0303-0511		●
1	SEDIMENTER; FUEL 4HF1 ENG(RLS)	8-94144-933-4	01	1	0512-			●	●
5	GASKET; UPR COVER,SEDIMENTER 4HF1 ENG(RLS)	5-09623-075-0	01	1	0303-0511			●	●
5	GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY)	5-09623-075-0	01	1	0303-0511		●
5	GASKET; UPR COVER,SEDIMENTER 4HF1 ENG(RLS)	5-09623-075-0	01	1	0512-			●	●
7	PLUG; DRAIN,SEDIMENTER 4HK1-TCS ENG(RJS)	8-97172-546-1	01	1	0512-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0303-0511			●	●
7	PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY)	8-94132-674-0	01	1	0303-0511		●
7	PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0512-			●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS)	9-09571-406-0	01	1	0303-0511			●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY)	9-09571-406-0	01	1	0303-0511		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS)	9-09571-406-0	01	1	0512-			●	●
14	GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS)	8-94447-156-0	01	1	0303-0511			●	●
14	GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY)	8-94447-156-0	01	1	0303-0511		●
14	GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS)	8-94447-156-0	01	1	0512-			●	●
26	PIPE; FUEL,IN & OUT 4HF1 ENG(RLS)	5-15411-223-1	02	1	0303-0511			●	●
26	PIPE; FUEL,IN & OUT 4HE1 ENG(RLY)	5-15411-223-1	02	1	0303-0511		●
26	PIPE; FUEL,IN & OUT 4HF1 ENG(RLS)	5-15411-223-1	02	1	0512-			●	●
36	RING; BODY TO CASE 4HF1 ENG(RLS)	5-13234-001-0	01	1	0303-0511			●	●
36	RING; BODY TO CASE 4HE1 ENG(RLY)	5-13234-001-0	01	1	0303-0511		●
36	RING; BODY TO CASE 4HF1 ENG(RLS)	5-13234-001-0	01	1	0512-			●	●
37	PLUG; SENSOR 4HK1-TCS ENG(RJS)	8-98004-899-0	01	1	0512-	●	●
37	PLUG; SENSOR 4HF1 ENG(RLS)	8-94453-746-0	01	1	0303-0511			●	●
37	PLUG; SENSOR 4HE1 ENG(RLY)	8-94453-746-0	01	1	0303-0511		●
37	PLUG; SENSOR 4HF1 ENG(RLS)	8-94453-746-0	01	1	0512-			●	●
62	BOLT; EYE,FUEL FILTER 4HF1 ENG(RLS) M14X29 EYE BOLT	9-09906-325-1	02	1	0303-0511			●	●
62	BOLT; EYE,FUEL FILTER 4HE1 ENG(RLY) M14X29 EYE BOLT	9-09906-325-1	02	1	0303-0511		●
62	BOLT; EYE,FUEL FILTER 4HF1 ENG(RLS) M14X29 EYE BOLT	9-09906-325-1	02	1	0512-			●	●
87	CASE ASM; SEDIMENTER 4HF1 ENG(RLS)	8-97219-363-0	01	1	0303-0511			●	●
87	CASE ASM; SEDIMENTER 4HE1 ENG(RLY)	8-97219-363-0	01	1	0303-0511		●
87	CASE ASM; SEDIMENTER 4HF1 ENG(RLS)	8-97219-363-1	01	1	0512-			●	●

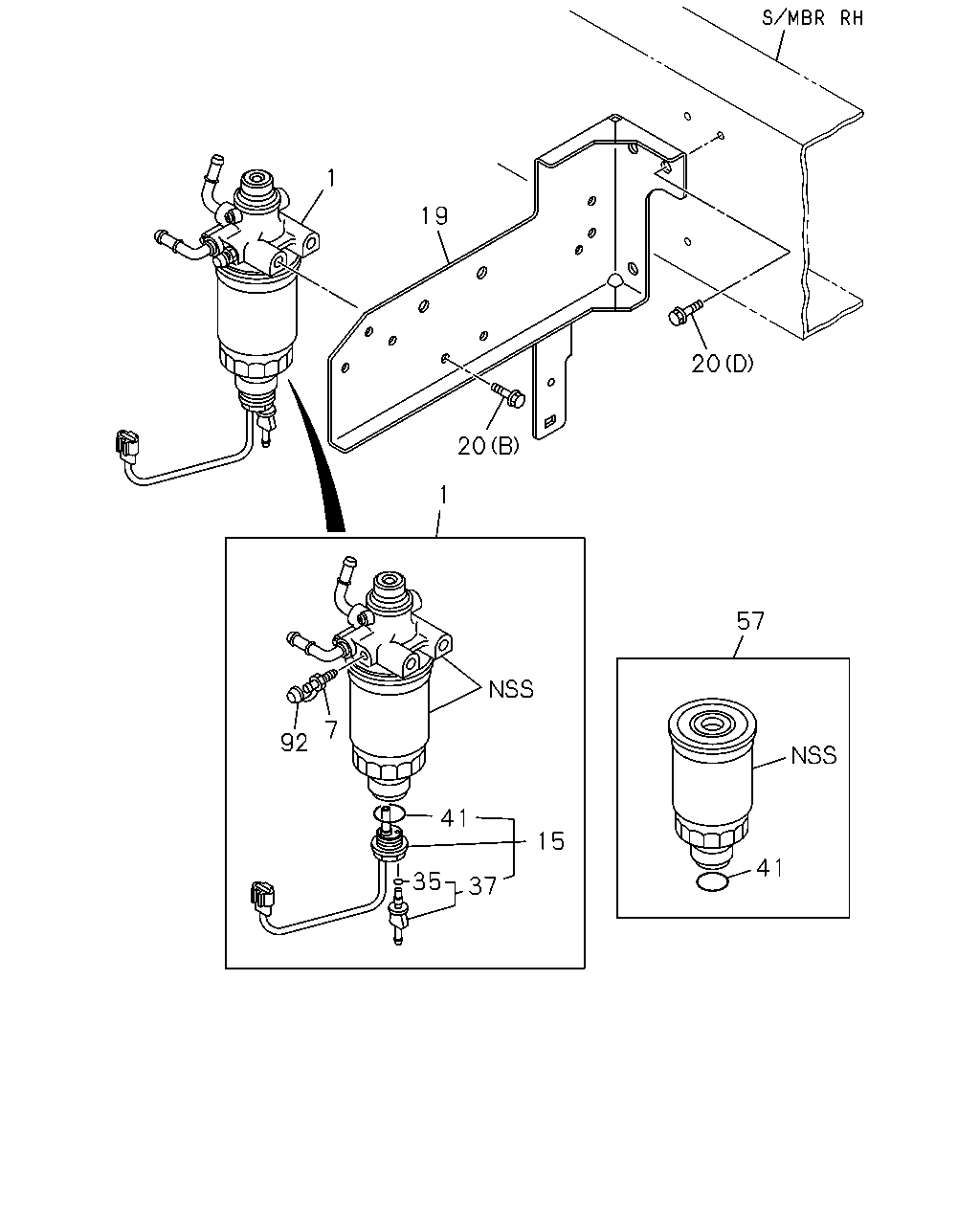

1 19 20 20 1 57 7 92 41 15 41 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SEDIMENTER; FUEL 4HK1-TCS ENG(RJS)	8-98017-806-2	01	1	0512-	●	●
1	SEDIMENTER; FUEL 4HF1 ENG(RLS)	8-94144-933-3	01	1	0303-0511			●	●
1	SEDIMENTER; FUEL 4HE1 ENG(RLY)	8-94144-933-3	01	1	0303-0511		●
1	SEDIMENTER; FUEL 4HF1 ENG(RLS)	8-94144-933-4	01	1	0512-			●	●
7	PLUG; DRAIN,SEDIMENTER 4HK1-TCS ENG(RJS)	8-97172-546-1	01	1	0512-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0303-0511			●	●
7	PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY)	8-94132-674-0	01	1	0303-0511		●
7	PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0512-			●	●
15	SENSOR ASM; SEDIMENTER 4HK1-TCS ENG(RJS)	8-98009-886-0	01	1	0512-	●	●
19	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-97368-101-5	01	1	0512-	●	●
19	BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS)	8-97363-089-0	01	1	0303-0511			●	●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY)	8-97363-089-0	01	1	0303-0511		●
19	BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS)	8-97363-089-0	01	1	0512-			●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (D) M10X30 FLANGE	0-28681-030-0	03	1	0512-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (D) M10X30 FLANGE SOU	0-28651-030-0	03	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (A) M10X30 FLANGE	0-28081-030-0	03	1	0303-0511			●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (A) M10X30 FLANGE	0-28081-030-0	03	1	0303-0511		●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (A) M10X30 FLANGE	0-28081-030-0	03	1	0512-0512			●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-			●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511			●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511		●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512			●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28081-030-0	02	1	0303-0511			●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28081-030-0	02	1	0303-0511		●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28081-030-0	02	1	0512-0512			●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28051-030-0	02	1	0601-			●	●
35	GASKET; DRAIN PLUG 4HK1-TCS ENG(RJS)	8-98004-898-0	01	1	0512-	●	●
37	PLUG; SENSOR 4HK1-TCS ENG(RJS)	8-98004-899-0	01	1	0512-	●	●
37	PLUG; SENSOR 4HF1 ENG(RLS)	8-94453-746-0	01	1	0303-0511			●	●
37	PLUG; SENSOR 4HE1 ENG(RLY)	8-94453-746-0	01	1	0303-0511		●
37	PLUG; SENSOR 4HF1 ENG(RLS)	8-94453-746-0	01	1	0512-			●	●
41	GASKET; SENSOR TO CASE 4HK1-TCS ENG(RJS)	9-09563-334-0	01	1	0512-0611	●	●
41	GASKET; SENSOR TO CASE 4HK1-TCS ENG(RJS)	1-09623-649-0	01	1	0612-	●	●
57	CARTRIDGE KIT; FUEL FILTER 4HK1-TCS ENG(RJS)	8-98021-811-0	01	1	0512-0512	●	●
57	CARTRIDGE KIT; FUEL FILTER 4HK1-TCS ENG(RJS)	8-98031-847-0	01	1	0512-0611	●	●
57	CARTRIDGE KIT; FUEL FILTER 4HK1-TCS ENG(RJS)	8-98037-481-0	01	1	0612-	●	●
92	CAP; DRAIN 4HK1-TCS ENG(RJS)	8-97172-548-0	01	1	0512-	●	●

20 20 19 21 20 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SEDIMENTER; FUEL 4HK1-TCS ENG(RJS)	8-98017-806-2	01	1	0512-	●	●
1	SEDIMENTER; FUEL 4HF1 ENG(RLS)	8-94144-933-3	01	1	0303-0511			●	●
1	SEDIMENTER; FUEL 4HE1 ENG(RLY)	8-94144-933-3	01	1	0303-0511		●
1	SEDIMENTER; FUEL 4HF1 ENG(RLS)	8-94144-933-4	01	1	0512-			●	●
19	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-97368-101-5	01	1	0512-	●	●
19	BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS)	8-97363-089-0	01	1	0303-0511			●	●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY)	8-97363-089-0	01	1	0303-0511		●
19	BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS)	8-97363-089-0	01	1	0512-			●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (D) M10X30 FLANGE	0-28681-030-0	03	1	0512-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (D) M10X30 FLANGE SOU	0-28651-030-0	03	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (A) M10X30 FLANGE	0-28081-030-0	03	1	0303-0511			●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (A) M10X30 FLANGE	0-28081-030-0	03	1	0303-0511		●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (A) M10X30 FLANGE	0-28081-030-0	03	1	0512-0512			●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-			●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511			●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511		●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512			●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28081-030-0	02	1	0303-0511			●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28081-030-0	02	1	0303-0511		●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28081-030-0	02	1	0512-0512			●	●
20	BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) M10X30 FLANGE	0-28051-030-0	02	1	0601-			●	●
21	NUT; BRKT TO FRAME 4HE1 ENG(RLY) M10 FLANGE SOU	0-91150-110-0	03	1	0311-0511		●
21	NUT; BRKT TO FRAME 4HF1 ENG(RLS) M10 FLANGE SOU	0-91150-110-0	03	1	0303-0310			●	●
21	NUT; BRKT TO FRAME 4HE1 ENG(RLY) M10 FLANGE SOU	0-91150-110-0	03	1	0303-0310		●
21	NUT; BRKT TO FRAME 4HF1 ENG(RLS) M10 FLANGE SOU	0-91150-110-0	01	1	0311-0602			●	●
21	NUT; BRKT TO FRAME 4HF1 ENG(RLS) M10 FLANGE SOU	0-91180-110-0	01	1	0603-			●	●
