Sayfa 1-41 - Isuzu EPC

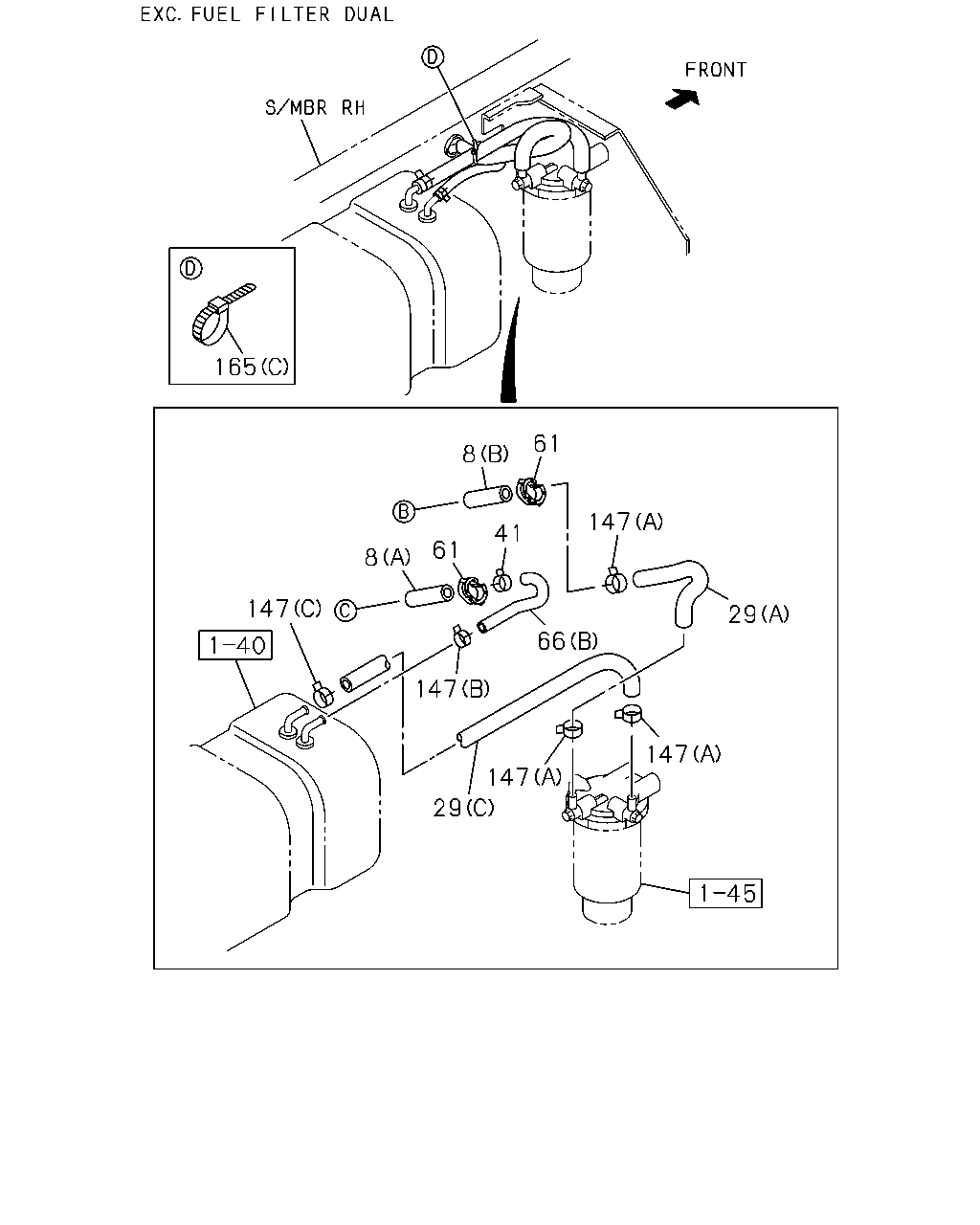

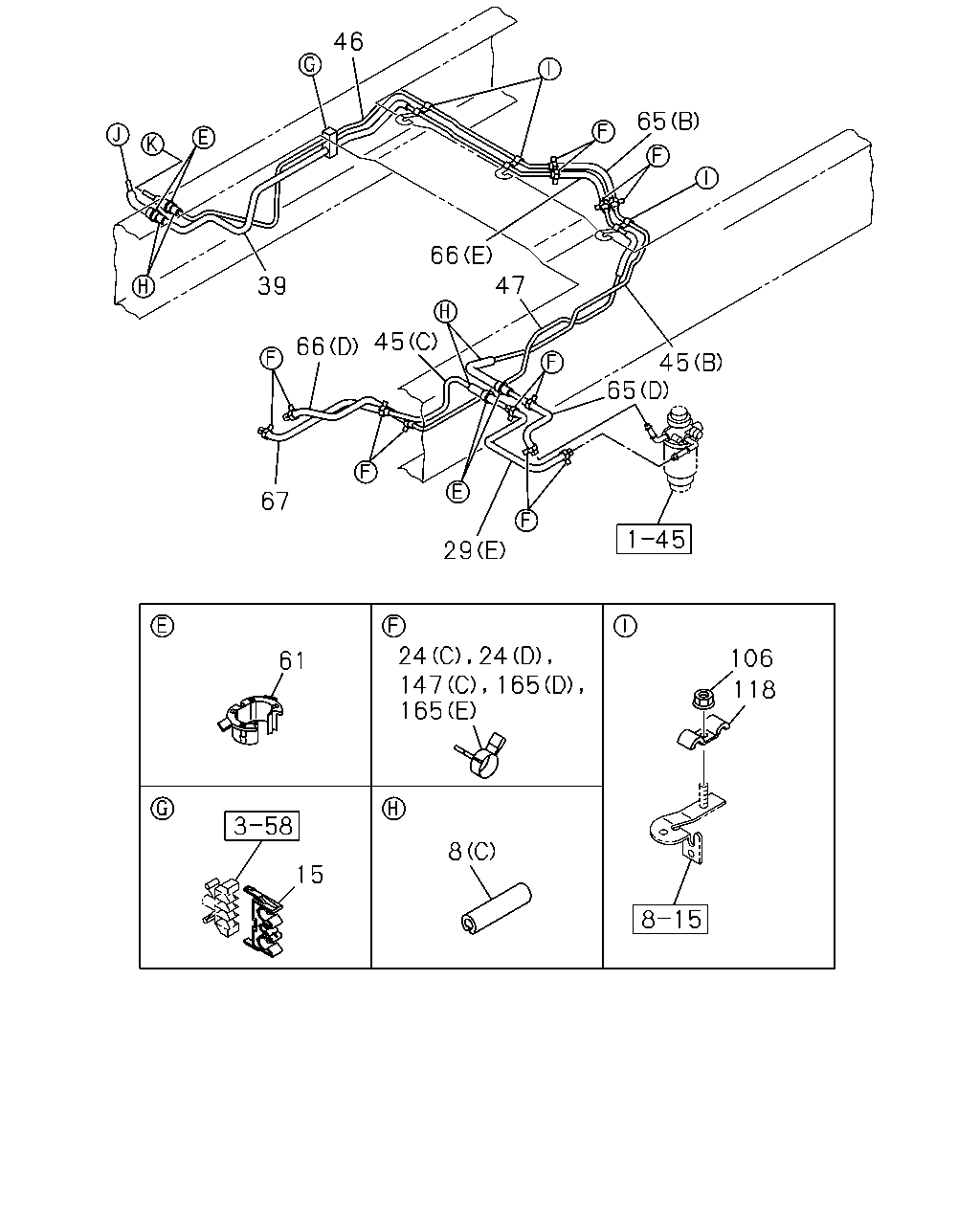

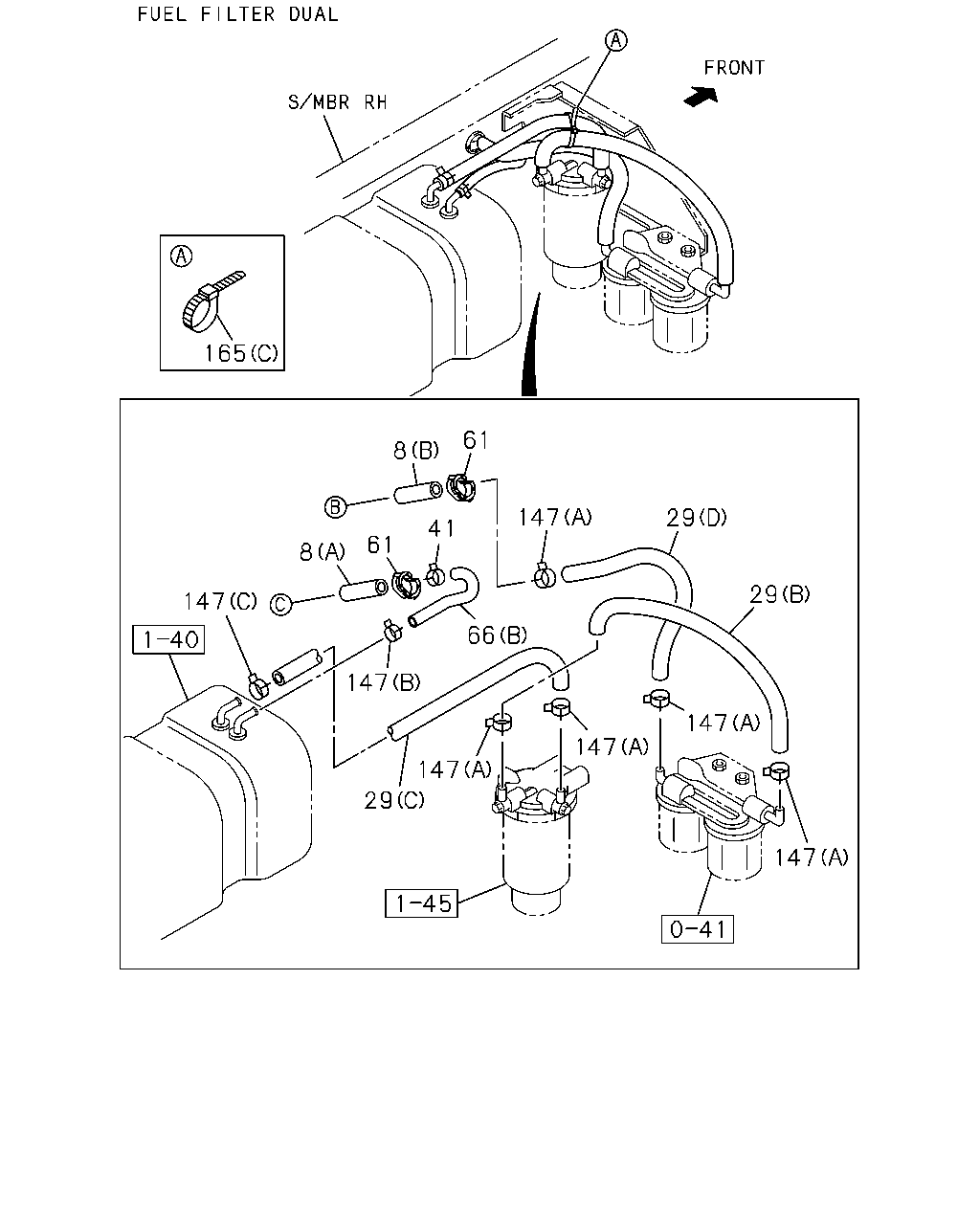

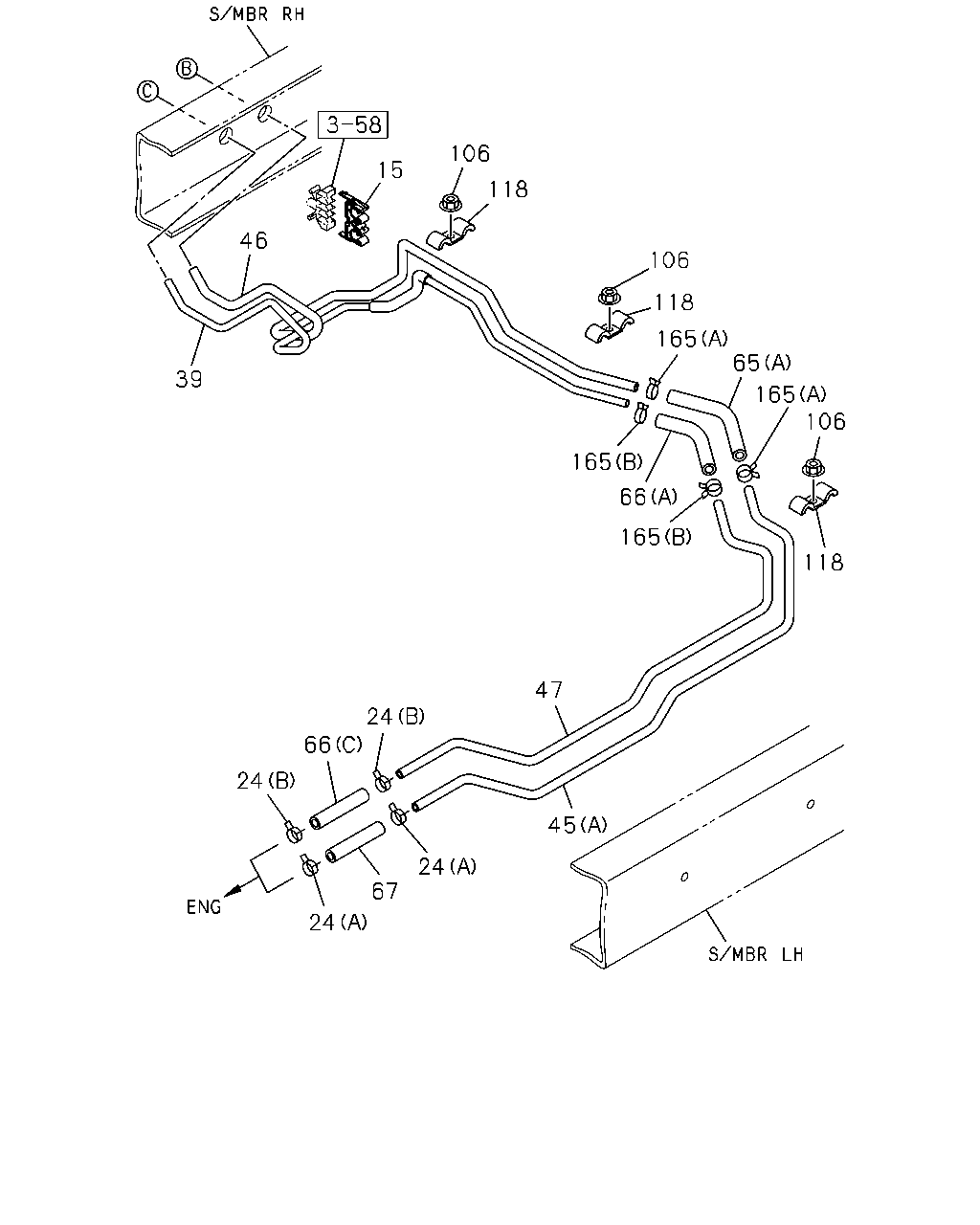

1-41 — FUEL PIPING; CHASSIS (#17720) — 375 parça

147 147 41 66 65 147 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) ID=12	8-94238-610-0	01	1	0512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HF1 ENG(RLS) ID=13	8-94238-571-0	01	1	0303-0511			●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HE1 ENG(RLY) ID=13	8-94238-571-0	01	1	0303-0511		●
41	CLIP; FUEL PIPE,FUEL TANK 4HF1 ENG(RLS) ID=13	8-94238-571-0	01	1	0512-			●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (C) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (D)	8-97365-797-2	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (D)	8-97367-176-2	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0303-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511			●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (E) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (F) L=550 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	01	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=19 SOU	8-94238-569-0	01	1	0512-	●	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (C) ID=19 SOU	8-94238-569-0	05	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=19 SOU	8-94238-569-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (C) L=140 SOU	5-09707-031-1	01	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0512-			●	●

165 61 8 147 41 61 8 147 29 66 147 147 147 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	RUBBER; MTG 4HK1-TCS ENG(RJS) (C) OD=16.5 L=50	8-97214-235-0	02	1	0512-	●	●
8	RUBBER; MTG 4HF1 ENG(RLS) (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-0511			●	●
8	RUBBER; MTG 4HE1 ENG(RLY) (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-0511		●
8	RUBBER; MTG (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0512-	●	●	●	●
8	RUBBER; MTG 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511			●	●
8	RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511		●
8	RUBBER; MTG 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0512-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) (C) L=580	8-97363-057-0	01	1	0303-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (E)	8-97365-798-2	01	1	0512-	●	●
29	HOSE; FUEL 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) (C) L=250	8-97363-054-0	01	1	0303-0511		●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) ID=12	8-94238-610-0	01	1	0512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HF1 ENG(RLS) ID=13	8-94238-571-0	01	1	0303-0511			●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HE1 ENG(RLY) ID=13	8-94238-571-0	01	1	0303-0511		●
41	CLIP; FUEL PIPE,FUEL TANK 4HF1 ENG(RLS) ID=13	8-94238-571-0	01	1	0512-			●	●
61	GROMMET; PIPE TO FRAME 4HK1-TCS ENG(RJS) ID=17	8-94128-319-2	04	1	0512-	●	●
61	GROMMET; PIPE TO FRAME 4HF1 ENG(RLS) ID=17	8-94128-319-2	02	1	0303-0511			●	●
61	GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) ID=17	8-94128-319-2	02	1	0303-0511		●
61	GROMMET; PIPE TO FRAME 4HF1 ENG(RLS) ID=17	8-94128-319-2	02	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (D)	8-97367-176-2	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0303-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511			●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (E) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (F) L=550 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	01	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=19 SOU	8-94238-569-0	01	1	0512-	●	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (C) ID=19 SOU	8-94238-569-0	05	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=19 SOU	8-94238-569-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (C) L=140 SOU	5-09707-031-1	01	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0512-			●	●

165 61 8 147 29 41 61 8 29 147 66 147 147 147 147 29 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	RUBBER; MTG 4HK1-TCS ENG(RJS) (C) OD=16.5 L=50	8-97214-235-0	02	1	0512-	●	●
8	RUBBER; MTG 4HF1 ENG(RLS) (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-0511			●	●
8	RUBBER; MTG 4HE1 ENG(RLY) (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-0511		●
8	RUBBER; MTG (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0512-	●	●	●	●
8	RUBBER; MTG 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511			●	●
8	RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511		●
8	RUBBER; MTG 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0512-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) (C) L=580	8-97363-057-0	01	1	0303-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (E)	8-97365-798-2	01	1	0512-	●	●
29	HOSE; FUEL 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) (C) L=250	8-97363-054-0	01	1	0303-0511		●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) ID=12	8-94238-610-0	01	1	0512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HF1 ENG(RLS) ID=13	8-94238-571-0	01	1	0303-0511			●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HE1 ENG(RLY) ID=13	8-94238-571-0	01	1	0303-0511		●
41	CLIP; FUEL PIPE,FUEL TANK 4HF1 ENG(RLS) ID=13	8-94238-571-0	01	1	0512-			●	●
61	GROMMET; PIPE TO FRAME 4HK1-TCS ENG(RJS) ID=17	8-94128-319-2	04	1	0512-	●	●
61	GROMMET; PIPE TO FRAME 4HF1 ENG(RLS) ID=17	8-94128-319-2	02	1	0303-0511			●	●
61	GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) ID=17	8-94128-319-2	02	1	0303-0511		●
61	GROMMET; PIPE TO FRAME 4HF1 ENG(RLS) ID=17	8-94128-319-2	02	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (D)	8-97367-176-2	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0303-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511			●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (E) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (F) L=550 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	01	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=19 SOU	8-94238-569-0	01	1	0512-	●	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (C) ID=19 SOU	8-94238-569-0	05	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=19 SOU	8-94238-569-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (C) L=140 SOU	5-09707-031-1	01	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0512-			●	●

106 15 118 46 106 118 165 65 39 165 106 165 66 165 118 47 24 66 24 45 24 67 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	CLIP; FUEL PIPE ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0303-0511		●	●	●
15	CLIP; FUEL PIPE ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-	●	●	●	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (C) ID=19 SOU	8-94238-569-0	02	1	0512-	●	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	02	1	0512-	●	●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
24	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0303-0511			●	●
24	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0303-0511		●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0512-			●	●
39	PIPE; FUEL 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97171-014-1	01	1	0303-0511			●	●
39	PIPE; FUEL 4HF1 ENG(RLS)	8-97171-014-1	01	1	0512-			●	●
39	PIPE; FUEL 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97327-180-0	01	1	0303-0511		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS)	8-98024-010-0	01	1	0512-	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B)	8-97330-392-3	01	1	0512-	●	●
45	PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) M/T MYY5T(RSM) (A)	8-97325-827-0	01	1	0303-0511			●	●
45	PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) (A)	8-97325-827-0	01	1	0512-			●	●
45	PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A)	8-97327-176-0	01	1	0303-0511		●
45	PIPE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C)	8-97330-391-4	01	1	0512-	●	●
46	PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97325-837-0	01	1	0303-0511			●	●
46	PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97325-837-0	01	1	0512-			●	●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97327-179-0	01	1	0303-0511		●
46	PIPE; FUEL,TANK SIDE 4HK1-TCS ENG(RJS)	8-97330-394-2	01	1	0512-	●	●
47	PIPE; FUEL,RETURN 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97325-833-0	01	1	0303-0511			●	●
47	PIPE; FUEL,RETURN 4HF1 ENG(RLS)	8-97325-833-0	01	1	0512-			●	●
47	PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97327-177-0	01	1	0303-0511		●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS)	8-98006-312-0	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (C) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (D)	8-97365-797-2	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (D)	8-97367-176-2	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0303-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511			●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (E) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (F) L=550 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS)	8-97358-767-3	01	1	0512-	●	●
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0303-0511		●	●	●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0512-0602	●	●	●	●
106	NUT; FUEL PIPE M6 FLANGE SOU	0-91180-106-0	03	1	0603-	●	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR 4HF1 ENG(RLS) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0512-			●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511		●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR 4HK1-TCS ENG(RJS) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-	●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=19 SOU	8-94238-569-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (C) L=140 SOU	5-09707-031-1	01	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0512-			●	●

46 65 66 47 39 45 66 45 65 67 29 147 165 165 106 61 118 8 15 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	RUBBER; MTG 4HK1-TCS ENG(RJS) (C) OD=16.5 L=50	8-97214-235-0	02	1	0512-	●	●
8	RUBBER; MTG 4HF1 ENG(RLS) (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-0511			●	●
8	RUBBER; MTG 4HE1 ENG(RLY) (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-0511		●
8	RUBBER; MTG (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0512-	●	●	●	●
8	RUBBER; MTG 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511			●	●
8	RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511		●
8	RUBBER; MTG 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0512-			●	●
15	CLIP; FUEL PIPE ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0303-0511		●	●	●
15	CLIP; FUEL PIPE ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-	●	●	●	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (C) ID=19 SOU	8-94238-569-0	02	1	0512-	●	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	02	1	0512-	●	●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
24	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0303-0511			●	●
24	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0303-0511		●
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0512-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) (C) L=580	8-97363-057-0	01	1	0303-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (D) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (E)	8-97365-798-2	01	1	0512-	●	●
29	HOSE; FUEL 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
29	HOSE; FUEL 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
29	HOSE; FUEL 4HE1 ENG(RLY) (C) L=250	8-97363-054-0	01	1	0303-0511		●
39	PIPE; FUEL 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97171-014-1	01	1	0303-0511			●	●
39	PIPE; FUEL 4HF1 ENG(RLS)	8-97171-014-1	01	1	0512-			●	●
39	PIPE; FUEL 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97327-180-0	01	1	0303-0511		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS)	8-98024-010-0	01	1	0512-	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B)	8-97330-392-3	01	1	0512-	●	●
45	PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) M/T MYY5T(RSM) (A)	8-97325-827-0	01	1	0303-0511			●	●
45	PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) (A)	8-97325-827-0	01	1	0512-			●	●
45	PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A)	8-97327-176-0	01	1	0303-0511		●
45	PIPE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C)	8-97330-391-4	01	1	0512-	●	●
46	PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97325-837-0	01	1	0303-0511			●	●
46	PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97325-837-0	01	1	0512-			●	●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97327-179-0	01	1	0303-0511		●
46	PIPE; FUEL,TANK SIDE 4HK1-TCS ENG(RJS)	8-97330-394-2	01	1	0512-	●	●
47	PIPE; FUEL,RETURN 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97325-833-0	01	1	0303-0511			●	●
47	PIPE; FUEL,RETURN 4HF1 ENG(RLS)	8-97325-833-0	01	1	0512-			●	●
47	PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97327-177-0	01	1	0303-0511		●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS)	8-98006-312-0	01	1	0512-	●	●
61	GROMMET; PIPE TO FRAME 4HK1-TCS ENG(RJS) ID=17	8-94128-319-2	04	1	0512-	●	●
61	GROMMET; PIPE TO FRAME 4HF1 ENG(RLS) ID=17	8-94128-319-2	02	1	0303-0511			●	●
61	GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) ID=17	8-94128-319-2	02	1	0303-0511		●
61	GROMMET; PIPE TO FRAME 4HF1 ENG(RLS) ID=17	8-94128-319-2	02	1	0512-			●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (C) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (D)	8-97365-797-2	01	1	0512-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (D)	8-97367-176-2	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0303-			●	●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511			●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (C) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0512-			●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (E) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) (F) L=550 SERVICED BY L=3000	0-01755-300-0	01	1	0512-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS)	8-97358-767-3	01	1	0512-	●	●
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511			●	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511		●
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0512-			●	●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0303-0511		●	●	●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0512-0602	●	●	●	●
106	NUT; FUEL PIPE M6 FLANGE SOU	0-91180-106-0	03	1	0603-	●	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR 4HF1 ENG(RLS) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0512-			●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511		●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR 4HK1-TCS ENG(RJS) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	01	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=19 SOU	8-94238-569-0	01	1	0512-	●	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	03	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	03	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCS ENG(RJS) (C) ID=19 SOU	8-94238-569-0	05	1	0512-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	01	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	01	1	0512-			●	●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=19 SOU	8-94238-569-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=12	8-94238-610-0	02	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=140 SOU	5-09707-031-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (C) L=140 SOU	5-09707-031-1	01	1	0512-	●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16 SOU	8-94238-568-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	02	1	0512-			●	●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0303-0511			●	●
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0303-0511		●
165	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	02	1	0512-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
