2 |

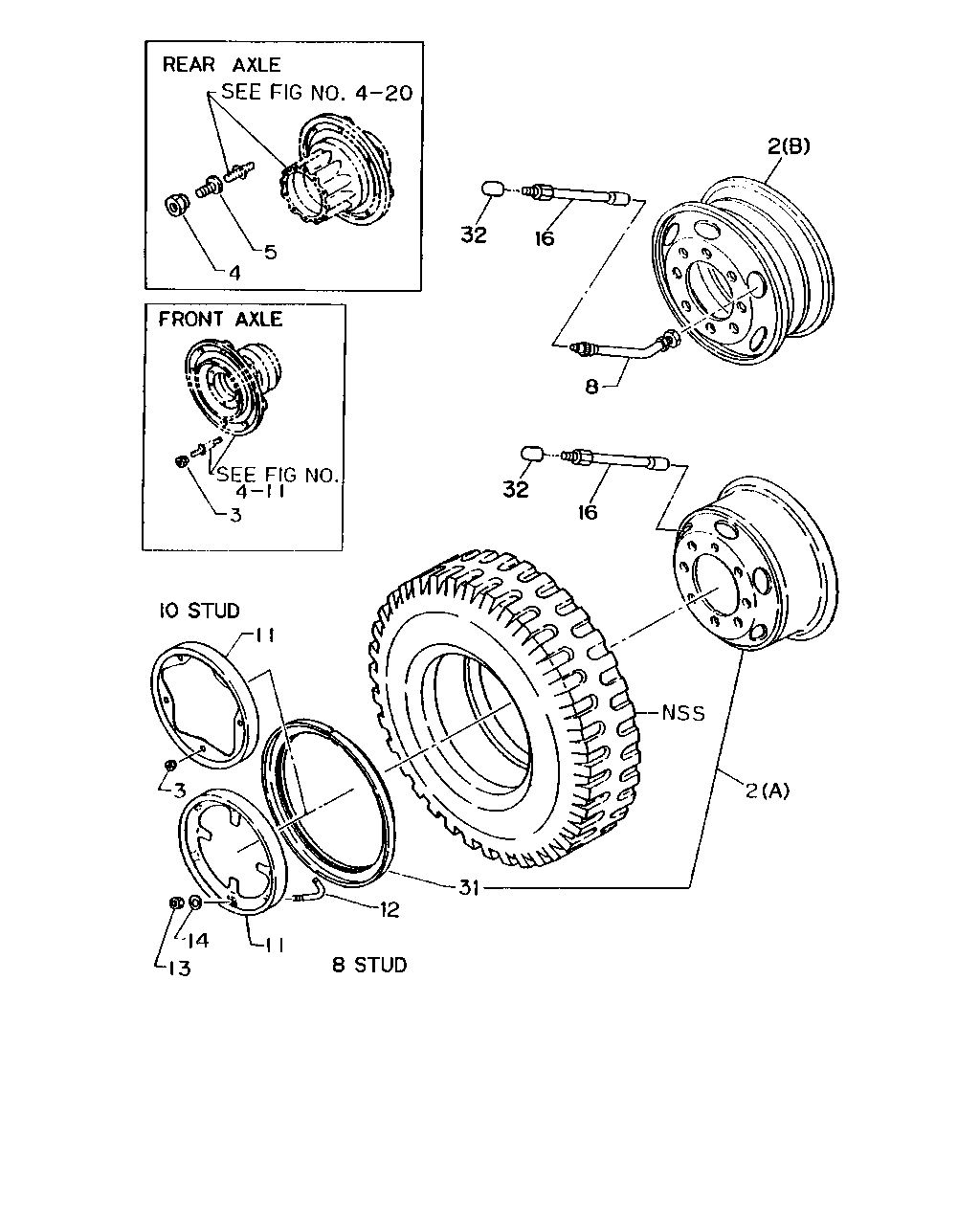

WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
(A) SPARE
|
1-42350-420-0 |
01 |
1 |
9307- |
● |
|
| |
2 |
WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
(A)
|
1-42350-420-0 |
10 |
1 |
9307- |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20>
(B) SPARE
|
1-42350-332-0 |
01 |
1 |
9004-9306 |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20>
(B)
|
1-42350-332-0 |
10 |
1 |
9004-9306 |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
WHEEL PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-331-0 |
10 |
1 |
9004-9306 |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>
(B) SPARE
|
1-42350-330-0 |
01 |
1 |
9002-9312 |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>
(B) SPARE
|
1-42350-468-0 |
01 |
1 |
9401- |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL
SPECIAL PAINTED TOPY WHITE<W20>
(B)
|
1-42350-330-0 |
10 |
1 |
9002-9312 |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL
SPECIAL PAINTED TOPY WHITE<W20>
(B)
|
1-42350-468-0 |
10 |
1 |
9401- |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
(A) SPARE
|
1-42350-161-2 |
01 |
1 |
9002-9301 |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
(A) SPARE
|
1-42350-448-0 |
01 |
1 |
9302- |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
(A)
|
1-42350-161-2 |
10 |
1 |
9002-9301 |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
(A)
|
1-42350-448-0 |
10 |
1 |
9302- |
● |
|
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
WHEEL PAINTED LIGHT ARGENT<SKD>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
(B) SPARE
|
1-42350-331-0 |
01 |
1 |
9004-9306 |
● |
|
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B) SPARE
|
1-42350-333-0 |
01 |
1 |
9002-9306 |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-333-0 |
10 |
1 |
9002-9306 |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B) SPARE
|
1-42350-333-0 |
01 |
1 |
9307-9312 |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B) SPARE
|
1-42350-471-0 |
01 |
1 |
9401- |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-333-0 |
10 |
1 |
9307-9312 |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-471-0 |
10 |
1 |
9401- |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B) SPARE
|
1-42350-334-0 |
01 |
1 |
9004-9306 |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-334-0 |
10 |
1 |
9004-9306 |
● |
● |
| |
2 |
WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL
8STUD7.50VX20 165-13<Q62>
(A) SPARE
|
1-42350-137-1 |
01 |
1 |
9002-9406 |
● |
● |
| |
2 |
WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL
8STUD7.50VX20 165-13<Q62>
(A) SPARE
|
1-42350-496-0 |
01 |
1 |
9407- |
● |
● |
| |
2 |
WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL
8STUD7.50VX20 165-13<Q62>
(A)
|
1-42350-137-1 |
10 |
1 |
9002-9406 |
● |
● |
| |
2 |
WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL
8STUD7.50VX20 165-13<Q62>
(A)
|
1-42350-496-0 |
10 |
1 |
9407- |
● |
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
(A) SPARE
|
1-42350-134-2 |
01 |
1 |
9002-9204 |
|
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
(A) SPARE
|
1-42350-420-0 |
01 |
1 |
9205-9306 |
|
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
(A)
|
1-42350-134-2 |
10 |
1 |
9002-9204 |
|
● |
| |
2 |
WHEEL; DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
(A)
|
1-42350-420-0 |
10 |
1 |
9205-9306 |
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-42333-029-0 |
20 |
1 |
9002-9203 |
● |
|
| |
3 |
NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M22 RH THREAD
|
1-42333-042-0 |
20 |
1 |
9204- |
● |
|
| |
3 |
NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-42333-031-0 |
20 |
1 |
9002-9110 |
● |
● |
| |
3 |
NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-42333-040-0 |
20 |
1 |
9111- |
● |
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M24 LH THREAD
|
1-42334-022-0 |
08 |
1 |
9002-9306 |
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M24 LH THREAD
|
1-42334-022-0 |
08 |
1 |
9307- |
● |
|
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M24
|
1-42333-022-0 |
08 |
1 |
9002-9306 |
|
● |
| |
3 |
NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M24
|
1-42333-022-0 |
08 |
1 |
9307- |
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-42333-029-0 |
40 |
1 |
9002-9203 |
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M22 RH THREAD
|
1-42333-042-0 |
40 |
1 |
9204- |
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-42333-031-0 |
40 |
1 |
9002-9110 |
● |
● |
| |
4 |
NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-42333-040-0 |
40 |
1 |
9111- |
● |
● |
| |
4 |
NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M30 LH THREAD
|
1-42334-023-0 |
16 |
1 |
9002-9306 |
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M30 LH THREAD
|
1-42334-023-0 |
16 |
1 |
9307- |
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M30
|
1-42333-023-0 |
16 |
1 |
9002-9306 |
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M30
|
1-42333-023-0 |
16 |
1 |
9307- |
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
OUTER M30,INNER M20 LH THREAD
|
1-42336-005-0 |
16 |
1 |
9307- |
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
OUTER M30,INNER M20 RH THREAD
|
1-42335-005-0 |
16 |
1 |
9307- |
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
OUTER M30,INNER M20 LH THREAD
|
1-42336-005-0 |
16 |
1 |
9002-9306 |
|
● |
| |
5 |
NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
OUTER M30,INNER M20 RH THREAD
|
1-42335-005-0 |
16 |
1 |
9002-9306 |
|
● |
| |
8 |
VALVE; TIRE
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
|
1-42370-020-3 |
01 |
1 |
9002- |
● |
● |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
SPARE TIRE & DISC WHEEL RR<R46>
EXC. DISC WHEEL SPARE<N79>
|
1-42370-020-3 |
01 |
1 |
9002- |
● |
● |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>
|
1-42370-020-3 |
10 |
1 |
9002- |
● |
● |
| |
11 |
STEP; DISC WHEEL SIDE
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20>
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC
WHEEL STEP DELETE<SBH>
|
1-43139-025-0 |
02 |
1 |
9002-9306 |
● |
|
| |
11 |
STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-43139-028-0 |
02 |
1 |
9307- |
● |
|
| |
11 |
STEP; DISC WHEEL SIDE
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC
WHEEL STEP DELETE<SBH>,WHEEL PAINTED LIGHT
ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20>
|
1-43139-012-2 |
02 |
1 |
9002- |
● |
● |
| |
11 |
STEP; DISC WHEEL SIDE
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC
WHEEL STEP DELETE<SBH>
|
1-43139-026-0 |
02 |
1 |
9002-9306 |
● |
● |
| |
11 |
STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
EXC. DISC WHEEL STEP DELETE<SBH>,WHEEL PAINTED
LIGHT ARGENT<SKD>
|
1-43139-002-2 |
02 |
1 |
9002-9211 |
|
● |
| |
11 |
STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
EXC. DISC WHEEL STEP DELETE<SBH>,WHEEL PAINTED
LIGHT ARGENT<SKD>
|
1-43139-028-0 |
02 |
1 |
9212-9306 |
|
● |
| |
11 |
STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. DISC WHEEL STEP DELETE<SBH>
|
1-43139-024-0 |
02 |
1 |
9002-9211 |
|
● |
| |
11 |
STEP; DISC WHEEL SIDE
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. DISC WHEEL STEP DELETE<SBH>
|
1-43139-029-0 |
02 |
1 |
9212-9306 |
|
● |
| |
12 |
U-BOLT; STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
EXC. DISC WHEEL STEP DELETE<SBH>
L=44
|
9-43139-023-1 |
06 |
1 |
9002-9306 |
|
● |
| |
12 |
U-BOLT; STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
L=44
|
9-43139-023-1 |
06 |
1 |
9307- |
● |
|
| |
13 |
NUT; STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
EXC. DISC WHEEL STEP DELETE<SBH>
M10
|
9-09110-510-0 |
06 |
1 |
9002-9306 |
|
● |
| |
13 |
NUT; STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
M10
|
9-09110-510-0 |
06 |
1 |
9307- |
● |
|
| |
14 |
WASHER; LK,STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
EXC. DISC WHEEL STEP DELETE<SBH>
ID=10.2
|
9-09150-510-0 |
06 |
1 |
9002-9306 |
|
● |
| |
14 |
WASHER; LK,STEP DISC
DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
ID=10.2
|
9-09150-510-0 |
06 |
1 |
9307- |
● |
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>
L=170
|
1-42370-024-0 |
04 |
1 |
9002-9504 |
● |
● |
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
L=170
|
1-42370-024-0 |
04 |
1 |
9505- |
● |
● |
| |
31 |
RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
SPARE
|
1-42355-014-0 |
01 |
1 |
9002- |
● |
|
| |
31 |
RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC
WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42355-014-0 |
10 |
1 |
9002- |
● |
|
| |
31 |
RING; SIDE,DISC WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8>
SPARE
|
1-42355-004-1 |
01 |
1 |
9002- |
● |
● |
| |
31 |
RING; SIDE,DISC WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13<QM8>
|
1-42355-004-1 |
10 |
1 |
9002- |
● |
● |
| |
32 |
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>
|
1-42374-001-0 |
11 |
1 |
9304- |
● |
● |
| |
32 |
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>
|
1-42374-001-0 |
10 |
1 |
9304- |
● |
● |
