Sayfa 1-35 - Isuzu EPC

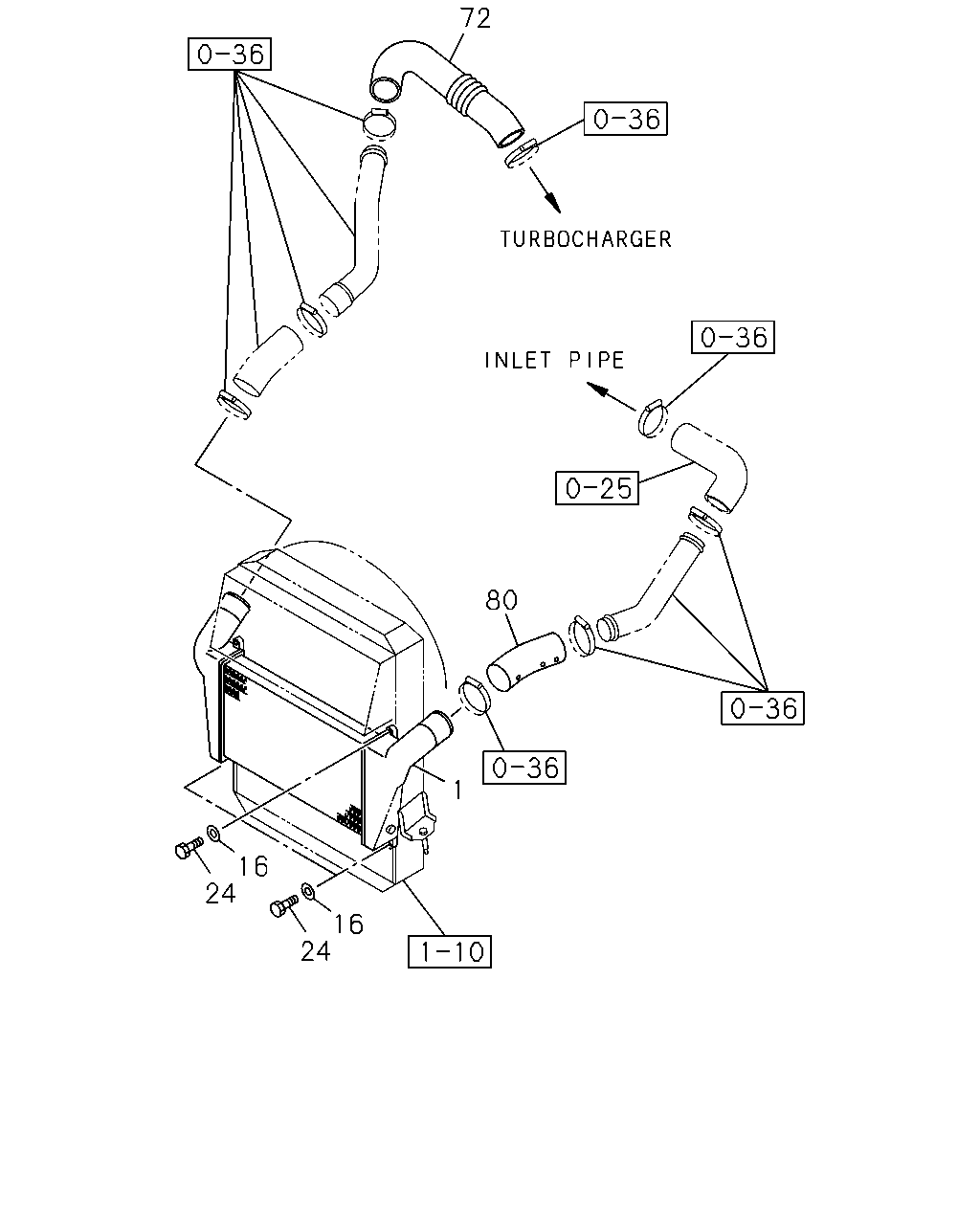

1-35 — CHARGE AIR COOLER (#17718) — 6 parça

72 80 1 16 24 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COOLER; CHARGE AIR 4HK1-TCS ENG(RJS)	8-97333-362-1	01	1	0512-	●	●
16	WASHER; PL,CHARGE AIR COOLER 4HK1-TCS ENG(RJS) ID=8.4	9-09160-508-0	04	1	0512-	●	●
24	BOLT; COOLER TO RAD 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28080-825-0	04	1	0512-	●	●
72	HOSE; CONN,INL PIPE TO DUCT 4HK1-TCS ENG(RJS)	8-97203-993-2	01	1	0512-	●	●
80	HOSE; CONN,CHARGE AIR COOLER TO DUCT 4HK1-TCS ENG(RJS)	8-98011-904-2	01	1	0512-0608	●	●
80	HOSE; CONN,CHARGE AIR COOLER TO DUCT 4HK1-TCS ENG(RJS)	8-98053-760-0	01	1	0609-	●	●
