Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#17717) — 243 parça

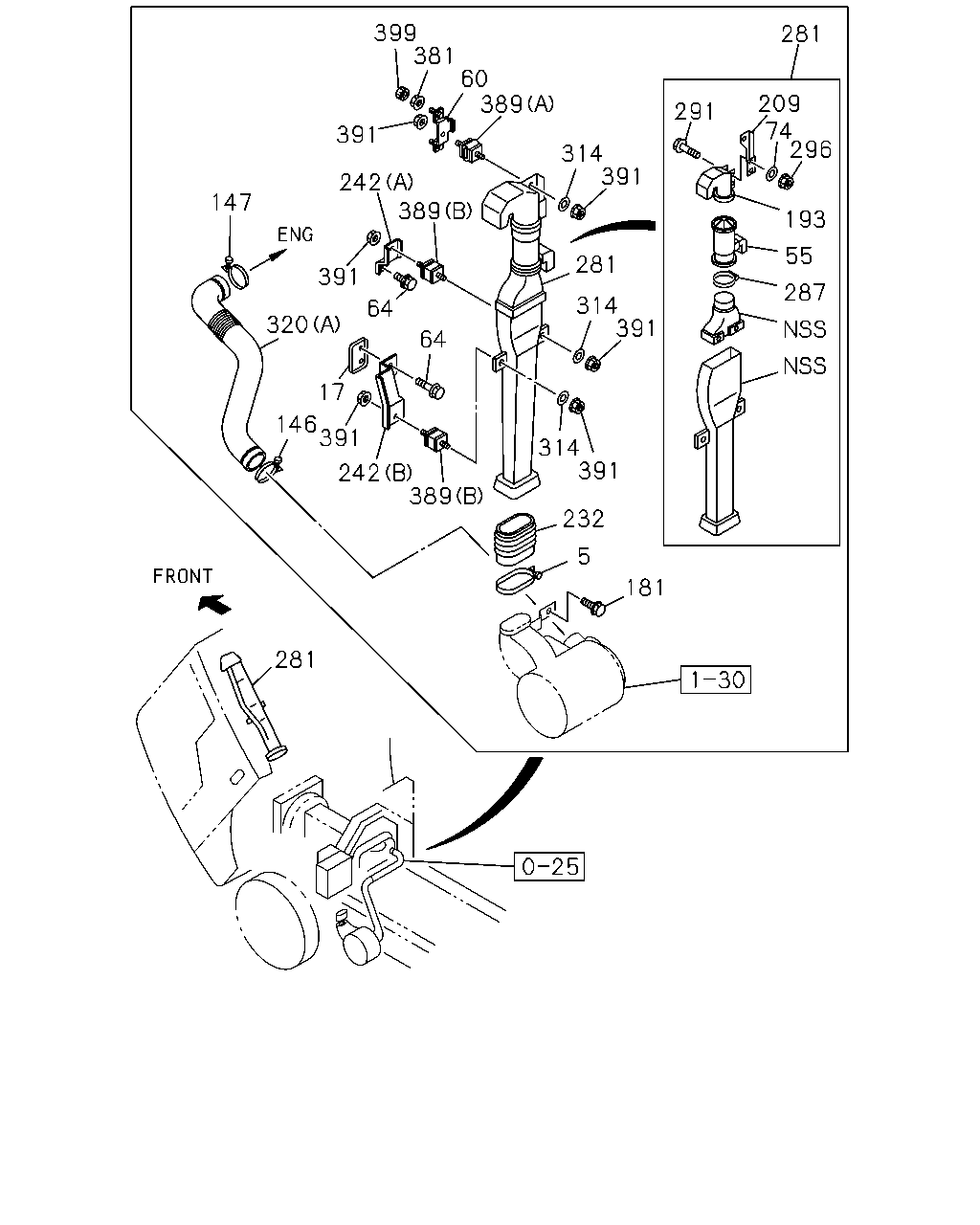

399 381 281 60 389 209 74 296 291 391 314 391 242 389 147 193 55 281 391 287 314 391 64 320 64 17 146 391 314 391 242 389 232 5 181 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT 4HK1-TCS ENG(RJS) ID=68-85 SOU	1-09707-202-0	01	1	0512-	●	●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0303-0511			●	●
5	CLIP; AIR DUCT 4HE1 ENG(RLY) D=101.6 SOU	9-09915-502-1	01	1	0303-0511		●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0512-			●	●
17	GASKET; AIR DUCT 4HF1 ENG(RLS) SOU	8-97853-699-2	01	1	0303-0511			●	●
17	GASKET; AIR DUCT 4HE1 ENG(RLY) SOU	8-97853-699-2	01	1	0303-0511		●
17	GASKET; AIR DUCT 4HF1 ENG(RLS) SOU	8-97853-699-2	01	1	0512-			●	●
55	CLEANER ASM; AIR,PRE 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> SOU	8-97126-267-0	01	1	0303-			●	●
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) SOU	8-97856-957-0	01	1	0303-0511			●	●
60	BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) SOU	8-97856-957-0	01	1	0303-0511		●
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS)	8-97856-957-1	01	1	0512-			●	●
64	BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511			●	●
64	BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511		●
64	BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0512-			●	●
74	WASHER; PL,ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=8.4 OD=22	9-09160-708-0	02	1	0303-0605			●	●
74	WASHER; PL,ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=8.4 OD=22 SOU	0-91610-708-0	02	1	0606-			●	●
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0303-			●	●
146	CLIP; HOSE,ACL 4HE1 ENG(RLY) ID=117	9-09915-075-1	01	1	0303-0511		●
146	CLIP; HOSE,ACL 4HK1-TCS ENG(RJS) ID=112	9-09915-074-1	01	1	0512-	●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0303-0511			●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-			●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-			●	●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511			●	●
181	BOLT; AIR DUCT TO RAD 4HE1 ENG(RLY) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512			●	●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-			●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0303-			●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0303-			●	●
193	COVER; DUCT,AIR INT 4HE1 ENG(RLY) SOU	8-97044-953-0	01	1	0303-0511		●
209	BRACKET; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> SOU	8-97120-080-1	01	1	0303-			●	●
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0303-0511			●	●
232	HOSE; CONN 4HE1 ENG(RLY) SOU	8-97109-423-0	01	1	0303-0511		●
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0512-0802			●	●
232	HOSE; CONN 4HF1 ENG(RLS)	8-98115-594-0	01	1	0803-			●	●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (A) SOU	8-97853-633-1	01	1	0303-0511			●	●
242	BRACKET; AIR DUCT 4HE1 ENG(RLY) (A) SOU	8-97853-633-1	01	1	0303-0511		●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (A)	8-97853-633-2	01	1	0512-			●	●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (B) SOU	8-97857-844-0	01	1	0303-0511			●	●
242	BRACKET; AIR DUCT 4HE1 ENG(RLY) (B) SOU	8-97857-844-0	01	1	0303-0511		●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (B)	8-97857-844-1	01	1	0512-			●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) SOU	8-97125-174-1	01	1	0303-0511		●
281	DUCT; AIR,VERTICAL INT 4HK1-TCS ENG(RJS)	8-97180-995-0	01	1	0512-	●	●
287	CLIP; AIR DUCT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=87 SOU	9-09915-071-1	01	1	0303-			●	●
291	BOLT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8X30 FLANGE	0-28680-830-0	02	1	0303-0512			●	●
291	BOLT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8X30 FLANGE	0-28650-830-0	02	1	0601-			●	●
296	NUT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602			●	●
296	NUT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8 FLANGE SOU	0-91180-108-0	02	1	0603-			●	●
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0303-0511			●	●
314	WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0303-0511		●
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0512-			●	●
320	HOSE; CONN,ACL 4HF1 ENG(RLS) (A)	8-97103-346-3	01	1	0303-			●	●
320	HOSE; CONN,ACL 4HE1 ENG(RLY) (B)	8-97255-195-0	01	1	0303-0511		●
320	HOSE; CONN,ACL 4HK1-TCS ENG(RJS) (C)	8-98000-873-1	01	1	0512-	●	●
381	NUT; BRKT,AIR DUCT 4HF1 ENG(RLS) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511			●	●
381	NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511		●
381	NUT; BRKT,AIR DUCT 4HF1 ENG(RLS) M6 FLANGE SOU	1-09984-018-0	02	1	0512-			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0303-0511			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) (A) SOU	8-97080-149-0	01	1	0303-0511		●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0512-			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0303-0511			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) (B) SOU	8-97081-886-0	02	1	0303-0511		●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0512-			●	●
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0303-0511			●	●
391	NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) M8 FLANGE SOU	8-94279-517-0	06	1	0303-0511		●
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0512-			●	●
399	CAP; BRKT,AIR DUCT 4HF1 ENG(RLS) SOU	8-94273-605-0	02	1	0303-0511			●	●
399	CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) SOU	8-94273-605-0	02	1	0303-0511		●
399	CAP; BRKT,AIR DUCT 4HF1 ENG(RLS) SOU	8-94273-605-0	02	1	0512-			●	●

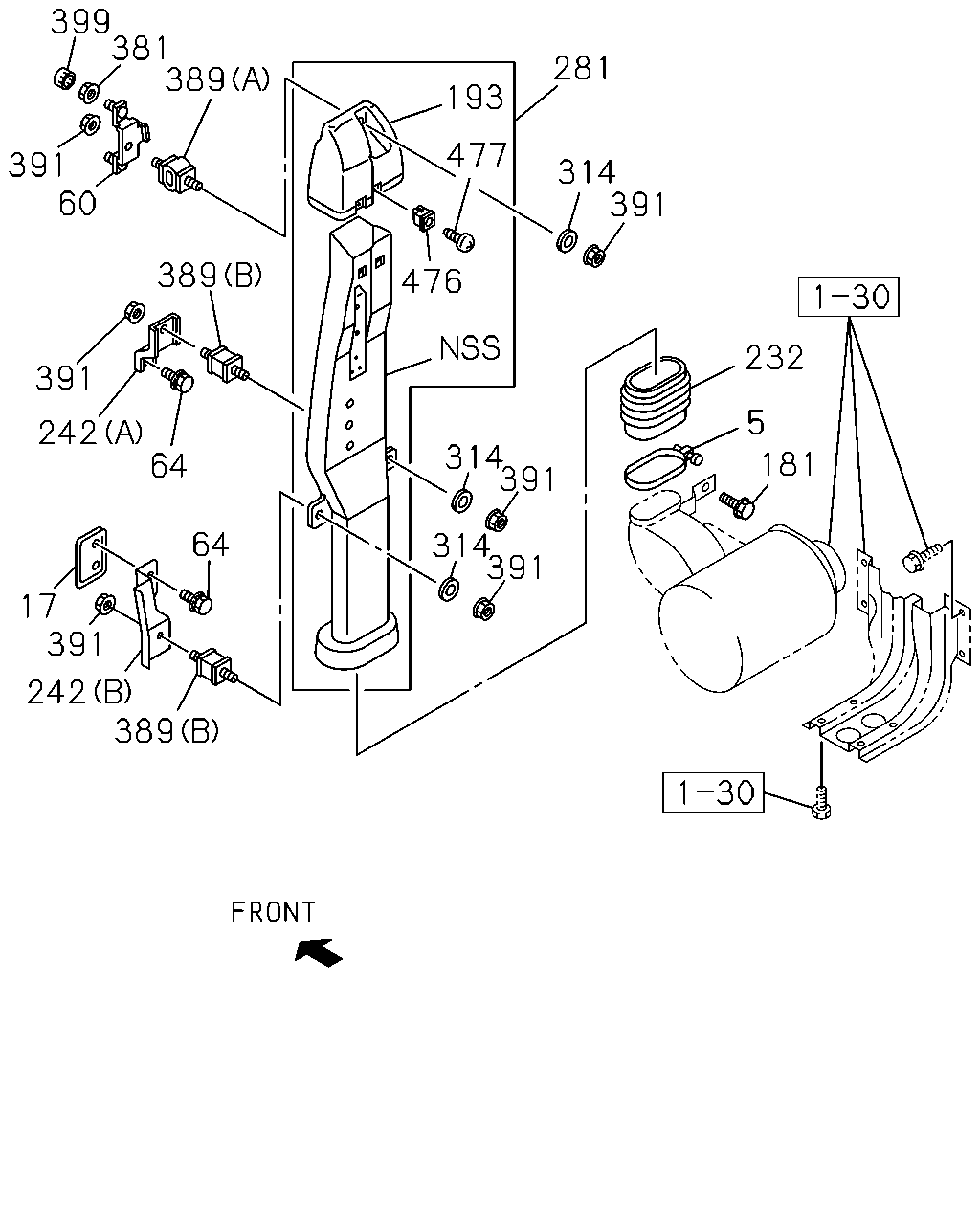

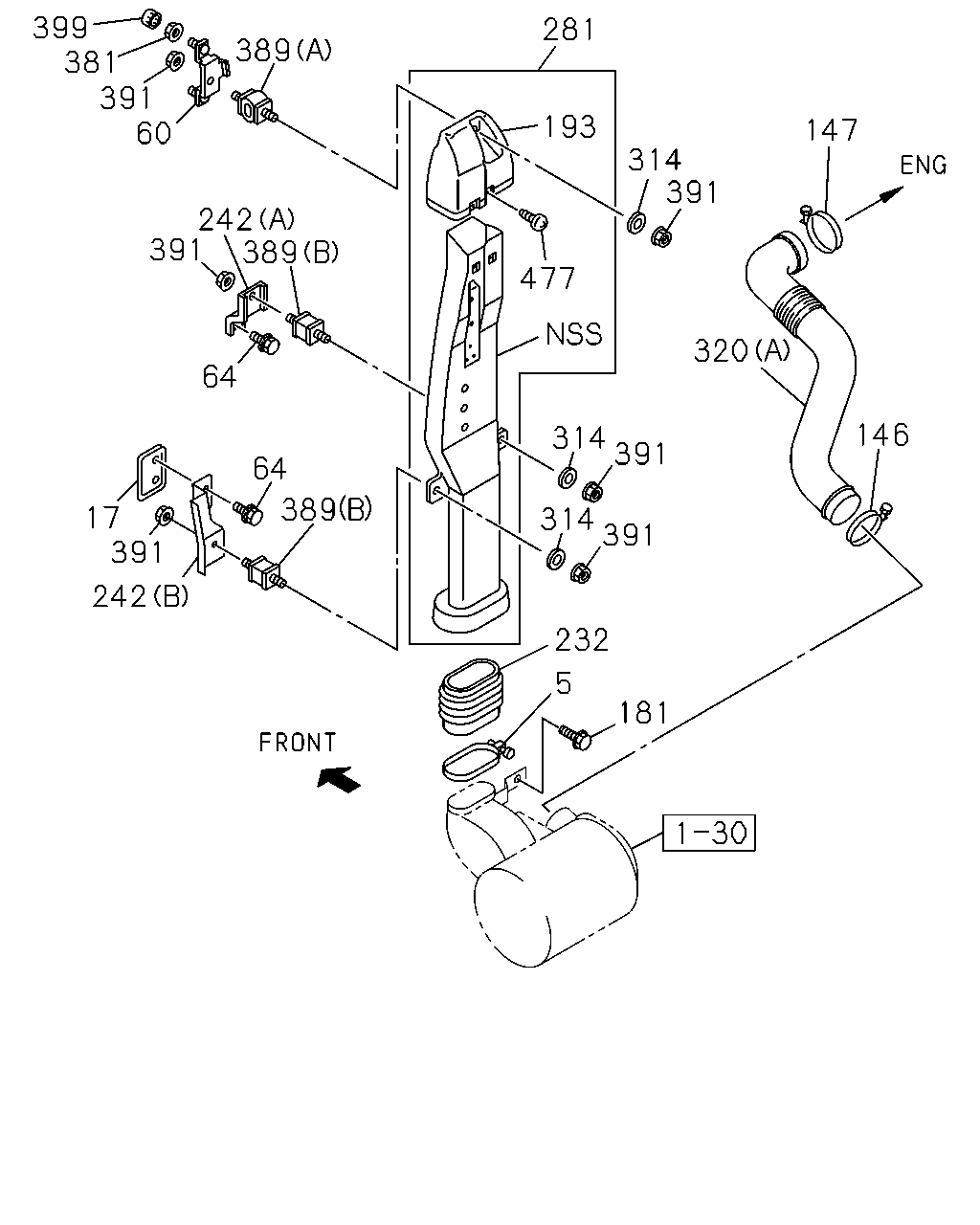

399 381 391 60 281 389 193 147 314 391 242 391 389 477 320 64 146 314 391 64 314 391 389 17 391 242 232 5 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT 4HK1-TCS ENG(RJS) ID=68-85 SOU	1-09707-202-0	01	1	0512-	●	●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0303-0511			●	●
5	CLIP; AIR DUCT 4HE1 ENG(RLY) D=101.6 SOU	9-09915-502-1	01	1	0303-0511		●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0512-			●	●
17	GASKET; AIR DUCT 4HF1 ENG(RLS) SOU	8-97853-699-2	01	1	0303-0511			●	●
17	GASKET; AIR DUCT 4HE1 ENG(RLY) SOU	8-97853-699-2	01	1	0303-0511		●
17	GASKET; AIR DUCT 4HF1 ENG(RLS) SOU	8-97853-699-2	01	1	0512-			●	●
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) SOU	8-97856-957-0	01	1	0303-0511			●	●
60	BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) SOU	8-97856-957-0	01	1	0303-0511		●
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS)	8-97856-957-1	01	1	0512-			●	●
64	BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511			●	●
64	BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511		●
64	BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0512-			●	●
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0303-			●	●
146	CLIP; HOSE,ACL 4HE1 ENG(RLY) ID=117	9-09915-075-1	01	1	0303-0511		●
146	CLIP; HOSE,ACL 4HK1-TCS ENG(RJS) ID=112	9-09915-074-1	01	1	0512-	●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0303-0511			●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-			●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-			●	●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511			●	●
181	BOLT; AIR DUCT TO RAD 4HE1 ENG(RLY) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512			●	●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-			●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0303-			●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0303-			●	●
193	COVER; DUCT,AIR INT 4HE1 ENG(RLY) SOU	8-97044-953-0	01	1	0303-0511		●
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0303-0511			●	●
232	HOSE; CONN 4HE1 ENG(RLY) SOU	8-97109-423-0	01	1	0303-0511		●
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0512-0802			●	●
232	HOSE; CONN 4HF1 ENG(RLS)	8-98115-594-0	01	1	0803-			●	●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (A) SOU	8-97853-633-1	01	1	0303-0511			●	●
242	BRACKET; AIR DUCT 4HE1 ENG(RLY) (A) SOU	8-97853-633-1	01	1	0303-0511		●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (A)	8-97853-633-2	01	1	0512-			●	●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (B) SOU	8-97857-844-0	01	1	0303-0511			●	●
242	BRACKET; AIR DUCT 4HE1 ENG(RLY) (B) SOU	8-97857-844-0	01	1	0303-0511		●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (B)	8-97857-844-1	01	1	0512-			●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) SOU	8-97125-174-1	01	1	0303-0511		●
281	DUCT; AIR,VERTICAL INT 4HK1-TCS ENG(RJS)	8-97180-995-0	01	1	0512-	●	●
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0303-0511			●	●
314	WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0303-0511		●
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0512-			●	●
320	HOSE; CONN,ACL 4HF1 ENG(RLS) (A)	8-97103-346-3	01	1	0303-			●	●
320	HOSE; CONN,ACL 4HE1 ENG(RLY) (B)	8-97255-195-0	01	1	0303-0511		●
320	HOSE; CONN,ACL 4HK1-TCS ENG(RJS) (C)	8-98000-873-1	01	1	0512-	●	●
381	NUT; BRKT,AIR DUCT 4HF1 ENG(RLS) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511			●	●
381	NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511		●
381	NUT; BRKT,AIR DUCT 4HF1 ENG(RLS) M6 FLANGE SOU	1-09984-018-0	02	1	0512-			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0303-0511			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) (A) SOU	8-97080-149-0	01	1	0303-0511		●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0512-			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0303-0511			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) (B) SOU	8-97081-886-0	02	1	0303-0511		●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0512-			●	●
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0303-0511			●	●
391	NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) M8 FLANGE SOU	8-94279-517-0	06	1	0303-0511		●
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0512-			●	●
399	CAP; BRKT,AIR DUCT 4HF1 ENG(RLS) SOU	8-94273-605-0	02	1	0303-0511			●	●
399	CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) SOU	8-94273-605-0	02	1	0303-0511		●
399	CAP; BRKT,AIR DUCT 4HF1 ENG(RLS) SOU	8-94273-605-0	02	1	0512-			●	●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0303-0511			●	●
477	SCREW; COVER 4HE1 ENG(RLY) M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0303-0511		●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0512-0604			●	●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-			●	●

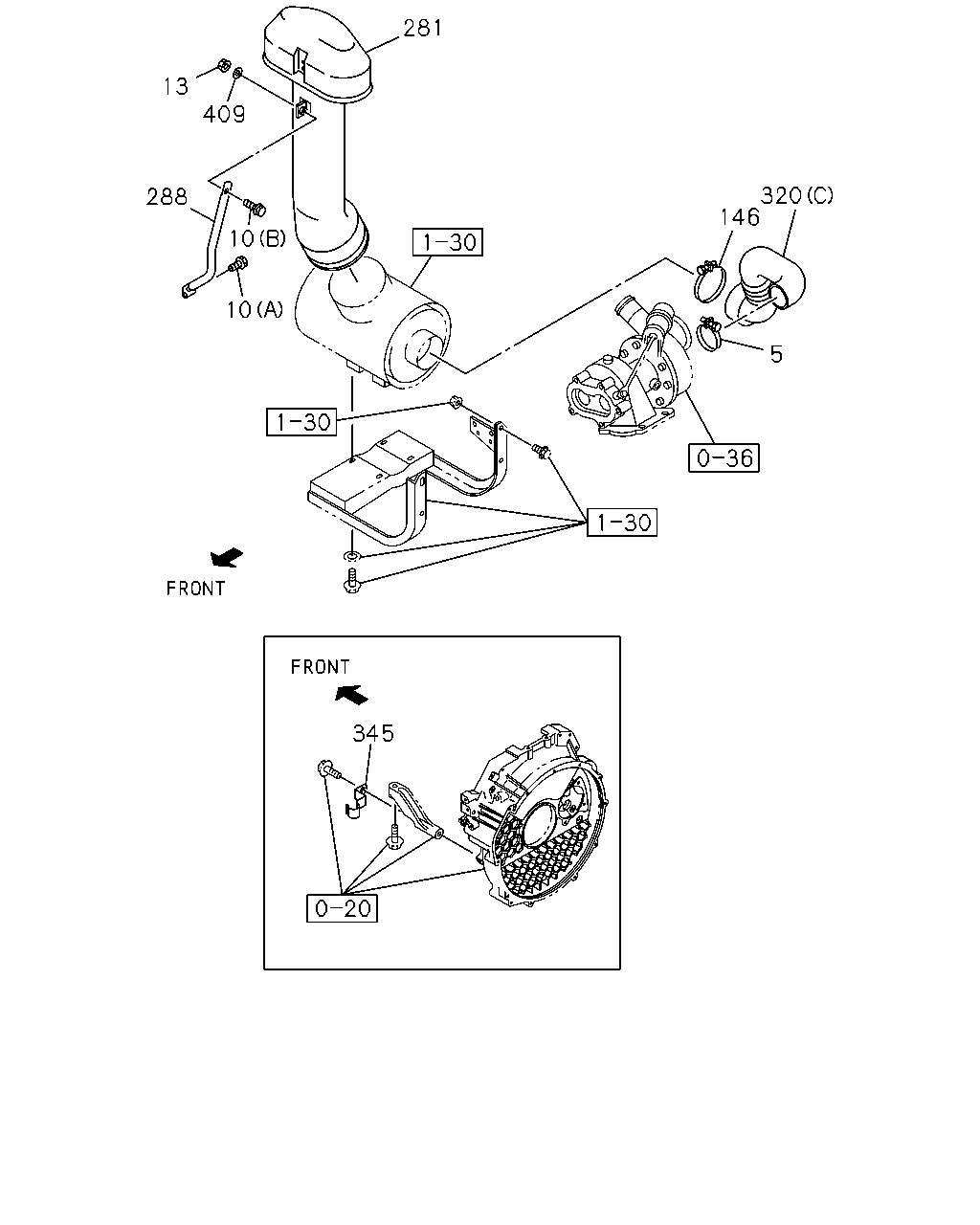

281 13 409 320 146 288 10 10 5 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT 4HK1-TCS ENG(RJS) ID=68-85 SOU	1-09707-202-0	01	1	0512-	●	●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0303-0511			●	●
5	CLIP; AIR DUCT 4HE1 ENG(RLY) D=101.6 SOU	9-09915-502-1	01	1	0303-0511		●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0512-			●	●
10	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●	●
10	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●	●
10	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) (B) M8X35 FLANGE	0-28680-835-0	01	1	0512-0512	●	●
10	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) (B) M8X35 FLANGE SOU	0-28650-835-0	01	1	0601-	●	●
13	NUT; BRKT FIX 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●	●
13	NUT; BRKT FIX 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●	●
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0303-			●	●
146	CLIP; HOSE,ACL 4HE1 ENG(RLY) ID=117	9-09915-075-1	01	1	0303-0511		●
146	CLIP; HOSE,ACL 4HK1-TCS ENG(RJS) ID=112	9-09915-074-1	01	1	0512-	●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) SOU	8-97125-174-1	01	1	0303-0511		●
281	DUCT; AIR,VERTICAL INT 4HK1-TCS ENG(RJS)	8-97180-995-0	01	1	0512-	●	●
288	BRACKET; DUCT 4HK1-TCS ENG(RJS)	8-97183-041-2	01	1	0512-	●	●
320	HOSE; CONN,ACL 4HF1 ENG(RLS) (A)	8-97103-346-3	01	1	0303-			●	●
320	HOSE; CONN,ACL 4HE1 ENG(RLY) (B)	8-97255-195-0	01	1	0303-0511		●
320	HOSE; CONN,ACL 4HK1-TCS ENG(RJS) (C)	8-98000-873-1	01	1	0512-	●	●
345	CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0303-0307		●
345	CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0511		●
345	CLIP; PCV HOSE 4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0512-	●	●
409	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=8.4 OD=22	9-09160-708-0	01	1	0512-0605	●	●
409	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=8.4 OD=22 SOU	0-91610-708-0	01	1	0606-	●	●

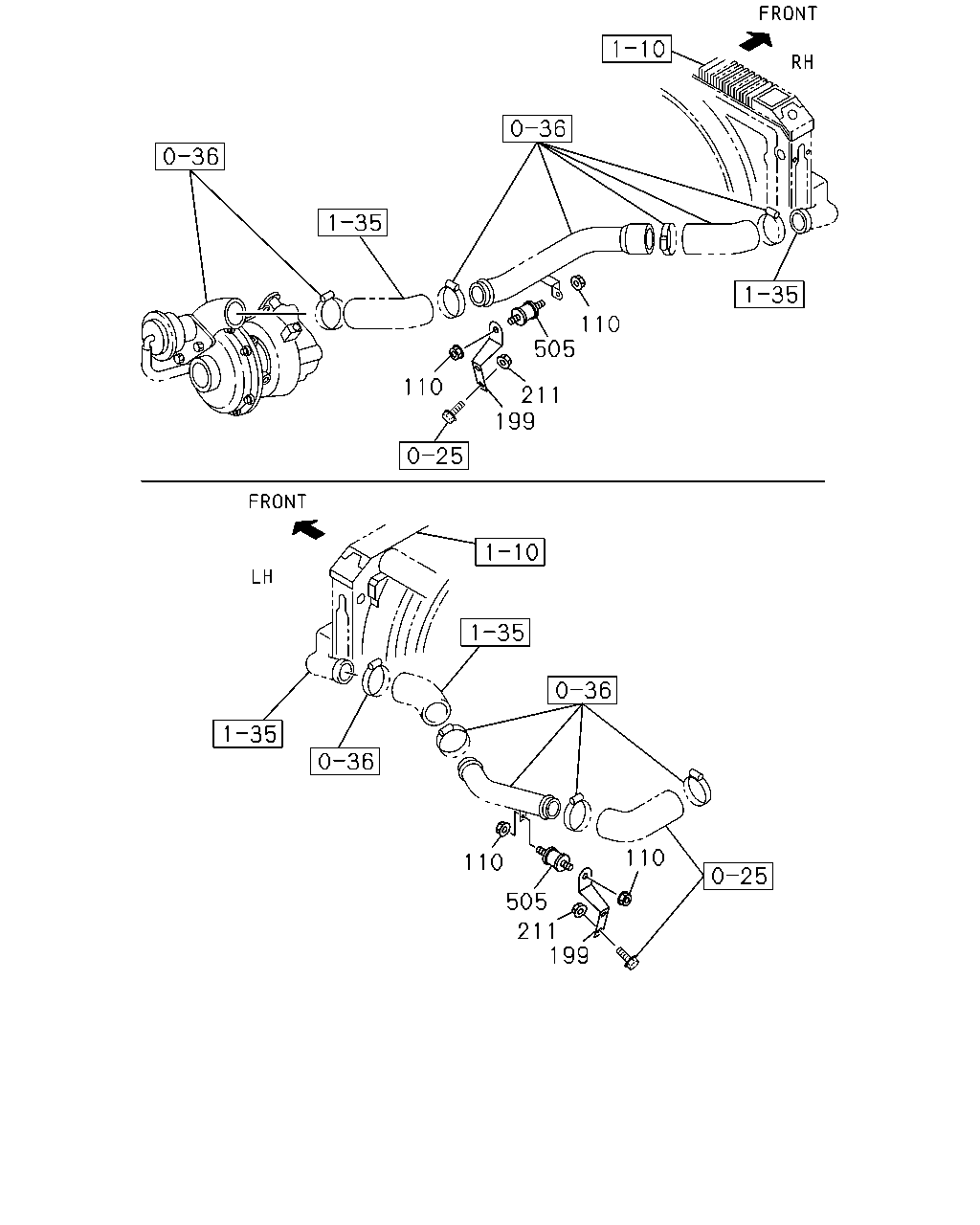

110 505 110 211 199 110 110 505 211 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	NUT; RUBBER MTG 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91150-108-0	04	1	0512-0602	●	●
110	NUT; RUBBER MTG 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	04	1	0603-	●	●
199	BRACKET; PIPE 4HK1-TCS ENG(RJS)	8-98011-752-1	01	1	0512-	●	●
199	BRACKET; PIPE 4HK1-TCS ENG(RJS)	8-98011-753-1	01	1	0512-	●	●
211	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	8-97046-127-0	02	1	0512-0610	●	●
211	NUT; BRKT 4HK1-TCS ENG(RJS) M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●	●
505	RUBBER; MTG 4HK1-TCS ENG(RJS) SOU	8-94158-155-1	02	1	0512-0611	●	●
505	RUBBER; MTG 4HK1-TCS ENG(RJS)	8-98036-826-0	02	1	0612-	●	●

399 381 389 281 193 477 391 60 314 391 389 476 232 391 5 242 64 314 391 181 314 391 64 17 391 242 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT 4HK1-TCS ENG(RJS) ID=68-85 SOU	1-09707-202-0	01	1	0512-	●	●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0303-0511			●	●
5	CLIP; AIR DUCT 4HE1 ENG(RLY) D=101.6 SOU	9-09915-502-1	01	1	0303-0511		●
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0512-			●	●
17	GASKET; AIR DUCT 4HF1 ENG(RLS) SOU	8-97853-699-2	01	1	0303-0511			●	●
17	GASKET; AIR DUCT 4HE1 ENG(RLY) SOU	8-97853-699-2	01	1	0303-0511		●
17	GASKET; AIR DUCT 4HF1 ENG(RLS) SOU	8-97853-699-2	01	1	0512-			●	●
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) SOU	8-97856-957-0	01	1	0303-0511			●	●
60	BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) SOU	8-97856-957-0	01	1	0303-0511		●
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS)	8-97856-957-1	01	1	0512-			●	●
64	BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511			●	●
64	BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511		●
64	BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0512-			●	●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511			●	●
181	BOLT; AIR DUCT TO RAD 4HE1 ENG(RLY) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512			●	●
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-			●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0303-			●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0303-			●	●
193	COVER; DUCT,AIR INT 4HE1 ENG(RLY) SOU	8-97044-953-0	01	1	0303-0511		●
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0303-0511			●	●
232	HOSE; CONN 4HE1 ENG(RLY) SOU	8-97109-423-0	01	1	0303-0511		●
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0512-0802			●	●
232	HOSE; CONN 4HF1 ENG(RLS)	8-98115-594-0	01	1	0803-			●	●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (A) SOU	8-97853-633-1	01	1	0303-0511			●	●
242	BRACKET; AIR DUCT 4HE1 ENG(RLY) (A) SOU	8-97853-633-1	01	1	0303-0511		●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (A)	8-97853-633-2	01	1	0512-			●	●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (B) SOU	8-97857-844-0	01	1	0303-0511			●	●
242	BRACKET; AIR DUCT 4HE1 ENG(RLY) (B) SOU	8-97857-844-0	01	1	0303-0511		●
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (B)	8-97857-844-1	01	1	0512-			●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	0303-			●	●
281	DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) SOU	8-97125-174-1	01	1	0303-0511		●
281	DUCT; AIR,VERTICAL INT 4HK1-TCS ENG(RJS)	8-97180-995-0	01	1	0512-	●	●
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0303-0511			●	●
314	WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0303-0511		●
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0512-			●	●
381	NUT; BRKT,AIR DUCT 4HF1 ENG(RLS) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511			●	●
381	NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511		●
381	NUT; BRKT,AIR DUCT 4HF1 ENG(RLS) M6 FLANGE SOU	1-09984-018-0	02	1	0512-			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0303-0511			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) (A) SOU	8-97080-149-0	01	1	0303-0511		●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0512-			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0303-0511			●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) (B) SOU	8-97081-886-0	02	1	0303-0511		●
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0512-			●	●
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0303-0511			●	●
391	NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) M8 FLANGE SOU	8-94279-517-0	06	1	0303-0511		●
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0512-			●	●
399	CAP; BRKT,AIR DUCT 4HF1 ENG(RLS) SOU	8-94273-605-0	02	1	0303-0511			●	●
399	CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) SOU	8-94273-605-0	02	1	0303-0511		●
399	CAP; BRKT,AIR DUCT 4HF1 ENG(RLS) SOU	8-94273-605-0	02	1	0512-			●	●
476	GROMMET; SCREW,COVER 4HE1 ENG(RLY) SOU	1-09983-081-0	04	1	0303-0511		●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0303-0511			●	●
477	SCREW; COVER 4HE1 ENG(RLY) M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0303-0511		●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0512-0604			●	●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-			●	●

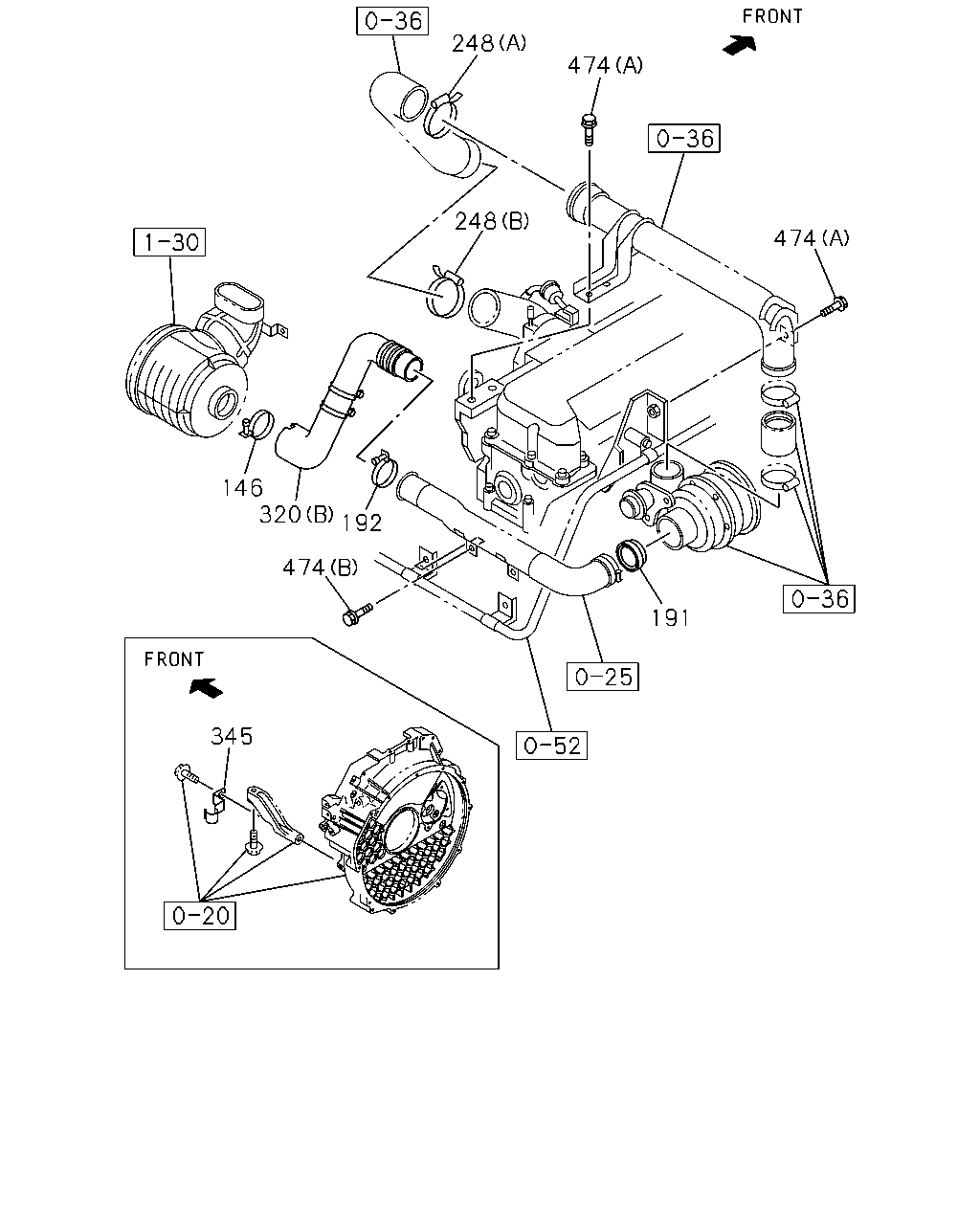

248 474 248 474 146 320 192 474 191 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0303-			●	●
146	CLIP; HOSE,ACL 4HE1 ENG(RLY) ID=117	9-09915-075-1	01	1	0303-0511		●
146	CLIP; HOSE,ACL 4HK1-TCS ENG(RJS) ID=112	9-09915-074-1	01	1	0512-	●	●
191	RUBBER; SEAL,CONN HOSE,AIR INT 4HE1 ENG(RLY)	8-94454-802-0	01	1	0303-0511		●
192	CLIP; HOSE 4HE1 ENG(RLY) ID=87 SOU	8-97087-432-0	01	1	0303-0511		●
248	CLIP; RUBBER HOSE 4HE1 ENG(RLY) (A) ID=50-69	8-94316-991-0	01	1	0303-0307		●
248	CLIP; RUBBER HOSE 4HE1 ENG(RLY) (A) ID=50-65 SOU	1-09707-204-0	01	1	0308-0511		●
248	CLIP; RUBBER HOSE 4HE1 ENG(RLY) (B) ID=68-85	8-94320-428-0	01	1	0303-0307		●
248	CLIP; RUBBER HOSE 4HE1 ENG(RLY) (B) ID=68-85 SOU	1-09707-202-0	01	1	0308-0511		●
320	HOSE; CONN,ACL 4HF1 ENG(RLS) (A)	8-97103-346-3	01	1	0303-			●	●
320	HOSE; CONN,ACL 4HE1 ENG(RLY) (B)	8-97255-195-0	01	1	0303-0511		●
320	HOSE; CONN,ACL 4HK1-TCS ENG(RJS) (C)	8-98000-873-1	01	1	0512-	●	●
345	CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0303-0307		●
345	CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0511		●
345	CLIP; PCV HOSE 4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0512-	●	●
474	BOLT; PIPE 4HE1 ENG(RLY) (A) M10X25 FLANGE	0-28681-025-0	03	1	0303-0511		●
474	BOLT; PIPE 4HE1 ENG(RLY) (B) M10X30 FLANGE	0-28781-030-0	02	1	0303-0511		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
