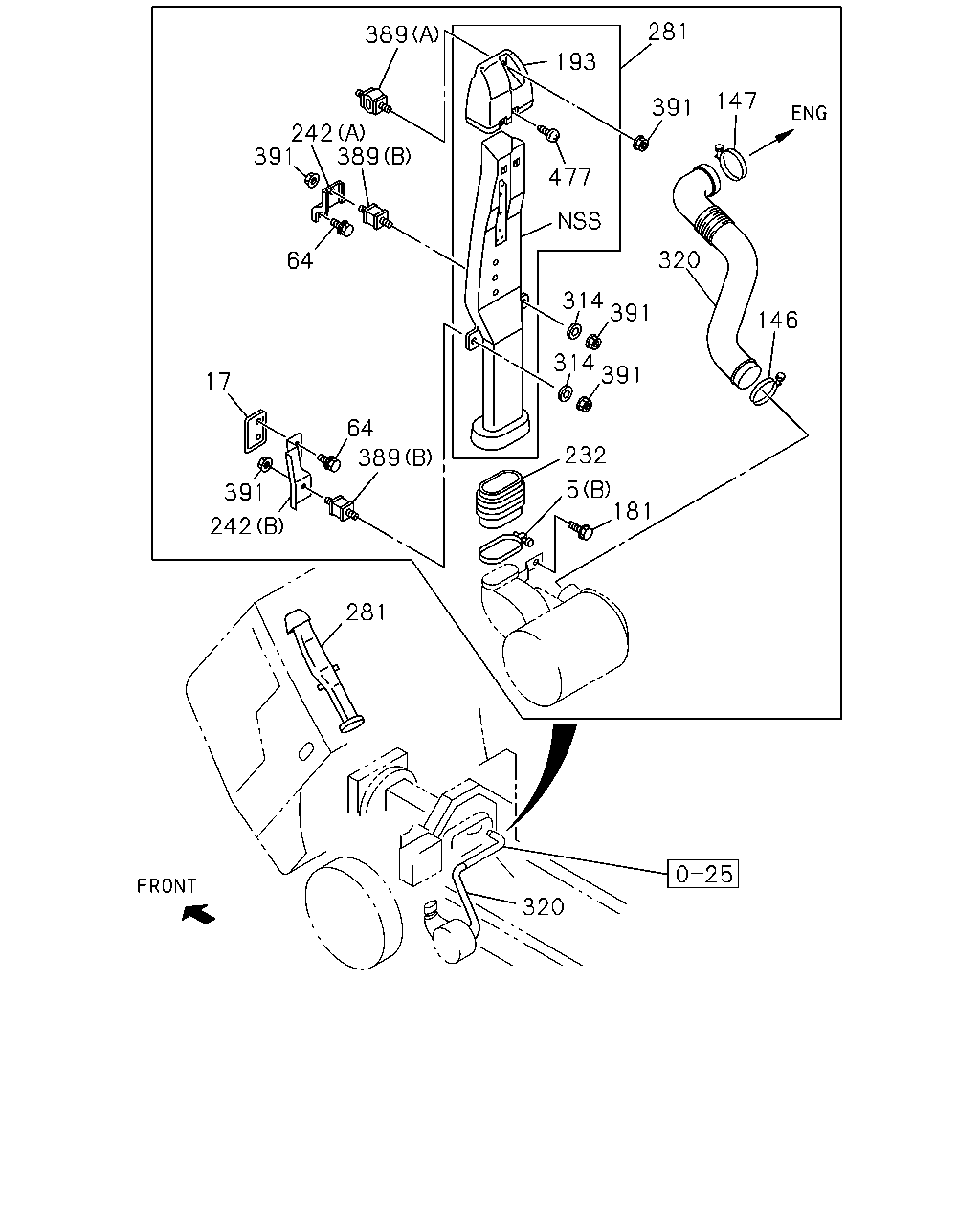

1-31 — AIR DUCT (#17715) — 71 parça

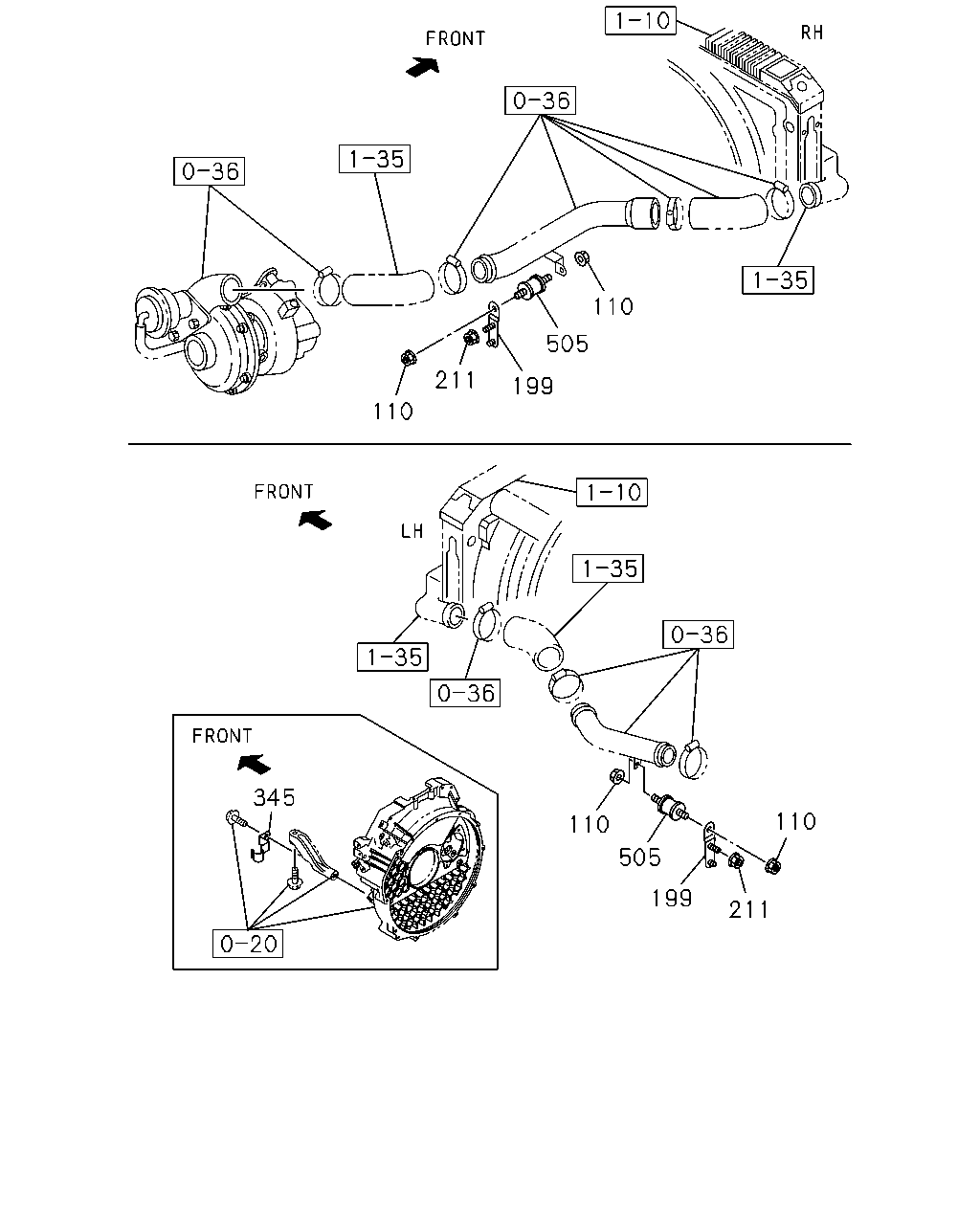

110 505 211 199 110 345 110 110 505 199 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
110	03.403 NUT; RUBBER MTG 01.062 M8 FLANGE	0-91180-108-0	04	1	0805-	●
199	03.417 BRACKET; PIPE	8-98011-753-1	01	1	0805-	●
199	03.417 BRACKET; PIPE	8-98011-752-1	01	1	0805-	●
211	03.405 NUT; BRKT 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0805-	●
345	03.417 CLIP; PCV HOSE	8-98020-040-0	01	1	0805-	●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	02	1	0805-	●

281 389 193 147 391 242 391 389 477 320 64 314 391 146 314 391 17 64 232 389 5 181 391 242 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HK1 ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=70-90	8-98122-372-0	01	1	1002-	●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0201-0501		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) (B) D=101.6	9-09915-502-1	01	1	0502-0804		●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0805-		●
5	03.407 CLIP; AIR DUCT (A) ID=68-85	1-09707-202-0	01	1	0805-0810	●
5	03.407 CLIP; AIR DUCT (A) ID=65-85	8-98133-350-0	01	1	0811-1001	●
5	03.407 CLIP; AIR DUCT 4HK1 ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=65-85	8-98133-350-0	01	1	1002-	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	0201-0501		●
17	03.403 GASKET; AIR DUCT 4HF1 ENG(RLS)	8-97853-699-2	01	1	0502-		●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0201-0501		●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-		●
146	03.417 CLIP; HOSE,ACL 03.008 ID=95	9-09915-733-1	01	1	0201-0501		●
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0502-		●
146	03.417 CLIP; HOSE,ACL 03.407 ID=112	9-09915-074-1	01	1	0805-	●
147	03.417 CLIP; HOSE TO ENG 03.008 ID=95	9-09915-733-1	01	1	0201-0501		●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0502-0504		●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0505-0809		●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0505-0809		●
147	03.417 CLIP; HOSE TO ENG 03.008 ID=95	9-09915-733-1	01	1	0810-		●
181	03.407 BOLT; AIR DUCT TO RAD 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0501		●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
193	03.417 COVER; DUCT,AIR INT	8-97138-604-1	01	1	0201-		●
232	03.417 HOSE; CONN	8-97109-423-0	01	1	0201-0501		●
232	03.417 HOSE; CONN 4HF1 ENG(RLS)	8-97109-423-0	01	1	0502-0802		●
232	03.417 HOSE; CONN 03.407	8-98115-594-0	01	1	0803-		●
242	03.417 BRACKET; AIR DUCT (A)	8-97853-633-1	01	1	0201-0501		●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) (A)	8-97853-633-2	01	1	0502-		●
242	03.417 BRACKET; AIR DUCT (B)	8-97857-844-0	01	1	0201-0501		●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) (B)	8-97857-844-1	01	1	0502-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-97161-847-2	01	1	0201-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-97180-995-0	01	1	0805-	●
314	03.417 WASHER; PL,AIR INT DUCT 16.335 ID=10.2 T=3.2	8-94279-642-0	02	1	0201-0501		●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2	8-94279-642-0	02	1	0502-1204		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	02	1	1205-		●
320	03.417 HOSE; CONN,ACL	8-97103-346-3	01	1	0201-		●
320	03.417 HOSE; CONN,ACL	8-98000-873-1	01	1	0805-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-97081-886-0	02	1	0201-0501		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0502-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0502-		●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	05	1	0201-0501		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE	8-94279-517-0	05	1	0502-0910		●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	05	1	0911-		●
477	03.417 SCREW; COVER 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0201-0604		●
477	03.417 SCREW; COVER 4HF1 ENG(RLS) 02.895 M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-0804		●
477	03.417 SCREW; COVER 02.895 M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0805-		●

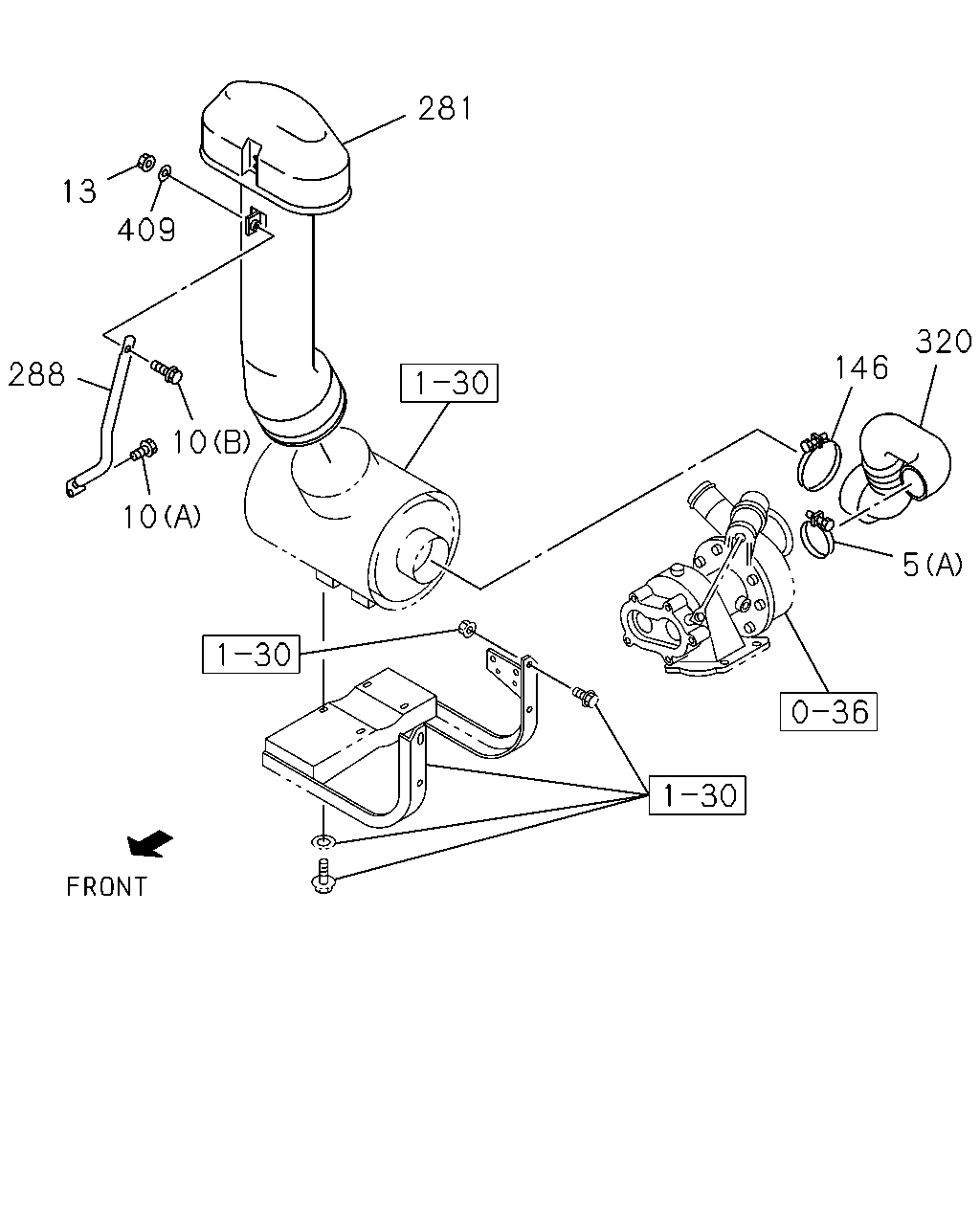

281 13 409 320 146 288 10 10 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HK1 ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=70-90	8-98122-372-0	01	1	1002-	●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0201-0501		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) (B) D=101.6	9-09915-502-1	01	1	0502-0804		●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0805-		●
5	03.407 CLIP; AIR DUCT (A) ID=68-85	1-09707-202-0	01	1	0805-0810	●
5	03.407 CLIP; AIR DUCT (A) ID=65-85	8-98133-350-0	01	1	0811-1001	●
5	03.407 CLIP; AIR DUCT 4HK1 ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=65-85	8-98133-350-0	01	1	1002-	●
10	03.417 BOLT; BRKT FIX 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0805-	●
10	03.417 BOLT; BRKT FIX 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0805-	●
13	03.417 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●
146	03.417 CLIP; HOSE,ACL 03.008 ID=95	9-09915-733-1	01	1	0201-0501		●
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0502-		●
146	03.417 CLIP; HOSE,ACL 03.407 ID=112	9-09915-074-1	01	1	0805-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97161-847-2	01	1	0201-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-97180-995-0	01	1	0805-	●
288	03.417 BRACKET; DUCT	8-97183-041-2	01	1	0805-	●
320	03.417 HOSE; CONN,ACL	8-97103-346-3	01	1	0201-		●
320	03.417 HOSE; CONN,ACL	8-98000-873-1	01	1	0805-	●	●
409	03.417 WASHER; PL,BRKT 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0805-	●
