6-32 — FRONT DOOR LOCK AND HANDLE (#17712) — 27 parça

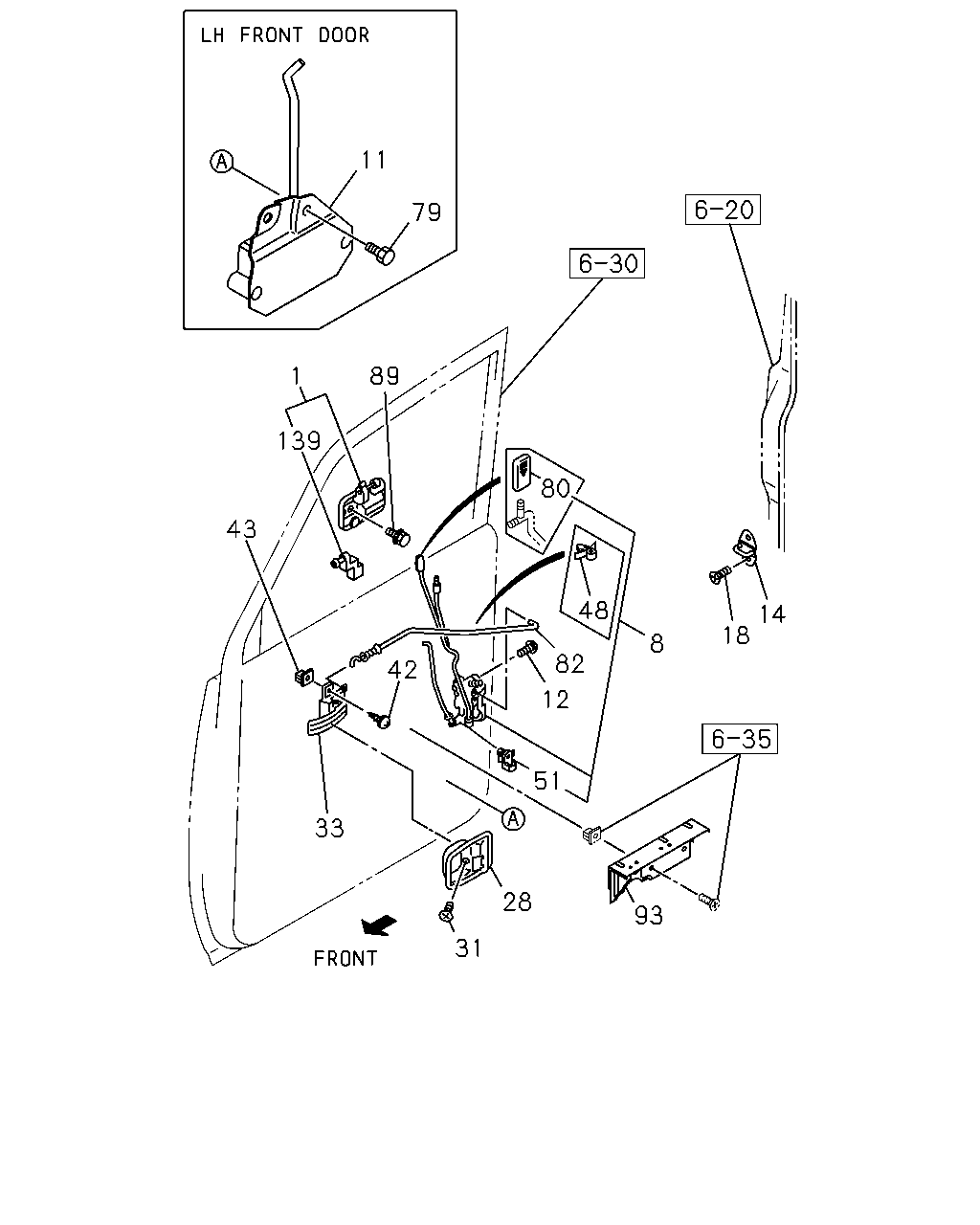

çizim 50748
11 79 89 1 139 80 43 48 14 18 8 82 12 42 51 33 93 28 31
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR 8-94474-031-3 01 1 0009-
1 HANDLE; OUTSIDE,FRT DOOR 8-94474-030-3 01 1 0009-
8 LOCK; DOOR,FRT DOOR
THA 		8-97910-926-0 01 1 0009-
8 LOCK; DOOR,FRT DOOR
THA 		8-97910-927-0 01 1 0009-
11 ACTUATOR; DOOR LK,FRT 8-97141-949-0 01 1 0009-
12 SCREW; DOOR LK
M6X16 OVAL-HD 		8-94172-523-0 06 1 0009-
14 STRIKER; FRT DOOR
THA 		8-97915-292-0 02 1 0009-
18 SCREW; DOOR STRIKER
M8X20 		9-03097-820-0 04 1 0009-
28 BEZEL; INSIDE LEVER,FRT DOOR
THA 		8-97916-629-0 01 1 0009-
28 BEZEL; INSIDE LEVER,FRT DOOR
THA 		8-97916-623-0 01 1 0009-
31 SCREW; BEZEL,INSIDE LEVER
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 0009-
33 LEVER ASM; INSIDE,FRT DOOR
THA 		8-97915-231-0 01 1 0009-
33 LEVER ASM; INSIDE,FRT DOOR
THA 		8-97915-230-0 01 1 0009-
42 SCREW; TAPPING,INSIDE LEVER
M6X16 		9-09829-197-0 04 1 0009-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
THA 		8-97910-931-0 04 1 0009-
48 ANTIRATTLER; DOOR LINK
ID=3.8 WHITE 		8-94217-699-0 02 1 0009-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-585-0 03 1 0009-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-586-0 03 1 0009-
79 BOLT; DOOR LK ACTUATOR
M6X8 THA 		8-94155-893-0 02 1 0009-
80 KNOB; DOOR LOCK
THA 		8-97913-280-0 02 1 0009-
82 LINK; DOOR INSIDE 8-97081-276-1 01 1 0009-
82 LINK; DOOR INSIDE 8-97081-275-1 01 1 0009-
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 THA 		8-94155-893-0 04 1 0009-
93 BRACKET; BOX,DOOR
THA 		8-97911-009-0 01 1 0009-
93 BRACKET; BOX,DOOR
THA 		8-97911-008-0 01 1 0009-
139 HOLDER; ROD,DOOR HANDLE 8-97102-756-0 01 1 0009-
139 HOLDER; ROD,DOOR HANDLE 8-97102-755-0 01 1 0009-
