◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#17711) — 24 parça

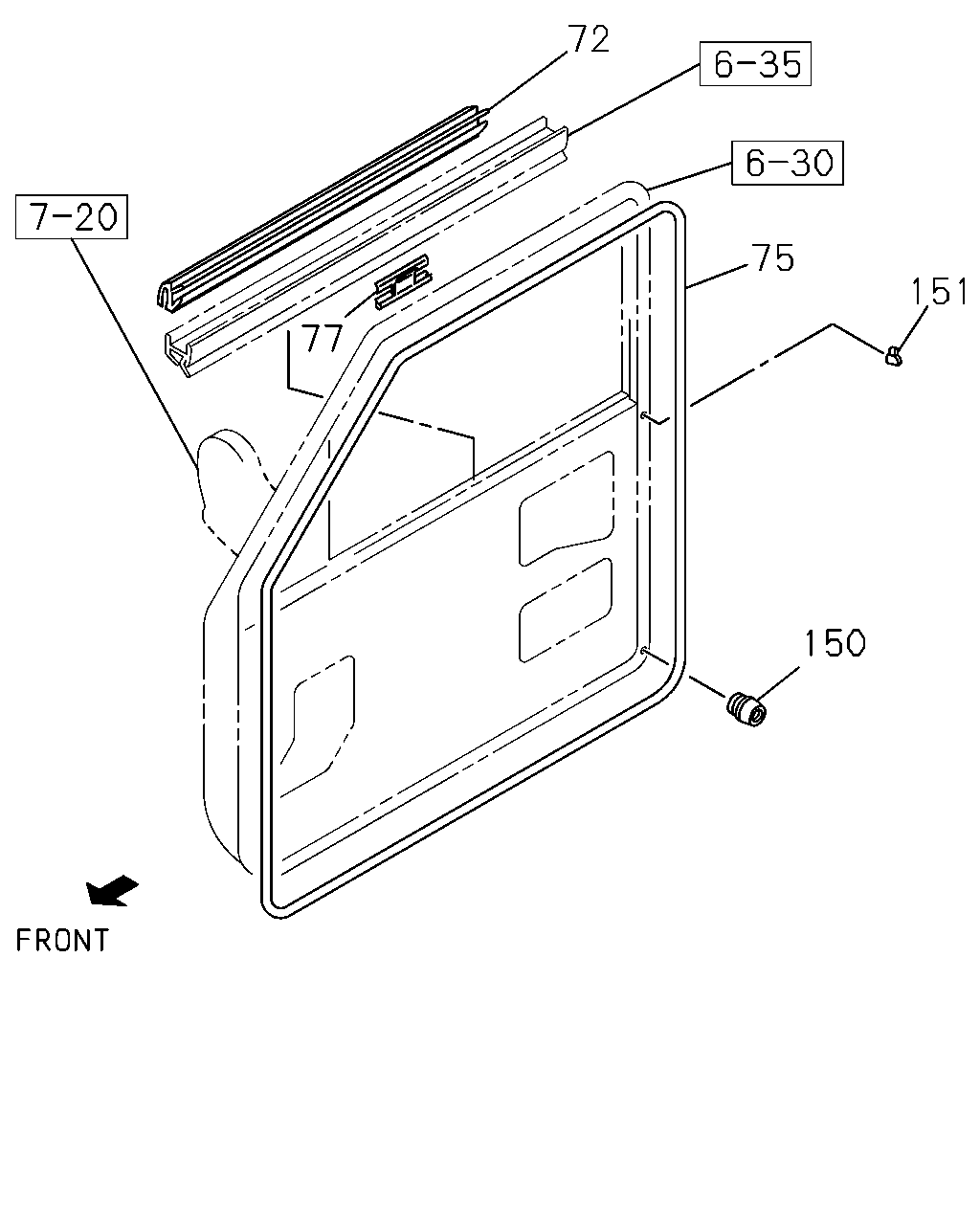

çizim 49791
72 75 151 77 150
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
THA 		8-97913-466-0 01 1 0009-
72 SEAL; WAIST,FRT DOOR
THA 		8-97913-465-0 01 1 0009-
75 WEATHERSTRIP; FRT DOOR
THA 		8-97910-418-2 01 1 0009-
75 WEATHERSTRIP; FRT DOOR
THA 		8-97910-419-2 01 1 0009-
75 WEATHERSTRIP; FRT DOOR
THA 		8-97920-931-1 01 1 0009-
75 WEATHERSTRIP; FRT DOOR
THA 		8-97920-930-1 01 1 0009-
77 CLIP; WAIST SEAL,DOOR 8-97084-593-0 02 1 0009-
150 BUFFER; FRT DOOR 8-94341-913-2 02 1 0009-
151 BUFFER; DOOR UPR 8-97026-103-1 02 1 0009-
çizim 49833
7 68 1 78 27 187 21 25
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
THA 		8-97918-854-0 01 1 0009-
1 GLASS; FRT DOOR
THA 		8-97918-853-0 01 1 0009-
7 GLASS RUN; FRT DOOR
THA 		8-97915-277-1 01 1 0009-
7 GLASS RUN; FRT DOOR
THA 		8-97915-276-1 01 1 0009-
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-882-1 01 1 0009-0211
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97358-133-0 01 1 0212-
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-881-1 01 1 0009-0211
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97358-132-0 01 1 0212-
25 BOLT; WINDOW REG
M6X8 THA 		8-94155-893-0 14 1 0009-
27 BOLT; GLASS FIX
M6X8 THA 		8-94155-893-0 04 1 0009-
68 SCREW; VENTILATOR
M4X12 OVAL-HEAD 		9-93297-412-0 04 1 0009-
78 RAIL; FRT GUIDE
THA 		8-97918-420-1 01 1 0009-
78 RAIL; FRT GUIDE
THA 		8-97918-419-1 01 1 0009-
187 REGULATOR ASM; DOOR 8-97165-880-2 01 1 0009-
187 REGULATOR ASM; DOOR 8-97165-879-2 01 1 0009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
