◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#17709) — 94 parça

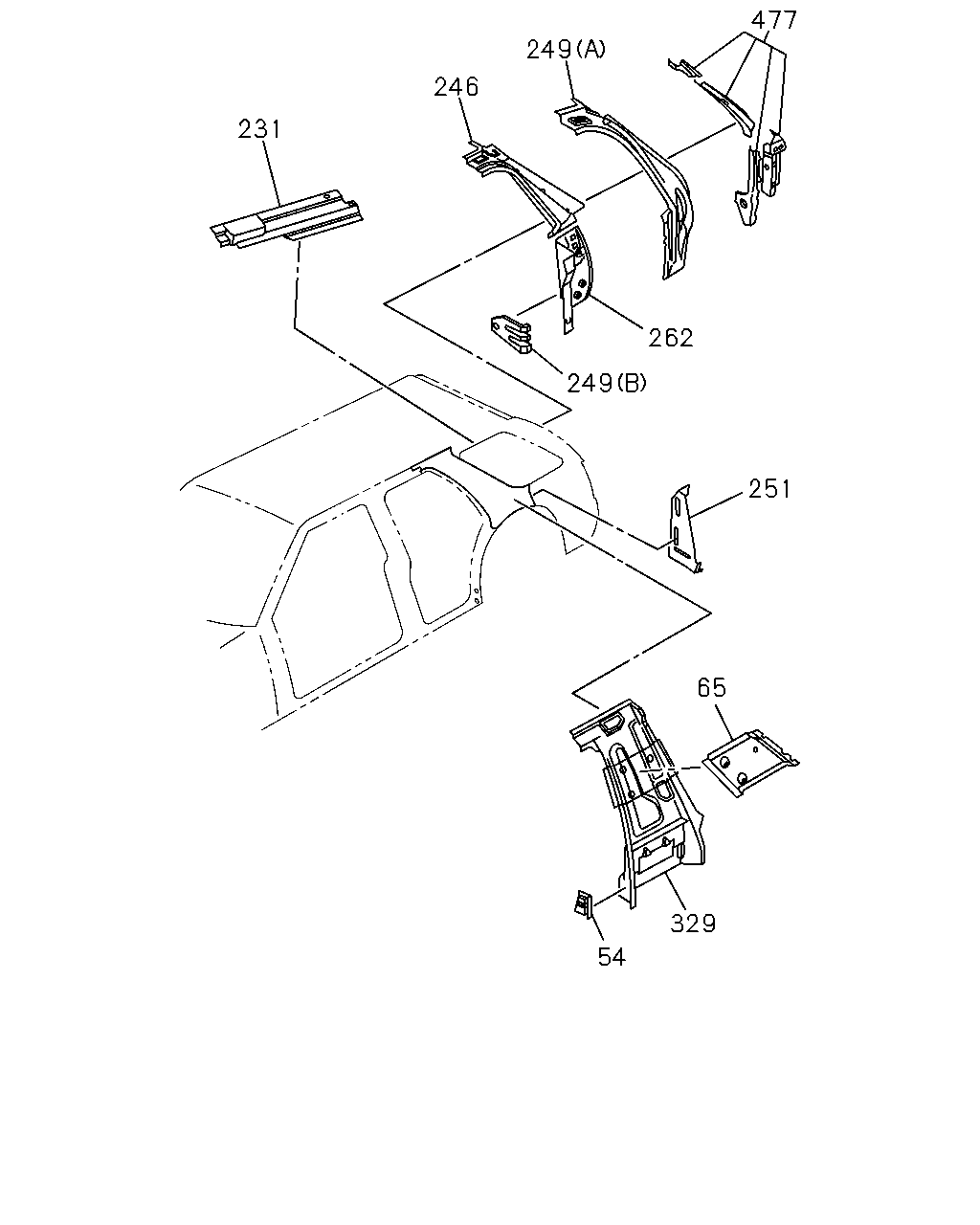

çizim 9962
477 249 246 231 262 249 251 65 329 54
BalonParca AdiParca NoAdetTipApplied Date
54 PATCH; DOOR STRIKER
USA 		8-97084-254-0 01 1 0009-
54 PATCH; DOOR STRIKER
USA 		8-97084-253-0 01 1 0009-
65 PANEL; QUARTER,INNER
USA 		8-94326-989-2 01 1 0009-
65 PANEL; QUARTER,INNER
USA 		8-94326-988-2 01 1 0009-
231 REINFORCEMENT; ROOF RAIL,SIDE
USA 		8-94326-991-0 01 1 0009-
231 REINFORCEMENT; ROOF RAIL,SIDE
USA 		8-94326-990-0 01 1 0009-
246 PANEL; RR PILLAR,INNER
USA 		8-94316-542-3 01 1 0009-
246 PANEL; RR PILLAR,INNER
USA 		8-94316-541-3 01 1 0009-
249 REINFORCEMENT; RR PILLAR
(A) USA 		8-94316-556-0 01 1 0009-
249 REINFORCEMENT; RR PILLAR
(B) USA 		8-97100-140-0 01 1 0009-
249 REINFORCEMENT; RR PILLAR
(A) USA 		8-94316-555-0 01 1 0009-
249 REINFORCEMENT; RR PILLAR
(B) USA 		8-97100-102-0 01 1 0009-
251 EXTENSION; QUARTER PILLAR LWR
USA 		8-94331-659-1 01 1 0009-
251 EXTENSION; QUARTER PILLAR LWR
USA 		8-94331-658-0 01 1 0009-
262 PANEL; PILLAR
USA 		8-97084-255-0 01 1 0009-
262 PANEL; PILLAR
USA 		8-97084-329-0 01 1 0009-
329 REINFORCEMENT; RR PILLAR OUTER
THA 		8-97914-428-0 01 1 0009-
329 REINFORCEMENT; RR PILLAR OUTER
THA 		8-97914-427-0 01 1 0009-
477 EXTENSION; RR PILLAR,OUTER
THA 		8-97917-974-0 01 1 0009-
477 EXTENSION; RR PILLAR,OUTER
THA 		8-97917-973-0 01 1 0009-

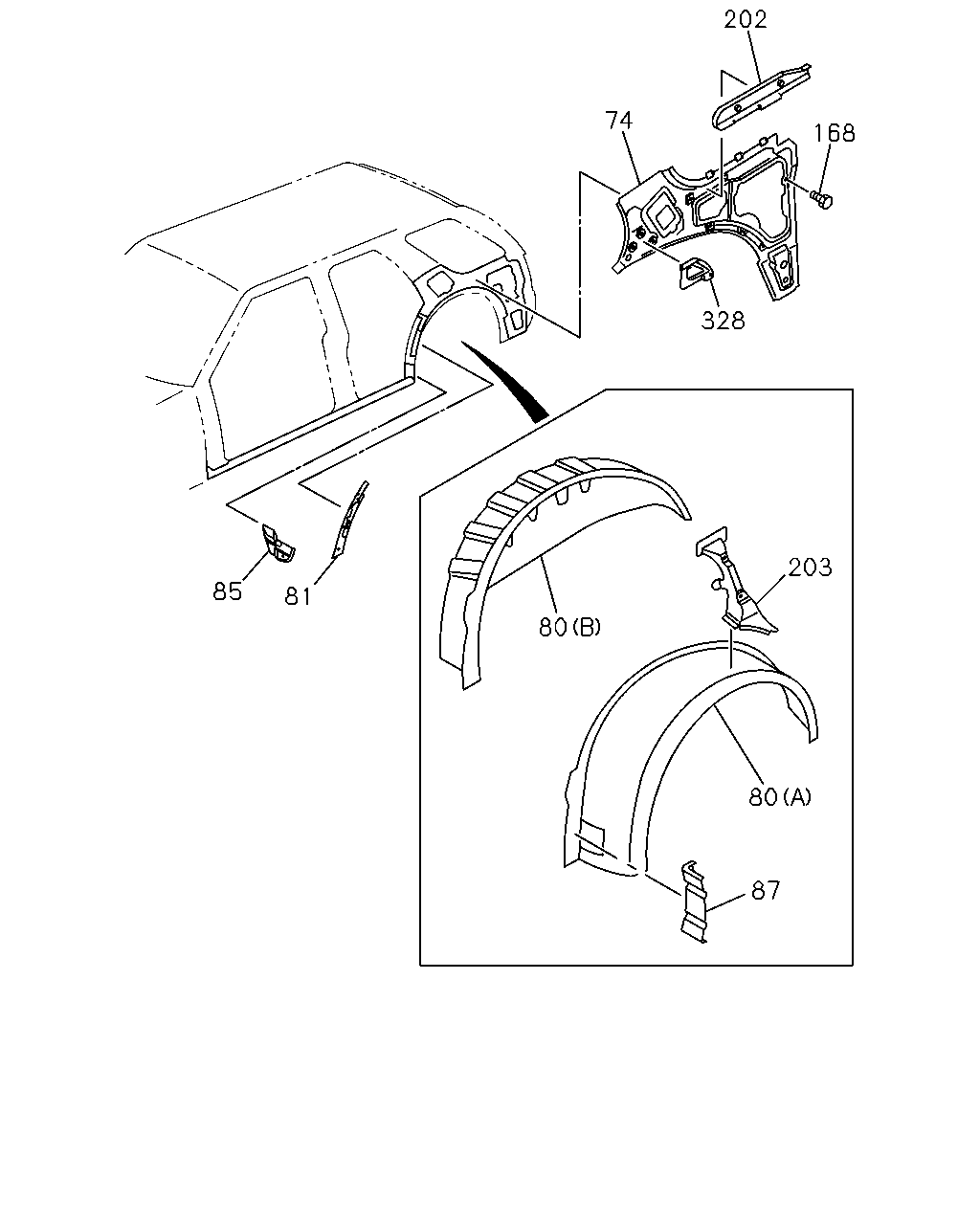

çizim 48000
202 74 168 328 203 85 81 80 80 87
BalonParca AdiParca NoAdetTipApplied Date
74 PANEL; SIDE INNER,RR
USA 		8-94326-977-5 01 1 0009-
74 PANEL; SIDE INNER,RR
USA 		8-94326-976-3 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(A) USA 		8-94316-574-3 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(B) USA 		8-94316-582-0 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(A) USA 		8-94316-573-4 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(B) USA 		8-94316-581-0 01 1 0009-
81 PANEL; SIDE,INNER,FRT
USA 		8-94328-310-1 01 1 0009-
81 PANEL; SIDE,INNER,FRT
USA 		8-94328-309-1 01 1 0009-
85 CLOSING; ROCKER
THA 		8-97914-076-0 01 1 0009-
85 CLOSING; ROCKER
THA 		8-97914-075-0 01 1 0009-
87 REINFORCEMENT; SEAT BELT,RETRACTOR
USA 		8-94316-575-0 02 1 0009-
168 BOLT; BODY SIDE PANEL
M6X16 W/PL WASHER 		8-94199-279-1 08 1 0009-
202 REINFORCEMENT; SPARE TIRE BRKT
USA 		8-94328-791-1 01 1 0009-
203 SUPPORT; SPARE TIRE BRKT
USA 		8-94371-073-2 01 1 0009-
328 BRACKET; RR SEAT STRIKER
USA 		8-94326-979-5 01 1 0009-
328 BRACKET; RR SEAT STRIKER
USA 		8-94326-978-5 01 1 0009-

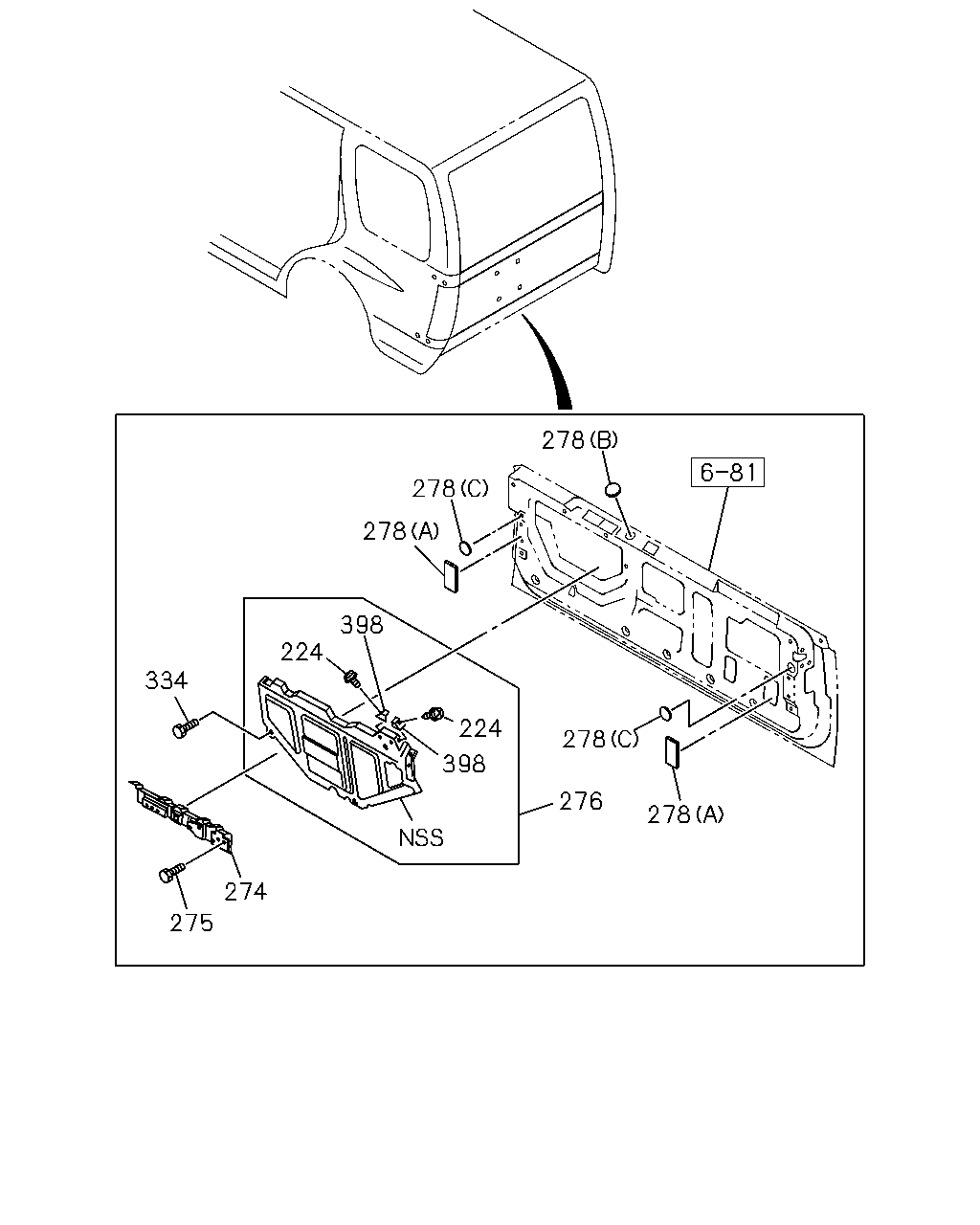

çizim 48493
278 278 278 398 224 334 224 398 278 276 278 274 275
BalonParca AdiParca NoAdetTipApplied Date
224 SCREW; COVER
THA 		8-97914-347-0 04 1 0009-
274 PANEL; EXT,TAIL GATE
THA 		8-97914-093-0 01 1 0009-
275 BOLT; EXT PANEL
M6X8 THA 		8-94155-893-0 03 1 0009-
276 COVER; TAIL GATE INNER
THA 		8-97914-092-2 01 1 0009-
278 PATCH; WATER PROOF
(A) THA 		8-94379-555-0 02 1 0009-
278 PATCH; WATER PROOF
(B) D=45 T=0.08 THA 		8-94440-896-0 01 1 0009-
278 PATCH; WATER PROOF
(C) OD=30 		8-97040-577-0 02 1 0009-
334 BOLT; COVER
M6X8 THA 		8-94155-893-0 07 1 0009-
398 STOPPER; HATCH GLASS
USA 		8-97048-894-0 01 1 0009-
398 STOPPER; HATCH GLASS
USA 		8-97048-893-0 01 1 0009-

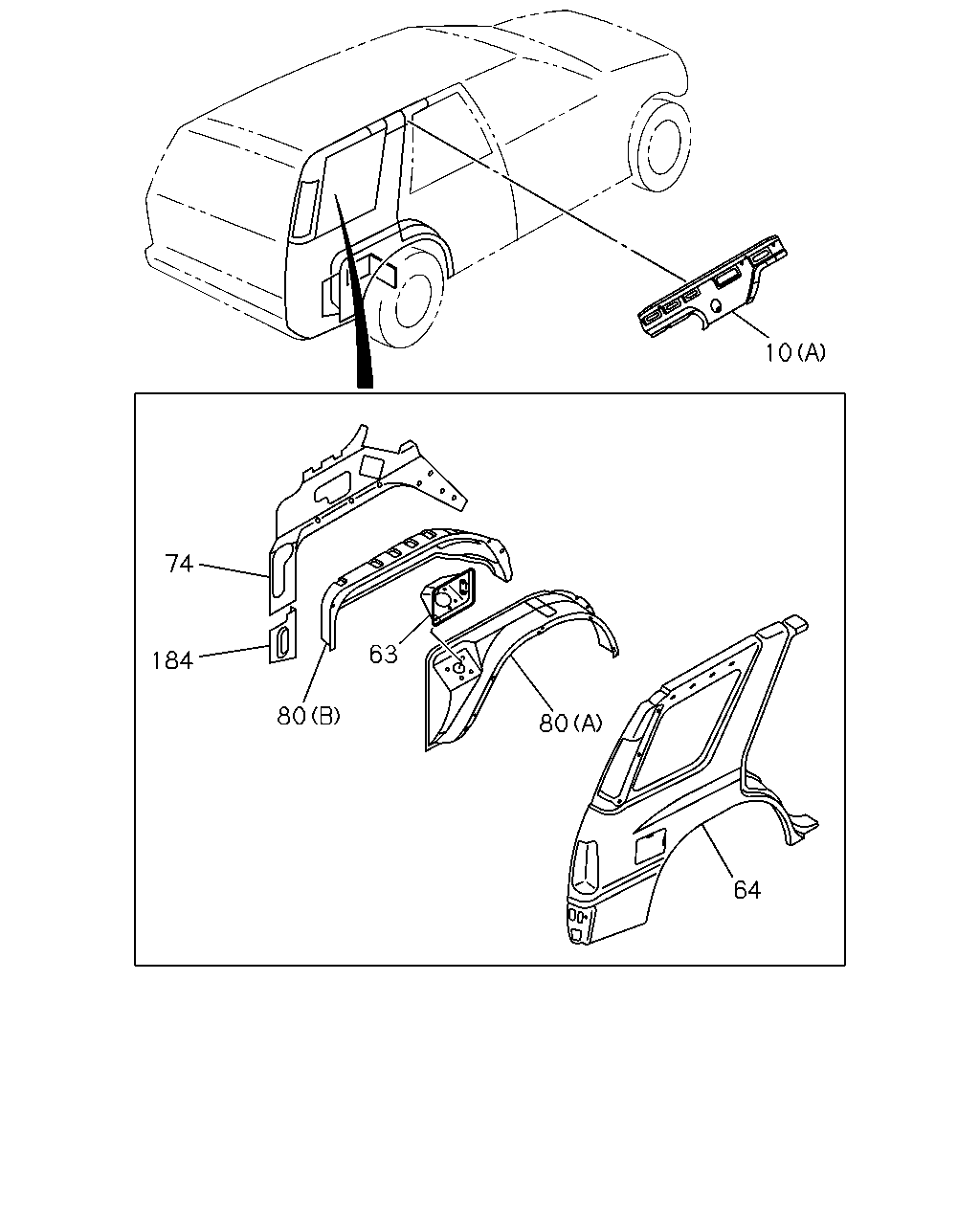

çizim 48537
10 74 63 184 80 80 64
BalonParca AdiParca NoAdetTipApplied Date
10 CLOSING; ROOF SIDE
(A) USA 		8-97100-135-0 01 1 0009-
10 CLOSING; ROOF SIDE
(B) THA 		8-97914-082-0 01 1 0009-
10 CLOSING; ROOF SIDE
(A) USA 		8-97100-095-0 01 1 0009-
10 CLOSING; ROOF SIDE
(B) THA 		8-97914-081-0 01 1 0009-
63 PANEL; FUEL FILLER RECESS 8-97183-894-1 01 1 0009-
64 PANEL; QUARTER OUTER
USA 		8-97170-313-0 01 1 0009-
64 PANEL; QUARTER OUTER
USA 		8-97089-242-1 01 1 0009-
74 PANEL; SIDE INNER,RR
USA 		8-94326-977-5 01 1 0009-
74 PANEL; SIDE INNER,RR
USA 		8-94326-976-3 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(A) USA 		8-94316-574-3 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(B) USA 		8-94316-582-0 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(A) USA 		8-94316-573-4 01 1 0009-
80 PANEL; WHEEL HOUSE,INNER
(B) USA 		8-94316-581-0 01 1 0009-
184 PANEL; SIDE,INNER,LOW
USA 		8-94316-524-2 01 1 0009-

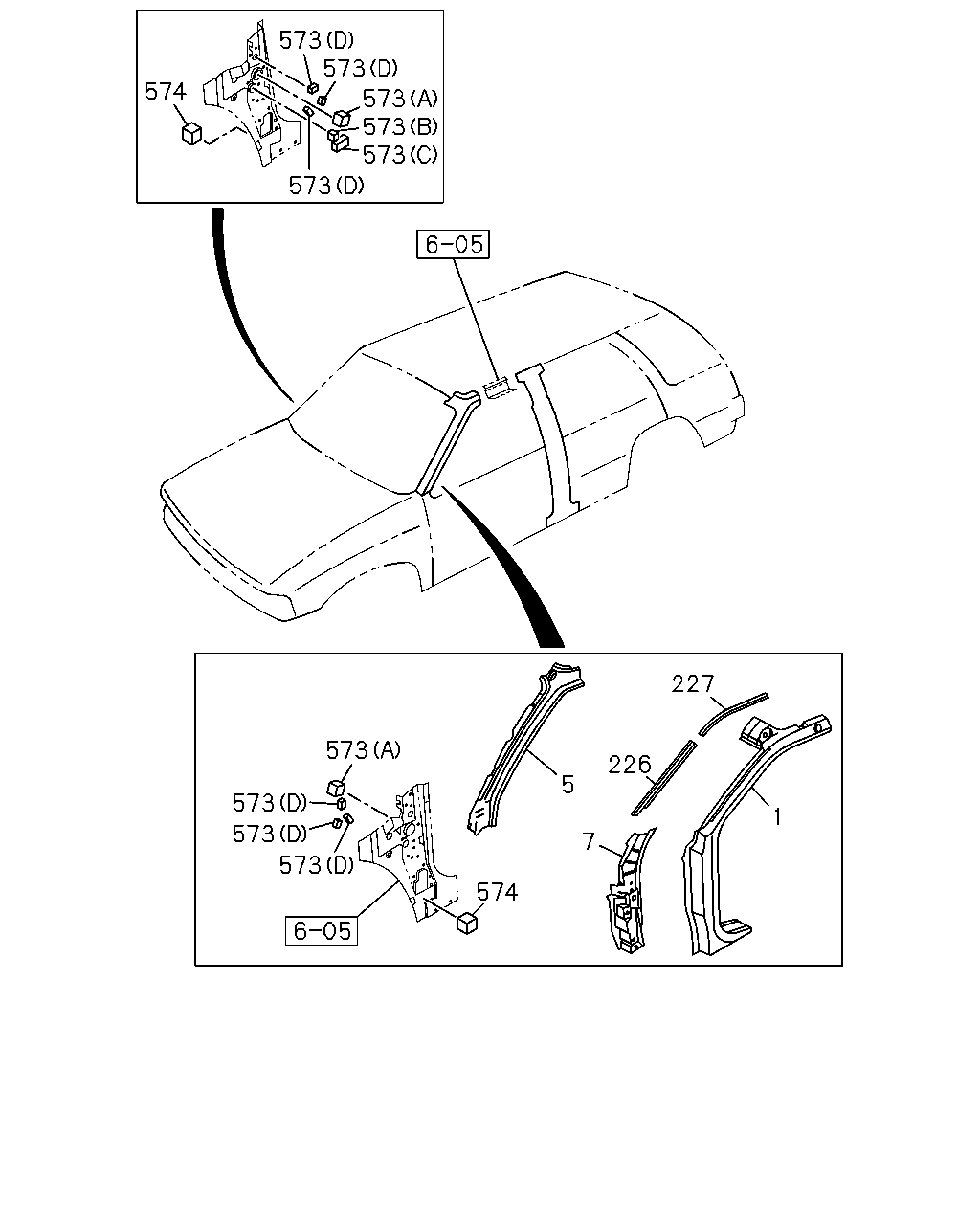

çizim 50456
573 573 573 573 573 573 574 227 573 226 5 573 573 573 1 7 574
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; A-POST OUTER ASM,UPR
THA 		8-97914-416-0 01 1 0009-
1 PANEL; A-POST OUTER ASM,UPR
THA 		8-97914-415-0 01 1 0009-
5 CLOSING ASM; A-POST
THA 		8-97103-536-0 01 1 0009-
5 CLOSING ASM; A-POST
THA 		8-97103-533-0 01 1 0009-
7 REINFORCEMENT; HINGE 8-97179-649-0 01 1 0009-
7 REINFORCEMENT; HINGE 8-97179-648-0 01 1 0009-
226 RAIL; DRIP,FRT PILLAR 8-94435-595-3 01 1 0009-
226 RAIL; DRIP,FRT PILLAR 8-94435-594-3 01 1 0009-
227 RAIL; DRIP,ROOF SIDE FRT
THA 		8-97091-122-0 01 1 0009-
227 RAIL; DRIP,ROOF SIDE FRT
THA 		8-97091-121-0 01 1 0009-
573 SEAL; NOISE,DASH SIDE
(A) 70X70 THA 		8-97919-354-0 02 1 0009-
573 SEAL; NOISE,DASH SIDE
(B) 45X45 THA 		8-97919-355-0 01 1 0009-
573 SEAL; NOISE,DASH SIDE
(C) 92X55 THA 		8-97919-356-0 01 1 0009-
573 SEAL; NOISE,DASH SIDE
(D) 27X40 THA 		8-97919-357-0 06 1 0009-
574 SPACER; DASH SIDE
THA 		8-97919-438-0 02 1 0009-

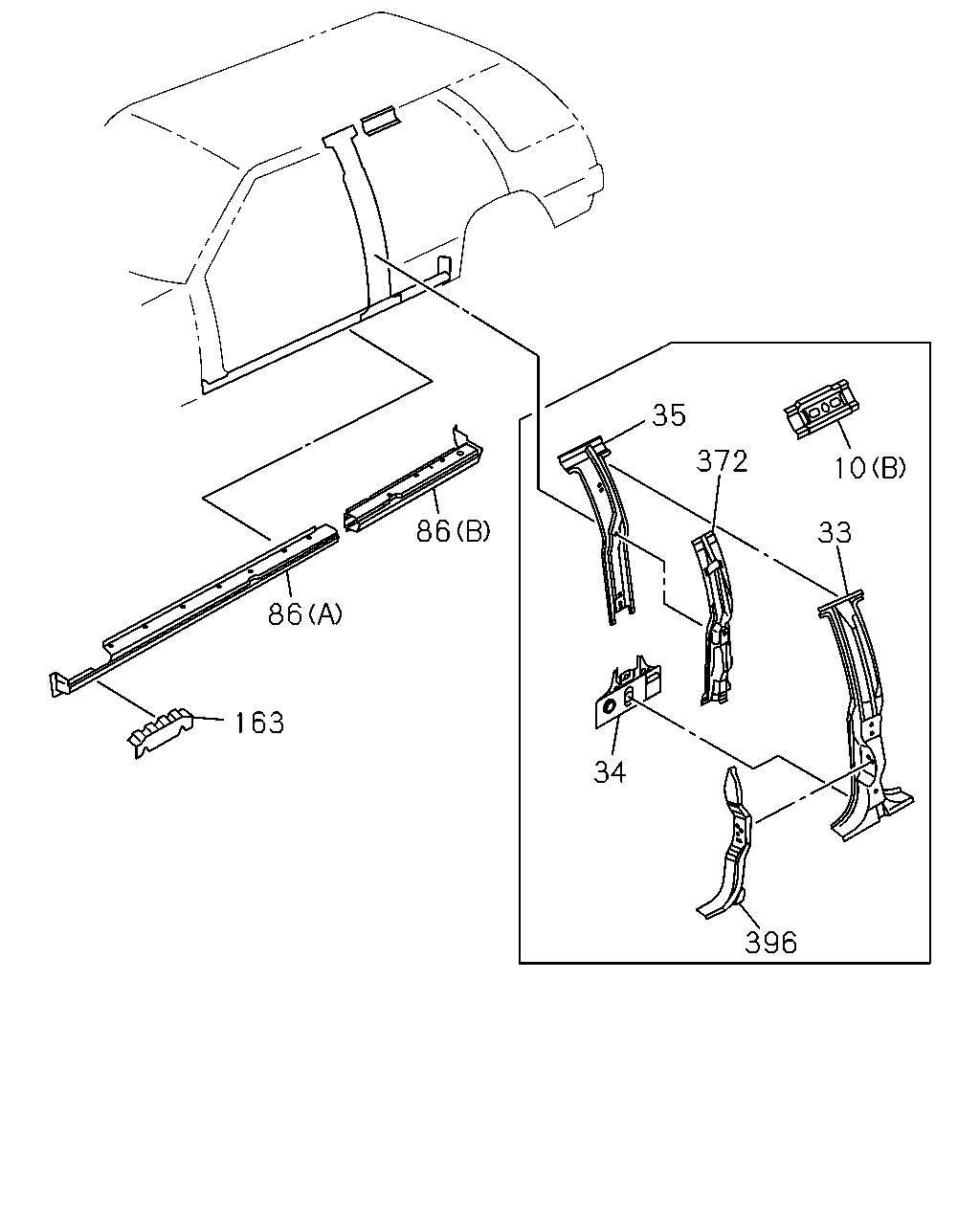

çizim 51926
35 372 10 86 33 86 163 34 396
BalonParca AdiParca NoAdetTipApplied Date
10 CLOSING; ROOF SIDE
(A) USA 		8-97100-135-0 01 1 0009-
10 CLOSING; ROOF SIDE
(B) THA 		8-97914-082-0 01 1 0009-
10 CLOSING; ROOF SIDE
(A) USA 		8-97100-095-0 01 1 0009-
10 CLOSING; ROOF SIDE
(B) THA 		8-97914-081-0 01 1 0009-
33 PANEL; CENTER PILLAR,OUTER
THA 		8-97914-063-0 01 1 0009-
33 PANEL; CENTER PILLAR,OUTER
THA 		8-97914-062-0 01 1 0009-
34 PANEL; CENTER PILLAR,INNER LWR
THA 		8-97913-674-0 01 1 0009-
34 PANEL; CENTER PILLAR,INNER LWR
THA 		8-97913-673-0 01 1 0009-
35 PANEL; CENTER PILLAR,INNER
THA 		8-97913-881-0 01 1 0009-
35 PANEL; CENTER PILLAR,INNER
THA 		8-97913-880-0 01 1 0009-
86 PANEL; ROCKER OUTER
(A) THA 		8-97920-827-0 01 1 0009-
86 PANEL; ROCKER OUTER
(B) THA 		8-97920-829-0 01 1 0009-
86 PANEL; ROCKER OUTER
(A) THA 		8-97920-826-0 01 1 0009-
86 PANEL; ROCKER OUTER
(B) THA 		8-97920-828-0 01 1 0009-
163 PATCH; CAB CENTER MTG
THA 		8-94481-092-2 02 1 0009-
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97914-422-0 01 1 0009-
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97914-421-0 01 1 0009-
396 PANEL; SEAL PLATE
THA 		8-97914-065-0 01 1 0009-
396 PANEL; SEAL PLATE
THA 		8-97914-064-0 01 1 0009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
